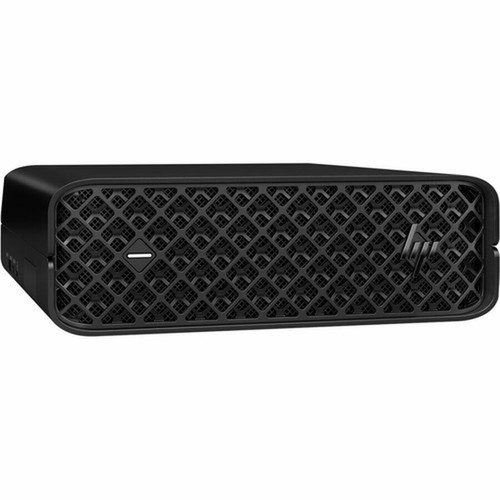

HP A5BJ5UA#ABA Z2 Mini G9 Workstation - Intel Core i7-14700 14th Gen - 32GB DDR5 - 1TB NVMe SSD - RTX 4000 Ada 20GB - Linux - Mini PC
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
At the heart of the Z2 Mini G9 is the Intel Core i7-14700 processor, featuring an Icosa-core (20-core) design with 28 threads and a base clock of 2.10 GHz. This 14th Gen CPU, paired with the Intel W680 chipset, provides a robust foundation for workstation applications, supporting advanced memory and storage technologies.
The system includes 32 GB of DDR5 SDRAM operating at 5.60 GHz, with two memory slots allowing expansion up to 64 GB. Storage is handled by a 1 TB PCI Express NVMe 4.0 x4 SSD, which offers high sequential read/write speeds and supports RAID 0 and 1 configurations via the integrated NVMe controller for data redundancy or performance striping.
Relevant factors for this section include Number of Processors Supported, Number of Processors Installed, Processor Type, Chipset Manufacturer. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
This workstation combines high-density computing with a miniaturized form factor, offering substantial power in a space-saving design. The inclusion of professional NVIDIA RTX 4000 Ada graphics ensures certified driver support for leading CAD, DCC, and scientific applications, providing stability and performance optimizations not always available with consumer-grade GPUs.
Compact Professional Power
The mini PC form factor, measuring just 2.72" x 8.31" x 8.58", allows deployment in space-constrained environments like lab benches, media consoles, or crowded offices without sacrificing workstation capabilities.
- Small footprint saves desk space
- Easy to mount or tuck away
- Full workstation performance in a mini chassis
Advanced Connectivity Suite
Dual SuperSpeed USB Type-C® 20Gbps ports provide high-speed data transfer and peripheral connectivity, while four Mini DisplayPort outputs enable multi-monitor setups for expanded digital workspace.
- 2x USB-C 20Gbps for fast data transfer
- 4x Mini DisplayPort for multi-display support
- 10 Gigabit Ethernet for high-speed network access
Deployment / Use Cases
The HP Z2 Mini G9 is designed for technical professionals who require reliable, high-performance computing in environments where physical space is at a premium. Its balanced configuration of CPU, GPU, and fast storage makes it suitable for a range of compute-intensive tasks.
In engineering and design offices, it serves as a capable desktop for CAD operators, finite element analysis, and 3D rendering. Research laboratories can utilize it for data processing, simulation, and visualization workloads. Media production teams benefit from its graphics power for video editing, color grading, and motion graphics within a compact edit bay or control room setup.
Engineering & Design Workstation
Run applications like Autodesk AutoCAD, Siemens NX, or Dassault Systèmes SOLIDWORKS with certified NVIDIA RTX drivers for optimal stability and performance in 3D modeling and simulation.
Scientific Data Analysis Node
Process large datasets, perform computational analysis, and visualize results in fields like bioinformatics, computational chemistry, or financial modeling, leveraging the multi-core CPU and ample memory.
Localization and Operating System
This workstation ships with a pre-installed Linux operating system, providing a stable, open-source platform favored by developers, researchers, and IT departments for its security, flexibility, and lack of licensing fees. The Linux environment is well-suited for technical computing, server-side development, and scientific applications that run natively on Unix-like systems.
The system's hardware is fully compatible with major Linux distributions, and the NVIDIA RTX 4000 Ada graphics card includes professional driver support for Linux, ensuring reliable operation with GPU-accelerated workloads in this ecosystem.
Relevant factors for this section include Number of Processors Supported, Number of Processors Installed, Processor Type, Chipset Manufacturer. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Physical Profile
The Z2 Mini G9 adopts a mini PC form factor with dimensions of 2.72" (69 mm) in height, 8.31" (211 mm) in width, and 8.58" (218 mm) in depth, weighing approximately 5.29 lb (2400 g). Its compact, rectangular chassis is designed for flexible placement—it can stand vertically or lie flat, and is suitable for mounting behind monitors or under desks using optional VESA brackets.
The enclosure features a professional, understated design with efficient airflow managed by an internal air cooling system. The small footprint makes it an ideal choice for offices, labs, or studios where desk space is limited but full workstation performance is required.
- Width
- 8.31" (211 mm)
- Depth
- 8.58" (218 mm)
- Height
- 2.72" (69 mm)
- Weight
- 5.29 lb (2400 g)
What's in the Box
The workstation arrives ready for setup with all essential components included.
Package contents include Z2 Mini G9 Workstation Keyboard Mouse Power Adapter, Z2 Mini G9 Workstation. These included items support setup, installation, and immediate deployment without needing to source the core bundled accessories separately.
Highlights
- Intel Core i7-14700 14th Gen processor with 20 cores and 28 threads for heavy multitasking
- 32 GB of DDR5 SDRAM running at 5.60 GHz for fast data access and smooth application performance
- 1 TB PCI Express NVMe 4.0 x4 SSD delivers high-speed storage with RAID 0/1 support
- NVIDIA RTX 4000 Ada professional graphics with 20 GB dedicated GDDR6 memory
- Compact mini PC form factor saves valuable desk space while delivering full workstation power
- 10 Gigabit Ethernet, Wi-Fi, and Bluetooth provide versatile wired and wireless connectivity
- Linux operating system pre-installed for a stable, open-source computing environment
- Includes keyboard, mouse, and power adapter for immediate out-of-box setup
Specifications
| Specifications | |
|---|---|
| Manufacturer | HP Inc. |
| Manufacturer Part Number | A5BJ5UA#ABA |
| Brand Name | HP |
| Product Series | Z2 Mini G9 |
| Product Name | Z2 Mini G9 Workstation |
| Product Type | Workstation |
| Processor | |
| Number of Processors Supported | 1 |
| Number of Processors Installed | 1 |
| Processor Type | Core i7 |
| Processor Generation | 14th Gen |
| Processor Model | i7-14700 |
| Processor Core | Icosa-core (20 Core) |
| Processor Threads | 28 |
| Processor Speed | 2.10 GHz |
| Processor Socket | Socket LGA-1700 |
| vPro Technology | No |
| Chipset | |
| Chipset Manufacturer | Intel |
| Chipset Model | W680 |
| Memory | |
| Standard Memory | 32 GB |
| Maximum Memory Supported | 64 GB |
| Memory Technology | DDR5 SDRAM |
| Total Number of Memory Slots | 2 |
| Memory Clock Speed | 5.60 GHz |
| Memory Configuration | 1 x 32GB |
| Error Checking | Non-ECC |
| Storage | |
| Drive Type | SSD |
| Total Solid State Drive Capacity | 1 TB |
| Solid State Drive Interface | PCI Express NVMe 4.0 x4 |
| Controllers | |
| Controller Type | NVMe |
| RAID Supported | Yes |
| RAID Levels | 0, 1 |
| Display & Graphics | |
| Graphics Controller Model | RTX 4000 Ada |
| Graphics Memory Capacity | 20 GB |
| Graphics Memory Accessibility | Dedicated |
| Network & Communication | |
| Ethernet Technology | 10 Gigabit Ethernet |
| Wireless LAN | Yes |
| Bluetooth | Yes |
| Interfaces/Ports | |
| Total Number of USB Ports | 6 |
| USB Type-C | Yes |
| USB Type-C Detail | 2 SuperSpeed USB Type-C® 20Gbps signaling rate |
| DisplayPort | Yes |
| Mini DisplayPort | Yes |
| Number of Mini DisplayPort | 4 |
| Operating System | |
| Operating System Platform | Linux |
| Operating System | Linux |
| Power Description | |
| Input Voltage | 120 V AC,230 V AC |
| Maximum Power Supply Wattage | 280 W |
| Physical Characteristics | |
| Cooler Type | Air Cooler |
| Form Factor | Mini PC |
| Height | 2.72" (69 mm) |
| Width | 8.31" (211 mm) |
| Depth | 8.58" (218 mm) |
| Weight (Approximate) | 5.29 lb (2400 g) |
| Miscellaneous | |
| Package Contents | Z2 Mini G9 Workstation Keyboard Mouse Power Adapter |
| Energy Star | Yes |
| Environmentally Friendly | Yes |
| Environmental Certification | China Environmental United Certification Center (CEC),Electronic Product Environmental Assessment Tool Gold (EPEAT Gold) |
| Energy Efficiency Certification | China Energy Conservation Program (CECP) |
| Energy Efficiency Compliance | Energy-related Products Directive (ErP) |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS),Waste Electrical and Electronic Equipment Directive (WEEE) |
| TCO Certified | Yes |
| Warranty | |
| Limited Warranty | 1 Year |
| Additional Warranty Information | 1 year (1/1/1) limited warranty includes 1 year of parts, labor and on-site repair |
User Manual
FAQ
What processor does this HP workstation use?
This HP Z2 Mini G9 Workstation is equipped with an Intel Core i7-14700 processor from the 14th Gen family. It features an Icosa-core design with 20 physical cores and 28 threads, operating at a base clock speed of 2.10 GHz. This CPU provides substantial multi-threaded performance for demanding applications like 3D rendering, simulation, and data analysis.
How much memory is installed, and can it be upgraded?
The system comes with 32 GB of DDR5 SDRAM installed as a single 32 GB module running at 5.60 GHz. It has two memory slots total, supporting a maximum capacity of 64 GB. You can upgrade by adding a second module or replacing the existing one, though the memory is non-ECC (Error-Correcting Code) type.
What type of storage does this workstation have?
It includes a 1 TB solid-state drive (SSD) using the PCI Express NVMe 4.0 x4 interface. This NVMe SSD offers high sequential read and write speeds, significantly faster than traditional SATA SSDs. The storage controller supports RAID 0 and RAID 1 configurations, allowing for performance striping or data mirroring if additional drives are added.
Is the graphics card suitable for professional applications?
Yes, the NVIDIA RTX 4000 Ada is a professional-grade graphics card with 20 GB of dedicated GDDR6 memory. It features certified drivers for major CAD, DCC, and scientific applications, ensuring stability and optimized performance in software like Autodesk Maya, SOLIDWORKS, and MATLAB. This makes it ideal for 3D modeling, rendering, and GPU-accelerated computing tasks.
What operating system is pre-installed?
This workstation comes with Linux pre-installed as the operating system. Linux provides a robust, secure, and open-source platform that is widely used in development, research, and enterprise environments. It is compatible with the hardware components, including the NVIDIA RTX graphics card, which has professional driver support for Linux.
How compact is this workstation, and where can I place it?
The Z2 Mini G9 has a mini PC form factor with dimensions of 2.72" high, 8.31" wide, and 8.58" deep, weighing about 5.29 lb. Its small size allows flexible placement on a desk, mounted behind a monitor using a VESA bracket, or tucked away in a compact space. This design saves desk area while still delivering full workstation performance.
