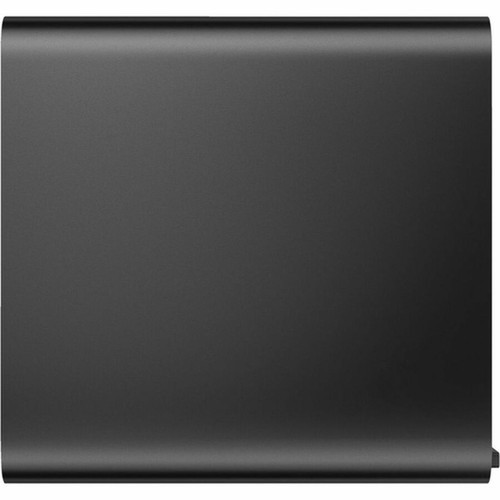

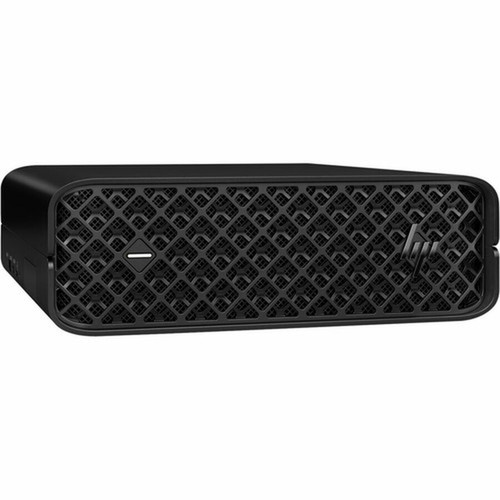

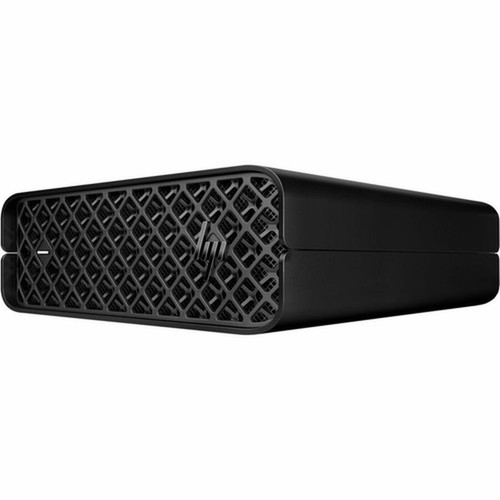

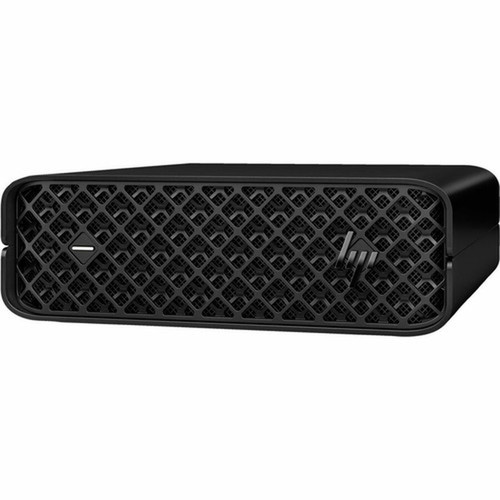

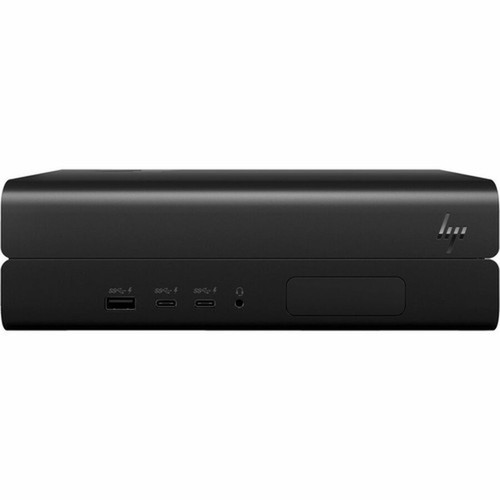

HP A5BZ1UA#ABA Z2 Mini G9 Workstation - Intel Core i7-14700 14th Gen - 32GB DDR5 RAM - 1TB NVMe SSD - RTX 2000 Ada 16GB - Linux
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
At the core of the Z2 Mini G9 is the Intel Core i7-14700 processor, featuring an Icosa-core (20-core) architecture with 28 threads and a base clock speed of 2.10 GHz. This 14th Gen CPU, paired with the Intel W680 chipset, provides the computational foundation for professional applications, supporting advanced instruction sets and efficient power management for sustained performance.
Memory performance is enhanced by DDR5 SDRAM technology operating at 5.60 GHz, delivering faster data transfer rates compared to previous generations. The system includes one 32 GB module installed in a dual-slot configuration, allowing straightforward expansion to the maximum supported 64 GB capacity as workload demands increase.
Relevant factors for this section include Number of Processors Supported, Number of Processors Installed, Processor Type, Chipset Manufacturer. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
This workstation excels in environments where space constraints cannot compromise performance requirements. The mini PC form factor occupies minimal desk or rack space while delivering full workstation capabilities, making it ideal for crowded labs, broadcast trucks, financial trading floors, or any setting where real estate is at a premium.
Professional Graphics Acceleration
The NVIDIA RTX 2000 Ada GPU provides 16 GB of dedicated GDDR6 memory with 224 GB/s bandwidth, accelerating rendering, AI inference, and compute tasks that benefit from parallel processing.
- CUDA and RT cores for ray tracing
- Professional driver certification
- Multiple display support via Mini DisplayPort
High-Speed Storage Architecture
The PCI Express NVMe 4.0 x4 SSD interface delivers sequential read/write speeds significantly faster than SATA-based storage, reducing load times for large datasets, project files, and virtual machines.
- 1 TB capacity for applications and data
- NVMe controller for low latency
- RAID 0/1 support for data redundancy or performance
Comprehensive Connectivity
Six USB ports include two SuperSpeed USB Type-C® 20Gbps ports for high-bandwidth peripherals, alongside 10 Gigabit Ethernet for network-intensive tasks and wireless options for flexible deployment.
- Four Mini DisplayPort outputs
- Dual-band wireless LAN
- Bluetooth for accessories
Deployment / Use Cases
The Z2 Mini G9 is engineered for professional environments where reliability and performance are non-negotiable. Its compact design and robust specifications make it suitable for deployment in control rooms, medical imaging suites, engineering workstations, and financial analysis stations where multiple units may be clustered in limited spaces.
Software developers and data scientists will appreciate the Linux operating system's stability and the hardware's capacity to run virtual machines, compile large codebases, and process datasets without thermal throttling. The system's 280-watt power supply and efficient 14th Gen architecture ensure consistent operation under sustained loads.
Digital Content Creation
Video editors, 3D artists, and audio engineers can leverage the RTX 2000 Ada GPU for real-time playback, effects rendering, and color grading in applications like DaVinci Resolve, Blender, and Adobe Creative Suite.
Technical and Scientific Computing
Researchers, engineers, and analysts benefit from the 20-core processor and high memory bandwidth for finite element analysis, computational fluid dynamics, financial modeling, and machine learning prototyping.
Localization and Operating System
This workstation ships with the Linux operating system pre-installed, providing a secure, open-source platform that avoids licensing fees and offers extensive customization through package managers and command-line tools. The absence of a proprietary OS reduces overhead and aligns with IT policies in research institutions, government agencies, and development teams that standardize on Linux distributions.
While the system does not include vPro technology for remote management, its standard Intel architecture supports common Linux-based management tools. The Linux environment is particularly suited for containerized applications, server-side development, and environments where Windows compatibility is not required.
Physical Profile
Measuring just 2.72 inches in height, 8.31 inches in width, and 8.58 inches in depth, the Z2 Mini G9 redefines workstation footprint without sacrificing expansion. The 5.29-pound chassis can be positioned vertically or horizontally, mounted behind monitors with VESA brackets, or integrated into equipment racks with optional accessories.
The compact design does not compromise connectivity, with all ports accessible on the rear and sides for convenient cable management. The system's thermal solution maintains optimal operating temperatures even during prolonged compute-intensive tasks, ensuring reliability in controlled office environments or industrial settings.
- Width
- 224 GB/s
- Depth
- 8.58" (218 mm)
- Height
- 2.72" (69 mm)
- Weight
- 5.29 lb (2400 g)
What's in the Box
The workstation arrives ready for setup with all essential components included for immediate operation.
Highlights
- 14th Gen Intel Core i7-14700 processor with 20 cores and 28 threads for multitasking and compute-intensive applications
- 32 GB of DDR5 SDRAM running at 5.60 GHz for faster data access and improved system responsiveness
- 1 TB PCI Express NVMe 4.0 x4 SSD delivers rapid storage performance and ample capacity for large files
- NVIDIA RTX 2000 Ada graphics with 16 GB dedicated memory accelerates professional visualization and compute workloads
- Compact mini PC form factor saves space while delivering full workstation performance
- Linux operating system provides a stable, secure platform for developers and technical professionals
- 10 Gigabit Ethernet and wireless LAN offer flexible networking options for high-bandwidth tasks
- Six USB ports including two SuperSpeed USB Type-C® 20Gbps for high-speed peripherals
- Four Mini DisplayPort outputs support multiple monitor configurations for expanded workspace
- Energy Star certified and meets multiple environmental standards including EPEAT Gold and RoHS compliance
Specifications
| Specifications | |
|---|---|
| Manufacturer | HP Inc. |
| Manufacturer Part Number | A5BZ1UA#ABA |
| Brand Name | HP |
| Product Series | Z2 Mini G9 |
| Product Name | Z2 Mini G9 Workstation |
| Product Type | Workstation |
| Processor | |
| Number of Processors Supported | 1 |
| Number of Processors Installed | 1 |
| Processor Type | Core i7 |
| Processor Generation | 14th Gen |
| Processor Model | i7-14700 |
| Processor Core | Icosa-core (20 Core) |
| Processor Threads | 28 |
| Processor Speed | 2.10 GHz |
| Processor Socket | Socket LGA-1700 |
| vPro Technology | No |
| Chipset | |
| Chipset Manufacturer | Intel |
| Chipset Model | W680 |
| Memory | |
| Standard Memory | 32 GB |
| Maximum Memory Supported | 64 GB |
| Memory Technology | DDR5 SDRAM |
| Total Number of Memory Slots | 2 |
| Memory Clock Speed | 5.60 GHz |
| Memory Configuration | 1 x 32GB |
| Error Checking | Non-ECC |
| Storage | |
| Drive Type | SSD |
| Total Solid State Drive Capacity | 1 TB |
| Solid State Drive Interface | PCI Express NVMe 4.0 x4 |
| Controllers | |
| Controller Type | NVMe |
| RAID Supported | Yes |
| RAID Levels | 0, 1 |
| Display & Graphics | |
| Graphics Controller Model | RTX 2000 Ada |
| Graphics Memory Capacity | 16 GB |
| Graphics Memory Accessibility | Dedicated |
| Maximum Memory Bandwidth | 224 GB/s |
| Network & Communication | |
| Ethernet Technology | 10 Gigabit Ethernet |
| Wireless LAN | Yes |
| Bluetooth | Yes |
| Interfaces/Ports | |
| Total Number of USB Ports | 6 |
| USB Type-C | Yes |
| USB Type-C Detail | 2 SuperSpeed USB Type-C® 20Gbps signaling rate |
| DisplayPort | Yes |
| Mini DisplayPort | Yes |
| Number of Mini DisplayPort | 4 |
| Operating System | |
| Operating System Platform | Linux |
| Operating System | Linux |
| Power Description | |
| Input Voltage | 120 V AC,230 V AC |
| Maximum Power Supply Wattage | 280 W |
| Physical Characteristics | |
| Form Factor | Mini PC |
| Height | 2.72" (69 mm) |
| Width | 8.31" (211 mm) |
| Depth | 8.58" (218 mm) |
| Weight (Approximate) | 5.29 lb (2400 g) |
| Miscellaneous | |
| Package Contents | Z2 Mini G9 Workstation Keyboard Mouse Power Adapter |
| Energy Star | Yes |
| Environmentally Friendly | Yes |
| Environmental Certification | China Environmental United Certification Center (CEC),Electronic Product Environmental Assessment Tool Gold (EPEAT Gold) |
| Energy Efficiency Certification | China Energy Conservation Program (CECP) |
| Energy Efficiency Compliance | Energy-related Products Directive (ErP) |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS),Waste Electrical and Electronic Equipment Directive (WEEE) |
| TCO Certified | Yes |
| Warranty | |
| Limited Warranty | 1 Year |
| Additional Warranty Information | 1 year (1/1/1) limited warranty includes 1 year of parts, labor and on-site repair |
User Manual
FAQ
What processor does this HP workstation use, and how many cores does it have?
This workstation features an Intel Core i7-14700 processor from the 14th generation. It has an Icosa-core design with 20 physical cores and 28 threads, operating at a base clock speed of 2.10 GHz. This configuration provides substantial parallel processing capability for demanding applications like 3D rendering, scientific simulations, and data analysis.
Can the memory be upgraded in the Z2 Mini G9 Workstation?
Yes, the workstation supports memory expansion. It comes with 32 GB of DDR5 SDRAM installed as a single 32 GB module in one of its two memory slots. The system supports a maximum of 64 GB, so you can add another 32 GB module for dual-channel operation or replace the existing module with higher-capacity DIMMs to reach the 64 GB limit.
What type of storage does this workstation include, and is it upgradeable?
The workstation includes a 1 TB solid-state drive using the PCI Express NVMe 4.0 x4 interface, which offers significantly higher sequential read/write speeds compared to SATA SSDs. The storage is upgradeable, and the system supports RAID 0 and RAID 1 configurations if additional drives are installed, providing options for performance enhancement or data redundancy.
What graphics card is installed, and how much dedicated memory does it have?
This model includes the NVIDIA RTX 2000 Ada professional graphics card with 16 GB of dedicated GDDR6 memory. This GPU features a memory bandwidth of 224 GB/s and is designed for workstation applications like CAD, video editing, and AI development, offering certified drivers and hardware acceleration for professional software.
What operating system comes pre-installed on this workstation?
The workstation ships with the Linux operating system pre-installed. This provides a stable, open-source platform that is widely used in development, engineering, and research environments. Linux offers robust security, extensive customization through package management, and avoids proprietary licensing fees, making it suitable for organizations that standardize on open-source software.
What are the physical dimensions and weight of the Z2 Mini G9?
The workstation has a compact mini PC form factor measuring 2.72 inches in height, 8.31 inches in width, and 8.58 inches in depth (69 mm x 211 mm x 218 mm). It weighs approximately 5.29 pounds (2400 grams). This small footprint allows for flexible placement on desks, mounting behind monitors, or integration into space-constrained environments like broadcast racks or laboratory benches.
