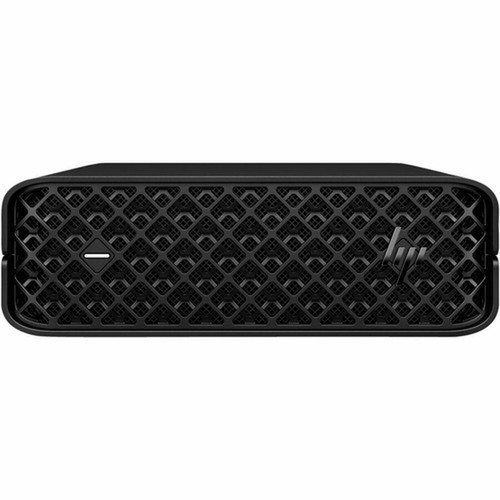

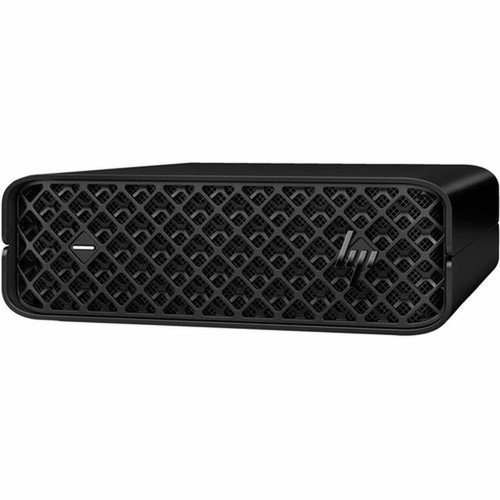

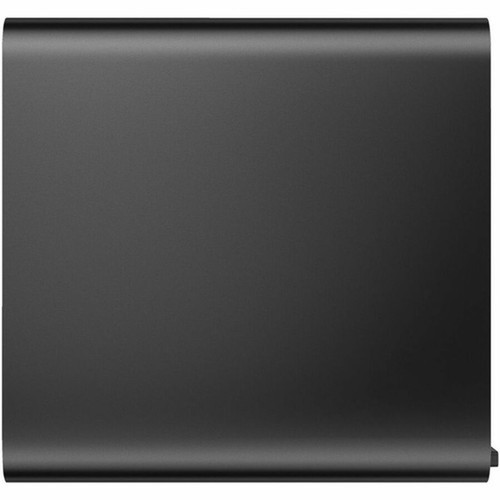

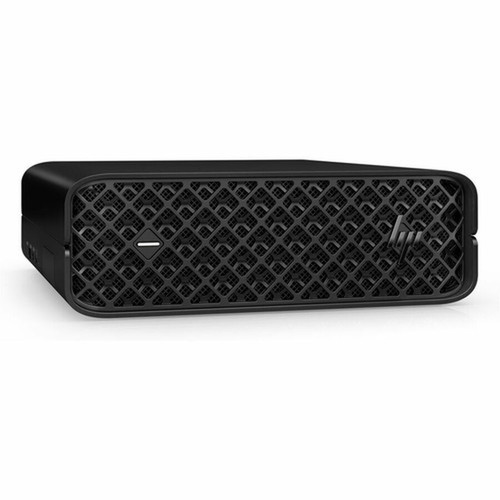

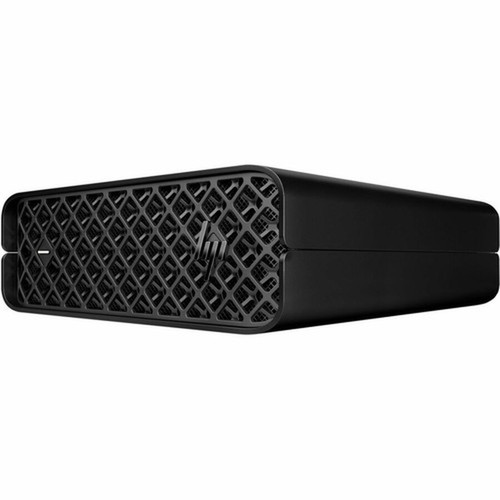

HP A61BZUA#ABA Z2 Mini G9 Workstation - Intel Core i5-12500 12th Gen - 4GB RAM - 256GB SSD - Windows 11 Pro - UHD Graphics 770
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
At the heart of the Z2 Mini G9 is the Intel Core i5-12500, a 12th Gen processor featuring six performance cores and twelve threads operating at a base frequency of 3 GHz. This CPU architecture provides a significant leap in power efficiency and multitasking capability over previous generations. The system memory utilizes a single 4 GB DDR4 SDRAM module running at 3.20 GHz, with a clear upgrade path to 64 GB for memory-intensive applications.
Storage is handled by a 256 GB solid-state drive connected via the PCI Express interface, delivering fast boot times, rapid application loading, and quick file transfers. Graphics are powered by Intel's UHD Graphics 770 controller with shared system memory, capable of driving high-resolution displays and accelerating everyday visual tasks. The platform's thermal design employs an efficient air cooling system to maintain stable operation under sustained loads within the compact chassis.
Key Product Advantages
This workstation distinguishes itself through its combination of verified professional components and an ultra-compact design. The 12th Gen Intel Core platform brings improved instruction-per-clock performance and better power management, directly translating to faster application response and lower energy consumption in business environments. The inclusion of Windows 11 Pro provides enhanced security features, BitLocker encryption, and remote management capabilities essential for corporate deployment.
Compact Professional Power
The mini PC form factor houses a full 12th Gen Intel Core i5 workstation processor, enabling powerful computing in spaces where traditional desktops cannot fit.
- Footprint smaller than a textbook
- Easy to mount behind monitors or under desks
- Maintains full workstation performance expectations
Modern Connectivity Suite
Equipped with six USB ports including two high-speed USB Type-C 20Gbps ports and DisplayPort output, ensuring compatibility with contemporary peripherals and multi-monitor setups.
- SuperSpeed USB Type-C for fast data transfer
- DisplayPort for high-resolution displays
- Gigabit Ethernet for reliable wired networking
Deployment / Use Cases
The Z2 Mini G9 Workstation is engineered for environments where physical space is at a premium but computing requirements remain substantial. Its compact dimensions allow it to be mounted virtually anywhere—behind monitors, under desks, on walls, or within specialized furniture—freeing up valuable workspace while delivering genuine workstation performance.
In educational settings, these systems can power computer labs, design studios, or research stations while occupying minimal desk real estate. For corporate offices, they enable clean, cable-managed workstations that support daily productivity applications, database access, and multimedia tasks. The 280-watt power adapter and universal voltage input (120/230 V AC) ensure reliable operation across different geographic regions and power infrastructures.
Digital Workspace Consolidation
Ideal for financial trading floors, command centers, and control rooms where multiple workstations must fit into limited console space without sacrificing processing capability.
Specialized Professional Environments
Well-suited for medical diagnostic viewing stations, engineering design kiosks, architectural visualization points, and video editing auxiliary stations where a small, quiet, yet capable system is required.
Localization and Operating System
The HP Z2 Mini G9 Workstation ships with Windows 11 Pro pre-installed, providing a fully localized English operating environment out of the box. Windows 11 Pro delivers the advanced security, management, and productivity features required for professional and enterprise deployments, including BitLocker device encryption, Windows Defender Antivirus, and robust Group Policy support for centralized IT administration.
This workstation is built on Intel's 12th Generation Core i5-12500 processor and Intel chipset, ensuring full hardware compatibility with Windows 11 Pro's performance and security enhancements. The operating system leverages the hexa-core CPU architecture for efficient multitasking and responsive application performance, while the platform's universal voltage input (120/230 V AC) supports deployment across different regional power standards without requiring hardware modifications.
For IT teams, the combination of Windows 11 Pro and this standardized hardware platform simplifies imaging, deployment, and ongoing management. The system is ready for integration into Active Directory domains, supports remote management protocols, and includes the professional-grade tools needed for secure business computing. The consistent Intel-based architecture ensures driver stability and long-term support across the workstation's lifecycle.
Physical Profile
Measuring just 2.72 inches in height, 8.31 inches in width, and 8.58 inches in depth, the Z2 Mini G9 redefines workstation footprint. Weighing approximately 5.29 pounds, the compact aluminum chassis provides durability while remaining easily portable for deployment across multiple locations. The minimalist design features clean lines and subtle branding appropriate for professional environments.
The small form factor does not compromise connectivity, with all ports conveniently accessible on the rear and sides. The system's thermal design efficiently dissipates heat through strategically placed vents and a quiet internal fan, ensuring stable operation even during extended compute sessions. This physical profile makes the workstation exceptionally versatile for vertical mounting, desktop placement, or integration into custom enclosures.
- Width
- 8.31" (211 mm)
- Depth
- 8.58" (218 mm)
- Height
- 2.72" (69 mm)
- Weight
- 5.29 lb (2400 g)
What's in the Box
The workstation arrives ready for immediate setup with all essential components included.
Highlights
- 12th Gen Intel Core i5-12500 processor with six cores and twelve threads
- 4 GB DDR4 memory installed, expandable to 64 GB for future needs
- 256 GB PCI Express solid-state drive for fast storage performance
- Windows 11 Pro operating system with enhanced business features
- Ultra-compact mini PC form factor (2.72" H x 8.31" W x 8.58" D)
- Intel UHD Graphics 770 with DisplayPort output support
- Six USB ports including two SuperSpeed USB Type-C 20Gbps
- Gigabit Ethernet for reliable wired network connectivity
- 280-watt external power adapter with universal voltage input
- Includes HP keyboard and mouse for complete out-of-box experience
Specifications
| Specifications | |
|---|---|
| Manufacturer | HP Inc. |
| Manufacturer Part Number | A61BZUA#ABA |
| Brand Name | HP |
| Product Series | Z2 Mini G9 |
| Product Name | Z2 Mini G9 Workstation |
| Product Type | Workstation |
| Processor | |
| Processor Type | Core i5 |
| Processor Generation | 12th Gen |
| Processor Model | i5-12500 |
| Processor Core | Hexa-core (6 Core) |
| Processor Threads | 12 |
| Processor Speed | 3 GHz |
| Chipset | |
| Chipset Manufacturer | Intel |
| Memory | |
| Standard Memory | 4 GB |
| Maximum Memory Supported | 64 GB |
| Memory Technology | DDR4 SDRAM |
| Memory Clock Speed | 3.20 GHz |
| Memory Configuration | 1 x 4GB |
| Error Checking | Non-ECC |
| Storage | |
| Drive Type | SSD |
| Total Solid State Drive Capacity | 256 GB |
| Solid State Drive Interface | PCI Express |
| Display & Graphics | |
| Graphics Controller Model | UHD Graphics 770 |
| Graphics Memory Accessibility | Shared |
| Network & Communication | |
| Ethernet Technology | Gigabit Ethernet |
| Interfaces/Ports | |
| Total Number of USB Ports | 6 |
| USB Type-C | Yes |
| USB Type-C Detail | 2 SuperSpeed USB Type-C® 20Gbps signaling rate |
| DisplayPort | Yes |
| Operating System | |
| Operating System Platform | Windows |
| Operating System | Windows 11 Pro |
| Power Description | |
| Input Voltage | 120 V AC,230 V AC |
| Maximum Power Supply Wattage | 280 W |
| Physical Characteristics | |
| Cooler Type | Air Cooler |
| Form Factor | Mini PC |
| Height | 2.72" (69 mm) |
| Width | 8.31" (211 mm) |
| Depth | 8.58" (218 mm) |
| Weight (Approximate) | 5.29 lb (2400 g) |
| Miscellaneous | |
| Package Contents | Z2 Mini G9 Workstation HP 125 Wired Keyboard HP Wired 320M Mouse 280 W external power adapter |
| Energy Star | Yes |
| Environmentally Friendly | Yes |
| Environmental Certification | Electronic Product Environmental Assessment Tool Gold (EPEAT Gold),Electronic Product Environmental Assessment Tool Climate+ (EPEAT Climate+) |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS),Waste Electrical and Electronic Equipment Directive (WEEE) |
| TCO Certified | Yes |
| Warranty | |
| Limited Warranty | 1 Year |
| Additional Warranty Information | 1 year (1/1/1) limited warranty includes 1 year of parts, labor and on-site repair. |
User Manual
FAQ
What processor does this product use?
This product uses the 12th Gen processor for everyday performance and multitasking.
How much memory is installed?
It includes 4 GB of memory to support responsive multitasking and daily workloads.
What storage is included?
The system includes 256 GB of storage for applications, files, and everyday business data.
What graphics or display support is listed?
It features a display specification of UHD Graphics 770, giving you clear visuals for work and media use.
What connectivity options are available?
Connectivity options include Gigabit Ethernet, helping the product integrate into common office or home setups.
What operating system or platform is included?
The included operating environment is Windows, which helps position the product for software compatibility, deployment planning, and day-to-day business use.
