HP AT8Q7UA#ABA Z6 G5 A Workstation - Ryzen Threadripper PRO 7975WX 32-Core 4 GHz - 64 GB DDR5 - 2 TB NVMe SSD - Tower - Windows 11 Pro - 24 GB
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
The technical foundation of the Z6 G5 A centers on the AMD Socket SP6 (LGA-4844) platform with the PRO 695 chipset. The installed Ryzen Threadripper PRO 7975WX operates at a base frequency of 4 GHz, leveraging AMD's professional architecture for enhanced security and remote management capabilities. The memory subsystem uses DDR5 technology running at 5.60 GHz with error-correcting code (ECC) and registered signaling for data integrity in mission-critical environments.
Storage is handled by a PCI Express NVMe 4.0 x4 solid-state drive with a 2 TB capacity, offering sequential read/write speeds that significantly reduce load times for large datasets. The system supports RAID configurations (0, 1, 5, 10) via a controller that handles both NVMe and Serial ATA/600 devices. Network connectivity is provided by integrated Gigabit Ethernet, while the 1.13 kW power supply ensures stable operation under full load.
Key Product Advantages
This workstation combines extreme multi-core processing with professional reliability features. The Threadripper PRO platform provides a high core count for parallelized workloads while including AMD's PRO security technologies for hardware-based protection. The use of DDR5 ECC registered memory ensures data accuracy and stability during extended computations.
Professional-Grade Memory
64 GB of DDR5 ECC registered RAM delivers high bandwidth and data integrity for financial modeling, simulation, and large-scale rendering tasks.
- 5.60 GHz clock speed
- Error-correcting code
- Registered design for stability
High-Speed Storage Architecture
The 2 TB NVMe SSD uses the PCIe 4.0 x4 interface for rapid data transfer, reducing wait times when loading complex models or multimedia assets.
- PCI Express NVMe 4.0 x4
- 2 TB capacity
- RAID 0,1,5,10 support
Expandable Tower Platform
The standard tower form factor provides ample internal space for additional storage drives, expansion cards, and upgraded cooling solutions as project needs evolve.
- Tool-less chassis access
- Multiple expansion slots
- Configurable drive bays
Deployment / Use Cases
The HP Z6 G5 A is suited for technical and creative professionals who require dependable performance for compute-intensive applications. Its configuration supports simultaneous operation of multiple demanding software packages without performance degradation.
Common deployment scenarios include engineering workstations for CAD/CAM/CAE software, research stations for scientific computing and simulation, media production suites for video editing and 3D animation, and financial analysis desks running complex quantitative models. The tower design allows IT departments to standardize on a single, serviceable platform that can be configured differently for various teams.
Engineering & Design
Run Autodesk AutoCAD, Siemens NX, or Dassault Systèmes SOLIDWORKS with smooth viewport performance and rapid model regeneration.
Media & Entertainment
Handle Adobe Creative Suite, Blackmagic DaVinci Resolve, or Autodesk Maya timelines with real-time playback and fast rendering.
Localization and Operating System
This workstation ships with Microsoft Windows 11 Pro pre-installed. Windows 11 Pro provides a modern, secure operating environment with features like BitLocker device encryption, Windows Defender Antivirus, and remote desktop capability for IT management. The professional edition supports domain join, group policy management, and Hyper-V for virtualization, making it appropriate for business and institutional deployments.
The system is configured for standard North American power input (120/230 V AC) and includes a standard US keyboard and mouse in the package. The operating system interface and documentation are in English.
Relevant factors for this section include AI-powered, Number of Processors Supported, Number of Processors Installed, Processor Type. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Physical Profile

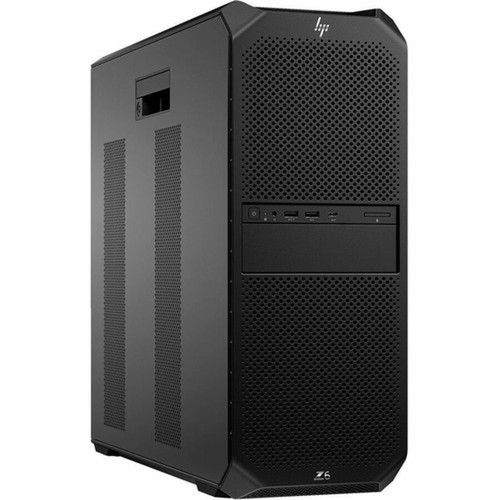

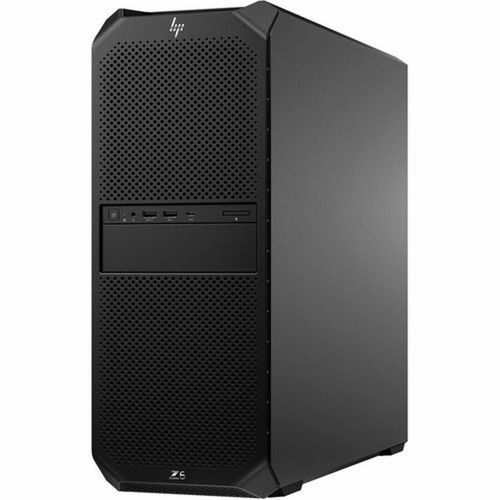

The workstation uses a traditional tower form factor finished in black. Its dimensions are 17.52 inches high, 6.65 inches wide, and 18.31 inches deep (445 x 169 x 465 mm), with an approximate weight of 29.10 pounds (13.2 kg). This size accommodates standard ATX components and provides good airflow for thermal management. The chassis is designed for tool-less access to internal components, simplifying upgrades and maintenance.
- Width
- 6.65" (169 mm)
- Depth
- 18.31" (465 mm)
- Height
- 17.52" (445 mm)
- Weight
- 29.10 lb (13200 g)
What's in the Box
The package includes the HP Z6 G5 A Workstation system unit, a standard keyboard, and a mouse. All necessary power cables and documentation are also included.
Highlights
- AMD Ryzen Threadripper PRO 7975WX processor with 32 cores and 64 threads for intensive multi-threaded workloads
- 64 GB of DDR5 ECC registered memory running at 5.60 GHz for high bandwidth and data integrity
- 2 TB PCIe NVMe 4.0 x4 solid-state drive for fast boot times and rapid data access
- 24 GB of dedicated graphics memory for GPU-accelerated applications and visualizations
- Windows 11 Pro operating system with professional security and management features
- Tower chassis offering high expandability with 8 memory slots and multiple drive bays
- 1.13 kW power supply supporting 120/230 V AC input for stable operation under load
- Gigabit Ethernet connectivity for high-speed network access
- RAID support (0,1,5,10) for storage performance and redundancy configurations
- Environmental certifications including EPEAT Gold, Energy Star, and TCO Certified
Specifications
| Specifications | |
|---|---|
| Manufacturer | HP Inc. |
| Manufacturer Part Number | AT8Q7UA#ABA |
| Brand Name | HP |
| Product Series | Z6 G5 A |
| Product Name | Z6 G5 A Workstation |
| Product Type | Workstation |
| Technical Information | |
| AI-powered | Yes |
| Processor | |
| Number of Processors Supported | 1 |
| Number of Processors Installed | 1 |
| Processor Type | Ryzen Threadripper PRO |
| Processor Model | 7975WX |
| Processor Core | Dotriaconta-core (32 Core) |
| Processor Threads | 64 |
| Processor Speed | 4 GHz |
| Processor Socket | Socket SP6 LGA-4844 |
| Chipset | |
| Chipset Manufacturer | AMD |
| Chipset Model | PRO 695 |
| Memory | |
| Standard Memory | 64 GB |
| Maximum Memory Supported | 1 TB |
| Memory Technology | DDR5 SDRAM |
| Total Number of Memory Slots | 8 |
| Memory Clock Speed | 5.60 GHz |
| Memory Configuration | 2 x 32GB |
| Error Checking | ECC |
| Signal Processing | Registered |
| Storage | |
| Drive Type | SSD |
| Total Solid State Drive Capacity | 2 TB |
| Solid State Drive Interface | PCI Express NVMe 4.0 x4 |
| Controllers | |
| Controller Type | Serial ATA/600,NVMe |
| RAID Supported | Yes |
| RAID Levels | 0, 1, 5, 10 |
| Display & Graphics | |
| Graphics Memory Capacity | 24 GB |
| Graphics Memory Accessibility | Dedicated |
| Network & Communication | |
| Ethernet Technology | Gigabit Ethernet |
| Interfaces/Ports | |
| Total Number of USB Ports | 13 |
| Number of Onboard USB 2.0 Ports | 1 |
| Number of USB 3.2 Gen 1 Ports | 2 |
| Operating System | |
| Operating System Platform | Windows |
| Operating System | Windows 11 Pro |
| Power Description | |
| Input Voltage | 120 V AC,230 V AC |
| Maximum Power Supply Wattage | 1.13 kW |
| Physical Characteristics | |
| Color Family | Black |
| Product Color | Black |
| Form Factor | Tower |
| Height | 17.52" (445 mm) |
| Width | 6.65" (169 mm) |
| Depth | 18.31" (465 mm) |
| Weight (Approximate) | 29.10 lb (13200 g) |
| Miscellaneous | |
| Package Contents | Z6 G5 A Workstation Keyboard Mouse |
| Environmentally Friendly | Yes |
| Environmental Certification | China Environmental United Certification Center (CEC),Electronic Product Environmental Assessment Tool Gold (EPEAT Gold) |
| Energy Efficiency Certification | China Energy Conservation Program (CECP) |
| Energy Efficiency Compliance | Energy-related Products Directive (ErP) |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS),Waste Electrical and Electronic Equipment Directive (WEEE) |
| TCO Certified | Yes |
| Warranty | |
| Limited Warranty | 1 Year |
User Manual
FAQ
What processor is installed in this HP workstation?
This HP Z6 G5 A Workstation is equipped with an AMD Ryzen Threadripper PRO 7975WX processor. It features 32 physical cores (64 threads) with a base clock speed of 4 GHz. This CPU is built on AMD's professional platform, which includes enhanced security features and remote management capabilities suitable for enterprise environments.
How much memory is pre-installed, and what type is it?
The system comes with 64 GB of DDR5 SDRAM installed. The memory uses error-correcting code (ECC) and registered signaling for improved data reliability. It operates at a clock speed of 5.60 GHz and is configured as two 32 GB modules. The workstation has eight total memory slots, supporting expansion up to 1 TB of RAM.
What storage configuration does this workstation have?
Storage is provided by a 2 TB solid-state drive using the PCI Express NVMe 4.0 x4 interface. This offers significantly faster data transfer rates compared to SATA SSDs or hard drives. The system also supports RAID configurations (levels 0, 1, 5, and 10) through its storage controller, allowing for performance or redundancy setups with additional drives.
Does this workstation include a dedicated graphics card?
Yes, the workstation includes dedicated graphics with 24 GB of dedicated video memory. This substantial VRAM allocation supports demanding visual workloads such as 3D rendering, simulation, and high-resolution video editing. The dedicated GPU offloads graphical processing from the main CPU, improving overall system performance in graphics-intensive applications.
What operating system is pre-installed?
The workstation ships with Microsoft Windows 11 Pro. This professional edition includes features like BitLocker encryption, remote desktop access, Hyper-V virtualization, and advanced group policy management. It is suitable for business integration and provides a secure, modern computing environment for professional software suites.
What are the physical dimensions and form factor?
The HP Z6 G5 A uses a standard tower form factor with dimensions of 17.52 inches in height, 6.65 inches in width, and 18.31 inches in depth (445 x 169 x 465 mm). It weighs approximately 29.10 pounds (13.2 kg). The tower design provides ample internal space for expansion cards, additional storage drives, and efficient cooling for sustained high-performance operation.
