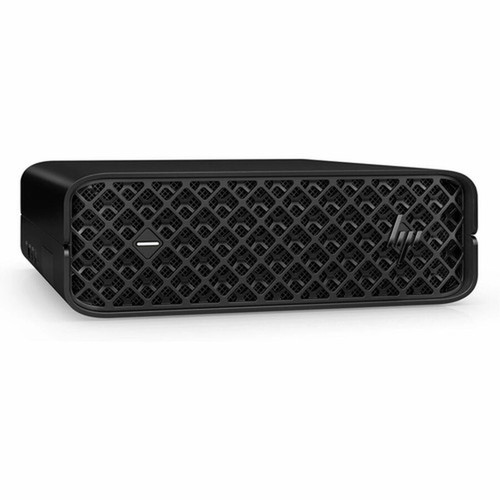

HP AU8Z7UA#ABA Z2 Mini G9 Workstation - Intel Core i9-14900 14th Gen - 64GB DDR5 RAM - 1TB NVMe SSD - NVIDIA T1000 8GB - Windows 11 Pro
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
At the heart of the Z2 Mini G9 lies the Intel Core i9-14900 processor, a 14th Generation chip featuring 24 cores (8 Performance cores and 16 Efficient cores) and 32 threads. With a base clock of 2.0 GHz and Intel Turbo Boost Max Technology 3.0 support, this CPU delivers exceptional single-threaded and multi-threaded performance for compute-intensive workloads.
The system utilizes the Intel W680 chipset with support for Intel vPro technology, providing hardware-based security features and remote management capabilities essential for enterprise deployment. Memory configuration includes two DDR5 DIMM slots populated with 32 GB modules each, running at 5600 MHz with ECC error correction for data integrity in critical applications.
Relevant factors for this section include Number of Processors Supported, Number of Processors Installed, Processor Type, Chipset Manufacturer. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
The Z2 Mini G9 combines workstation-class performance with a remarkably small footprint, making it ideal for space-constrained environments without compromising on capability. Its professional-grade components and certifications ensure reliability for continuous operation in demanding business and technical applications.
Professional Graphics Performance
The NVIDIA T1000 workstation graphics card provides dedicated 8 GB GDDR6 memory and hardware acceleration for CAD, 3D modeling, and scientific visualization applications, delivering superior performance over integrated graphics solutions.
- 8 GB dedicated GDDR6 memory
- 160 GB/s memory bandwidth
- Optimized driver support for professional applications
Enterprise-Grade Connectivity
Dual USB Type-C ports with 20 Gbps SuperSpeed support enable high-speed data transfer and display connectivity, while 10 Gigabit Ethernet provides network performance suitable for large dataset transfers and collaborative workflows.
- 2x USB Type-C 20Gbps ports
- 10GbE networking
- 4x Mini DisplayPort outputs
Enhanced Reliability Features
ECC memory with error correction protects against data corruption, while the Intel W680 platform with vPro technology offers hardware-based security and remote management capabilities for simplified IT administration.
- DDR5 ECC memory protection
- Intel vPro remote management
- TCO Certified for sustainability
Deployment / Use Cases
The HP Z2 Mini G9 Workstation excels in environments where space is at a premium but computational requirements remain high. Its compact dimensions allow placement in laboratory benches, medical imaging suites, financial trading desks, or crowded engineering offices where traditional tower workstations would be impractical.
This system is particularly well-suited for engineering design teams requiring CAD and CAE applications, scientific researchers processing large datasets, financial analysts running complex models, and video editors working with high-resolution content. The combination of high-core-count processor, substantial ECC memory, and dedicated workstation graphics makes it capable of handling parallel processing tasks and visualization workloads simultaneously.
Engineering & Design Workflows
Run Autodesk AutoCAD, SolidWorks, CATIA, and other CAD applications with smooth viewport performance and rapid model regeneration, even with complex assemblies and large drawings.
Scientific & Research Computing
Process statistical analyses, run simulations, and visualize scientific data with the computational power of 24 CPU cores and the memory bandwidth of DDR5 technology.
Localization and Operating System
This workstation ships with Windows 11 Pro pre-installed, providing a familiar, secure operating environment with built-in productivity features and enterprise management capabilities. Windows 11 Pro includes BitLocker device encryption, Windows Information Protection, and Hyper-V virtualization support.
The system supports multiple input voltage ranges (120-230V AC) for global deployment flexibility. Environmental certifications including EPEAT Gold, Energy Star, TCO Certified, and compliance with RoHS and WEEE directives demonstrate HP's commitment to sustainable manufacturing practices.
Relevant factors for this section include Number of Processors Supported, Number of Processors Installed, Processor Type, Chipset Manufacturer. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Physical Profile
Measuring just 2.72 inches tall, 8.31 inches wide, and 8.58 inches deep (69 x 211 x 218 mm), the Z2 Mini G9 occupies less than 0.4 cubic feet of space. Weighing approximately 5.29 pounds (2.4 kg), the compact form factor enables flexible placement options including vertical or horizontal orientation, VESA mount compatibility, or discreet placement behind monitors.
The mini PC design incorporates efficient air cooling with carefully engineered thermal management to maintain component temperatures within specification during sustained heavy workloads. The small footprint makes it ideal for environments where desk space is limited or where multiple workstations need to be deployed in close proximity.
- Width
- 160 GB/s
- Depth
- 8.58" (218 mm)
- Height
- 2.72" (69 mm)
- Weight
- 5.29 lb (2400 g)
What's in the Box
The workstation ships complete with all necessary components for immediate setup and operation.
Package contents include Z2 Mini G9 Workstation Keyboard Mouse Power Adapter, Z2 Mini G9 Workstation. These included items support setup, installation, and immediate deployment without needing to source the core bundled accessories separately.
Highlights
- Intel Core i9-14900 14th Gen processor with 24 cores and 32 threads
- 64 GB DDR5 ECC memory operating at 5600 MHz for data-intensive applications
- 1 TB PCIe NVMe 4.0 SSD with RAID 0/1 support for fast storage
- NVIDIA T1000 workstation graphics with 8 GB dedicated GDDR6 memory
- Windows 11 Pro operating system with enterprise features
- Compact mini PC form factor (2.72" H x 8.31" W x 8.58" D)
- 10 Gigabit Ethernet for high-speed network connectivity
- Intel vPro technology for remote management and security
- Multiple display outputs with 4x Mini DisplayPort
- Environmental certifications including EPEAT Gold and Energy Star
Specifications
| Specifications | |
|---|---|
| Manufacturer | HP Inc. |
| Manufacturer Part Number | AU8Z7UA#ABA |
| Brand Name | HP |
| Product Series | Z2 Mini G9 |
| Product Name | Z2 Mini G9 Workstation |
| Product Type | Workstation |
| Processor | |
| Number of Processors Supported | 1 |
| Number of Processors Installed | 1 |
| Processor Type | Core i9 |
| Processor Generation | 14th Gen |
| Processor Model | i9-14900 |
| Processor Core | Tetracosa-core (24 Core) |
| Processor Threads | 32 |
| Processor Speed | 2 GHz |
| Processor Socket | Socket LGA-1700 |
| vPro Technology | Yes |
| Chipset | |
| Chipset Manufacturer | Intel |
| Chipset Model | W680 |
| Memory | |
| Standard Memory | 64 GB |
| Maximum Memory Supported | 64 GB |
| Memory Technology | DDR5 SDRAM |
| Total Number of Memory Slots | 2 |
| Memory Clock Speed | 5.60 GHz |
| Memory Configuration | 2 x 32GB |
| Error Checking | ECC |
| Storage | |
| Drive Type | SSD |
| Total Solid State Drive Capacity | 1 TB |
| Solid State Drive Interface | PCI Express NVMe 4.0 x4 |
| Controllers | |
| Controller Type | NVMe |
| RAID Supported | Yes |
| RAID Levels | 0, 1 |
| Display & Graphics | |
| Graphics Controller Model | T1000 |
| Graphics Memory Capacity | 8 GB |
| Graphics Memory Accessibility | Dedicated |
| Maximum Memory Bandwidth | 160 GB/s |
| Network & Communication | |
| Ethernet Technology | 10 Gigabit Ethernet |
| Interfaces/Ports | |
| Total Number of USB Ports | 6 |
| USB Type-C | Yes |
| USB Type-C Detail | 2 SuperSpeed USB Type-C® 20Gbps signaling rate |
| DisplayPort | Yes |
| Mini DisplayPort | Yes |
| Number of Mini DisplayPort | 4 |
| Operating System | |
| Operating System Platform | Windows |
| Operating System | Windows 11 Pro |
| Power Description | |
| Input Voltage | 120 V AC,230 V AC |
| Maximum Power Supply Wattage | 280 W |
| Physical Characteristics | |
| Cooler Type | Air Cooler |
| Form Factor | Mini PC |
| Height | 2.72" (69 mm) |
| Width | 8.31" (211 mm) |
| Depth | 8.58" (218 mm) |
| Weight (Approximate) | 5.29 lb (2400 g) |
| Miscellaneous | |
| Package Contents | Z2 Mini G9 Workstation Keyboard Mouse Power Adapter |
| Energy Star | Yes |
| Environmentally Friendly | Yes |
| Environmental Certification | China Environmental United Certification Center (CEC),Electronic Product Environmental Assessment Tool Gold (EPEAT Gold) |
| Energy Efficiency Certification | China Energy Conservation Program (CECP) |
| Energy Efficiency Compliance | Energy-related Products Directive (ErP) |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS),Waste Electrical and Electronic Equipment Directive (WEEE) |
| TCO Certified | Yes |
| Warranty | |
| Limited Warranty | 1 Year |
User Manual
FAQ
What processor does the HP Z2 Mini G9 Workstation use?
This workstation features the Intel Core i9-14900 processor from the 14th Generation family. It's a 24-core (8 Performance cores and 16 Efficient cores) CPU with 32 threads, a base clock speed of 2.0 GHz, and support for Intel Turbo Boost Max Technology 3.0. The processor uses the LGA-1700 socket and includes Intel vPro technology for enhanced security and manageability in business environments.
How much memory is installed and what type is it?
The system comes with 64 GB of DDR5 SDRAM installed across two memory slots (2 x 32 GB modules). The memory operates at 5600 MHz and features ECC (Error-Correcting Code) technology, which detects and corrects single-bit memory errors to prevent data corruption and system crashes. This is particularly important for workstations running critical applications where data integrity is essential.
What graphics card is included and how much memory does it have?
The workstation includes an NVIDIA T1000 professional graphics card with 8 GB of dedicated GDDR6 memory. This workstation-class GPU provides hardware acceleration for CAD, 3D modeling, scientific visualization, and video editing applications. With a memory bandwidth of 160 GB/s, it delivers smooth performance when working with complex models and high-resolution datasets.
What storage configuration does this workstation have?
Storage is provided by a 1 TB PCI Express NVMe 4.0 x4 solid-state drive. This high-speed SSD connects directly to the processor via the PCIe 4.0 interface, offering significantly faster data transfer rates compared to SATA SSDs or traditional hard drives. The NVMe controller supports RAID 0 and RAID 1 configurations for either performance optimization or data redundancy.
What networking capabilities does the Z2 Mini G9 offer?
The workstation features 10 Gigabit Ethernet connectivity, providing network transfer speeds up to 10 times faster than standard Gigabit Ethernet. This high-bandwidth connection is ideal for transferring large files across networks, accessing network-attached storage, or working with cloud-based applications and datasets. The system also includes six USB ports, with two being USB Type-C ports supporting 20 Gbps SuperSpeed data transfer rates.
What operating system is pre-installed and what are the physical dimensions?
Windows 11 Pro is pre-installed, offering a secure, productive environment with enterprise management features. The compact form factor measures just 2.72 inches in height, 8.31 inches in width, and 8.58 inches in depth (69 x 211 x 218 mm), weighing approximately 5.29 pounds. This mini PC design allows flexible placement in space-constrained environments while delivering full workstation performance.
