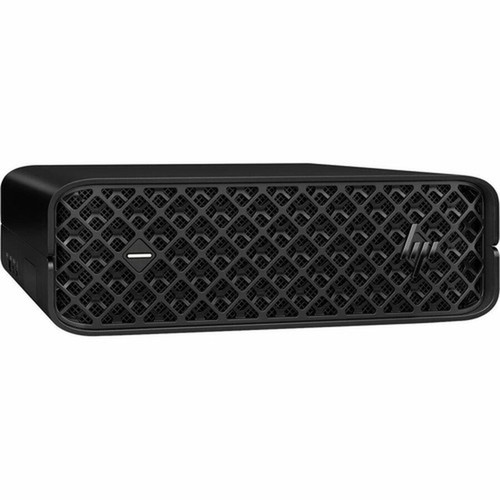

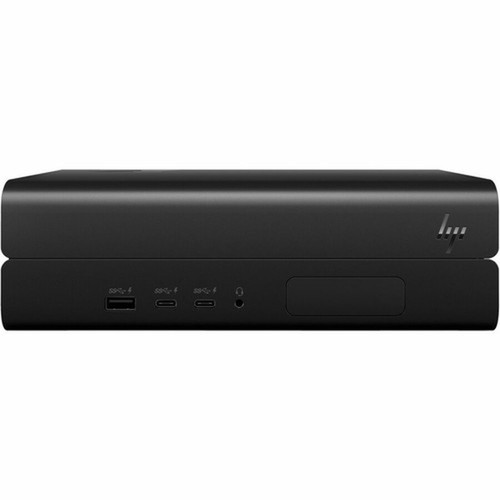

HP B01WKUA#ABA Z2 Mini G9 Workstation - Intel Core i9-14900 14th Gen - 64GB DDR5 RAM - 512GB NVMe SSD - NVIDIA T1000 8GB - Windows 11 Pro
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
At the heart of the Z2 Mini G9 is the Intel Core i9-14900, a 14th Gen processor built on the LGA-1700 socket. This 24-core CPU operates at a base frequency of 2 GHz and leverages Intel's hybrid architecture to balance performance and efficiency cores for optimized workload handling. The system is backed by the Intel W680 chipset, which provides robust platform stability and support for fast memory and storage interfaces.
Memory performance is driven by 64 GB of DDR5 SDRAM running at 5600 MHz across two slots, delivering high bandwidth for data-intensive applications. Storage is handled by a 512 GB PCIe NVMe 4.0 x4 SSD, offering sequential read/write speeds that significantly reduce load times and improve system responsiveness. The NVIDIA T1000 professional graphics card features 8 GB of dedicated memory and a 160 GB/s memory bandwidth, enabling smooth rendering and support for up to four displays via Mini DisplayPort outputs.
Key Product Advantages
The Z2 Mini G9 combines workstation-class components with a mini PC footprint, making it ideal for space-constrained environments without sacrificing capability. Its dedicated NVIDIA T1000 graphics and high-core-count processor enable it to tackle professional visualization and compute tasks that typical desktop PCs cannot handle efficiently.
Compact Powerhouse
Despite measuring just 2.72 inches tall, this system packs a 24-core Intel Core i9 processor and professional graphics, delivering performance comparable to larger tower workstations.
- Mini PC form factor saves desk space
- Full workstation performance in a small chassis
- Ideal for crowded labs, studios, or office setups
Professional Graphics & Connectivity
The NVIDIA T1000 GPU supports up to four 4K displays simultaneously, while USB Type-C ports with 20 Gbps speeds and charging capability provide modern peripheral connectivity.
- Four Mini DisplayPort outputs for multi-monitor setups
- USB Type-C with high-speed data and power delivery
- Gigabit Ethernet and wireless connectivity included
Deployment / Use Cases
The HP Z2 Mini G9 Workstation is designed for professionals who require reliable, high-performance computing in a compact form factor. Its balanced configuration of CPU, memory, storage, and graphics makes it suitable for a range of demanding applications.
In engineering and design environments, this workstation can run CAD software, finite element analysis, and 3D modeling tools with ease. Content creators will appreciate the fast storage and capable graphics for video editing, animation, and graphic design. Data scientists and researchers can leverage the 24-core processor and large memory capacity for numerical simulations, machine learning workloads, and large dataset analysis. The small size also makes it an excellent choice for digital signage control, kiosk systems, or as a powerful desktop in space-limited offices.
Engineering & Design
Run SolidWorks, AutoCAD, or Revit with smooth viewport performance and rapid model manipulation, supported by the NVIDIA T1000 graphics and high-core-count CPU.
Content Creation & Data Analysis
Accelerate video rendering, 3D animation, and statistical analysis with the combination of fast NVMe storage, 64 GB of RAM, and 24 processing cores.
Localization and Operating System
The HP Z2 Mini G9 Workstation ships with Windows 11 Pro pre-installed, providing a comprehensive operating system tailored for professional and business environments. Windows 11 Pro includes advanced security features like BitLocker encryption and Windows Defender, along with management tools such as Group Policy and remote desktop capabilities, ensuring secure and efficient IT administration.
This configuration is optimized for English-language markets, with the operating system and keyboard layout set to US English by default. The system supports multiple display languages and regional settings, allowing users to customize the interface for international workflows. The inclusion of Windows 11 Pro also facilitates compatibility with a wide range of business software, from productivity suites to specialized engineering and creative applications, making it ready for deployment in diverse professional settings without additional localization adjustments.
Windows 11 Pro Features
Windows 11 Pro offers enhanced productivity tools, including Snap Layouts for multitasking, Microsoft Teams integration, and support for Android apps via the Amazon Appstore. Its security suite helps protect against modern threats, while the Pro edition enables domain join and Azure Active Directory integration for enterprise management.
Physical Profile
The Z2 Mini G9 features a sleek, compact chassis that measures 2.72 inches in height, 8.31 inches in width, and 8.58 inches in depth. Weighing approximately 5.29 pounds, it is easy to reposition or mount in various orientations. The mini PC form factor allows for flexible placement on desks, behind monitors, or in rack-mounted configurations with optional accessories. An air cooling system maintains optimal thermal performance under load, ensuring consistent operation in ambient office environments.
- Width
- 160 GB/s
- Depth
- 8.58" (218 mm)
- Height
- 2.72" (69 mm)
- Weight
- 5.29 lb (2400 g)
What's in the Box
This workstation ships with all essential components to get started right away.
Package contents include Z2 Mini G9 Workstation Power Adapter, Z2 Mini G9 Workstation. These included items support setup, installation, and immediate deployment without needing to source the core bundled accessories separately.
Highlights
- Intel Core i9-14900 14th Gen processor with 24 cores and 32 threads for maximum multitasking capability
- 64 GB of DDR5 SDRAM running at 5600 MHz ensures smooth performance in memory-intensive applications
- 512 GB PCIe NVMe 4.0 SSD delivers ultra-fast storage speeds for rapid boot times and file access
- Dedicated NVIDIA T1000 graphics with 8 GB of GDDR6 memory supports professional visualization and multi-display setups
- Compact mini PC form factor saves valuable desk space while delivering full workstation performance
- Includes four Mini DisplayPort outputs for connecting up to four 4K monitors simultaneously
- Features two USB Type-C ports with 20 Gbps data transfer and charging support for modern peripherals
- Windows 11 Pro operating system provides advanced security, management, and productivity features
- Supports RAID 0 and 1 configurations for data redundancy or performance optimization
- Energy Star certified and meets multiple environmental compliance standards for eco-friendly operation
Specifications
| Specifications | |
|---|---|
| Manufacturer | HP Inc. |
| Manufacturer Part Number | B01WKUA#ABA |
| Brand Name | HP |
| Product Series | Z2 Mini G9 |
| Product Name | Z2 Mini G9 Workstation |
| Product Type | Workstation |
| Processor | |
| Number of Processors Supported | 1 |
| Number of Processors Installed | 1 |
| Processor Type | Core i9 |
| Processor Generation | 14th Gen |
| Processor Model | i9-14900 |
| Processor Core | Tetracosa-core (24 Core) |
| Processor Threads | 32 |
| Processor Speed | 2 GHz |
| Processor Socket | Socket LGA-1700 |
| Chipset | |
| Chipset Manufacturer | Intel |
| Chipset Model | W680 |
| Memory | |
| Standard Memory | 64 GB |
| Maximum Memory Supported | 64 GB |
| Memory Technology | DDR5 SDRAM |
| Total Number of Memory Slots | 2 |
| Memory Clock Speed | 5.60 GHz |
| Memory Configuration | 2 x 32GB |
| Storage | |
| Drive Type | SSD |
| Total Solid State Drive Capacity | 512 GB |
| Solid State Drive Interface | PCI Express NVMe 4.0 x4 |
| Controllers | |
| Controller Type | NVMe,Serial ATA/600 |
| RAID Supported | Yes |
| RAID Levels | 0, 1 |
| Display & Graphics | |
| Graphics Controller Model | T1000 |
| Graphics Memory Capacity | 8 GB |
| Graphics Memory Accessibility | Dedicated |
| Maximum Memory Bandwidth | 160 GB/s |
| Network & Communication | |
| Ethernet Technology | Gigabit Ethernet |
| Wireless LAN | Yes |
| Bluetooth | Yes |
| Interfaces/Ports | |
| Total Number of USB Ports | 6 |
| USB Type-C | Yes |
| USB Type-C Detail | 2 x Type-C SuperSpeed USB 20Gbps port (charging supported) |
| DisplayPort | Yes |
| Mini DisplayPort | Yes |
| Number of Mini DisplayPort | 4 |
| Operating System | |
| Operating System Platform | Windows |
| Operating System | Windows 11 Pro |
| Power Description | |
| Input Voltage | 120 V AC,230 V AC |
| Maximum Power Supply Wattage | 280 W |
| Physical Characteristics | |
| Cooler Type | Air Cooler |
| Form Factor | Mini PC |
| Height | 2.72" (69 mm) |
| Width | 8.31" (211 mm) |
| Depth | 8.58" (218 mm) |
| Weight (Approximate) | 5.29 lb (2400 g) |
| Miscellaneous | |
| Package Contents | Z2 Mini G9 Workstation Power Adapter |
| Energy Star | Yes |
| Energy Efficiency Certification | China Energy Conservation Program (CECP) |
| Energy Efficiency Compliance | Energy-related Products Directive (ErP) |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS),Waste Electrical and Electronic Equipment Directive (WEEE) |
| TCO Certified | Yes |
| Warranty | |
| Limited Warranty | 1 Year |
User Manual
FAQ
What processor does this product use?
This product uses the 1 processor for everyday performance and multitasking.
How much memory is installed?
It includes 64 GB of memory to support responsive multitasking and daily workloads.
What storage is included?
The system includes 512 GB of storage for applications, files, and everyday business data.
What graphics or display support is listed?
It features a display specification of T1000, giving you clear visuals for work and media use.
What connectivity options are available?
Connectivity options include Gigabit Ethernet, helping the product integrate into common office or home setups.
What operating system or platform is included?
The included operating environment is Windows, which helps position the product for software compatibility, deployment planning, and day-to-day business use.
