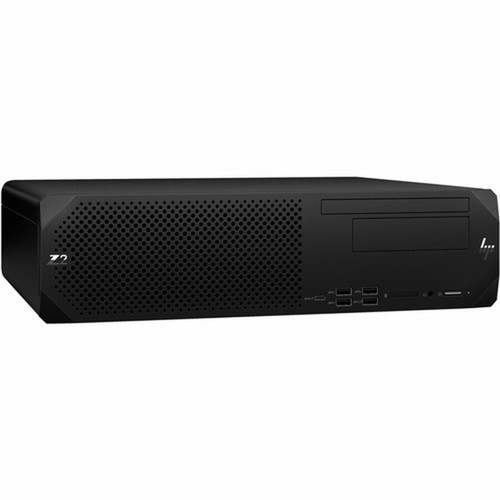

HP B0UZ8UA#ABA Z2 G9 Workstation - Intel Core i5-12500 12th Gen Hexa-core - 16 GB DDR5 RAM - 512 GB NVMe SSD - Small Form Factor - Ubuntu 22. 04 LTS
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
At the heart of the Z2 G9 Workstation is Intel's Core i5-12500 processor, featuring six cores and twelve threads with a base clock speed of 3 GHz. The processor utilizes the LGA-1700 socket and is paired with Intel's W680 chipset, providing a robust foundation for workstation-class computing.
Memory architecture employs DDR5 SDRAM technology across four available slots, with two 8 GB modules installed for dual-channel operation. The system supports memory expansion up to 128 GB for future scalability. Storage is handled by a PCI Express NVMe 4.0 x4 solid-state drive with 512 GB capacity, delivering high-speed data transfer rates for applications and file access.
Relevant factors for this section include Number of Processors Supported, Number of Processors Installed, Processor Type, Chipset Manufacturer. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
The Z2 G9 Workstation combines enterprise management features with professional performance in a compact form factor. Intel vPro technology enables remote management capabilities for IT administrators, while the small footprint makes the system suitable for space-constrained environments like medical offices, financial trading desks, or engineering workstations.
Compact Professional Design
The small form factor chassis measures just 3.94 inches in height, making it ideal for environments where desk space is limited while still providing full workstation capabilities.
- Black professional finish
- Space-efficient footprint
- Easy transport and deployment
Modern Connectivity
Twelve USB ports include a high-speed USB Type-C port supporting 20 Gbps data transfer, USB Power Delivery, and DisplayPort 1.4 video output for versatile peripheral connections.
- SuperSpeed USB Type-C
- DisplayPort support
- Gigabit Ethernet networking
Deployment / Use Cases
This workstation is engineered for professional environments where reliable computing power and compact dimensions are equally important. The combination of Ubuntu Linux and workstation-class hardware makes it particularly suitable for software development, data science, and engineering applications that benefit from Linux-based tools and libraries.
In corporate settings, the system supports financial modeling, database management, and CAD viewing applications. Educational institutions can deploy these workstations in computer labs for programming courses or engineering programs. The small form factor also makes it appropriate for point-of-sale systems, digital signage controllers, or medical imaging workstations where space is at a premium.
Software Development Environment
Ubuntu 22.04 LTS provides a stable platform for coding, testing, and deployment workflows with native support for development tools, containers, and cloud integration.
Technical Workstation
The hexa-core processor and fast NVMe storage handle engineering applications, data analysis, and technical documentation with responsive performance.
Localization and Operating System
This workstation ships with Ubuntu 22.04 LTS pre-installed, providing a Long Term Support release that receives security updates and maintenance through April 2027. The Linux operating system offers a secure, customizable platform for enterprise applications, development environments, and specialized software that runs natively on Linux distributions.
The system is configured for English language support and follows standard Ubuntu localization settings. Keyboard and mouse input devices are included with the workstation package for immediate setup and use.
Relevant factors for this section include Number of Processors Supported, Number of Processors Installed, Processor Type, Chipset Manufacturer. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Physical Profile
The compact chassis measures 3.94 inches in height, 15.12 inches in width, and 12.13 inches in depth, with a weight of approximately 11.02 pounds. The black finish presents a professional appearance suitable for office environments, while the small form factor design allows placement in various configurations including desktop, under-desk mounting, or vertical orientation with appropriate mounting hardware.
The physical profile is practical for deployment planning because the dimensions and weight are clearly defined: 3.94" (100 mm), 15.12" (384 mm), 12.13" (308 mm), 11.02 lb (5000 g). This helps confirm rack, shelf, desk, or cabinet fit before installation.
- Width
- 15.12" (384 mm)
- Depth
- 12.13" (308 mm)
- Height
- 3.94" (100 mm)
- Weight
- 11.02 lb (5000 g)
What's in the Box
The workstation package includes all necessary components for immediate setup and operation.
Package contents include Z2 Small Form Factor G9 Workstation Mouse Keyborad, Z2 Small Form Factor G9 Workstation. These included items support setup, installation, and immediate deployment without needing to source the core bundled accessories separately.
Highlights
- Intel Core i5-12500 12th Gen processor with six cores and vPro technology
- 16 GB DDR5 memory with four slots supporting expansion to 128 GB
- 512 GB PCI Express NVMe 4.0 x4 solid-state drive for fast storage access
- Ubuntu 22.04 LTS operating system with long-term support through 2027
- Small form factor design with compact 3.94" height for space-constrained environments
- Intel W680 chipset providing workstation-class platform features
- Twelve USB ports including SuperSpeed USB Type-C with 20 Gbps support
- Gigabit Ethernet networking for reliable wired connectivity
- 260 W power supply supporting 120-230 V AC input voltage
- Professional black finish suitable for office and technical environments
Specifications
| Specifications | |
|---|---|
| Manufacturer | HP Inc. |
| Manufacturer Part Number | B0UZ8UA#ABA |
| Brand Name | HP |
| Product Series | Z2 G9 |
| Product Name | Z2 Small Form Factor G9 Workstation |
| Product Type | Workstation |
| Processor | |
| Number of Processors Supported | 1 |
| Number of Processors Installed | 1 |
| Processor Type | Core i5 |
| Processor Generation | 12th Gen |
| Processor Model | i5-12500 |
| Processor Core | Hexa-core (6 Core) |
| Processor Threads | 12 |
| Processor Speed | 3 GHz |
| Processor Socket | Socket LGA-1700 |
| vPro Technology | Yes |
| Chipset | |
| Chipset Manufacturer | Intel |
| Chipset Model | W680 |
| Memory | |
| Standard Memory | 16 GB |
| Maximum Memory Supported | 128 GB |
| Memory Technology | DDR5 SDRAM |
| Total Number of Memory Slots | 4 |
| Memory Configuration | 2 x 8GB |
| Signal Processing | Unbuffered |
| Storage | |
| Drive Type | SSD |
| Total Solid State Drive Capacity | 512 GB |
| Solid State Drive Interface | PCI Express NVMe 4.0 x4 |
| Controllers | |
| Controller Type | NVMe,Serial ATA/600 |
| RAID Supported | Yes |
| RAID Levels | 0, 1 |
| Display & Graphics | |
| Graphics Memory Accessibility | Shared |
| Network & Communication | |
| Ethernet Technology | Gigabit Ethernet |
| Interfaces/Ports | |
| Total Number of USB Ports | 12 |
| USB Type-C | Yes |
| USB Type-C Detail | 1 x SuperSpeed USB Type-C® 20Gbps signaling rate (USB Power Delivery, DisplayPort™ 1.4, HP Sleep and Charge |
| DisplayPort | Yes |
| Operating System | |
| Operating System Platform | Linux |
| Operating System | Ubuntu 22.04 LTS |
| Power Description | |
| Input Voltage | 120 V AC,230 V AC |
| Maximum Power Supply Wattage | 260 W |
| Physical Characteristics | |
| Color Family | Black |
| Product Color | Black |
| Form Factor | Small Form Factor |
| Height | 3.94" (100 mm) |
| Width | 15.12" (384 mm) |
| Depth | 12.13" (308 mm) |
| Weight (Approximate) | 11.02 lb (5000 g) |
| Miscellaneous | |
| Package Contents | Z2 Small Form Factor G9 Workstation Mouse Keyborad |
| Energy Star | Yes |
| Environmentally Friendly | Yes |
| Environmental Certification | Electronic Product Environmental Assessment Tool Gold (EPEAT Gold) |
| Energy Efficiency Certification | China Energy Conservation Program (CECP) |
| Energy Efficiency Compliance | Energy-related Products Directive (ErP) |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS),Waste Electrical and Electronic Equipment Directive (WEEE) |
| TCO Certified | Yes |
| Warranty | |
| Limited Warranty | 1 Year |
| Additional Warranty Information | 1 year (1/1/0) limited warranty includes 1 year of parts and labor. No on-site repair |
User Manual
FAQ
What processor does this HP Z2 G9 Workstation use?
This workstation features an Intel Core i5-12500 processor from the 12th Generation family. It's a hexa-core processor with six physical cores and twelve threads, operating at a base clock speed of 3 GHz. The processor includes Intel vPro technology for enhanced security and remote management capabilities in business environments.
How much memory is installed and what type does it use?
The system comes with 16 GB of DDR5 SDRAM memory installed as two 8 GB modules operating in dual-channel configuration. There are four total memory slots available, allowing expansion up to 128 GB of DDR5 memory. The DDR5 technology provides faster data transfer rates compared to previous DDR4 memory standards.
What storage configuration does this workstation include?
Storage is provided by a 512 GB solid-state drive using the PCI Express NVMe 4.0 x4 interface. This NVMe SSD delivers significantly faster read and write speeds compared to traditional SATA SSDs or hard drives. The storage controller supports both NVMe and SATA/600 interfaces, and the system includes RAID support for configurations 0 and 1.
Which operating system is pre-installed on this workstation?
This HP Z2 G9 Workstation comes with Ubuntu 22.04 LTS (Long Term Support) pre-installed. Ubuntu 22.04 LTS is a Linux distribution that receives security updates and maintenance support through April 2027. The operating system provides a stable platform for development, data analysis, and enterprise applications that run on Linux.
What connectivity options are available on this small form factor workstation?
Connectivity includes Gigabit Ethernet for wired networking and twelve USB ports total. Among these is one SuperSpeed USB Type-C port supporting 20 Gbps data transfer rates, USB Power Delivery, and DisplayPort 1.4 video output. The workstation also includes standard DisplayPort video output for monitor connections.
What are the physical dimensions and form factor of this workstation?
This is a small form factor workstation measuring 3.94 inches in height, 15.12 inches in width, and 12.13 inches in depth (100 x 384 x 308 mm). It weighs approximately 11.02 pounds (5 kg). The compact design makes it suitable for environments with limited space while still providing full workstation capabilities in a professional black finish.
