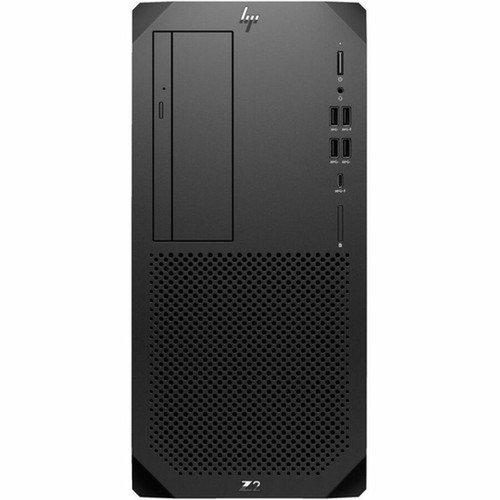

HP B16LSUA#ABA Z2 G9 Workstation - Intel Core i9-14900K 14th Gen - 64GB DDR5 RAM - 2TB NVMe SSD - 16GB Dedicated Graphics - Windows 11 Pro - Tower
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
At the core of the Z2 G9 is the 14th Gen Intel Core i9-14900K processor, operating at 3.20 GHz with a Socket LGA-1700 interface. This 24-core CPU supports 32 threads, enabling high parallel processing for engineering software, financial modeling, and content creation. The platform uses DDR5 SDRAM technology for improved bandwidth over previous generations, with non-ECC unbuffered memory configured as two 32 GB modules.
Storage is handled by a 2 TB PCI Express NVMe 4.0 x4 solid-state drive, which leverages the NVMe protocol for low latency and high sequential read/write speeds. The system includes both Serial ATA/600 and NVMe storage controllers, with hardware RAID 0 and 1 support for data redundancy or striped performance. Graphics are powered by a dedicated 16 GB GPU, suitable for CAD, video editing, and moderate GPU-accelerated compute tasks.
Key Product Advantages
The Z2 G9 balances raw compute performance with practical workstation features for professional environments. Its tower chassis simplifies maintenance and customization, allowing users to add storage, memory, or expansion cards as needs evolve. The 700 W power supply ensures stable operation under load, while comprehensive connectivity includes Gigabit Ethernet, Wi-Fi, Bluetooth, and multiple USB ports for peripherals.
Expandable Memory Architecture
Four DDR5 DIMM slots support up to 128 GB of memory, giving room to scale with demanding applications or virtualized workloads.
- 64 GB installed (2 x 32 GB)
- DDR5 for higher bandwidth
- Non-ECC unbuffered configuration
Fast NVMe Storage
The 2 TB NVMe SSD uses the PCIe 4.0 x4 interface, reducing load times and improving responsiveness in data-intensive tasks.
- PCI Express NVMe 4.0 x4
- 2 TB capacity
- Hardware RAID 0/1 support
Professional-Grade Connectivity
Built-in Gigabit Ethernet, wireless LAN, and Bluetooth provide flexible network options, while 11 USB ports accommodate keyboards, mice, external drives, and other accessories.
- Gigabit Ethernet
- Wireless LAN
- Bluetooth
- DisplayPort output
Deployment / Use Cases
This workstation is suited for engineering firms, design studios, research labs, and financial institutions where compute reliability and expansion matter. The Core i9 processor and ample memory make it effective for finite element analysis, computational fluid dynamics, 3D CAD modeling, and rendering with applications like SOLIDWORKS, Autodesk Maya, or ANSYS.
In media production, the Z2 G9 can handle video editing, color grading, and audio processing, with the NVMe SSD speeding up media transfers and project loads. For software development, the system supports multiple virtual machines, compilations, and testing environments. The tower design also fits well in office settings where users may later add more storage, a capture card, or a higher-end GPU.
Engineering & Simulation
Run structural analysis, electromagnetic simulation, and multi-physics modeling with the 24-core CPU and dedicated graphics.
Content Creation & Post-Production
Edit 4K video, composite visual effects, and render animations using the fast storage and 16 GB graphics memory.
Localization and Operating System
The workstation ships with Windows 11 Pro pre-installed, providing a familiar environment for business users. Windows 11 Pro includes BitLocker encryption, remote desktop, and enhanced security features suitable for managed IT environments. The operating system supports the latest professional software suites and offers tools for creative and productivity workflows.
Localization is reflected in the keyboard and mouse included in the package, which are configured for North American English layouts. The system accepts 120 V and 230 V AC input, making it compatible with standard power outlets in most regions.
Relevant factors for this section include Number of Processors Supported, Number of Processors Installed, Processor Type, Chipset Manufacturer. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Physical Profile
Housed in a black tower case, the Z2 G9 measures 15.16 inches in height, 14.02 inches in width, and 6.65 inches in depth, with a weight of approximately 13.67 pounds. The compact tower footprint fits under desks or on work surfaces, while the design allows for adequate airflow to maintain thermal performance during extended compute sessions. The chassis provides tool-less access for easy upgrades and maintenance.
- Width
- 14.02" (356 mm)
- Depth
- 6.65" (169 mm)
- Height
- 15.16" (385 mm)
- Weight
- 13.67 lb (6200 g)
What's in the Box
The package includes the Z2 Tower G9 Workstation, a keyboard, and a mouse, providing everything needed to set up and start working immediately.
Package contents include Z2 Tower G9 Workstation Keyboard Mouse, Z2 Tower G9 Workstation. These included items support setup, installation, and immediate deployment without needing to source the core bundled accessories separately.
Highlights
- Intel Core i9-14900K 14th Gen processor with 24 cores and 32 threads for high parallel performance
- 64 GB of DDR5 SDRAM installed, expandable to 128 GB across four memory slots
- 2 TB PCI Express NVMe 4.0 x4 SSD for fast boot times and rapid data access
- 16 GB dedicated graphics memory accelerates visual workloads and CAD applications
- Windows 11 Pro operating system with BitLocker encryption and remote desktop capabilities
- Tower form factor in black allows easy internal upgrades and maintenance
- 700 W power supply ensures stable operation under heavy computational loads
- Comprehensive connectivity: Gigabit Ethernet, Wireless LAN, Bluetooth, 11 USB ports, DisplayPort
- Hardware RAID 0 and 1 support for data redundancy or performance striping
- 1-year limited warranty covering parts and labor for reliable long-term use
Specifications
| Specifications | |
|---|---|
| Manufacturer | HP Inc. |
| Manufacturer Part Number | B16LSUA#ABA |
| Brand Name | HP |
| Product Series | Z2 G9 |
| Product Name | Z2 Tower G9 Workstation |
| Product Type | Workstation |
| Processor | |
| Number of Processors Supported | 1 |
| Number of Processors Installed | 1 |
| Processor Type | Core i9 |
| Processor Generation | 14th Gen |
| Processor Model | i9-14900K |
| Processor Core | Tetracosa-core (24 Core) |
| Processor Threads | 32 |
| Processor Speed | 3.20 GHz |
| Processor Socket | Socket LGA-1700 |
| Chipset | |
| Chipset Manufacturer | Intel |
| Chipset Model | W680 |
| Memory | |
| Standard Memory | 64 GB |
| Maximum Memory Supported | 128 GB |
| Memory Technology | DDR5 SDRAM |
| Total Number of Memory Slots | 4 |
| Memory Configuration | 2 x 32GB |
| Error Checking | Non-ECC |
| Signal Processing | Unbuffered |
| Storage | |
| Drive Type | SSD |
| Total Solid State Drive Capacity | 2 TB |
| Solid State Drive Interface | PCI Express NVMe 4.0 x4 |
| Controllers | |
| Controller Type | Serial ATA/600,NVMe |
| RAID Supported | Yes |
| RAID Levels | 0, 1 |
| Display & Graphics | |
| Graphics Memory Capacity | 16 GB |
| Graphics Memory Accessibility | Dedicated |
| Network & Communication | |
| Ethernet Technology | Gigabit Ethernet |
| Wireless LAN | Yes |
| Bluetooth | Yes |
| Interfaces/Ports | |
| Total Number of USB Ports | 11 |
| DisplayPort | Yes |
| Operating System | |
| Operating System Platform | Windows |
| Operating System | Windows 11 Pro |
| Power Description | |
| Input Voltage | 120 V AC,230 V AC |
| Maximum Power Supply Wattage | 700 W |
| Physical Characteristics | |
| Color Family | Black |
| Product Color | Black |
| Form Factor | Tower |
| Height | 15.16" (385 mm) |
| Width | 14.02" (356 mm) |
| Depth | 6.65" (169 mm) |
| Weight (Approximate) | 13.67 lb (6200 g) |
| Miscellaneous | |
| Package Contents | Z2 Tower G9 Workstation Keyboard Mouse |
| Energy Star | Yes |
| Environmentally Friendly | Yes |
| Environmental Certification | Electronic Product Environmental Assessment Tool Gold (EPEAT Gold) |
| Energy Efficiency Certification | China Energy Conservation Program (CECP) |
| Energy Efficiency Compliance | Energy-related Products Directive (ErP) |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE),Restriction of Hazardous Substances (RoHS) |
| TCO Certified | Yes |
| Warranty | |
| Limited Warranty | 1 Year |
| Additional Warranty Information | 1 year (1/1/0) limited warranty includes 1 year of parts and labor. No onsite repair |
User Manual
FAQ
What processor does the HP Z2 G9 Workstation use?
The workstation is equipped with an Intel Core i9-14900K processor from the 14th Generation. This CPU features 24 cores and 32 threads, operates at a base speed of 3.20 GHz, and uses the Socket LGA-1700 interface. It is designed for demanding multi-threaded applications like simulation, rendering, and data analysis.
How much memory is installed, and can it be expanded?
The system comes with 64 GB of DDR5 SDRAM installed as two 32 GB modules. It has four total memory slots, supporting a maximum of 128 GB. This allows users to add more memory later to handle larger datasets, virtual machines, or memory-intensive software.
What type of storage does this workstation include?
Storage is provided by a 2 TB solid-state drive using the PCI Express NVMe 4.0 x4 interface. This NVMe SSD offers high sequential read/write speeds compared to SATA drives, reducing load times for applications and files. The system also supports hardware RAID 0 and 1 for data redundancy or performance.
Does the Z2 G9 have dedicated graphics?
Yes, the workstation includes a dedicated graphics solution with 16 GB of dedicated graphics memory. This is suitable for CAD, 3D modeling, video editing, and other GPU-accelerated tasks, providing better performance than integrated graphics for visual workloads.
What operating system is pre-installed?
The workstation ships with Windows 11 Pro pre-installed. Windows 11 Pro includes features like BitLocker device encryption, remote desktop access, and enhanced security controls, making it appropriate for business and professional environments that require managed IT capabilities.
What is the form factor and power supply rating?
The Z2 G9 uses a tower form factor in black, measuring 15.16 x 14.02 x 6.65 inches. It is powered by a 700 W power supply that accepts 120 V or 230 V AC input. The tower design facilitates easy upgrades, while the robust power supply ensures stable performance during intensive computing tasks.
