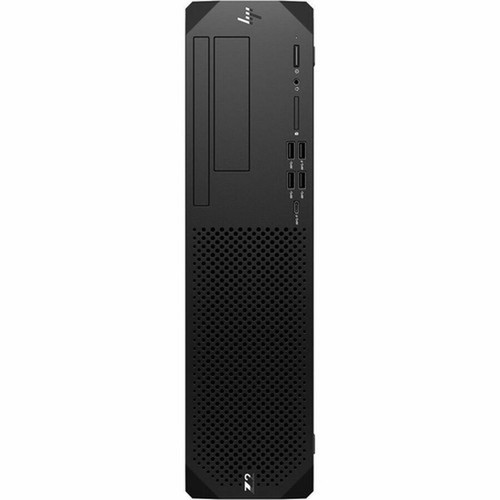

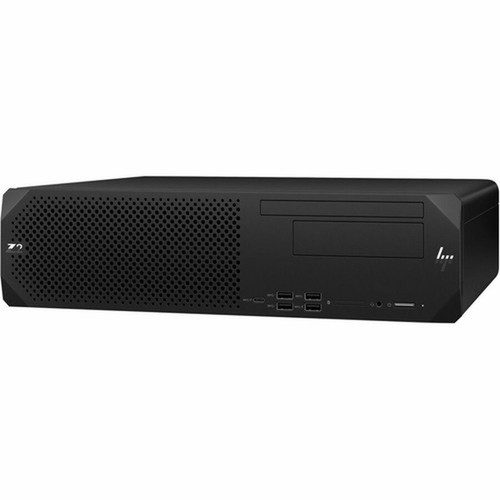

HP B29E2UA#ABA Z2 G9 Workstation - Intel Core i9-14900K 14th Gen - 128 GB DDR5 - 512 GB NVMe SSD - Small Form Factor - Windows 11 Pro - Black
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
The Z2 G9 is powered by the Intel Core i9-14900K processor, which operates at a base frequency of 3.20 GHz on the LGA-1700 socket. This 14th Gen CPU features 24 cores and 32 threads, delivering high throughput for parallelized workloads and complex simulations.
Memory is configured as 128 GB of DDR5 SDRAM across four 32 GB modules, running in a non-ECC unbuffered mode. The Intel W680 chipset provides a stable platform with support for PCI Express NVMe 4.0 storage, RAID 0/1 configurations, and multiple display outputs through the integrated NVIDIA graphics solution.
Relevant factors for this section include Number of Processors Supported, Number of Processors Installed, Processor Manufacturer, Chipset Manufacturer. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
The HP Z2 G9 combines high-density computing with a space-efficient design, making it an ideal choice for professionals who need workstation power without a large footprint.
Compact Performance
The small form factor chassis measures just 3.94" x 15.12" x 12.13", yet houses a full-featured workstation with 128 GB of RAM and dedicated graphics.
- Lightweight at 11.02 lb for easy relocation
- Black finish blends into professional environments
Advanced Connectivity
With 12 USB ports, including a 20 Gbps USB Type-C with Power Delivery and DisplayPort support, plus four Mini DisplayPort outputs, the Z2 G9 supports multiple peripherals and displays.
- SuperSpeed USB Type-C for fast data and charging
- Gigabit Ethernet for reliable network access
Enterprise-Ready Platform
Windows 11 Pro provides enhanced security, remote management, and productivity tools, while the 450 W power supply ensures stable operation under load.
- RAID 0/1 support for data redundancy or performance
- EPEAT Gold and TCO Certified for environmental compliance
Deployment / Use Cases
This workstation is designed for technical professionals who require reliable performance for compute-heavy tasks in compact or shared workspaces.
Engineering and architectural firms can leverage the Z2 G9 for CAD, finite element analysis, and 3D rendering, where the 128 GB of RAM handles large models and simulations efficiently. The dedicated NVIDIA graphics accelerate visualization and real-time previews.
Content creators and video editors will appreciate the fast NVMe storage for quick asset loading and the multi-core processor for encoding and effects processing. The small form factor allows it to fit neatly under desks or in studio racks.
Research and development labs can use the Z2 G9 for data analysis, scientific computing, and software development, benefiting from the Windows 11 Pro environment for secure collaboration and the Gigabit Ethernet for network storage access.
Localization and Operating System
The HP Z2 G9 Workstation comes pre-installed with Windows 11 Pro, the professional edition of Microsoft's latest operating system. Windows 11 Pro includes advanced security features like BitLocker encryption, Windows Defender, and remote desktop capabilities, making it suitable for business and institutional use.
This configuration is localized for North American markets, with keyboard and input settings optimized for English (United States). The operating system supports multiple display outputs through the Mini DisplayPort connectors, enabling extended desktop setups for multitasking and workflow efficiency.
Relevant factors for this section include Number of Processors Supported, Number of Processors Installed, Processor Manufacturer, Chipset Manufacturer. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Physical Profile
The Z2 G9 adopts a small form factor design with dimensions of 3.94 inches in height, 15.12 inches in width, and 12.13 inches in depth. This compact footprint allows it to occupy minimal desk or floor space, ideal for crowded offices, home offices, or mobile deployment scenarios.
Weighing approximately 11.02 pounds, the workstation is relatively portable for a desktop system, facilitating easy transport between sites. The all-black exterior provides a professional appearance that matches standard office equipment, and the chassis includes ventilation for effective thermal management during sustained workloads.
- Width
- 160 GB/s
- Depth
- 12.13" (308 mm)
- Height
- 3.94" (100 mm)
- Weight
- 11.02 lb (5000 g)
What's in the Box
The package includes the HP Z2 Small Form Factor G9 Workstation unit, a compatible keyboard, and a mouse, providing everything needed for immediate setup and operation.
Highlights
- Intel Core i9-14900K 14th Gen processor with 24 cores and 32 threads
- 128 GB of DDR5 SDRAM for multitasking and memory-intensive applications
- 512 GB PCI Express NVMe 4.0 x4 SSD for fast boot and data access
- NVIDIA dedicated graphics with 4 GB memory for CAD and design work
- Windows 11 Pro operating system with advanced security and management
- Small form factor chassis in black for space-efficient deployment
- 12 USB ports including a 20 Gbps USB Type-C with Power Delivery
- Four Mini DisplayPort outputs for multi-monitor setups
- Gigabit Ethernet for high-speed network connectivity
- 450 W power supply with 120/230 V AC input compatibility
Specifications
| Specifications | |
|---|---|
| Manufacturer | HP Inc. |
| Manufacturer Part Number | B29E2UA#ABA |
| Brand Name | HP |
| Product Series | Z2 G9 |
| Product Name | Z2 Small Form Factor G9 Workstation |
| Product Type | Workstation |
| Processor | |
| Number of Processors Supported | 1 |
| Number of Processors Installed | 1 |
| Processor Manufacturer | Intel |
| Processor Type | Core i9 |
| Processor Generation | 14th Gen |
| Processor Model | i9-14900K |
| Processor Core | Tetracosa-core (24 Core) |
| Processor Threads | 32 |
| Processor Speed | 3.20 GHz |
| Processor Socket | Socket LGA-1700 |
| Chipset | |
| Chipset Manufacturer | Intel |
| Chipset Model | W680 |
| Memory | |
| Standard Memory | 128 GB |
| Maximum Memory Supported | 128 GB |
| Memory Technology | DDR5 SDRAM |
| Memory Configuration | 4 x 32GB |
| Error Checking | Non-ECC |
| Signal Processing | Unbuffered |
| Storage | |
| Drive Type | SSD |
| Total Solid State Drive Capacity | 512 GB |
| Solid State Drive Interface | PCI Express NVMe 4.0 x4 |
| Controllers | |
| Controller Type | Serial ATA/600,NVMe |
| RAID Supported | Yes |
| RAID Levels | 0, 1 |
| Display & Graphics | |
| Graphics Controller Manufacturer | NVIDIA |
| Graphics Memory Capacity | 4 GB |
| Graphics Memory Accessibility | Dedicated |
| Maximum Memory Bandwidth | 160 GB/s |
| Network & Communication | |
| Ethernet Technology | Gigabit Ethernet |
| Interfaces/Ports | |
| Total Number of USB Ports | 12 |
| USB Type-C | Yes |
| USB Type-C Detail | 1 SuperSpeed USB Type-C® 20Gbps signaling rate (USB Power Delivery, DisplayPort™ 1.4, HP Sleep and Charge) |
| DisplayPort | Yes |
| Mini DisplayPort | Yes |
| Number of Mini DisplayPort | 4 |
| Operating System | |
| Operating System Platform | Windows |
| Operating System | Windows 11 Pro |
| Power Description | |
| Input Voltage | 120 V AC,230 V AC |
| Maximum Power Supply Wattage | 450 W |
| Physical Characteristics | |
| Color Family | Black |
| Product Color | Black |
| Form Factor | Small Form Factor |
| Height | 3.94" (100 mm) |
| Width | 15.12" (384 mm) |
| Depth | 12.13" (308 mm) |
| Weight (Approximate) | 11.02 lb (5000 g) |
| Miscellaneous | |
| Package Contents | Z2 Small Form Factor G9 Workstation Keyboard Mouse |
| Energy Star | Yes |
| Environmentally Friendly | Yes |
| Environmental Certification | Electronic Product Environmental Assessment Tool Gold (EPEAT Gold),Electronic Product Environmental Assessment Tool Climate+ (EPEAT Climate+) |
| Energy Efficiency Certification | China Energy Conservation Program (CECP) |
| Energy Efficiency Compliance | Energy-related Products Directive (ErP) |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS),Waste Electrical and Electronic Equipment Directive (WEEE) |
| TCO Certified | Yes |
| Warranty | |
| Limited Warranty | 1 Year |
User Manual
FAQ
What processor does the HP Z2 G9 Workstation use?
The HP Z2 G9 is equipped with an Intel Core i9-14900K 14th Gen processor. This CPU features 24 cores and 32 threads, operates at a base frequency of 3.20 GHz, and uses the LGA-1700 socket. It is designed for high-performance computing tasks like 3D rendering, simulation, and data analysis.
How much memory is installed, and what type is it?
This workstation comes with 128 GB of DDR5 SDRAM installed across four 32 GB modules. The memory runs in a non-ECC unbuffered configuration, providing high bandwidth for applications that benefit from large memory capacities, such as virtual machines, large datasets, and complex modeling software.
What storage capacity and interface does the SSD have?
The HP Z2 G9 includes a 512 GB solid-state drive with a PCI Express NVMe 4.0 x4 interface. This NVMe SSD offers fast read and write speeds compared to traditional SATA drives, reducing load times for applications and files, and it is managed by a controller that supports both SATA/600 and NVMe protocols.
Does this workstation have dedicated graphics?
Yes, it features an NVIDIA dedicated graphics controller with 4 GB of dedicated memory and a maximum memory bandwidth of 160 GB/s. This dedicated GPU accelerates graphics-intensive tasks like CAD, video editing, and 3D visualization, providing better performance than integrated graphics for professional workloads.
What operating system is pre-installed?
The workstation ships with Windows 11 Pro pre-installed. Windows 11 Pro includes professional features such as BitLocker device encryption, remote desktop access, and enhanced security controls, making it suitable for business environments that require robust management and data protection.
What are the physical dimensions and form factor?
The HP Z2 G9 is built in a small form factor chassis measuring 3.94 inches high, 15.12 inches wide, and 12.13 inches deep. It weighs approximately 11.02 pounds. This compact design saves desk space while still housing powerful components, making it ideal for offices, labs, or remote work locations where space is limited.
