HP B46ZJUA#ABA Elite Mini 800 G9 Desktop PC - Intel Core i7-14700 14th Gen vPro - 64 GB DDR5 - 1 TB NVMe SSD - Windows 11 Pro - Mini PC
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
At the heart of the Elite Mini 800 G9 is the Intel Core i7-14700 processor, featuring an Icosa-core (20-core) architecture with 28 threads. Base clock speed is 2.10 GHz with maximum turbo frequencies reaching 5.40 GHz, supported by 33 MB of L3 cache for reduced latency in data-intensive operations. Intel vPro technology enables remote management, enhanced security, and hardware-assisted stability for IT administration.
Memory configuration includes 64 GB of DDR5 SDRAM operating at high bandwidth to support memory-hungry applications. Storage is handled by a 1 TB M.2 SSD using the PCI Express NVMe 4.0 x4 interface, delivering sequential read/write speeds significantly faster than SATA-based solutions. Graphics are powered by Intel UHD Graphics with shared DDR5 memory, suitable for business applications, multimedia playback, and light graphical work.
Relevant factors for this section include Processor Manufacturer, Processor Type, Processor Generation, Chipset Manufacturer. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
The Elite Mini 800 G9 balances substantial computing power with minimal physical presence, making it ideal for offices, retail environments, digital signage, and remote work setups where desk space is limited. The combination of high-core-count processor, generous memory, and fast NVMe storage creates a responsive system capable of handling complex spreadsheets, database applications, programming environments, and multimedia editing without compromise.
Enterprise Management Ready
Intel vPro technology provides hardware-level security features, remote management capabilities, and system stability monitoring that IT departments require for centralized control and maintenance.
- Hardware-enhanced security
- Remote troubleshooting
- Out-of-band management
Expansion Without Bulk
Seven USB ports include high-speed USB 3.2 Gen 2 and USB 3.2 Gen 2x2 Type-C connections for fast data transfer and peripheral connectivity, while the compact chassis occupies minimal desk or mounting space.
- Multiple high-speed USB ports
- Compact 1.34" height
- Tool-less access for upgrades
Deployment / Use Cases

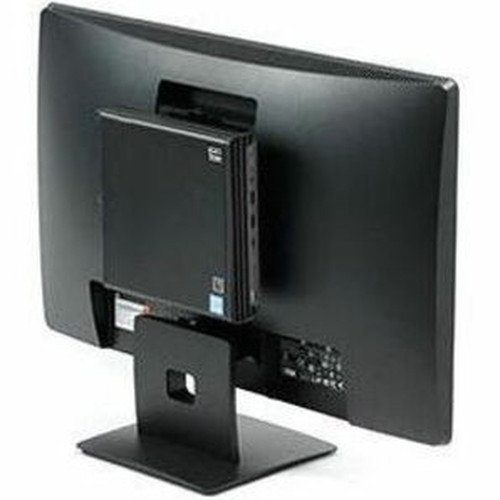

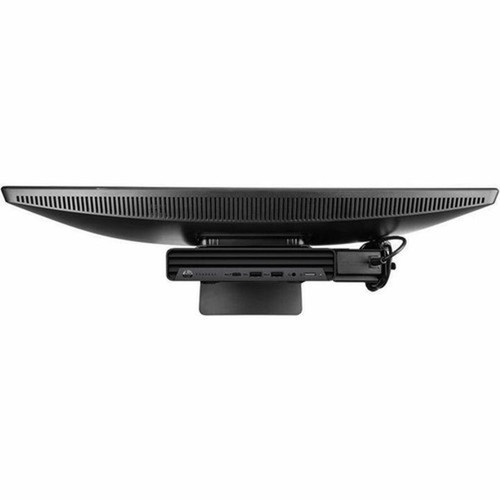

This desktop excels in environments where computing power must coexist with spatial efficiency. The Mini PC form factor allows mounting behind monitors, under desks, or in confined server closets while delivering performance typically associated with larger tower systems. The 64 GB memory capacity and 20-core processor make it suitable for virtualization, software development, financial modeling, and content creation workflows.
In office settings, the system supports multiple monitors through DisplayPort over USB-C and handles productivity suites, CRM software, and video conferencing simultaneously. For digital signage applications, the compact size enables discreet installation while the reliable Intel platform ensures continuous operation. The energy-efficient design with 120 W power supply and environmental certifications makes it appropriate for sustainable IT initiatives.
Space-Optimized Workstations
Replace bulky towers with this compact system that delivers similar performance while freeing up desk space in crowded offices, reception areas, and shared workspaces.
Specialized Application Host
Run database applications, statistical analysis software, CAD viewers, or medical imaging applications that benefit from high core counts and large memory capacity in a small footprint.
Localization and Operating System
Windows 11 Pro provides a complete business operating system with BitLocker encryption, Group Policy management, Remote Desktop functionality, and Windows Subsystem for Linux. The professional edition includes enhanced security features, business-focused applications, and compatibility with enterprise management tools that streamline deployment and maintenance.
The system is configured for North American power standards with 120-230 V AC input compatibility, making it suitable for use in both standard office environments and international deployments with appropriate power adapters. Keyboard and mouse are included with standard US layout, supporting immediate productivity upon setup.
Relevant factors for this section include Processor Manufacturer, Processor Type, Processor Generation, Chipset Manufacturer. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Physical Profile
Measuring just 1.34" (34 mm) in height, 6.97" (177 mm) in width, and 6.89" (175 mm) in depth, the Elite Mini 800 G9 occupies approximately 0.065 cubic feet of space. Weighing 3.13 lb (1420 g), it can be easily mounted using VESA-compatible brackets behind displays or secured in place with the included security slot. The compact dimensions allow placement in environments where traditional desktops would be impractical, while still providing full expansion capabilities through external peripherals and network connections.
The chassis features tool-less access for straightforward maintenance and upgrades without specialized tools. Low-halogen components and multiple environmental certifications demonstrate HP's commitment to sustainable manufacturing practices and reduced environmental impact throughout the product lifecycle.
- Width
- 6.97" (177 mm)
- Depth
- 6.89" (175 mm)
- Height
- 1.34" (34 mm)
- Weight
- 3.13 lb (1420 g)
What's in the Box
The system arrives ready for immediate setup with all essential components included for basic operation.
Highlights
- Intel Core i7-14700 14th Gen processor with 20 cores and 28 threads for demanding workloads
- 64 GB DDR5 memory provides ample capacity for virtualization, large datasets, and multitasking
- 1 TB PCIe NVMe 4.0 SSD delivers fast boot times and rapid application loading
- Windows 11 Pro operating system with business security and management features
- Compact Mini PC form factor (1.34" H) saves space while maintaining full desktop capabilities
- Intel vPro technology enables remote management and enhanced hardware security
- Seven USB ports including high-speed USB 3.2 Gen 2 and Type-C connectivity
- Gigabit Ethernet with Intel I219-LM controller for reliable wired networking
- Tool-less chassis design simplifies maintenance and upgrade procedures
- Energy Star certified with TCO Certified 9.0 and EPEAT Climate+ environmental ratings
Specifications
| Specifications | |
|---|---|
| Manufacturer | HP Inc. |
| Manufacturer Part Number | B46ZJUA#ABA |
| Brand Name | HP |
| Product Line | Elite Mini |
| Product Series | 800 G9 |
| Product Name | Elite Mini 800 G9 Desktop PC |
| Product Type | Desktop Computer |
| Processor | |
| Processor Manufacturer | Intel |
| Processor Type | Core i7 |
| Processor Generation | 14th Gen |
| Processor Model | i7-14700 |
| Processor Core | Icosa-core (20 Core) |
| Processor Threads | 28 |
| Processor Speed | 2.10 GHz |
| Maximum Turbo Speed | 5.40 GHz |
| vPro Technology | Yes |
| Chipset | |
| Chipset Manufacturer | Intel |
| Chipset Model | Q670 |
| Memory | |
| Standard Memory | 64 GB |
| Memory Technology | DDR5 SDRAM |
| Storage | |
| Drive Type | SSD |
| Total Solid State Drive Capacity | 1 TB |
| Solid State Drive Interface | PCI Express NVMe 4.0 x4 |
| SSD Form Factor | M.2 |
| Display & Graphics | |
| Graphics Controller Manufacturer | Intel |
| Graphics Controller Model | UHD Graphics |
| Graphics Memory Technology | DDR5 SDRAM |
| Graphics Memory Accessibility | Shared |
| Network & Communication | |
| LAN Model | I219-LM |
| Ethernet Technology | Gigabit Ethernet |
| Interfaces/Ports | |
| Total Number of USB Ports | 7 |
| Number of USB 3.1 Gen 2 Ports | 1 |
| Number of USB 3.2 Gen 2 Ports | 5 |
| Number of USB 3.2 Gen 2x2 Type-C Ports | 1 |
| Operating System | |
| Operating System Platform | Windows |
| Operating System | Windows 11 Pro |
| Power Description | |
| Input Voltage | 120 V AC,230 V AC |
| Maximum Power Supply Wattage | 120 W |
| Physical Characteristics | |
| Form Factor | Mini PC |
| Height | 1.34" (34 mm) |
| Width | 6.97" (177 mm) |
| Depth | 6.89" (175 mm) |
| Weight (Approximate) | 3.13 lb (1420 g) |
| Miscellaneous | |
| Package Contents | Elite Mini 800 G9 Desktop PC Power Adapter Keyboard Mouse |
| Features | Security Slot,Tool-less Access,Low Halogen |
| Energy Star | Yes |
| TCO Certified | Yes |
| Environmentally Friendly | Yes |
| Environmental Certification | TCO Certified 9.0,Electronic Product Environmental Assessment Tool Climate+ (EPEAT Climate+) |
| Energy Efficiency Certification | China Energy Conservation Program (CECP) |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE),Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 1 Year |
User Manual
FAQ
What processor does the HP Elite Mini 800 G9 use and how many cores does it have?
This system features the Intel Core i7-14700 14th Generation processor with Icosa-core architecture, which provides 20 physical cores and 28 threads. Base clock speed is 2.10 GHz with maximum turbo frequencies reaching 5.40 GHz, supported by 33 MB of L3 cache. This configuration delivers substantial parallel processing capability for multitasking, data analysis, and compute-intensive applications while maintaining energy efficiency in the compact form factor.
How much memory is installed and what type is it?
The Elite Mini 800 G9 comes configured with 64 GB of DDR5 SDRAM. DDR5 memory offers higher bandwidth and improved power efficiency compared to previous generations, supporting faster data transfer between the processor and memory. This substantial memory capacity enables smooth operation of memory-intensive applications like virtual machines, large databases, advanced design software, and complex spreadsheets without performance degradation.
What type of storage does this desktop include and how fast is it?
Storage is provided by a 1 TB M.2 solid-state drive using the PCI Express NVMe 4.0 x4 interface. NVMe 4.0 drives deliver significantly faster sequential read and write speeds compared to SATA SSDs or traditional hard drives, resulting in quicker boot times, faster application loading, and reduced file transfer delays. The M.2 form factor saves space within the compact chassis while providing reliable, silent operation without moving parts.
What operating system is pre-installed and what business features does it include?
Windows 11 Pro comes pre-installed, providing a complete business operating system with BitLocker device encryption, Group Policy management, Remote Desktop functionality, and Windows Subsystem for Linux. The professional edition includes enhanced security features against malware and phishing attempts, business-focused applications, and compatibility with enterprise management tools that streamline deployment, maintenance, and security updates across organizational fleets.
How many USB ports does the system have and what types are included?
The Elite Mini 800 G9 provides seven USB ports total: one USB 3.1 Gen 2 port, five USB 3.2 Gen 2 ports, and one USB 3.2 Gen 2x2 Type-C port. These high-speed connections support fast data transfer for external storage, peripherals, and displays. The USB 3.2 Gen 2x2 Type-C port offers particularly high bandwidth for compatible devices, while the variety of port types ensures compatibility with both legacy and modern peripherals.
What are the physical dimensions and weight of this Mini PC?
The system measures 1.34 inches (34 mm) in height, 6.97 inches (177 mm) in width, and 6.89 inches (175 mm) in depth, with an approximate weight of 3.13 pounds (1420 grams). These compact dimensions allow placement in space-constrained environments like behind monitors, under desks, or in mounted configurations. Despite the small size, the chassis includes tool-less access for maintenance and a security slot for physical theft prevention in shared or public spaces.
