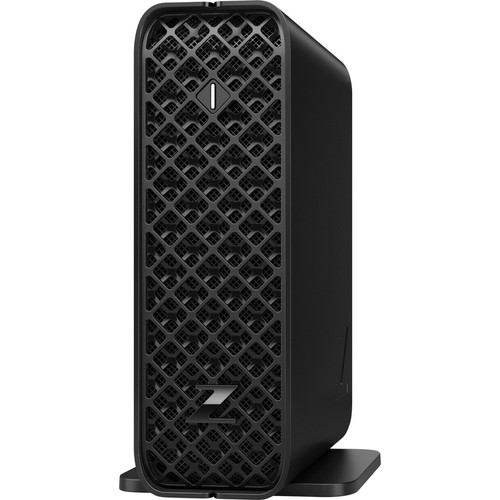

HP B6NT0UT#ABA Z2 Mini G9 Workstation - Intel Core i9-14900 14th Gen - 32GB DDR5 RAM - 1TB NVMe SSD - Dedicated Graphics - Windows 11 Pro
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
At the core of the Z2 Mini G9 is the Intel Core i9-14900 processor, featuring a tetracosa-core (24-core) architecture with a base clock of 2 GHz and support for the LGA-1700 socket. This 14th Gen CPU, paired with the Intel W680 chipset, provides a robust platform for compute-intensive workloads. The system includes 32 GB of DDR5 SDRAM across two slots, with support for up to 64 GB, ensuring ample headroom for memory-hungry applications.
Storage is handled by a 1 TB PCI Express NVMe 4.0 x4 solid-state drive, delivering exceptional read/write speeds for fast boot times and quick file transfers. The NVMe controller supports RAID 0 and 1 configurations, offering options for performance or data redundancy. Graphics are powered by a dedicated solution with 16 GB of memory and a maximum bandwidth of 224 GB/s, suitable for professional visualization and light GPU computing tasks.
Key Product Advantages
The Z2 Mini G9 combines workstation-class components with a space-saving design, offering a unique balance of power and footprint. Its mini PC form factor allows for flexible deployment in crowded offices, labs, or multi-monitor setups without sacrificing performance.
Compact Powerhouse
Despite its small size (2.72" H x 8.31" W x 8.58" D), this workstation packs a high-end Intel Core i9 processor and dedicated graphics, making it ideal for environments where desk space is limited but performance cannot be compromised.
- Mini PC form factor for easy placement
- Full workstation capabilities in a small chassis
- Reduced clutter and improved cable management
Professional Connectivity
With six USB ports, including two SuperSpeed USB Type-C 20Gbps ports, and four Mini DisplayPort outputs, the Z2 Mini G9 supports multiple peripherals and displays for expansive workstation setups.
- Dual high-speed USB-C for modern devices
- Quad Mini DisplayPort for multi-monitor configurations
- Gigabit Ethernet and wireless for flexible networking
Deployment / Use Cases
The HP Z2 Mini G9 Workstation is designed for professional environments where computational power and space efficiency are both critical. Its compact size and robust specs make it suitable for a variety of demanding applications.
In engineering and design studios, this workstation can run CAD software, finite element analysis, and 3D modeling tools while occupying minimal desk real estate. For financial analysts and data scientists, the fast processor and ample memory enable complex data processing and visualization tasks. In media production, the dedicated graphics and NVMe storage support video editing and graphic design workflows. IT departments can deploy these units as powerful yet unobtrusive workstations for developers, system administrators, or as compact servers for light-duty tasks.
Localization and Operating System
This workstation comes pre-installed with Windows 11 Pro, providing a full-featured professional operating system with enhanced security, management tools, and compatibility with business applications. The OS is configured in English language, aligning with standard corporate deployments in North America.
Keyboard localization is set to English, ensuring that input devices are immediately usable in English-speaking regions. The combination of Windows 11 Pro and English localization makes this system ready for integration into English-language business environments without additional configuration overhead.
Relevant factors for this section include Number of Processors Supported, Number of Processors Installed, Processor Type, Chipset Manufacturer. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Physical Profile
The Z2 Mini G9 features a compact mini PC form factor with dimensions of 2.72 inches in height, 8.31 inches in width, and 8.58 inches in depth, weighing approximately 5.29 pounds. This small footprint allows for placement on desks, mounting behind monitors, or integration into rack enclosures with appropriate accessories.
The chassis includes an air cooling system to maintain optimal temperatures during sustained workloads. The 280-watt power supply supports both 120 V and 230 V AC inputs, making it suitable for use in various regions. The minimalist design and black finish contribute to a professional appearance that blends seamlessly into office or lab settings.
- Width
- 224 GB/s
- Depth
- 8.58" (218 mm)
- Height
- 2.72" (69 mm)
- Weight
- 5.29 lb (2400 g)
What's in the Box
The package includes all essential components to get the workstation up and running quickly.
Highlights
- Intel Core i9-14900 14th Gen processor with 24 cores and 32 threads for high-performance computing
- 32 GB of DDR5 SDRAM memory for smooth multitasking and application performance
- 1 TB PCI Express NVMe 4.0 x4 SSD for fast storage and quick system responsiveness
- Dedicated graphics with 16 GB memory for professional visualization and GPU tasks
- Windows 11 Pro operating system with English language for business-ready deployment
- Compact mini PC form factor (2.72" H x 8.31" W x 8.58" D) for space-efficient setups
- Six USB ports including two SuperSpeed USB Type-C 20Gbps for modern peripherals
- Four Mini DisplayPort outputs for multi-monitor workstation configurations
- Gigabit Ethernet, Wireless LAN, and Bluetooth for comprehensive connectivity options
- 280-watt power supply with 120/230 V AC input for reliable operation
Specifications
| Specifications | |
|---|---|
| Manufacturer | HP Inc. |
| Manufacturer Part Number | B6NT0UT#ABA |
| Brand Name | HP |
| Product Series | Z2 Mini G9 |
| Product Name | Z2 Mini G9 Workstation |
| Product Type | Workstation |
| Processor | |
| Number of Processors Supported | 1 |
| Number of Processors Installed | 1 |
| Processor Type | Core i9 |
| Processor Generation | 14th Gen |
| Processor Model | i9-14900 |
| Processor Core | Tetracosa-core (24 Core) |
| Processor Threads | 32 |
| Processor Speed | 2 GHz |
| Processor Socket | Socket LGA-1700 |
| Chipset | |
| Chipset Manufacturer | Intel |
| Chipset Model | W680 |
| Memory | |
| Standard Memory | 32 GB |
| Maximum Memory Supported | 64 GB |
| Memory Technology | DDR5 SDRAM |
| Total Number of Memory Slots | 2 |
| Memory Configuration | 2 x 16GB |
| Error Checking | Non-ECC |
| Storage | |
| Drive Type | SSD |
| Total Solid State Drive Capacity | 1 TB |
| Solid State Drive Interface | PCI Express NVMe 4.0 x4 |
| Controllers | |
| Controller Type | NVMe |
| RAID Supported | Yes |
| RAID Levels | 0, 1 |
| Display & Graphics | |
| Graphics Memory Capacity | 16 GB |
| Graphics Memory Accessibility | Dedicated |
| Maximum Memory Bandwidth | 224 GB/s |
| Network & Communication | |
| Ethernet Technology | Gigabit Ethernet |
| Wireless LAN | Yes |
| Bluetooth | Yes |
| Input Devices | |
| Keyboard Localization | English |
| Interfaces/Ports | |
| Total Number of USB Ports | 6 |
| USB Type-C | Yes |
| USB Type-C Detail | 2 x SuperSpeed USB Type-C® 20Gbps signaling rate |
| DisplayPort | Yes |
| Mini DisplayPort | Yes |
| Number of Mini DisplayPort | 4 |
| Operating System | |
| Operating System Platform | Windows |
| Operating System | Windows 11 Pro |
| Operating System Language | English |
| Power Description | |
| Input Voltage | 120 V AC,230 V AC |
| Maximum Power Supply Wattage | 280 W |
| Physical Characteristics | |
| Cooler Type | Air Cooler |
| Form Factor | Mini PC |
| Height | 2.72" (69 mm) |
| Width | 8.31" (211 mm) |
| Depth | 8.58" (218 mm) |
| Weight (Approximate) | 5.29 lb (2400 g) |
| Miscellaneous | |
| Package Contents | Z2 Mini G9 Workstation Keyboard Mouse Power Adapter |
| Energy Star | Yes |
| Environmentally Friendly | Yes |
| Environmental Certification | Electronic Product Environmental Assessment Tool Gold (EPEAT Gold),Electronic Product Environmental Assessment Tool Climate+ (EPEAT Climate+) |
| Energy Efficiency Certification | China Energy Conservation Program (CECP) |
| Energy Efficiency Compliance | Energy-related Products Directive (ErP) |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS),Waste Electrical and Electronic Equipment Directive (WEEE) |
| TCO Certified | Yes |
| Warranty | |
| Limited Warranty | 1 Year |
| Additional Warranty Information | Support Service Included: HP 1 Year Wolf Pro Security Edition Service. For terms and conditions, please visit & Manufacturer Warranty: 1 year (1/1/0) limited warranty includes 1 year of parts and labor. No on-site repair. Terms and conditions vary by country. Certain restrictions and exclusions apply. |
User Manual
FAQ
What processor does the HP Z2 Mini G9 Workstation use?
The workstation is powered by an Intel Core i9-14900 14th Gen processor. This CPU features 24 cores (tetracosa-core) and 32 threads with a base clock speed of 2 GHz, providing substantial processing power for demanding applications like CAD, data analysis, and 3D rendering. It uses the LGA-1700 socket and is paired with the Intel W680 chipset for a stable workstation platform.
How much memory is installed, and can it be upgraded?
The system comes with 32 GB of DDR5 SDRAM installed as two 16 GB modules. It has two memory slots total, supporting a maximum capacity of 64 GB. This allows for future expansion if more memory is needed for memory-intensive tasks such as virtualization, large dataset processing, or complex simulations.
What type of storage does this workstation have?
Storage is provided by a 1 TB solid-state drive using the PCI Express NVMe 4.0 x4 interface. This NVMe SSD offers high-speed data transfer rates for fast boot times, quick application launches, and efficient file handling. The drive is managed by an NVMe controller that supports RAID 0 and 1 configurations for performance or redundancy options.
Does the Z2 Mini G9 include dedicated graphics?
Yes, this workstation features dedicated graphics with 16 GB of dedicated memory and a maximum memory bandwidth of 224 GB/s. This graphics solution is suitable for professional visualization tasks, light GPU computing, and supporting multiple displays, making it adequate for design work, video editing, and other graphics-intensive applications.
What operating system is pre-installed?
The workstation comes with Windows 11 Pro pre-installed in English language. Windows 11 Pro includes advanced security features, management tools, and compatibility with business software, providing a robust operating environment for professional use. The English localization ensures seamless integration into English-speaking business settings.
What are the physical dimensions and form factor of this workstation?
The HP Z2 Mini G9 has a mini PC form factor with compact dimensions: 2.72 inches in height, 8.31 inches in width, and 8.58 inches in depth. It weighs approximately 5.29 pounds. This small size allows for flexible placement on desks, behind monitors, or in rack mounts, making it ideal for space-constrained environments without sacrificing workstation capabilities.
