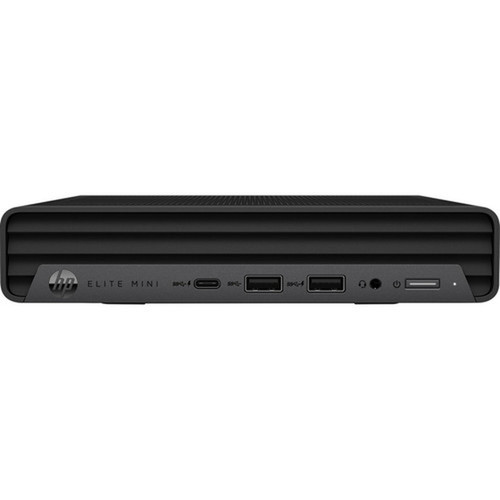

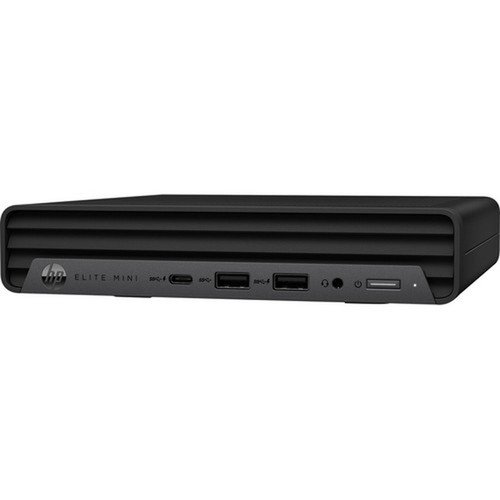

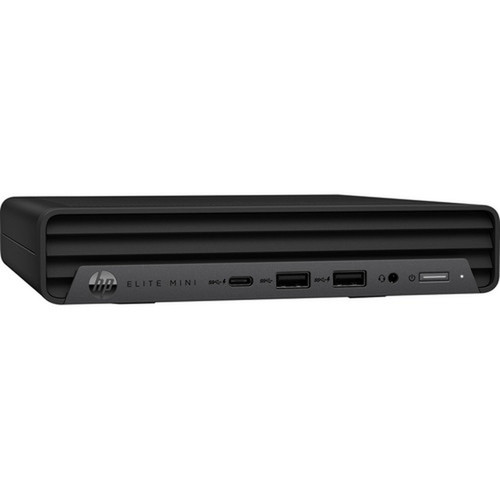

HP B7EV5UA#ABA Elite Mini 800 G9 Desktop PC - Intel Core i7-13700T 13th Gen - 32GB DDR5 - 1TB NVMe SSD - Windows 11 Pro - Mini PC
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
At the heart of the Elite Mini 800 G9 is the Intel Core i7-13700T processor, a 13th Generation chip with a maximum turbo frequency of 4.90 GHz. This hexadeca-core CPU leverages Intel's hybrid architecture to efficiently balance performance and power consumption, making it well-suited for sustained productivity in compact thermal envelopes. The processor is paired with the Intel Q670 chipset, which provides robust platform stability and enterprise management capabilities.
Memory performance is driven by 32 GB of DDR5 SDRAM operating in a single-channel configuration, offering high bandwidth for data-intensive applications. Storage is handled by a 1 TB PCI Express NVMe 4.0 x4 SSD in the M.2 form factor, delivering rapid boot times, fast application loading, and quick file transfers. Graphics are powered by Intel UHD Graphics 770 with shared DDR5 memory, providing smooth performance for basic visual tasks, video playback, and multi-display productivity setups.
Key Product Advantages
The Elite Mini 800 G9 combines professional-grade hardware with a space-saving design that redefines desktop deployment possibilities. Its compact dimensions allow it to fit seamlessly into modern office layouts, retail environments, and educational settings where desk real estate is at a premium. Despite its small size, the system maintains full desktop capabilities with upgradeable components and tool-less access for easy maintenance.
Enterprise-Ready Connectivity
With six USB ports including five USB 3.2 Gen 2 and one USB 3.2 Gen 2x2 Type-C port, the system supports high-speed peripherals, external storage, and docking stations. Gigabit Ethernet via the Intel I219-LM controller ensures reliable network performance for cloud applications and local file sharing.
- 5 x USB 3.2 Gen 2 ports
- 1 x USB 3.2 Gen 2x2 Type-C port
- Intel Gigabit Ethernet controller
Enhanced Security & Manageability
Windows 11 Pro provides advanced security features including BitLocker encryption, Windows Defender, and secure boot. The physical security slot enables cable locking to prevent theft, while HP's enterprise management tools allow for centralized deployment and monitoring across organizational fleets.
- Windows 11 Pro security suite
- Physical security slot
- Enterprise management compatible
Deployment / Use Cases
The Elite Mini 800 G9 is engineered for versatile deployment across multiple business environments. Its balanced combination of processing power, memory capacity, and compact design makes it an ideal choice for knowledge workers, creative professionals, and front-office staff who require reliable performance without bulky hardware.
In corporate settings, these systems excel as space-efficient workstations for financial analysis, software development, and data processing tasks. The 32 GB RAM configuration handles large spreadsheets, development environments, and virtual machines smoothly, while the NVMe SSD ensures responsive application performance. For digital signage, point-of-sale systems, or classroom computers, the mini PC form factor enables discreet mounting behind displays or under desks, maintaining clean sightlines and reducing clutter.
Professional Workspace Solution
Ideal for office environments where desk space optimization is critical. The system's small footprint allows for clean cable management and flexible placement options while delivering full desktop capabilities for productivity applications, video conferencing, and multitasking.
- Space-constrained offices
- Hot-desking environments
- Executive workstations
Digital Worksation & Specialized Applications
Well-suited for creative professionals working with photo editing, video production, and design software. The Core i7 processor and ample memory provide the necessary performance for medium-complexity creative workloads, while the compact design fits neatly into studio setups.
- Graphic design workstations
- Video editing stations
- Architectural visualization
Localization and Operating System
The HP Elite Mini 800 G9 ships with Windows 11 Pro pre-installed, providing a fully localized English operating system environment ready for immediate deployment in North American business settings. Windows 11 Pro delivers enterprise-grade security features including BitLocker device encryption, Windows Defender Advanced Threat Protection, and secure boot capabilities that meet corporate compliance requirements. The operating system also includes productivity enhancements like Snap Layouts for efficient multitasking, Microsoft Teams integration, and compatibility with a broad range of professional software applications commonly used in finance, design, and office productivity workflows.
This configuration features a standard US English keyboard layout with full QWERTY key arrangement, making it immediately familiar to North American users. The operating system supports multiple language packs for international deployment scenarios, though the primary interface and documentation are optimized for English-speaking environments. HP's enterprise management tools integrate seamlessly with Windows 11 Pro, allowing IT administrators to deploy, monitor, and maintain these systems across organizational fleets using familiar Microsoft management consoles and HP-specific utilities for driver updates and hardware diagnostics.
Windows 11 Pro Enterprise Features
The pre-installed Windows 11 Pro operating system includes business-critical capabilities that go beyond the consumer edition. Enterprise State Roaming enables seamless user profile synchronization across devices, while Windows Information Protection helps secure corporate data on the device. Direct Access provides always-on VPN connectivity for remote workers, and Group Policy management allows centralized configuration of security settings and application policies across the organization.
- BitLocker device encryption
- Windows Defender ATP
- Enterprise State Roaming
- Group Policy management
Physical Profile
The Elite Mini 800 G9 measures just 1.34 inches in height, 6.97 inches in width, and 6.89 inches in depth—occupying minimal desk or mounting space. Weighing approximately 3.13 pounds, the system is lightweight enough for easy transport between locations while maintaining a solid, durable construction. The compact form factor enables vertical or horizontal orientation, providing flexibility for various installation scenarios. The low-halogen design and tool-less access panel contribute to both environmental responsibility and simplified maintenance.
- Width
- 6.97" (177 mm)
- Depth
- 6.89" (175 mm)
- Height
- 1.34" (34 mm)
- Weight
- 3.13 lb (1420 g)
What's in the Box
The system arrives ready for deployment with all essential components included for immediate setup and use.
Highlights
- Intel Core i7-13700T 13th Generation processor with 16 cores and 24 threads for multitasking performance
- 32 GB DDR5 memory provides high-capacity RAM for intensive applications and smooth workflow execution
- 1 TB PCI Express NVMe 4.0 SSD delivers fast boot times, quick application loading, and responsive file access
- Windows 11 Pro operating system with enhanced security features and productivity tools pre-installed
- Compact mini PC form factor (1.34" H) saves desk space and enables flexible mounting options
- Six USB ports including USB 3.2 Gen 2 and Type-C connectivity for high-speed peripherals
- Gigabit Ethernet with Intel I219-LM controller ensures reliable wired network performance
- Tool-less access design simplifies maintenance and component upgrades
- Environmental certifications including TCO Certified 9.0 and EPEAT Climate+ compliance
- Includes keyboard and mouse for complete out-of-box productivity
Specifications
| Specifications | |
|---|---|
| Manufacturer | HP Inc. |
| Manufacturer Part Number | B7EV5UA#ABA |
| Brand Name | HP |
| Product Line | Elite Mini |
| Product Series | 800 G9 |
| Product Name | Elite Mini 800 G9 Desktop PC |
| Product Type | Desktop Computer |
| Processor | |
| Processor Manufacturer | Intel |
| Processor Type | Core i7 |
| Processor Generation | 13th Gen |
| Processor Model | i7-13700T |
| Processor Core | Hexadeca-core (16 Core) |
| Processor Threads | 24 |
| Maximum Turbo Speed | 4.90 GHz |
| Chipset | |
| Chipset Manufacturer | Intel |
| Chipset Model | Q670 |
| Memory | |
| Standard Memory | 32 GB |
| Memory Technology | DDR5 SDRAM |
| Memory Configuration | 1 x 32GB |
| Storage | |
| Drive Type | SSD |
| Total Solid State Drive Capacity | 1 TB |
| Solid State Drive Interface | PCI Express NVMe 4.0 x4 |
| SSD Form Factor | M.2 |
| Display & Graphics | |
| Graphics Controller Manufacturer | Intel |
| Graphics Controller Model | UHD Graphics 770 |
| Graphics Memory Technology | DDR5 SDRAM |
| Graphics Memory Accessibility | Shared |
| Network & Communication | |
| LAN Model | I219-LM |
| Ethernet Technology | Gigabit Ethernet |
| Interfaces/Ports | |
| Total Number of USB Ports | 6 |
| Number of USB 3.2 Gen 2 Ports | 5 |
| Number of USB 3.2 Gen 2x2 Type-C Ports | 1 |
| Operating System | |
| Operating System Platform | Windows |
| Operating System | Windows 11 Pro |
| Power Description | |
| Input Voltage | 120 V AC,230 V AC |
| Maximum Power Supply Wattage | 90 W |
| Physical Characteristics | |
| Form Factor | Mini PC |
| Height | 1.34" (34 mm) |
| Width | 6.97" (177 mm) |
| Depth | 6.89" (175 mm) |
| Weight (Approximate) | 3.13 lb (1420 g) |
| Miscellaneous | |
| Package Contents | Elite Mini 800 G9 Desktop PC Power Adapter Keyboard Mouse |
| Features | Security Slot,Tool-less Access,Low Halogen |
| Energy Star | Yes |
| TCO Certified | Yes |
| Environmentally Friendly | Yes |
| Environmental Certification | TCO Certified 9.0,Electronic Product Environmental Assessment Tool Climate+ (EPEAT Climate+) |
| Energy Efficiency Certification | China Energy Conservation Program (CECP) |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE),Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 1 Year |
| Additional Warranty Information | Support Service Included: HP 3y NextBusDay Onsite LE DT Only HW Supp. For terms and conditions, please visit & Manufacturer Warranty: 1 year (1/1/0) limited warranty includes 1 year of parts and labor. No on-site repair. Terms and conditions vary by country. Certain restrictions and exclusions apply. |
User Manual
FAQ
What processor does this product use?
This product uses the Core i7 processor for everyday performance and multitasking.
How much memory is installed?
It includes 32 GB of memory to support responsive multitasking and daily workloads.
What storage is included?
The system includes 1 TB of storage for applications, files, and everyday business data.
What graphics or display support is listed?
It features a display specification of Intel, giving you clear visuals for work and media use.
What connectivity options are available?
Connectivity options include Gigabit Ethernet, helping the product integrate into common office or home setups.
What operating system or platform is included?
The included operating environment is Windows, which helps position the product for software compatibility, deployment planning, and day-to-day business use.
