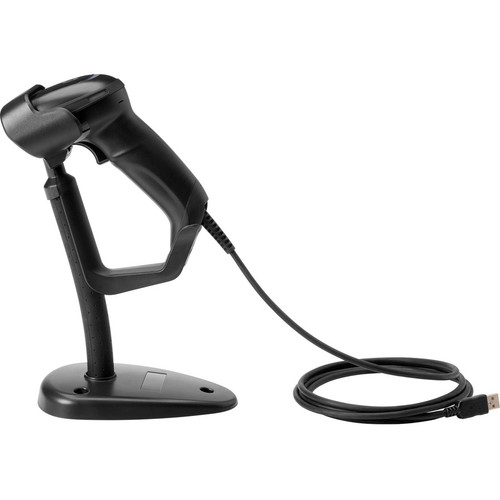

HP Engage Imaging Barcode Scanner II - Cable Connectivity - 1D, 2D - LED - Imager - Omni-directional - USB - Black - Stand Included - (5YQ08AA)
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
-
Auto-discriminates all standard 1D codes (including GS1 DataBar linear codes)
- Aztec Code
- China Han Xin Code
- Data Matrix
- MaxiCode
- QR Code
- Micro QR Code
- Australian Post
- British Post
- China Post
- IMB
- Japanese Post
- KIX Post
- Planet Code
- Postnet
- Royal Mail Code (RM4SCC)
- EAN/JAN Composites
- GS1 DataBar Composites
- GS1 DataBar Expanded Stacked
- GS1 DataBar Stacked
- GS1 DataBar Stacked Omnidirectional
- Macro PDF
- Micro PDF417
- UPC A/E Composites

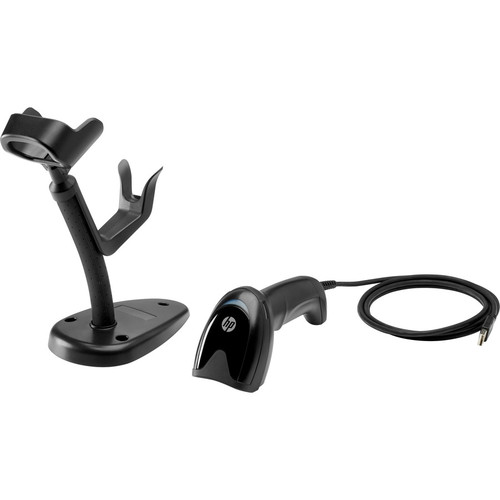

- HP Engage Imaging Barcode Scanner II
- Scanner stand
- 2.0 m (6.5 ft) USB Type-A Cable
Connectivity Technology: Cable
Scanning Capability: 1D,2D
Barcode Symbology Supported: 1D:
Postal decode symbologies:
Stacked decode symbologies:
Light Source: LED
Image Sensor Type: Imager
Scan Pattern: Omni-directional
Cable Type Included: USB
Stand Included: Yes
Reading Angle (Skew): 65°
Reading Angle (Pitch): 65°
Reading Angle (Roll): 360°
Maximum Ambient Light: 100000 lux
Drop Specification:
6.0 ft (1.8 m)
Minimum Print Contrast: 15%
Minimum Element Resolution (Code 39): 5 mil (0.13 mm)
Maximum Element Resolution (Code 39): 10 mil (0.25 mm)
Minimum Element Resolution (DataMatrix): 10 mil (0.25 mm)
Maximum Element Resolution (DataMatrix): 15 mil (0.38 mm)
Maximum Element Resolution (PDF417): 10 mil (0.25 mm)
Host Interface: USB
Form Factor: Handheld
Color Family: Black
Product Color: Black
Height: 4.29" (109 mm)
Width: 2.68" (68 mm)
Length: 6.54" (166 mm)
Weight (Approximate): 5.68 oz (161 g)
Package Contents:
Ingress Protection (IP) Rating: IP52
Platform Supported: PC
Environmentally Friendly: Yes
Environmental Compliance: Restriction of Hazardous Substances (RoHS)
- LED aimer is a perfect choice for patient-facing applications
- Wired connectivity makes this scanner ideal for retail and desktop applications
[custom-specifications]
| Specifications | |
| Manufacturer | HP Inc. |
| Manufacturer Part Number | 5YQ08AA |
| Manufacturer Website Address | http://www.hp.com |
| Brand Name | HP |
| Product Name | Engage Imaging Barcode Scanner II |
| Packaged Quantity | 1 |
| Product Type | Barcode Scanner |
| Technical Information | |
| Connectivity Technology | Cable |
| Scanning Capability | 1D,2D |
| Barcode Symbology Supported | 1D:
Postal decode symbologies:
Stacked decode symbologies:
|
| Light Source | LED |
| Image Sensor Type | Imager |
| Scan Pattern | Omni-directional |
| Cable Type Included | USB |
| Stand Included | Yes |
| Reading Angle (Skew) | 65° |
| Reading Angle (Pitch) | 65° |
| Reading Angle (Roll) | 360° |
| Maximum Ambient Light | 100000 lux |
| Drop Specification | 6.0 ft (1.8 m) |
| Minimum Print Contrast | 15% |
| Minimum Element Resolution (Code 39) | 5 mil (0.13 mm) |
| Maximum Element Resolution (Code 39) | 10 mil (0.25 mm) |
| Minimum Element Resolution (DataMatrix) | 10 mil (0.25 mm) |
| Maximum Element Resolution (DataMatrix) | 15 mil (0.38 mm) |
| Maximum Element Resolution (PDF417) | 10 mil (0.25 mm) |
| Interfaces/Ports | |
| Host Interface | USB |
| Physical Characteristics | |
| Form Factor | Handheld |
| Color Family | Black |
| Product Color | Black |
| Height | 4.29" (109 mm) |
| Width | 2.68" (68 mm) |
| Length | 6.54" (166 mm) |
| Weight (Approximate) | 5.68 oz (161 g) |
| Miscellaneous | |
| Package Contents |
|
| Ingress Protection (IP) Rating | IP52 |
| Platform Supported | PC |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
[/custom-specifications]
[custom-user-manual]
Available Documentation:
Manufacturer-Brochure
Additional-pdf2
Additional-pdf1
[/custom-user-manual]
