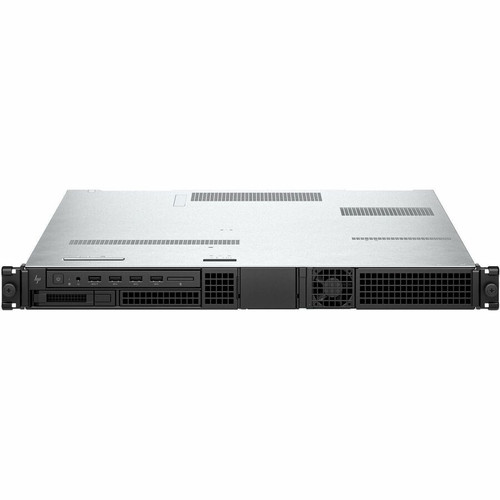

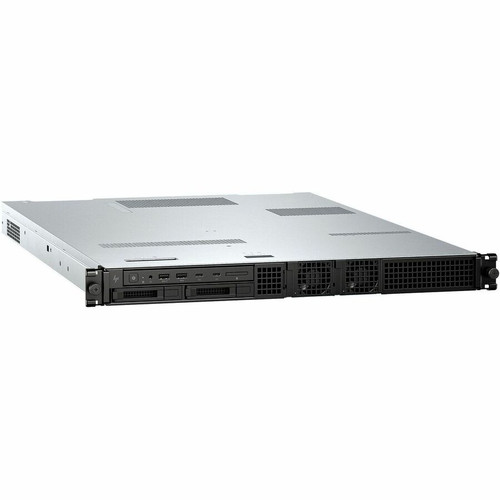

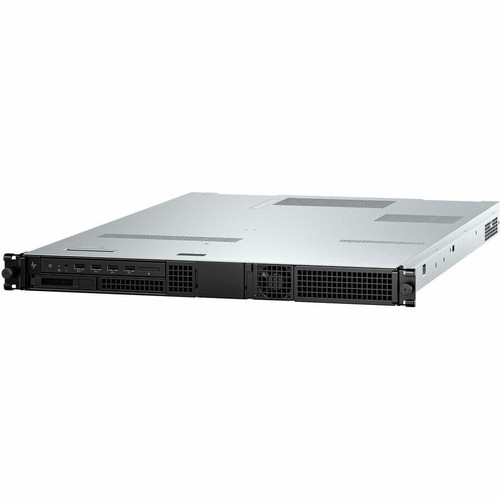

HP Z4 G5 Workstation - 1 x Intel Xeon W w5-2565X - 256 GB - 512 GB SSD - Rack-mountable - Intel W790 Chip - Serial ATA, NVMe - 0, 1, - (C69VXUP#ABA)
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Number of Processors Supported: 1
Number of Processors Installed: 1
Processor Manufacturer: Intel
Processor Type: Xeon W
Processor Model: w5-2565X
Processor Core: Octadeca-core (18 Core)
Processor Threads: 36
Processor Speed: 3.20 GHz
Processor Socket: Socket LGA-4677
Chipset Manufacturer: Intel
Chipset Model: W790
Standard Memory: 256 GB
Maximum Memory Supported: 256 GB
Memory Technology: DDR5 SDRAM
Total Number of Memory Slots: 4
Memory Configuration: 4 x 64GB
Error Checking: ECC
Signal Processing: Registered
Drive Type: SSD
Total Solid State Drive Capacity: 512 GB
Solid State Drive Interface: PCI Express NVMe 4.0 x4
Controller Type: Serial ATA,NVMe
RAID Supported: Yes
RAID Levels: 0, 1, 5, 10
Ethernet Technology: Gigabit Ethernet
Total Number of USB Ports: 10
Number of Onboard USB 2.0 Ports: 3
Input Voltage: 120 V AC,230 V AC
Maximum Power Supply Wattage: 675 W
Cooler Type: Air Cooler
Form Factor: Rack-mountable
Height: 1.69" (43 mm)
Width: 19.17" (487 mm)
Depth: 26.57" (675 mm)
Weight (Approximate): 26.68 lb (12100 g)
Energy Star: Yes
Energy Efficiency Certification: China Energy Conservation Program (CECP)
Environmental Compliance: Restriction of Hazardous Substances (RoHS),Waste Electrical and Electronic Equipment Directive (WEEE)
TCO Certified: Yes
- Xeon W 3.20 GHz processor ensures efficient handling of computational tasks for smooth, reliable performance
- 256 GB of gigantic memory enables you to do multitasking and run intensive games lag-free
- Workstation features specialized components to handle heavy computational tasks with ease
- 512 GB SSD capacity provides ample space for important documents, files, and critical data
- 675 W power supply unit (PSU) fulfills your systems power needs for smooth and uninterrupted performance
- The DDR5 SDRAM memory technology ensures smooth PC performance by transferring data across components efficiently
- 1 processors supported for enhanced, dependable system performance and maximum usability
- Rack-mountable workstation design maximizes space utilization while providing quick access to components
- Gigabit Ethernet port delivers ultra-fast network speeds for demanding business applications and data-heavy tasks
- Octadeca-core (18 Core) processor core enables smooth multitasking with reliable performance and fast processing speed
[custom-specifications]
| Specifications | |
| Manufacturer | HP Inc. |
| Manufacturer Part Number | C69VXUP#ABA |
| Manufacturer Website Address | http://www.hp.com |
| Brand Name | HP |
| Product Series | Z4 G5 |
| Product Name | Z4 Rack G5 Workstation |
| Product Type | Workstation |
| Processor | |
| Number of Processors Supported | 1 |
| Number of Processors Installed | 1 |
| Processor Manufacturer | Intel |
| Processor Type | Xeon W |
| Processor Model | w5-2565X |
| Processor Core | Octadeca-core (18 Core) |
| Processor Threads | 36 |
| Processor Speed | 3.20 GHz |
| Processor Socket | Socket LGA-4677 |
| Chipset | |
| Chipset Manufacturer | Intel |
| Chipset Model | W790 |
| Memory | |
| Standard Memory | 256 GB |
| Maximum Memory Supported | 256 GB |
| Memory Technology | DDR5 SDRAM |
| Total Number of Memory Slots | 4 |
| Memory Configuration | 4 x 64GB |
| Error Checking | ECC |
| Signal Processing | Registered |
| Storage | |
| Drive Type | SSD |
| Total Solid State Drive Capacity | 512 GB |
| Solid State Drive Interface | PCI Express NVMe 4.0 x4 |
| Controllers | |
| Controller Type | Serial ATA,NVMe |
| RAID Supported | Yes |
| RAID Levels | 0, 1, 5, 10 |
| Network & Communication | |
| Ethernet Technology | Gigabit Ethernet |
| Interfaces/Ports | |
| Total Number of USB Ports | 10 |
| Number of Onboard USB 2.0 Ports | 3 |
| Power Description | |
| Input Voltage | 120 V AC,230 V AC |
| Maximum Power Supply Wattage | 675 W |
| Physical Characteristics | |
| Cooler Type | Air Cooler |
| Form Factor | Rack-mountable |
| Height | 1.69" (43 mm) |
| Width | 19.17" (487 mm) |
| Depth | 26.57" (675 mm) |
| Weight (Approximate) | 26.68 lb (12100 g) |
| Miscellaneous | |
| Energy Star | Yes |
| Energy Efficiency Certification | China Energy Conservation Program (CECP) |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS),Waste Electrical and Electronic Equipment Directive (WEEE) |
| TCO Certified | Yes |
[/custom-specifications]
