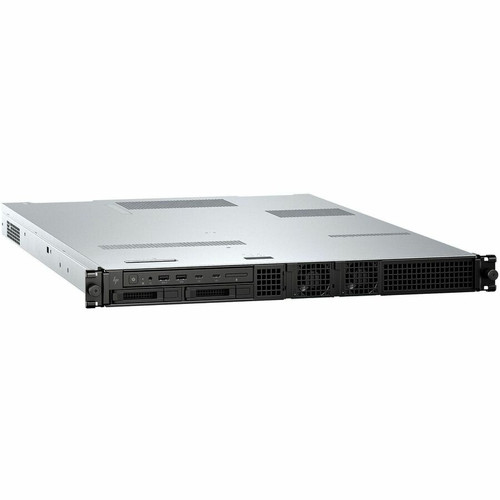

HP Z4 G5 Workstation - 1 x Intel Xeon w5-2455X - 128 GB - Rack-mountable - Intel W790 Chip - Serial ATA/600, NVMe Controller - 0, 1, - (AZ5N3UP#ABA)
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Number of Processors Supported: 1
Number of Processors Installed: 1
Processor Manufacturer: Intel
Processor Type: Xeon
Processor Model: w5-2455X
Processor Core: Dodeca-core (12 Core)
Processor Threads: 24
Processor Speed: 3.20 GHz
Processor Socket: Socket LGA-4677
Chipset Manufacturer: Intel
Chipset Model: W790
Standard Memory: 128 GB
Maximum Memory Supported: 256 GB
Memory Technology: DDR5 SDRAM
Total Number of Memory Slots: 4
Error Checking: ECC
Signal Processing: Registered
Controller Type: Serial ATA/600,NVMe
RAID Supported: Yes
RAID Levels: 0, 1, 5, 10
Ethernet Technology: Gigabit Ethernet
Total Number of USB Ports: 10
Number of Onboard USB 2.0 Ports: 3
Input Voltage: 120 V AC,230 V AC
Cooler Type: Air Cooler
Form Factor: Rack-mountable
Height: 1.69" (43 mm)
Width: 19.17" (487 mm)
Depth: 26.57" (675 mm)
Weight (Approximate): 26.68 lb (12100 g)
Energy Star: Yes
Energy Efficiency Certification: China Energy Conservation Program (CECP)
Energy Efficiency Compliance: Energy-related Products Directive (ErP)
Environmental Compliance: Restriction of Hazardous Substances (RoHS),Waste Electrical and Electronic Equipment Directive (WEEE)
TCO Certified: Yes
- Intel Xeon 3.20 GHz processor offers high performance, built-in security, and remote management for business needs
- With 128 GB of memory, run as many programs as you want without losing the execution performance
- Workstation runs complex database programs efficiently, ensuring speed and consistent performance
- The DDR5 SDRAM memory technology ensures smooth PC performance by transferring data across components efficiently
- 1 processors supported for faster, reliable performance and improved access to data and applications
- Rack-mountable workstation design maximizes space utilization while providing quick access to components
- Gigabit Ethernet port delivers ultra-fast network speeds for demanding business applications and data-heavy tasks
- Dodeca-core (12 Core) processor core helps workstation process data quickly and reliably for improved productivity
- 3.20 GHz processor speed delivers optimal performance with fast, consistent results for heavy workloads
[custom-specifications]
| Specifications | |
| Manufacturer | HP Inc. |
| Manufacturer Part Number | AZ5N3UP#ABA |
| Manufacturer Website Address | http://www.hp.com |
| Brand Name | HP |
| Product Series | Z4 G5 |
| Product Name | Z4 Rack G5 Workstation |
| Product Type | Workstation |
| Processor | |
| Number of Processors Supported | 1 |
| Number of Processors Installed | 1 |
| Processor Manufacturer | Intel |
| Processor Type | Xeon |
| Processor Model | w5-2455X |
| Processor Core | Dodeca-core (12 Core) |
| Processor Threads | 24 |
| Processor Speed | 3.20 GHz |
| Processor Socket | Socket LGA-4677 |
| Chipset | |
| Chipset Manufacturer | Intel |
| Chipset Model | W790 |
| Memory | |
| Standard Memory | 128 GB |
| Maximum Memory Supported | 256 GB |
| Memory Technology | DDR5 SDRAM |
| Total Number of Memory Slots | 4 |
| Error Checking | ECC |
| Signal Processing | Registered |
| Controllers | |
| Controller Type | Serial ATA/600,NVMe |
| RAID Supported | Yes |
| RAID Levels | 0, 1, 5, 10 |
| Network & Communication | |
| Ethernet Technology | Gigabit Ethernet |
| Interfaces/Ports | |
| Total Number of USB Ports | 10 |
| Number of Onboard USB 2.0 Ports | 3 |
| Power Description | |
| Input Voltage | 120 V AC,230 V AC |
| Physical Characteristics | |
| Cooler Type | Air Cooler |
| Form Factor | Rack-mountable |
| Height | 1.69" (43 mm) |
| Width | 19.17" (487 mm) |
| Depth | 26.57" (675 mm) |
| Weight (Approximate) | 26.68 lb (12100 g) |
| Miscellaneous | |
| Energy Star | Yes |
| Energy Efficiency Certification | China Energy Conservation Program (CECP) |
| Energy Efficiency Compliance | Energy-related Products Directive (ErP) |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS),Waste Electrical and Electronic Equipment Directive (WEEE) |
| TCO Certified | Yes |
[/custom-specifications]
