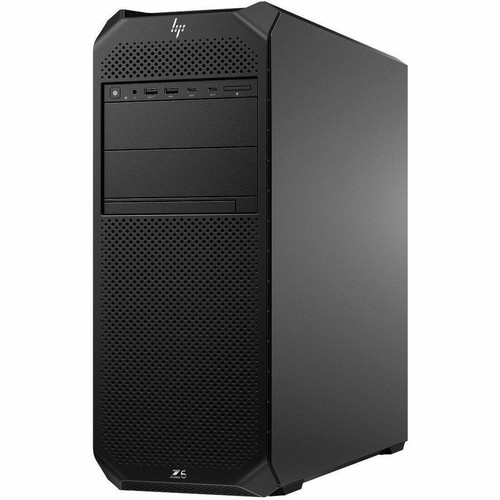

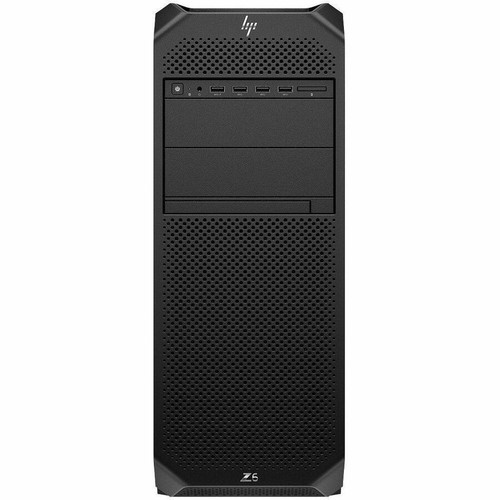

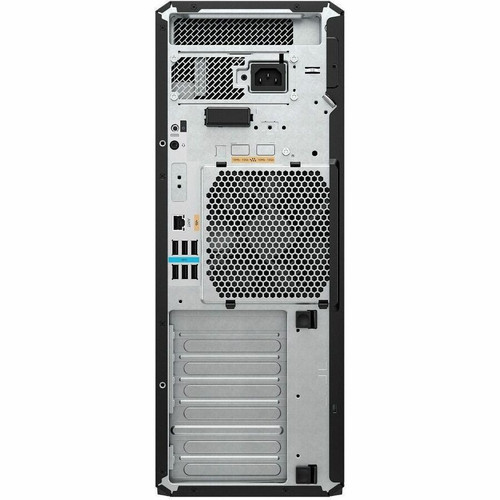

HP Z6 G5 Workstation - 1 x Intel Xeon w5-3435X - 64 GB - 2 TB SSD - Tower - Black - Intel W790 Chip - Windows 11 Pro - NVIDIA 12 GB - (B1NM7UP#ABA)
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
- Z6 G5 Tower Workstation
- Keyboard
- Mouse
AI-powered: Yes
Number of Processors Supported: 1
Number of Processors Installed: 1
Processor Manufacturer: Intel
Processor Type: Xeon
Processor Model: w5-3435X
Processor Core: Hexadeca-core (16 Core)
Processor Threads: 32
Processor Speed: 3.10 GHz
Processor Socket: Socket LGA-4677
Chipset Manufacturer: Intel
Chipset Model: W790
Standard Memory: 64 GB
Maximum Memory Supported: 1 TB
Memory Technology: DDR5 SDRAM
Total Number of Memory Slots: 8
Memory Configuration: 4 x 16 GB
Error Checking: ECC
Signal Processing: Registered
Drive Type: SSD
Total Solid State Drive Capacity: 2 TB
Solid State Drive Interface: PCI Express NVMe 4.0 x4
Controller Type: Serial ATA/600,NVMe
RAID Supported: Yes
RAID Levels: 0, 1, 5, 10
Graphics Controller Manufacturer: NVIDIA
Graphics Memory Capacity: 12 GB
Graphics Memory Accessibility: Dedicated
Maximum Memory Bandwidth: 288 GB/s
Ethernet Technology: Gigabit Ethernet
Total Number of USB Ports: 14
Number of Onboard USB 2.0 Ports: 3
Number of USB 3.1 Gen 1 Ports: 8
Number of USB 3.2 Gen 1 Ports: 2
Mini DisplayPort: Yes
Number of Mini DisplayPort: 4
Operating System Platform: Windows
Operating System: Windows 11 Pro
Input Voltage: 120 V AC,230 V AC
Maximum Power Supply Wattage: 1.13 kW
Color Family: Black
Product Color: Black
Cooler Type: Air Cooler
Form Factor: Tower
Height: 17.50" (444.50 mm)
Width: 6.65" (168.90 mm)
Depth: 18.30" (464.80 mm)
Weight (Approximate): 28.22 lb (12800 g)
Package Contents:
Energy Star: Yes
Environmentally Friendly: Yes
Environmental Certification: Electronic Product Environmental Assessment Tool Gold (EPEAT Gold),Electronic Product Environmental Assessment Tool Climate+ (EPEAT Climate+)
Energy Efficiency Certification: China Energy Conservation Program (CECP)
Energy Efficiency Compliance: Energy-related Products Directive (ErP)
Environmental Compliance: Restriction of Hazardous Substances (RoHS),Waste Electrical and Electronic Equipment Directive (WEEE)
TCO Certified: Yes
Limited Warranty: 1 Year
Additional Warranty Information:
1 year (1-1-1) limited warranty and service offering includes 1 year of parts, labor and on-site repair.
- Intel Xeon 3.10 GHz processor offers high performance, built-in security, and remote management for business needs
- With 64 GB of memory, users can run many programs without losing execution performance
- Workstation runs complex database programs efficiently, ensuring speed and consistent performance
- 2 TB SSD capacity offers amazing storage room for all your critical data and projects
- 1.13 kW power supply unit (PSU) fulfills your systems power needs for smooth and uninterrupted performance
- Windows 11 Pro OS efficiently manages hardware resources and runs essential applications for smooth, reliable performance
- The DDR5 SDRAM memory technology ensures smooth PC performance by transferring data across components efficiently
- 1 processors supported for enhanced, dependable system performance and maximum usability
- Tower form factor supports easy customization and upgrades for long-term flexibility and efficiency
- Gigabit Ethernet is ideal for frequent large file transfers, such as backups to servers, ensuring smooth network operations
[custom-specifications]
| Specifications | |
| Manufacturer | HP Inc. |
| Manufacturer Part Number | B1NM7UP#ABA |
| Manufacturer Website Address | http://www.hp.com |
| Brand Name | HP |
| Product Series | Z6 G5 |
| Product Name | Z6 G5 Tower Workstation |
| Product Type | Workstation |
| Technical Information | |
| AI-powered | Yes |
| Processor | |
| Number of Processors Supported | 1 |
| Number of Processors Installed | 1 |
| Processor Manufacturer | Intel |
| Processor Type | Xeon |
| Processor Model | w5-3435X |
| Processor Core | Hexadeca-core (16 Core) |
| Processor Threads | 32 |
| Processor Speed | 3.10 GHz |
| Processor Socket | Socket LGA-4677 |
| Chipset | |
| Chipset Manufacturer | Intel |
| Chipset Model | W790 |
| Memory | |
| Standard Memory | 64 GB |
| Maximum Memory Supported | 1 TB |
| Memory Technology | DDR5 SDRAM |
| Total Number of Memory Slots | 8 |
| Memory Configuration | 4 x 16 GB |
| Error Checking | ECC |
| Signal Processing | Registered |
| Storage | |
| Drive Type | SSD |
| Total Solid State Drive Capacity | 2 TB |
| Solid State Drive Interface | PCI Express NVMe 4.0 x4 |
| Controllers | |
| Controller Type | Serial ATA/600,NVMe |
| RAID Supported | Yes |
| RAID Levels | 0, 1, 5, 10 |
| Display & Graphics | |
| Graphics Controller Manufacturer | NVIDIA |
| Graphics Memory Capacity | 12 GB |
| Graphics Memory Accessibility | Dedicated |
| Maximum Memory Bandwidth | 288 GB/s |
| Network & Communication | |
| Ethernet Technology | Gigabit Ethernet |
| Interfaces/Ports | |
| Total Number of USB Ports | 14 |
| Number of Onboard USB 2.0 Ports | 3 |
| Number of USB 3.1 Gen 1 Ports | 8 |
| Number of USB 3.2 Gen 1 Ports | 2 |
| Mini DisplayPort | Yes |
| Number of Mini DisplayPort | 4 |
| Operating System | |
| Operating System Platform | Windows |
| Operating System | Windows 11 Pro |
| Power Description | |
| Input Voltage | 120 V AC,230 V AC |
| Maximum Power Supply Wattage | 1.13 kW |
| Physical Characteristics | |
| Color Family | Black |
| Product Color | Black |
| Cooler Type | Air Cooler |
| Form Factor | Tower |
| Height | 17.50" (444.50 mm) |
| Width | 6.65" (168.90 mm) |
| Depth | 18.30" (464.80 mm) |
| Weight (Approximate) | 28.22 lb (12800 g) |
| Miscellaneous | |
| Package Contents |
|
| Energy Star | Yes |
| Environmentally Friendly | Yes |
| Environmental Certification | Electronic Product Environmental Assessment Tool Gold (EPEAT Gold),Electronic Product Environmental Assessment Tool Climate+ (EPEAT Climate+) |
| Energy Efficiency Certification | China Energy Conservation Program (CECP) |
| Energy Efficiency Compliance | Energy-related Products Directive (ErP) |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS),Waste Electrical and Electronic Equipment Directive (WEEE) |
| TCO Certified | Yes |
| Warranty | |
| Limited Warranty | 1 Year |
| Additional Warranty Information | 1 year (1-1-1) limited warranty and service offering includes 1 year of parts, labor and on-site repair. |
