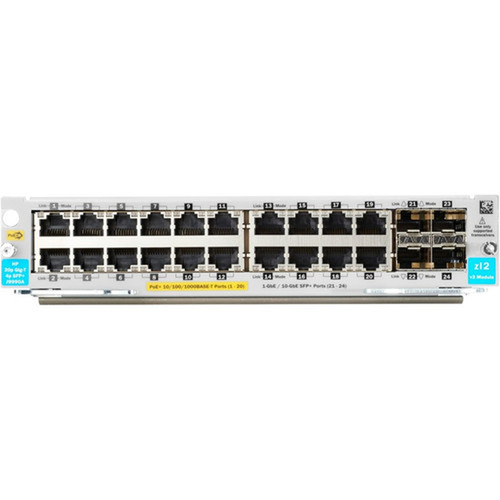

HPE J9990A#B8X 20-port 10/100/1000BASE-T PoE+ / 4-port 1G/10GbE SFP+ MACsec v3 zl2 Module - Expansion Module for HP 5400R zl2 Switch Series
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This expansion module features 20 RJ-45 ports that operate at 10/100/1000BASE-T speeds, with PoE+ delivering up to 30W per port to power devices like IP phones, wireless access points, and security cameras. The four SFP+ slots support 1G and 10GbE connections via 10GBase-X technology, enabling high-speed uplinks to core switches or servers.
Network compatibility includes 1000Base-T for copper links and 10GBase-X for fiber, with a maximum data transfer rate of 10 Gbit/s. The module is hot-pluggable, allowing for installation without disrupting switch operation, and its compact form factor fits standard switch chassis slots.
Key Product Advantages
The HPE J9990A#B8X combines high port density with advanced security and performance features, making it a robust choice for network expansion. MACsec v3 provides hardware-based encryption for all traffic, ensuring compliance with security standards without compromising speed.
Hybrid Media Flexibility
Supports both twisted pair copper and optical fiber media, allowing seamless integration into existing infrastructure and future-proofing for fiber upgrades.
- Twisted Pair for cost-effective deployments
- Optical Fiber for long-distance and high-bandwidth needs
PoE+ Efficiency
Delivers power and data over a single cable, simplifying installations and reducing clutter while supporting energy-efficient devices.
- Up to 30W per port
- Powers VoIP phones, APs, and cameras
Deployment / Use Cases
This module is tailored for enterprise networks requiring scalable connectivity and enhanced security. It excels in environments where high-density access layer switching is needed, such as office buildings, campuses, or data centers.
Typical use cases include adding PoE+ ports for IP telephony and wireless deployments, providing high-speed uplinks via SFP+ fiber connections, and securing sensitive data with MACsec encryption in financial or healthcare networks. Its compatibility with the HP 5400R zl2 series ensures reliable performance in stacked or standalone switch configurations.
Physical Profile
The module measures 1.75 inches in height, 10.30 inches in width, and 8.13 inches in depth, with a weight of approximately 2.05 pounds. Its compact design allows for easy installation into switch chassis slots, and the robust construction ensures durability in rack-mounted environments. The form factor is optimized for efficient airflow and cooling within network cabinets.
- Width
- 10.30" (261.62 mm)
- Depth
- 8.13" (206.50 mm)
- Height
- 1.75" (44.45 mm)
- Weight
- 2.05 lb (929.86 g)
Highlights
- 20 RJ-45 ports with 10/100/1000BASE-T and PoE+ support
- 4 SFP+ slots for 1G/10GbE uplinks using 10GBase-X technology
- MACsec v3 encryption for secure data transmission over Ethernet
- Supports twisted pair copper and optical fiber media types
- Maximum data transfer rate of 10 Gbit/s for high-performance networking
- Compatible with HP 5400R zl2 Switch Series for seamless integration
- Hot-pluggable design for easy installation without downtime
- Compact dimensions: 1.75" H x 10.30" W x 8.13" D
Specifications
| Specifications | |
|---|---|
| Manufacturer | Hewlett Packard Enterprise |
| Manufacturer Part Number | J9990A#B8X |
| Brand Name | HPE |
| Product Name | 20-port 10/100/1000BASE-T PoE+ / 4-port 1G/10GbE SFP+ MACsec v3 zl2 Module |
| Product Type | Expansion Module |
| Packaged Quantity | 1 |
| Technical Information | |
| Application/Usage | Data Networking,Optical Network |
| Interfaces/Ports | |
| Total Number of Ports | 20 |
| Connector Type | RJ-45 |
| Interfaces/Ports Details | 20 x RJ-45 1000Base-T LAN |
| Media & Performance | |
| Media Type Supported | Twisted Pair,Optical Fiber |
| Ethernet Technology | Gigabit Ethernet,10 Gigabit Ethernet |
| Network Technology | 1000Base-T,10GBase-X |
| Maximum Data Transfer Rate | 10 Gbit/s |
| I/O Expansions | |
| Total Number of Expansion Slots | 4 |
| Expansion Slot Type | SFP+ |
| Physical Characteristics | |
| Height | 1.75" (44.45 mm) |
| Width | 10.30" (261.62 mm) |
| Depth | 8.13" (206.50 mm) |
| Weight (Approximate) | 2.05 lb (929.86 g) |
| Miscellaneous | |
| Compatibility | HP 5400R zl2 Switch Series |
FAQ
What switch models is this expansion module compatible with?
The HPE J9990A#B8X is specifically designed for the HP 5400R zl2 Switch Series. It integrates seamlessly into these switches, providing additional ports and uplinks without requiring external power or complex configuration. Ensure your switch model is part of this series for proper compatibility and performance.
Does this module support Power over Ethernet (PoE)?
Yes, this module supports Power over Ethernet Plus (PoE+) as per IEEE 802.3at standards. It delivers up to 30W of power per port through the 20 RJ-45 interfaces, enabling you to power devices like IP phones, wireless access points, and security cameras directly over the network cable, simplifying installations and reducing power infrastructure costs.
What types of media and speeds are supported by the SFP+ slots?
The four SFP+ slots support both 1 Gigabit Ethernet and 10 Gigabit Ethernet connections using 10GBase-X technology. They are compatible with optical fiber SFP+ transceivers, allowing for high-speed uplinks to core network equipment. This flexibility supports various distance and bandwidth requirements, making it suitable for backbone or server connections in enterprise environments.
