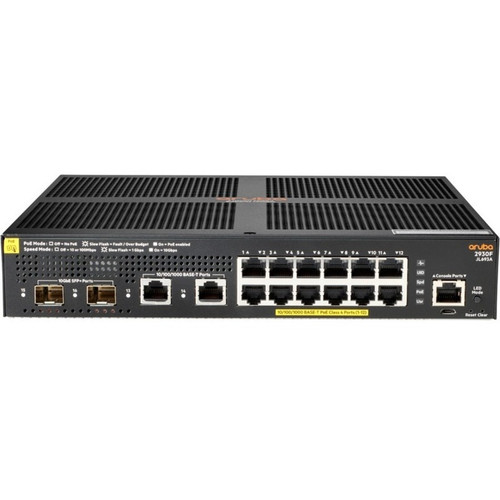

HPE JL693A#ACD 2930F 12G PoE+ 2G/2SFP+ Switch - 14 Port Managed Layer 3 Gigabit/10GbE with 139W PoE Budget - SFP+ Uplinks - 1U Rack-Mountable
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This switch operates at Layer 3, supporting IP routing protocols and advanced QoS features that prioritize voice, video, and critical data traffic across the network. It complies with key IEEE standards including 802.3at for PoE+, 802.3ab for Gigabit Ethernet over copper, and 802.3u for Fast Ethernet, ensuring interoperability with a wide range of network devices. The dual SFP+ slots accept 10GbE optical or direct-attach copper transceivers, providing flexible uplink options for connecting to core switches, servers, or storage arrays over longer distances via fiber or high-speed copper links.
Power efficiency is addressed through an internal power supply with a maximum consumption of 170 watts, and the switch is designed for continuous operation in rack-mounted environments. The 1U form factor fits standard 19-inch racks, and the compact dimensions (1.73" height, 10" depth) make it suitable for space-constrained data closets or server rooms. Environmental certifications include RoHS compliance and TAA compliance, meeting government and educational procurement requirements.
Key Product Advantages
The HPE 2930F switch delivers a balanced combination of port density, PoE power budget, and uplink flexibility that addresses common pain points in modern business networks. Its managed Layer 3 capabilities provide greater control over network traffic compared to basic Layer 2 switches, allowing IT administrators to implement VLANs, access control lists, and dynamic routing without upgrading to more expensive core switches.
High PoE Budget for Device Deployment
With 139 watts of PoE budget distributed across 12 PoE+ ports, this switch can support power-hungry devices like 802.11ac/ax wireless access points, pan-tilt-zoom IP cameras, and VoIP phones without requiring external power sources. This simplifies installation and reduces cable clutter.
- Powers up to 12 PoE+ devices simultaneously
- Eliminates need for midspan injectors
- Supports IEEE 802.3at standard
Future-Proof Uplink Connectivity
The two SFP+ slots provide 10 Gigabit Ethernet uplinks, offering 10x the bandwidth of standard Gigabit Ethernet for connecting to servers, storage, or aggregation switches. This headroom prevents uplink bottlenecks as network traffic grows.
- 10GbE speed for high-bandwidth applications
- Accepts optical fiber or copper transceivers
- Reduces congestion on backbone links
Simplified Management and Stacking
As a fully manageable switch, it offers web, CLI, and SNMP management interfaces for monitoring and configuration. The stack port enables multiple switches to be combined into a single logical unit, simplifying management and enabling redundant stacking connections.
- Single management interface for stacked units
- Supports industry-standard management protocols
- Reduces configuration overhead
Deployment / Use Cases
This switch is ideal for small to medium business networks, branch offices, and educational environments where a combination of PoE device connectivity and high-speed uplinks is required. Its 1U rack-mount design makes it suitable for installation in standard server racks, wall-mounted network cabinets, or enclosed networking closets alongside other infrastructure equipment.
Common deployment scenarios include powering and connecting a mix of IP telephony systems, wireless access points, and surveillance cameras while maintaining a 10GbE uplink to the network core or server room. The Layer 3 functionality supports inter-VLAN routing, allowing separate networks for guests, employees, and IoT devices to coexist on the same hardware while maintaining security isolation. The stackable design enables growth by adding additional switches to the stack as port counts or PoE requirements increase.
Unified Communications Deployment
Deploy this switch to power VoIP phones, wireless access points, and video conferencing systems while routing traffic between voice and data VLANs. The PoE budget ensures reliable power delivery to all endpoints.
Surveillance and Security Networks
Use the 12 PoE+ ports to connect high-resolution IP cameras with pan-tilt-zoom capabilities, and utilize the 10GbE uplinks to stream video footage to network video recorders without bandwidth constraints.
Physical Profile
The switch features a compact, all-metal chassis designed for durability and efficient heat dissipation in rack-mounted environments. Its 1U height (1.73 inches) minimizes rack space consumption, while the 10-inch depth allows installation in shallow network cabinets commonly found in branch offices. The front panel includes RJ-45 ports, SFP+ slots, status LEDs, and a stack port, with rear-panel connections for the internal power supply and grounding. The 4.85-pound weight facilitates easy handling during installation, and the rack-mount ears are included for secure mounting in standard 19-inch racks.
- Width
- 10" (254 mm)
- Depth
- 10" (254 mm)
- Height
- 1.73" (43.94 mm)
- Weight
- 4.85 lb (2199.92 g)
Highlights
- 14 total network ports: 12 Gigabit Ethernet PoE+, 2 Gigabit Ethernet, 2 SFP+ 10GbE uplinks
- 139-watt PoE budget powers multiple PoE+ devices simultaneously
- Layer 3 managed switching with advanced routing and QoS capabilities
- Dual SFP+ slots for 10 Gigabit Ethernet fiber or copper uplinks
- 1U rack-mountable form factor for standard 19-inch racks
- Stack port for easy expansion and simplified management
- Internal power supply with 170W maximum consumption
- Compliant with IEEE 802.3, 802.3u, 802.3ab, and 802.3at standards
- RoHS and TAA compliant for government and educational procurement
- Lifetime warranty for long-term reliability and support
Specifications
| Specifications | |
|---|---|
| Manufacturer | Hewlett Packard Enterprise |
| Manufacturer Part Number | JL693A#ACD |
| Brand Name | HPE |
| Product Series | 2930F |
| Product Model | 2930F 12G PoE+ 2G/2SFP+ |
| Product Name | 2930F 12G PoE+ 2G/2SFP+ Switch |
| Product Type | Layer 3 Switch |
| Interfaces/Ports | |
| Total Number of Network Ports | 14 |
| Network (RJ-45) | Yes |
| Uplink Port | Yes |
| Modular | Yes |
| Stack Port | Yes |
| Port/Expansion Slot Details | 12 x Gigabit Ethernet PoE+,2 x 10 Gigabit Ethernet Expansion Slot,2 x Gigabit Ethernet Network |
| Media & Performance | |
| Media Type Supported | Optical Fiber,Twisted Pair |
| Ethernet Technology | Gigabit Ethernet,10 Gigabit Ethernet |
| Network Technology | 10/100/1000Base-T,10GBase-X |
| I/O Expansions | |
| Total Number of Expansion Slots | 2 |
| Expansion Slot Type | SFP+ |
| Number of SFP+ Slots | 2 |
| Network & Communication | |
| Layer Supported | 3 |
| Networking Standards | IEEE 802.3,IEEE 802.3u,IEEE 802.3ab,IEEE 802.3at |
| Management & Protocols | |
| Manageable | Yes |
| Power Description | |
| PoE (RJ-45) Port | Yes |
| PoE Budget | 139 W |
| Power Source | Power Supply |
| Power Consumption | 170 W |
| Physical Characteristics | |
| Compatible Rack Unit | 1U |
| Form Factor | Rack-mountable |
| Height | 1.73" (43.94 mm) |
| Width | 10" (254 mm) |
| Depth | 10" (254 mm) |
| Weight (Approximate) | 4.85 lb (2199.92 g) |
| Miscellaneous | |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| TAA Compliant | Yes |
| Warranty | |
| Limited Warranty | Lifetime |
FAQ
How many PoE+ ports does this HPE switch have, and what is the total PoE budget?
This HPE 2930F switch includes 12 Gigabit Ethernet ports that support PoE+ (IEEE 802.3at), delivering both data and up to 30 watts of power per port. The total PoE budget is 139 watts, which allows the switch to power multiple PoE+ devices such as wireless access points, IP phones, and security cameras simultaneously without requiring additional power injectors.
What types of uplink connections are available on this switch?
The switch provides two SFP+ slots that support 10 Gigabit Ethernet uplinks. These slots accept standard SFP+ transceivers for either optical fiber connections (for longer distances) or direct-attach copper cables (for shorter runs). This gives you flexibility in connecting to core switches, servers, or storage devices at high speed.
Is this a Layer 2 or Layer 3 switch, and what are the benefits of Layer 3?
This is a Layer 3 managed switch. Layer 3 switching adds IP routing capabilities, allowing the switch to route traffic between different VLANs or subnets without needing a separate router. Benefits include improved network performance through reduced latency, better traffic management with QoS policies, and enhanced security through access control lists (ACLs) applied at the switch level.
Can this switch be mounted in a standard server rack?
Yes, this switch is designed for rack mounting and fits a standard 19-inch rack with a 1U (1.73-inch) height. It includes rack-mount ears for secure installation. The compact dimensions (10 inches deep) make it suitable for both deep server racks and shallower network cabinets commonly used in office environments.
What management options are available for this HPE switch?
As a fully manageable switch, it supports multiple management interfaces including a web-based graphical interface, command-line interface (CLI), and SNMP for network monitoring. These tools allow you to configure VLANs, set up QoS policies, monitor port status, and manage security settings. The switch also includes a stack port for connecting multiple switches into a single managed unit.
What warranty comes with this HPE 2930F switch?
HPE provides a lifetime warranty for this switch, covering defects in materials and workmanship for as long as you own the product. This warranty includes advanced replacement options and access to HPE's technical support, ensuring long-term reliability and minimizing downtime in your network infrastructure.
What uplink, SFP, fiber, or media support detail is listed?
The warranty or support detail listed is Yes, giving buyers a clearer picture of expected coverage after purchase.
Does the product support PoE or wireless networking?
Connectivity support is listed in the product specifications, including the relevant wireless or port options when available.
