HPE JL693A#AKJ 2930F 12G PoE+ Switch - 14 Ports - 12 PoE+ - 2 SFP+ - Layer 3 Managed - 1U Rack-Mountable
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This switch operates as a Layer 3 device, supporting advanced routing protocols for efficient traffic management across subnets. It adheres to key networking standards including IEEE 802.3, 802.3u, 802.3ab, and 802.3at (PoE+), ensuring compatibility with a wide range of Ethernet and PoE devices.
The port configuration includes 12 Gigabit Ethernet PoE+ ports (10/100/1000Base-T) and two 10 Gigabit Ethernet expansion slots via SFP+ modules, allowing for high-speed uplinks to core switches or servers. The built-in power supply ensures stable operation, and the switch is TAA compliant for use in government and regulated environments.
This section brings together practical product details such as Total Number of Network Ports, Network (RJ-45), Uplink Port, Media Type Supported, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
A strong technical summary explains how the product's interfaces, hardware profile, and operating characteristics work together in real deployment. Buyers often need this context to confirm compatibility with existing devices, expected performance in daily use, and whether installation will be straightforward for IT staff or end users.
Key Product Advantages
The HPE 2930F switch offers a balanced combination of PoE power, uplink flexibility, and management features ideal for growing networks. Its 139W PoE budget efficiently powers multiple devices without external injectors, reducing clutter and simplifying installations.
High-Density PoE+
Twelve PoE+ ports deliver up to 30W per port, supporting power-hungry devices like PTZ cameras and dual-band access points across a single cable.
- IEEE 802.3at compliant
- Up to 139W total budget
- Simplifies cable management
Scalable Uplinks
Dual SFP+ slots provide 10 Gigabit Ethernet connectivity for high-bandwidth aggregation, backbone links, or server connections using fiber or DAC cables.
- 10GBase-X support
- Flexible media options
- Future-proof expansion
Enterprise Management
Full Layer 3 manageability enables VLAN routing, QoS policies, and security features, while the stack port allows seamless expansion with additional switches.
- Advanced traffic control
- Simplified stacking
- Centralized configuration
Deployment / Use Cases
This switch is well-suited for small to medium-sized business networks, branch offices, and educational environments where reliable PoE and uplink performance are critical. Its compact rack design makes it ideal for wiring closets, server rooms, or network cabinets.
Common deployments include powering VoIP phone systems with PoE, connecting wireless access points for campus Wi-Fi coverage, and linking security camera systems with high-speed backhaul via SFP+ fiber. The Layer 3 capabilities also support segmented networks for departments or guest access, enhancing security and performance.
This section brings together practical product details such as Total Number of Network Ports, Network (RJ-45), Uplink Port, Media Type Supported, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.

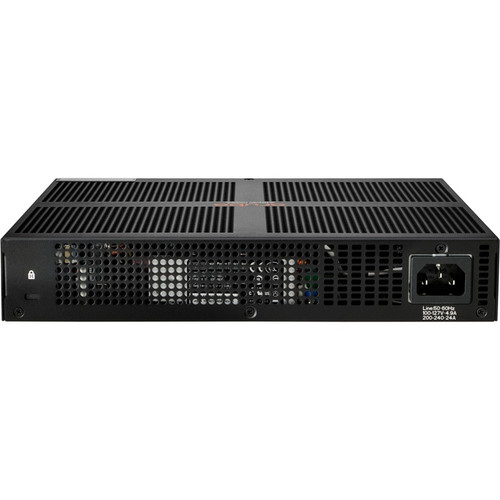

Physical Profile
The switch features a durable metal chassis designed for standard 19-inch rack mounting. Its 1U height (1.73 inches) conserves rack space, while the 10-inch depth and width provide a compact footprint. Weighing approximately 4.85 pounds, the switch is easy to install and integrates smoothly into existing rack infrastructure. Front-accessible ports and LEDs simplify cabling and status monitoring during operation.
The physical profile is practical for deployment planning because the dimensions and weight are clearly defined: 1.73" (43.94 mm), 10" (254 mm), 10" (254 mm), 4.85 lb (2199.92 g). This helps confirm rack, shelf, desk, or cabinet fit before installation.
- Width
- 10" (254 mm)
- Depth
- 10" (254 mm)
- Height
- 1.73" (43.94 mm)
- Weight
- 4.85 lb (2199.92 g)
Highlights
- 14 total network ports with 12 PoE+ Gigabit Ethernet ports
- 139W total PoE budget for powering multiple devices
- Dual SFP+ slots for 10 Gigabit Ethernet uplinks
- Layer 3 managed switch with advanced routing features
- Stack port for easy network expansion
- 1U rack-mountable form factor for space-efficient deployment
- Supports optical fiber and twisted-pair cabling
- TAA compliant for government and regulated use
- Built-in power supply for reliable operation
- IEEE 802.3at PoE+ standard compliance
Specifications
| Specifications | |
|---|---|
| Manufacturer | Hewlett Packard Enterprise |
| Manufacturer Part Number | JL693A#AKJ |
| Brand Name | HPE |
| Product Series | 2930F |
| Product Name | 2930F 12G PoE+ 2G/2SFP+ Switch |
| Product Type | Layer 3 Switch |
| Interfaces/Ports | |
| Total Number of Network Ports | 14 |
| Network (RJ-45) | Yes |
| Uplink Port | Yes |
| Modular | Yes |
| Stack Port | Yes |
| Port/Expansion Slot Details | 12 x Gigabit Ethernet PoE+,2 x 10 Gigabit Ethernet Expansion Slot,2 x Gigabit Ethernet Network |
| Media & Performance | |
| Media Type Supported | Optical Fiber,Twisted Pair |
| Ethernet Technology | Gigabit Ethernet,10 Gigabit Ethernet |
| Network Technology | 10/100/1000Base-T,10GBase-X |
| I/O Expansions | |
| Total Number of Expansion Slots | 2 |
| Expansion Slot Type | SFP+ |
| Number of SFP+ Slots | 2 |
| Network & Communication | |
| Layer Supported | 3 |
| Networking Standards | IEEE 802.3,IEEE 802.3u,IEEE 802.3ab,IEEE 802.3at |
| Management & Protocols | |
| Manageable | Yes |
| Power Description | |
| PoE (RJ-45) Port | Yes |
| PoE Budget | 139 W |
| Power Source | Power Supply |
| Physical Characteristics | |
| Compatible Rack Unit | 1U |
| Form Factor | Rack-mountable |
| Height | 1.73" (43.94 mm) |
| Width | 10" (254 mm) |
| Depth | 10" (254 mm) |
| Weight (Approximate) | 4.85 lb (2199.92 g) |
| Miscellaneous | |
| TAA Compliant | Yes |
User Manual
FAQ
How many PoE+ ports does this switch have, and what is the total PoE budget?
The HPE 2930F switch includes 12 Gigabit Ethernet ports that support PoE+ (IEEE 802.3at), delivering up to 30W per port. The total PoE budget is 139W, allowing you to power multiple devices such as IP phones, wireless access points, or security cameras simultaneously without overloading the switch.
What types of uplink options are available on this switch?
This switch features two SFP+ expansion slots for 10 Gigabit Ethernet uplinks. These slots support SFP+ modules for fiber optic or direct-attach copper (DAC) cables, providing high-speed connectivity to core switches, servers, or network backbones. The uplinks are separate from the 12 PoE+ ports, ensuring dedicated bandwidth for aggregation.
Is this switch manageable, and what layer does it support?
Yes, this is a fully manageable Layer 3 switch. Layer 3 support enables advanced routing capabilities like inter-VLAN routing, static routing, and dynamic routing protocols. Manageability includes features such as VLAN configuration, QoS, security policies, and monitoring through a web interface or command-line interface (CLI).
Can this switch be rack-mounted, and what are its dimensions?
The switch is designed for standard 19-inch rack mounting with a 1U form factor. Its dimensions are 1.73 inches in height, 10 inches in width, and 10 inches in depth (43.94 mm H x 254 mm W x 254 mm D). This compact size makes it suitable for tight spaces in server rooms or network cabinets, and it weighs approximately 4.85 pounds for easy installation.
What networking standards does this switch comply with?
The switch complies with IEEE 802.3 (Ethernet), 802.3u (Fast Ethernet), 802.3ab (Gigabit Ethernet over twisted pair), and 802.3at (PoE+). These standards ensure compatibility with a wide range of network devices and media types, including 10/100/1000Base-T copper and 10GBase-X fiber connections.
What is the purpose of the stack port on this switch?
The stack port allows you to connect multiple HPE 2930F switches together to form a single logical unit. This simplifies management by treating the stack as one device, improves redundancy, and enables easier expansion of port count without complex configuration. It's ideal for growing networks that need scalable switching capacity.
What uplink, SFP, fiber, or media support detail is listed?
The warranty or support detail listed is Yes, giving buyers a clearer picture of expected coverage after purchase.
Does the product support PoE or wireless networking?
Connectivity support is listed in the product specifications, including the relevant wireless or port options when available.
