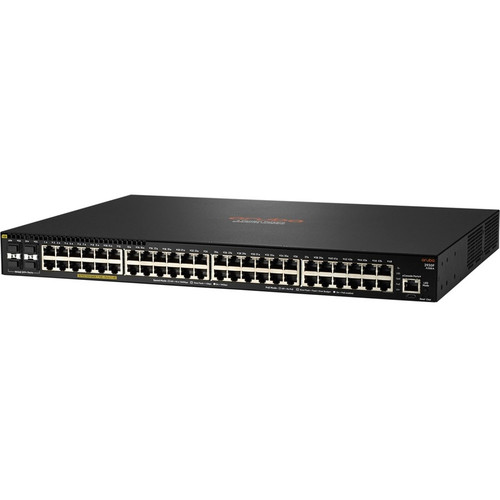

HPE JL558A#AC4 2930F 48-Port Gigabit PoE+ Managed Switch - 4 SFP+ Uplinks - 740W PoE Budget - Layer 3 - 1U Rack-Mountable
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This switch operates at Layer 3, enabling advanced routing capabilities such as static routing and policy-based routing for scalable network designs. It supports both twisted pair copper cabling (10/100/1000Base-T) and optical fiber (10GBase-X) via SFP+ modules, offering flexibility in media selection based on distance and performance requirements. The switch's management features include SNMP, CLI, and web-based interfaces for granular control over configuration, monitoring, and troubleshooting.
The 740W PoE budget is allocated across all 48 PoE+ ports, supporting IEEE 802.3at (PoE+) for devices requiring up to 30W per port. Power consumption is optimized at 49.90W under typical load, contributing to energy efficiency in always-on deployments. The built-in power supply ensures stable voltage delivery, reducing points of failure compared to external power adapters.
This section brings together practical product details such as Total Number of Network Ports, Network (RJ-45), Uplink Port, Media Type Supported, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Key Product Advantages
The HPE 2930F switch combines high port density with powerful PoE capabilities and flexible uplinks, making it a versatile solution for expanding network infrastructure. Its Layer 3 functionality allows for segmentation and routing without additional hardware, simplifying network architecture and reducing latency for inter-VLAN traffic.
High-Density PoE+ Deployment
With 48 PoE+ ports and a 740W budget, this switch can power a large number of PoE devices simultaneously, ideal for offices with extensive VoIP phone systems or wireless networks.
- Supports up to 30W per port (IEEE 802.3at)
- Backward compatible with PoE (IEEE 802.3af)
- Eliminates need for separate power injectors
Scalable Uplink Connectivity
The four SFP+ slots enable 10 Gigabit Ethernet uplinks, providing ample bandwidth for aggregation or connections to core switches, future-proofing network backbone capacity.
- Flexible media choice: copper or fiber SFP+ modules
- Supports distances up to 10 km with fiber
- Hot-swappable for easy maintenance
Enterprise-Grade Management
Full management capabilities offer control over QoS, security policies, and network monitoring, ensuring optimal performance and security in business-critical environments.
- Web, CLI, and SNMP management interfaces
- Supports VLANs, link aggregation, and ACLs
- Integration with HPE Intelligent Management Center
Deployment / Use Cases
This switch is well-suited for medium to large enterprise networks, educational campuses, healthcare facilities, and retail environments where reliable, high-performance switching with PoE is essential. Its 48-port configuration and PoE budget make it ideal for connecting and powering end-user devices, while the SFP+ uplinks handle backbone traffic efficiently.
In office deployments, the switch can support a mix of computers, IP phones, and wireless access points, with PoE eliminating power cabling for phones and APs. For surveillance systems, it powers IP cameras directly, simplifying installation and centralizing power management. In data center edge roles, the Layer 3 capabilities enable routing between server VLANs, and the 1U form factor optimizes rack space in crowded server rooms.

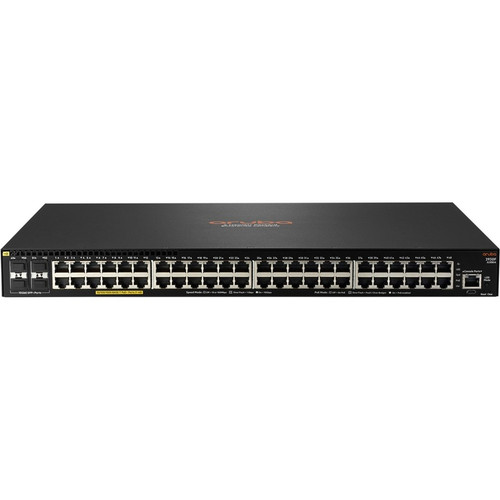

Physical Profile
The switch features a compact 1U rack-mountable design with dimensions of 1.73" (43.94 mm) height, 17.42" (442.47 mm) width, and 12.77" (324.36 mm) depth, fitting standard 19-inch server racks. Its weight of 10.56 lb (4789.94 g) ensures easy handling during installation. The front panel includes RJ-45 ports and SFP+ slots for straightforward cable management, while rear mounting ears provide secure rack attachment. The robust metal construction ensures durability in continuous operation environments.
- Width
- 17.42" (442.47 mm)
- Depth
- 12.77" (324.36 mm)
- Height
- 1.73" (43.94 mm)
- Weight
- 10.56 lb (4789.94 g)
Highlights
- 48 Gigabit Ethernet ports with PoE+ support for connecting and powering devices
- 740W total PoE budget to handle high-power devices like APs and cameras
- 4 SFP+ uplink slots for 10 Gigabit Ethernet fiber or copper connections
- Layer 3 managed switch with routing capabilities for scalable networks
- 1U rack-mountable form factor for space-efficient deployment in server racks
- Supports comprehensive IEEE standards including 802.3at/af, 802.1Q, and 802.3ad
- Low power consumption of 49.90W for energy-efficient operation
- Flexible media support: twisted pair and optical fiber via SFP+ modules
Specifications
| Specifications | |
|---|---|
| Manufacturer | Hewlett Packard Enterprise |
| Manufacturer Part Number | JL558A#AC4 |
| Brand Name | HPE |
| Product Series | 2930F |
| Product Name | 2930F 48G PoE+ 4SFP+ 740W Switch |
| Product Type | Ethernet Switch |
| Interfaces/Ports | |
| Total Number of Network Ports | 48 |
| Network (RJ-45) | Yes |
| Uplink Port | Yes |
| Modular | Yes |
| Port/Expansion Slot Details | 48 x Gigabit Ethernet PoE+,4 x 10 Gigabit Ethernet Expansion Slot |
| Media & Performance | |
| Media Type Supported | Twisted Pair,Optical Fiber |
| Ethernet Technology | Gigabit Ethernet,10 Gigabit Ethernet |
| Network Technology | 10GBase-X,10/100/1000Base-T |
| I/O Expansions | |
| Total Number of Expansion Slots | 4 |
| Expansion Slot Type | SFP+ |
| Number of SFP+ Slots | 4 |
| Network & Communication | |
| Layer Supported | 3 |
| Networking Standards | IEEE 802.1p,IEEE 802.3at,IEEE 802.3af,IEEE 802.3ad,IEEE 802.3az,IEEE 802.1ab,IEEE 802.1s,IEEE 802.1D,IEEE 802.1w,IEEE 802.1Q,IEEE 802.1v,IEEE 802.1x,IEEE 802.3 |
| Management & Protocols | |
| Manageable | Yes |
| Power Description | |
| PoE (RJ-45) Port | Yes |
| PoE Budget | 740 W |
| Power Source | Power Supply |
| Power Consumption | 49.90 W |
| Physical Characteristics | |
| Compatible Rack Unit | 1U |
| Form Factor | Rack-mountable |
| Height | 1.73" (43.94 mm) |
| Width | 17.42" (442.47 mm) |
| Depth | 12.77" (324.36 mm) |
| Weight (Approximate) | 10.56 lb (4789.94 g) |
User Manual
FAQ
How many devices can this switch power with PoE?
The switch has 48 PoE+ ports and a 740W total PoE budget. It can power up to 48 PoE or PoE+ devices simultaneously, with each port supporting up to 30W under IEEE 802.3at (PoE+). The actual number of powered devices depends on their individual power requirements; for example, it could power 24 devices at 30W each or mix lower-power devices like IP phones (7W) with higher-power wireless access points (30W).
What are the uplink options on this switch?
This switch includes four SFP+ uplink slots that support 10 Gigabit Ethernet connections. You can use SFP+ transceivers for either copper (10GBase-T) or fiber (10GBase-X) media, allowing flexibility based on distance and infrastructure. These uplinks are ideal for connecting to core switches, servers, or aggregation points, providing high-speed backbone connectivity without sacrificing port density for end devices.
Does this switch support Layer 3 routing?
Yes, this is a Layer 3 managed switch, meaning it supports routing functions such as static routing and policy-based routing. This allows it to route traffic between different VLANs or subnets without needing a separate router, simplifying network design and reducing latency for inter-VLAN communication. It is suitable for networks requiring segmentation and scalable routing capabilities.
What is the rack mounting compatibility?
The switch is designed for 1U rack mounting in standard 19-inch server racks. Its dimensions are 1.73" height, 17.42" width, and 12.77" depth, with rear mounting ears for secure installation. This compact form factor makes it easy to integrate into existing rack infrastructure in data centers, wiring closets, or network rooms, optimizing space while providing high port density.
What management interfaces are available?
This switch offers multiple management interfaces: a web-based graphical interface for easy configuration, a command-line interface (CLI) for advanced control, and SNMP for network monitoring and integration with management systems. These tools allow administrators to configure VLANs, QoS, security policies, and monitor performance, ensuring efficient network operation and troubleshooting.
What types of cables are supported?
The switch supports both twisted pair copper cables (Cat5e/Cat6/Cat6a) for the 48 RJ-45 ports, with distances up to 100 meters, and optical fiber cables via SFP+ modules for the uplink slots, supporting distances up to 10 kilometers depending on the transceiver used. This flexibility allows deployment in various environments, from office buildings with existing copper wiring to longer-distance fiber backbone links.
What uplink, SFP, fiber, or media support detail is listed?
The warranty or support detail listed is Yes, giving buyers a clearer picture of expected coverage after purchase.
Does the product support PoE or wireless networking?
Connectivity support is listed in the product specifications, including the relevant wireless or port options when available.
