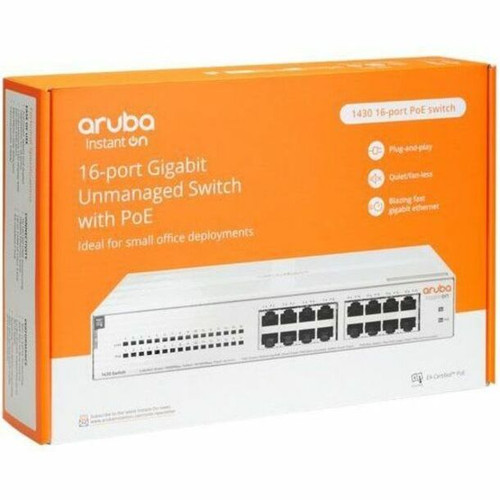

HPE Instant On 1430 16G Class4 PoE 124W Switch - 16.0 Ports - Gigabit Ethernet - 10/100/1000Base-T - 2 Layer Supported - 147 W Power - (R8R48A#ABB)
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Features: Fanless
Total Number of Network Ports: 16.0
Network (RJ-45): Yes
Port/Expansion Slot Details: 16 x Gigabit Ethernet PoE
Media Type Supported: Twisted Pair
Ethernet Technology: Gigabit Ethernet
Network Technology: 10/100/1000Base-T
Layer Supported: 2
Networking Standards: IEEE 802.1x,IEEE 802.1p,IEEE 802.3,IEEE 802.3u,IEEE 802.3ab,IEEE 802.3i,IEEE 802.3z,IEEE 802.3x,IEEE 802.3az,IEEE 802.3af,IEEE 802.3at
Manageable: No
PoE (RJ-45) Port: Yes
PoE Budget: 124 W
Input Voltage: 120 V AC,230 V AC
Power Source: Power Supply
Power Consumption: 147 W
Form Factor: Table Top,Wall Mountable,Surface Mount,Under Table,Rack-mountable,Cabinet Mount
Height: 1.73" (44 mm)
Width: 10.83" (275 mm)
Depth: 10.24" (260 mm)
Weight (Approximate): 4.60 lb (2086.524902 g)
- Quickly and easily set up a wired network with 16.0 networking ports
- Built-in power supply to ensure all components are being supplied with accurate voltage
- With leading Layer 2 support, experience enhanced convenience, secure business operations, and a borderless network experience
- The unmanaged switch provides a quick, easy and cost-saving way to add wired networking to your home, office or small business; no intervention needed
- Up to 10x faster than standard Ethernet server connectivity while providing high-performance uplinks
- Supports cost-efficient twisted pair cables for high-speed data transfer up to 100 meters
[custom-specifications]
| Specifications | |
| Manufacturer | Hewlett Packard Enterprise |
| Manufacturer Part Number | R8R48AABB |
| Manufacturer Website Address | http://www.hpe.com |
| Brand Name | HPE |
| Product Line | Instant On |
| Product Series | 1430 |
| Product Name | Instant On 1430 16G Class4 PoE 124W Switch |
| Product Type | Ethernet Switch |
| Technical Information | |
| Features | Fanless |
| Interfaces/Ports | |
| Total Number of Network Ports | 16.0 |
| Network (RJ-45) | Yes |
| Port/Expansion Slot Details | 16 x Gigabit Ethernet PoE |
| Media & Performance | |
| Media Type Supported | Twisted Pair |
| Ethernet Technology | Gigabit Ethernet |
| Network Technology | 10/100/1000Base-T |
| Network & Communication | |
| Layer Supported | 2 |
| Networking Standards | IEEE 802.1x,IEEE 802.1p,IEEE 802.3,IEEE 802.3u,IEEE 802.3ab,IEEE 802.3i,IEEE 802.3z,IEEE 802.3x,IEEE 802.3az,IEEE 802.3af,IEEE 802.3at |
| Management & Protocols | |
| Manageable | No |
| Power Description | |
| PoE (RJ-45) Port | Yes |
| PoE Budget | 124 W |
| Input Voltage | 120 V AC,230 V AC |
| Power Source | Power Supply |
| Power Consumption | 147 W |
| Physical Characteristics | |
| Form Factor | Table Top,Wall Mountable,Surface Mount,Under Table,Rack-mountable,Cabinet Mount |
| Height | 1.73" (44 mm) |
| Width | 10.83" (275 mm) |
| Depth | 10.24" (260 mm) |
| Weight (Approximate) | 4.60 lb (2086.524902 g) |
[/custom-specifications]
[custom-user-manual]
Available Documentation:
Additional-pdf1
Additional-pdf2
Additional-pdf4
Additional-pdf3
Manufacturer-Brochure
[/custom-user-manual]
