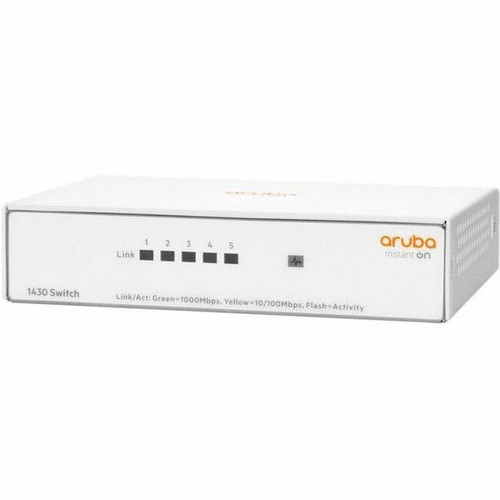

HPE Instant On 1430 5G Switch - 5.0 Ports - Gigabit Ethernet - 100Base-TX, 10/100/1000Base-T - 2 Layer Supported - Twisted Pair, Fiber (R8R44A#ABB)
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Features: Fanless
Total Number of Network Ports: 5.0
Network (RJ-45): Yes
Uplink Port: Yes
Port/Expansion Slot Details: 5 x Gigabit Ethernet Network
Media Type Supported: Twisted Pair,Optical Fiber
Ethernet Technology: Gigabit Ethernet
Network Technology: 100Base-TX,10/100/1000Base-T
Layer Supported: 2
Networking Standards: IEEE 802.3,IEEE 802.3u,IEEE 802.3ab,IEEE 802.3af,IEEE 802.1x,IEEE 802.1p,IEEE 802.3i,IEEE 802.3z,IEEE 802.3at,IEEE 802.3az,IEEE 802.3x
Manageable: No
Input Voltage: 120 V AC,230 V AC
Power Source: Power Adapter
Form Factor: Table Top,Under Table,Wall Mountable
Height: 1.02" (26 mm)
Width: 4.57" (116 mm)
Depth: 3.66" (93 mm)
Weight (Approximate): 9.60 oz (272.155422 g)
- Cascade to other network devices through the uplink port to expand your local area network
- Quickly and easily set up a wired network with 5.0 networking ports
- With leading Layer 2 support, experience enhanced convenience, secure business operations, and a borderless network experience
- The unmanaged switch provides a quick, easy and cost-saving way to add wired networking to your home, office or small business; no intervention needed
- Gigabit Ethernet port for ultra-fast network speeds
- Supports cost-efficient twisted pair cables for high-speed data transfer up to 100 meters
[custom-specifications]
| Specifications | |
| Manufacturer | Hewlett Packard Enterprise |
| Manufacturer Part Number | R8R44A#ABB |
| Manufacturer Website Address | http://www.hpe.com |
| Brand Name | HPE |
| Product Line | Instant On |
| Product Series | 1430 |
| Product Name | Instant On 1430 5G Switch |
| Product Type | Ethernet Switch |
| Technical Information | |
| Features | Fanless |
| Interfaces/Ports | |
| Total Number of Network Ports | 5.0 |
| Network (RJ-45) | Yes |
| Uplink Port | Yes |
| Port/Expansion Slot Details | 5 x Gigabit Ethernet Network |
| Media & Performance | |
| Media Type Supported | Twisted Pair,Optical Fiber |
| Ethernet Technology | Gigabit Ethernet |
| Network Technology | 100Base-TX,10/100/1000Base-T |
| Network & Communication | |
| Layer Supported | 2 |
| Networking Standards | IEEE 802.3,IEEE 802.3u,IEEE 802.3ab,IEEE 802.3af,IEEE 802.1x,IEEE 802.1p,IEEE 802.3i,IEEE 802.3z,IEEE 802.3at,IEEE 802.3az,IEEE 802.3x |
| Management & Protocols | |
| Manageable | No |
| Power Description | |
| Input Voltage | 120 V AC,230 V AC |
| Power Source | Power Adapter |
| Physical Characteristics | |
| Form Factor | Table Top,Under Table,Wall Mountable |
| Height | 1.02" (26 mm) |
| Width | 4.57" (116 mm) |
| Depth | 3.66" (93 mm) |
| Weight (Approximate) | 9.60 oz (272.155422 g) |
[/custom-specifications]
