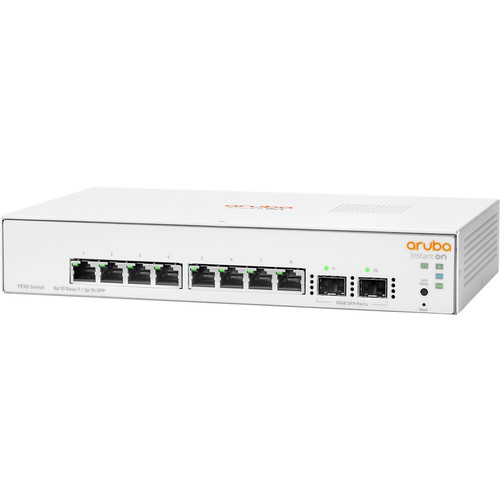

HPE JL680A#ABG Instant On 1930 8G 2SFP Switch - 8-Port Gigabit Managed Layer 4 - Rack-Mountable 1U
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This switch provides eight 10/100/1000Base-T RJ-45 ports for connecting desktops, printers, IP phones, and access points. The two SFP (mini-GBIC) slots support 1000Base-X fiber or copper transceivers, enabling uplinks to core switches or connections over longer distances.
Layer 4 support allows traffic classification based on TCP/UDP port numbers, enabling bandwidth limits and priority policies for specific applications. The switch complies with IEEE 802.1x for port-based authentication, IEEE 802.1Q for VLAN tagging, IEEE 802.3ad for link aggregation, and other key networking standards.
This section brings together practical product details such as Total Number of Network Ports, Network (RJ-45), Uplink Port, Media Type Supported, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
A strong technical summary explains how the product's interfaces, hardware profile, and operating characteristics work together in real deployment. Buyers often need this context to confirm compatibility with existing devices, expected performance in daily use, and whether installation will be straightforward for IT staff or end users.
Key Product Advantages
The HPE Instant On 1930 8G 2SFP Switch combines essential managed features with a compact footprint, ideal for cost-conscious deployments needing more than basic unmanaged switching.
Flexible Uplink Options
Two SFP slots allow fiber connections for longer runs or high-noise environments, or copper SFP modules for additional Gigabit Ethernet ports.
- Supports 1000Base-X SFP modules
- Enables fiber uplinks up to several kilometers
- Provides modular expansion without replacing the switch
Layer 4 Traffic Management
Beyond basic Layer 2/3 switching, Layer 4 support enables application-aware traffic policies.
- Classifies traffic by TCP/UDP port numbers
- Allows bandwidth limits per application
- Supports QoS for voice/video prioritization
Low-Power Rack Design
The 1U rack-mountable form factor and 11W power consumption minimize space and energy requirements.
- Fits standard 19-inch racks
- Reduces cooling needs
- Lowers operational costs
Deployment / Use Cases
This switch suits small office networks, retail locations, clinic branches, or classroom environments where eight wired connections with managed features are sufficient.
The SFP uplinks make it effective as a distribution switch in multi-floor buildings, connecting to a fiber backbone. Layer 4 capabilities allow IT to limit bandwidth for non-business applications or prioritize VoIP traffic.
This section brings together practical product details such as Total Number of Network Ports, Network (RJ-45), Uplink Port, Media Type Supported, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Small Business Core Switch
Serve as the main switch for offices with 8-16 devices, providing VLAN segmentation for departments and guest networks.
Branch Office Connectivity
Deploy in remote locations with fiber uplinks to headquarters, using Layer 4 policies to manage WAN bandwidth effectively.
Physical Profile
The switch measures 1.73" (43.94 mm) high, 10" (254 mm) wide, and 6.28" (159.51 mm) deep, weighing approximately 2.55 lb (1156.66 g). Its 1U rack-mountable design includes front-panel ports and rear power adapter connection, with optional rack ears for secure installation in network cabinets or wall-mounted racks.
The physical profile is practical for deployment planning because the dimensions and weight are clearly defined: 1.73" (43.94 mm), 10" (254 mm), 6.28" (159.51 mm), 2.55 lb (1156.66 g). This helps confirm rack, shelf, desk, or cabinet fit before installation.
- Width
- 10" (254 mm)
- Depth
- 6.28" (159.51 mm)
- Height
- 1.73" (43.94 mm)
- Weight
- 2.55 lb (1156.66 g)
Highlights
- 8 Gigabit Ethernet ports for connecting computers, printers, and IP devices
- 2 SFP uplink slots for fiber or copper expansion up to 1000 Mbps
- Layer 4 support enables traffic classification by application port numbers
- Managed via web, CLI, or HPE Instant On cloud management
- Rack-mountable 1U form factor for standard 19-inch cabinets
- Low 11W power consumption reduces energy costs
- Supports optical fiber for long-distance connections between buildings
- IEEE 802.1Q VLAN tagging for network segmentation
- IEEE 802.3ad Link Aggregation Control Protocol (LACP)
- IEEE 802.1x port-based network access control
Specifications
| Specifications | |
|---|---|
| Manufacturer | Hewlett Packard Enterprise |
| Manufacturer Part Number | JL680A#ABG |
| Brand Name | HPE |
| Product Line | Instant On |
| Product Series | 1930 |
| Product Name | Instant On 1930 8G 2SFP Switch |
| Product Type | Ethernet Switch |
| Interfaces/Ports | |
| Total Number of Network Ports | 8 |
| Network (RJ-45) | Yes |
| Uplink Port | Yes |
| Modular | Yes |
| Port/Expansion Slot Details | 8 x Gigabit Ethernet Network,2 x Gigabit Ethernet Expansion Slot |
| Media & Performance | |
| Media Type Supported | Optical Fiber,Twisted Pair |
| Ethernet Technology | Gigabit Ethernet |
| Network Technology | 10/100/1000Base-T,1000Base-X |
| I/O Expansions | |
| Total Number of Expansion Slots | 2 |
| Expansion Slot Type | SFP (mini-GBIC) |
| Number of SFP Slots | 2 |
| Network & Communication | |
| Layer Supported | 4 |
| Networking Standards | IEEE 802.1x,IEEE 802.1p,IEEE 802.1Q,IEEE 802.3az,IEEE 802.3x,IEEE 802.1D,IEEE 802.1w,IEEE 802.1s,IEEE 802.3,IEEE 802.3u,IEEE 802.3ab,IEEE 802.3z,IEEE 802.3ad,IEEE 802.1ab |
| Management & Protocols | |
| Manageable | Yes |
| Power Description | |
| Power Source | Power Adapter |
| Power Consumption | 11 W |
| Physical Characteristics | |
| Compatible Rack Unit | 1U |
| Form Factor | Rack-mountable |
| Height | 1.73" (43.94 mm) |
| Width | 10" (254 mm) |
| Depth | 6.28" (159.51 mm) |
| Weight (Approximate) | 2.55 lb (1156.66 g) |
FAQ
How many devices can I connect directly to this switch?
The HPE Instant On 1930 8G 2SFP Switch provides eight Gigabit Ethernet RJ-45 ports for direct device connections. Additionally, the two SFP slots can be used with copper SFP modules to add two more Gigabit Ethernet ports, effectively supporting up to ten wired devices if both SFP slots are populated with copper modules.
What are the SFP slots used for?
The two SFP (Small Form-factor Pluggable) slots support 1000Base-X SFP transceiver modules. You can install fiber SFP modules for uplinks over single-mode or multi-mode fiber optic cables, enabling connections up to several kilometers. Alternatively, copper SFP modules provide additional Gigabit Ethernet RJ-45 ports. These slots offer flexible uplink or expansion options without replacing the switch.
What does Layer 4 support mean for this switch?
Layer 4 support refers to the switch's ability to inspect and classify network traffic based on Transport Layer information, specifically TCP and UDP port numbers. This enables features like bandwidth limiting for specific applications (e.g., limiting video streaming ports), traffic prioritization for voice or video, and more granular quality of service (QoS) policies compared to basic Layer 2/3 switches.
Can this switch be rack-mounted?
Yes, the HPE Instant On 1930 8G 2SFP Switch is designed for rack mounting. It has a 1U (1.73-inch) height and includes mounting brackets (typically included or available separately) for installation in standard 19-inch network racks or cabinets. The compact depth of 6.28 inches makes it suitable for shallow racks.
How is this switch managed?
This is a fully manageable switch supporting multiple management methods. You can access it via a web browser for a graphical interface, use a command-line interface (CLI) over Telnet or SSH, or utilize HPE's Instant On cloud management platform for remote monitoring and configuration. It also supports SNMP for integration with network management systems.
What is the power consumption of this switch?
The HPE Instant On 1930 8G 2SFP Switch has a typical power consumption of 11 watts. This low power draw reduces electricity costs and heat output, making it suitable for environments with limited cooling or energy budgets. It is powered by an external power adapter (included).
What uplink, SFP, fiber, or media support detail is listed?
The warranty or support detail listed is Yes, giving buyers a clearer picture of expected coverage after purchase.
