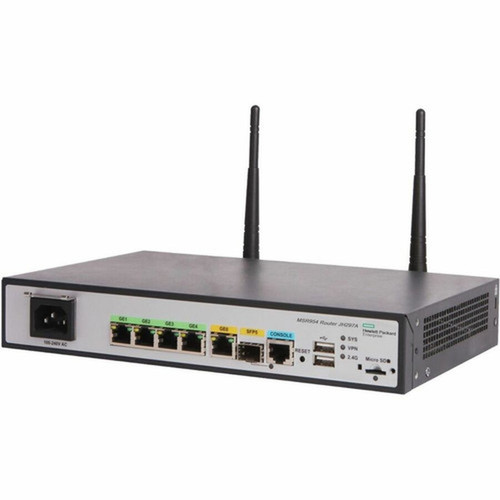

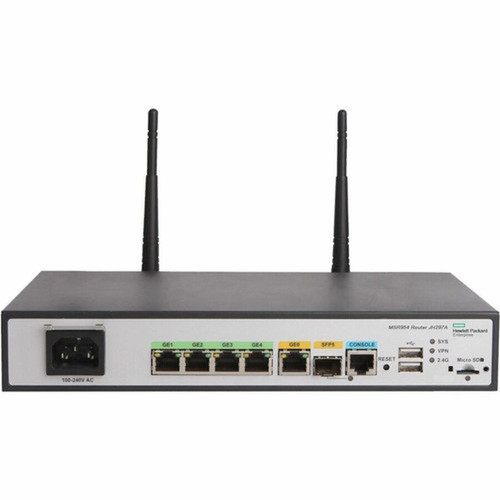

HPE JH297A#B2B FlexNetwork MSR954-W Wireless Router - Wi-Fi 4 (802. 11b/g/n) - 4-Port Gigabit Ethernet - VPN - Rack-Mountable
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
At its core, the MSR954-W features an A370 processor running at 800 MHz, backed by 1 GB of DDR3 SDRAM and 256 MB of flash memory for operating system and configuration storage. This hardware foundation supports advanced networking features including stateful firewall, NAT, ADVPN, and embedded encryption for comprehensive security.
The router delivers Wi-Fi 4 connectivity through IEEE 802.11b/g/n wireless standards, providing reliable wireless access for legacy and modern devices. Four Gigabit Ethernet ports handle wired connectivity, while an SFP expansion slot supports fiber optic connections for extended reach or higher bandwidth requirements.
Relevant factors for this section include Wi-Fi Generation, Processor Model, Processor Speed, Broadband Transmission Technology. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
The MSR954-W stands out with its converged architecture that eliminates the need for multiple standalone devices. By integrating routing, switching, security, and wireless capabilities into a single platform, organizations can reduce hardware complexity, simplify management, and lower total cost of ownership.
Unified Security
Embedded encryption, stateful firewall, NAT, and ADVPN features provide layered protection without requiring additional security appliances.
- Embedded encryption
- Stateful firewall
- NAT support
- ADVPN capabilities
Flexible Connectivity
Support for Ethernet, fiber SFP, USB, and integrated cellular options ensures connectivity across diverse network environments and deployment scenarios.
- 4 Gigabit Ethernet ports
- SFP expansion slot
- USB connectivity
- Integrated 4G LTE/3G
Deployment / Use Cases
The MSR954-W excels in branch office deployments where space, power, and management simplicity are critical considerations. Its compact rack-mountable design fits standard 19-inch racks while delivering enterprise-grade networking features typically found in larger, more expensive solutions.
Retail environments benefit from the router's converged capabilities, supporting both wired point-of-sale systems and wireless guest access from a single device. Educational institutions can deploy the MSR954-W in classrooms or administrative offices to provide secure network access for staff and students while maintaining centralized management through Comware v7.
Branch Office Networking
Delivers complete routing, switching, security, and wireless capabilities in a single 1U device for remote offices with limited IT staff.
- Converged architecture
- Remote management
- Cellular failover
- VPN connectivity
Distributed Enterprise
Provides consistent networking and security policies across multiple locations through unified Comware v7 management and zero-touch provisioning.
- Single management pane
- Policy consistency
- Automated deployment
- Centralized monitoring
Physical Profile
Designed for rack deployment, the MSR954-W measures 1.72 inches in height, 10.47 inches in width, and 6.34 inches in depth, occupying minimal space in standard 19-inch racks. The compact form factor makes efficient use of rack real estate while providing full-featured networking capabilities. Weighing approximately 3.30 pounds, the router offers easy installation and maintenance in data centers, wiring closets, or network cabinets.
- Width
- 10.47" (265.94 mm)
- Depth
- 6.34" (161.04 mm)
- Height
- 1.72" (43.69 mm)
- Weight
- 3.30 lb (1496.85 g)
Highlights
- Converged routing, switching, security, and wireless in single device
- Wi-Fi 4 connectivity with IEEE 802.11b/g/n support
- Four Gigabit Ethernet ports for wired connections
- SFP expansion slot for fiber optic connectivity
- Integrated 4G LTE and 3G cellular support
- Comware v7 OS with unified management
- Rack-mountable 1U form factor
- Embedded security with firewall and VPN
- 800 MHz A370 processor with 1 GB RAM
- 1-year limited warranty with RoHS/WEEE compliance
Specifications
| Specifications | |
|---|---|
| Manufacturer | Hewlett Packard Enterprise |
| Manufacturer Part Number | JH297A#B2B |
| Brand Name | HPE |
| Product Line | FlexNetwork |
| Product Series | MSR95x |
| Product Model | MSR954-W |
| Product Name | FlexNetwork MSR954-W Wireless Router |
| Product Type | Wireless Router |
| Technical Information | |
| Wi-Fi Generation | Wi-Fi 4 |
| Processor Model | A370 |
| Processor Speed | 800 MHz |
| Memory Technology | DDR3 SDRAM |
| Standard Memory | 1 GB |
| Wireless Specifications | |
| Broadband Transmission Technology | Ethernet |
| Wireless LAN Standard | IEEE 802.11b/g/n |
| Interfaces/Ports | |
| Number of Network (RJ-45) Ports | 4 |
| USB | Yes |
| I/O Expansions | |
| Total Number of Expansion Slots | 1 |
| Expansion Slot Type | SFP (mini-GBIC) |
| Network & Communication | |
| Ethernet Technology | Gigabit Ethernet |
| VPN Supported | Yes |
| Storage | |
| Flash Memory Capacity | 256 MB |
| Physical Characteristics | |
| Form Factor | Rack-mountable |
| Height | 1.72" (43.69 mm) |
| Width | 10.47" (265.94 mm) |
| Depth | 6.34" (161.04 mm) |
| Weight (Approximate) | 3.30 lb (1496.85 g) |
| Miscellaneous | |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS),Waste Electrical and Electronic Equipment Directive (WEEE) |
| Warranty | |
| Limited Warranty | 1 Year |
User Manual
FAQ
What wireless standards does the MSR954-W support?
The HPE FlexNetwork MSR954-W supports Wi-Fi 4 connectivity through the IEEE 802.11b/g/n wireless standards. This provides compatibility with a wide range of wireless devices from legacy 802.11b equipment to modern 802.11n devices, ensuring reliable wireless access across diverse client environments while maintaining backward compatibility.
How many network ports does this router include?
The MSR954-W features four Gigabit Ethernet ports (RJ-45) for wired network connections. These ports support 10/100/1000 Mbps speeds and can be configured for various network roles including WAN, LAN, or management interfaces. The router also includes one SFP expansion slot for fiber optic connectivity and a USB port for additional expansion options.
Does this router support VPN connectivity?
Yes, the MSR954-W includes comprehensive VPN support as part of its embedded security features. The router supports ADVPN (Auto Discovery VPN) along with traditional VPN protocols, enabling secure site-to-site and remote access connections. These VPN capabilities are integrated into the router's security suite alongside stateful firewall and NAT functionality.
What management system does this router use?
The router runs on HPE's Comware v7 operating system, which provides a unified management platform for all FlexNetwork devices. Comware v7 supports zero-touch provisioning for simplified deployment and offers single-pane-of-glass management through HPE's Intelligent Management Center (IMC) or direct web/CLI access for consistent policy enforcement across the network.
Is this router rack-mountable?
Yes, the MSR954-W is designed for rack deployment with a standard 1U form factor. The router measures 1.72 inches in height, 10.47 inches in width, and 6.34 inches in depth, making it suitable for installation in 19-inch racks commonly found in data centers, wiring closets, and network cabinets. Mounting brackets are typically included for secure rack installation.
What cellular connectivity options are available?
The MSR954-W supports integrated 4G LTE and 3G cellular connectivity, allowing the router to use cellular networks as primary or backup WAN connections. This capability provides additional deployment flexibility for locations without traditional wired broadband access and offers automatic failover to maintain network availability if the primary connection fails.
