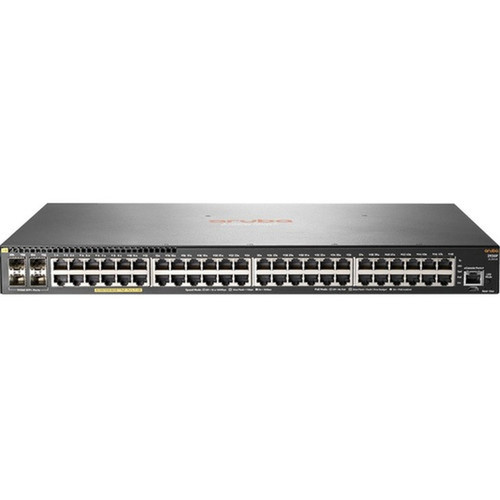

HPE JL264A#ABA Aruba 2930F 48G PoE+ 4SFP+ Switch - 48 Port Gigabit - 4 x 10Gb SFP+ - Layer 3 Managed - 1U Rack-Mountable
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
Built on the Aruba 2930F series platform, this switch supports Layer 3 switching for enhanced routing and segmentation, enabling efficient traffic management across VLANs and subnets. It operates with Gigabit Ethernet (10/100/1000Base-T) on the 48 copper ports and 10 Gigabit Ethernet (10GBase-X) on the SFP+ slots, accommodating both twisted pair and optical fiber media for flexible cabling options.
The switch is fully manageable via CLI, web interface, or network management software, offering features like QoS, ACLs, and SNMP for granular control. It does not include redundant power supply support but uses a single internal power source rated for consistent voltage delivery. The modular expansion slots are dedicated SFP+ with no shared SFP functionality, providing clear uplink capacity for future growth.
Relevant factors for this section include Total Number of Network Ports, Uplink Port, Modular, Media Type Supported. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
This switch excels in environments requiring dense connectivity and advanced network control. Its PoE+ capability reduces cabling complexity by delivering both data and power over Ethernet, while the high-speed uplinks prevent bottlenecks in aggregated traffic scenarios.
High-Density PoE+ Design
Power up to 48 devices like IP phones, cameras, or APs directly from the switch, streamlining installation and reducing power outlet requirements.
- Supports IEEE 802.3at PoE+ standard
- Eliminates separate power adapters
- Ideal for VoIP and wireless deployments
Scalable Uplink Performance
Four 10Gb SFP+ slots enable high-bandwidth connections to core switches or servers, ensuring smooth data transfer for growing network demands.
- 10GBase-X fiber or DAC options
- Dedicated non-shared slots
- Future-proof backbone connectivity
Enterprise-Grade Management
Layer 3 switching provides routing between VLANs, improving network efficiency and security through advanced traffic policies and segmentation.
- Supports dynamic routing protocols
- Enables inter-VLAN routing
- Granular QoS and ACL controls
Deployment / Use Cases
The HPE Aruba 2930F switch is versatile enough for mid-sized to large business networks where reliability and performance are non-negotiable. It serves as an access layer switch in office buildings, connecting end-user devices while providing uplinks to distribution or core layers.
In educational or healthcare settings, it supports IP-based systems like video surveillance and digital signage through its PoE+ ports. For IT closets or data centers, the 1U form factor and rack-mount capability allow tidy installation alongside other networking gear, with dimensions of 1.73" H x 17.42" W x 11.98" D fitting standard 19-inch racks.
Office Network Hub
Deploy as the main switch for workstations, printers, and VoIP phones, using PoE+ to power devices and 10Gb uplinks for server or internet connectivity.
Campus Access Layer
Install in multiple buildings to aggregate user traffic, with Layer 3 features enabling efficient routing across network segments and VLANs.
Physical Profile
Designed for rack deployment, this switch measures 1.73 inches in height (43.90 mm), occupying a single rack unit (1U) to conserve space in server cabinets. Its width of 17.42 inches (442.50 mm) and depth of 11.98 inches (304.20 mm) align with standard 19-inch rack widths, and the approximate weight of 9.83 pounds (4460 g) ensures stable mounting without excessive bulk. The rack-mountable form factor includes mounting hardware for secure installation, promoting organized cable management in professional IT environments.
- Width
- 17.42" (442.50 mm)
- Depth
- 11.98" (304.20 mm)
- Height
- 1.73" (43.90 mm)
- Weight
- 9.83 lb (4460 g)
Highlights
- 48 Gigabit Ethernet ports with PoE+ support for powered devices
- 4x 10Gb SFP+ uplink slots for high-speed backbone connections
- Layer 3 managed switching enables advanced routing and VLAN support
- 1U rack-mountable design fits standard server cabinets
- Supports twisted pair and optical fiber media types
- Built-in power supply ensures reliable voltage delivery
- Ideal for office, campus, and data center network deployments
- Modular expansion with dedicated SFP+ slots (non-shared)
Specifications
| Specifications | |
|---|---|
| Manufacturer | Hewlett Packard Enterprise |
| Manufacturer Part Number | JL264A#ABA |
| Brand Name | HPE |
| Product Series | 2930F |
| Product Model | 2930F 48G PoE+ 4SFP+ |
| Product Name | Aruba 2930F 48G PoE+ 4SFP+ T Swch |
| Product Type | Layer 3 Switch |
| Interfaces/Ports | |
| Total Number of Network Ports | 48 |
| Uplink Port | Yes |
| Modular | Yes |
| Stack Port | No |
| Port/Expansion Slot Details | 48 x Gigabit Ethernet Network,4 x 10 Gigabit Ethernet Expansion Slot |
| Media & Performance | |
| Media Type Supported | Twisted Pair,Optical Fiber |
| Ethernet Technology | Gigabit Ethernet,10 Gigabit Ethernet |
| Network Technology | 10/100/1000Base-T,10GBase-X |
| I/O Expansions | |
| Total Number of Expansion Slots | 4.0 |
| Expansion Slot Type | SFP+ |
| Shared SFP Slot | No |
| Number of SFP+ Slots | 4 |
| Network & Communication | |
| Layer Supported | 3 |
| Management & Protocols | |
| Manageable | Yes |
| Power Description | |
| Power Source | Power Supply |
| Redundant Power Supply Supported | No |
| Physical Characteristics | |
| Compatible Rack Unit | 1U |
| Form Factor | Rack-mountable |
| Height | 1.73" (43.90 mm) |
| Width | 17.42" (442.50 mm) |
| Depth | 11.98" (304.20 mm) |
| Weight (Approximate) | 9.83 lb (4460 g) |
FAQ
How many PoE+ ports does this switch have?
The HPE Aruba 2930F switch includes 48 Gigabit Ethernet ports, all of which support PoE+ (Power over Ethernet Plus). This allows you to deliver both data and up to 30W of power per port to compatible devices like wireless access points, IP phones, and security cameras, reducing cable clutter and simplifying installations.
What are the uplink capabilities of this switch?
This switch features four 10 Gigabit SFP+ uplink slots, providing high-speed connectivity for backbone links to other switches, servers, or network core equipment. These slots support 10GBase-X technology for optical fiber or direct-attach copper cables, enabling scalable bandwidth to handle aggregated traffic from the 48 downstream ports.
Does this switch support Layer 3 switching?
Yes, the HPE Aruba 2930F is a Layer 3 managed switch. It supports routing between VLANs and IP subnets, allowing for more efficient traffic flow and network segmentation compared to Layer 2 switches. This includes features like static routing and dynamic routing protocols, making it suitable for complex network environments requiring advanced control.
Is this switch rack-mountable?
Yes, this switch is designed for rack mounting with a 1U form factor. It measures 1.73 inches in height, fitting standard 19-inch server racks, and includes mounting hardware for secure installation. The compact design helps organize cables and conserve space in IT closets or data centers.
What media types are supported by this switch?
The switch supports both twisted pair (copper) and optical fiber media. The 48 Gigabit ports use twisted pair cables (10/100/1000Base-T), while the four SFP+ slots support optical fiber (10GBase-X) for uplinks. This flexibility allows you to choose cabling based on distance, interference, or performance needs in your network setup.
Can this switch be managed remotely?
Yes, this is a fully manageable switch that can be configured and monitored via command-line interface (CLI), web-based GUI, or network management protocols like SNMP. It offers features such as Quality of Service (QoS), Access Control Lists (ACLs), and port monitoring, providing granular control over network performance and security from a central location.
