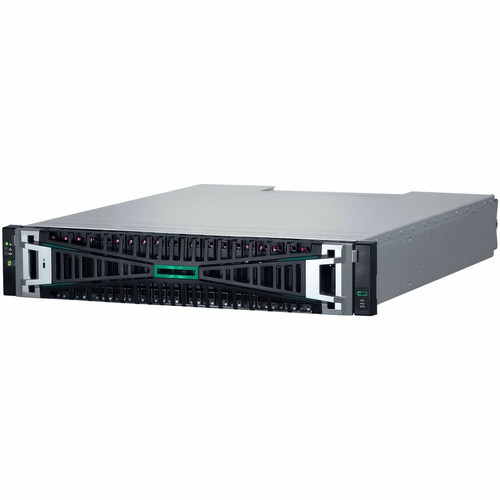

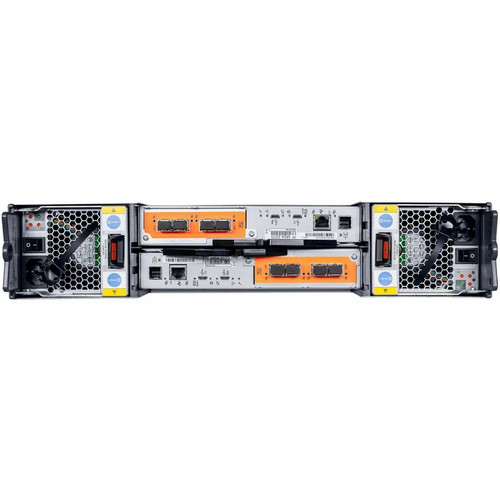

HPE MSA 2070 SAN Storage System - 24 x HDD Supported - 24 x SSD Supported - 12 x SSD Installed - 46.08 TB Total Installed SSD Capacity (P76570-B25)
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
- MSA 2070 SAN Storage System
- 2 x 1.5m PDU Cords (IEC C14)
- 1 x Rack-mount Kit
Number of Hard Drives Supported: 24
Number of Solid State Drive Supported: 24
Number of Solid State Drive Installed: 12
Total Solid State Drive Capacity Installed: 46.08 TB
Solid State Drive Configuration: 12 x 3.84TB
Clustering Supported: Yes
Ethernet Technology: Gigabit Ethernet
Number of Total Expansion Bays: 24
Number of 2.5" Bays: 24
Total Number of Expansion Slots: 4
Expansion Slot Type: SFP+,SFP
Number of Controllers: 2
Controller Type: 12Gb/s SAS
RAID Supported: Yes
RAID Levels: 0, 1, 5, 6, 10
Drive Interface: 12Gb/s SAS
Network (RJ-45): Yes
Fibre Channel: Yes
Protocols: FCP,SNMP,SSH,SMTP,FTP,SFTP,HTTP,HTTPS,Telnet
Number of Power Supplies Installed: 2
Plug/Connector Type: C14
Maximum Power Supply Wattage: 580 W
Redundant Power Supply: Yes
Height: 3.50" (88.90 mm)
Width: 19" (482.60 mm)
Depth: 26.40" (670.56 mm)
Form Factor: Rack-mountable
Rack Height: 2U
Package Contents:
Energy Star: Yes
Country of Origin: Mexico
Environmental Compliance: Restriction of Hazardous Substances (RoHS) 6,Waste Electrical and Electronic Equipment Directive (WEEE),China Restriction of Hazardous Substances (China RoHS)
Limited Warranty: 3 Year
Additional Warranty Information:
MSA Storage Systems carry a 3-year limited warranty, parts-only exchange, normal business hours, with next business day response.
- RAID technology - data reliability, fault tolerance and improved overall performance
- Featuring Gigabit Ethernet port for ultra-fast network speeds
[custom-specifications]
| Specifications | |
| Manufacturer | Hewlett Packard Enterprise |
| Manufacturer Part Number | P76570-B25 |
| Manufacturer Website Address | http://www.hpe.com |
| Brand Name | HPE |
| Product Model | MSA 2070 |
| Product Name | MSA 2070 SAN Storage System |
| Product Type | SAN Storage System |
| Storage | |
| Number of Hard Drives Supported | 24 |
| Number of Solid State Drive Supported | 24 |
| Number of Solid State Drive Installed | 12 |
| Total Solid State Drive Capacity Installed | 46.08 TB |
| Solid State Drive Configuration | 12 x 3.84TB |
| Clustering Supported | Yes |
| Network & Communication | |
| Ethernet Technology | Gigabit Ethernet |
| I/O Expansions | |
| Number of Total Expansion Bays | 24 |
| Number of 2.5" Bays | 24 |
| Total Number of Expansion Slots | 4 |
| Expansion Slot Type | SFP+,SFP |
| Controllers | |
| Number of Controllers | 2 |
| Controller Type | 12Gb/s SAS |
| RAID Supported | Yes |
| RAID Levels | 0, 1, 5, 6, 10 |
| Interfaces/Ports | |
| Drive Interface | 12Gb/s SAS |
| Network (RJ-45) | Yes |
| Fibre Channel | Yes |
| Management & Protocols | |
| Protocols | FCP,SNMP,SSH,SMTP,FTP,SFTP,HTTP,HTTPS,Telnet |
| Power Description | |
| Number of Power Supplies Installed | 2 |
| Plug/Connector Type | C14 |
| Maximum Power Supply Wattage | 580 W |
| Redundant Power Supply | Yes |
| Physical Characteristics | |
| Height | 3.50" (88.90 mm) |
| Width | 19" (482.60 mm) |
| Depth | 26.40" (670.56 mm) |
| Form Factor | Rack-mountable |
| Rack Height | 2U |
| Miscellaneous | |
| Package Contents |
|
| Energy Star | Yes |
| Country of Origin | Mexico |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) 6,Waste Electrical and Electronic Equipment Directive (WEEE),China Restriction of Hazardous Substances (China RoHS) |
| Warranty | |
| Limited Warranty | 3 Year |
| Additional Warranty Information | MSA Storage Systems carry a 3-year limited warranty, parts-only exchange, normal business hours, with next business day response. |
