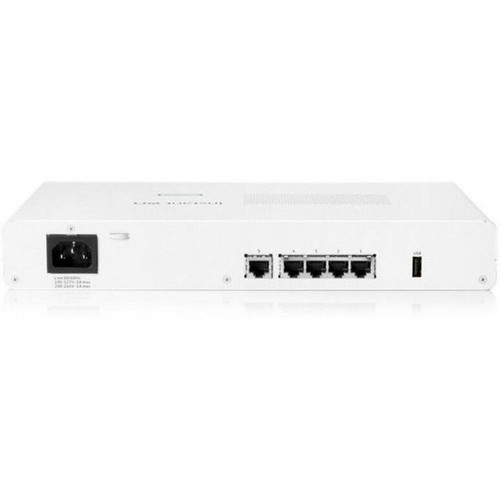

HPE S0G34A#ACC Instant On SG2505P Secure Gateway - 5 Ports (4 RJ-45 + 1 WAN) - 2. 5GbE - PoE - 4GB Memory - Rack/Wall/Tabletop
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This secure gateway features five total ports with a clear separation between WAN and LAN interfaces. The single WAN port handles internet connectivity while the four RJ-45 LAN ports distribute network access to connected devices. All ports support 2.5 Gigabit Ethernet technology, enabling high-speed data transfer across 10/100/1000Base-T and 2.5GBase-T network standards.
The device includes Power over Ethernet capability on its RJ-45 ports, allowing direct power delivery to compatible devices such as IP phones, wireless access points, and security cameras. This eliminates the need for separate power injectors and simplifies deployment. The built-in USB 2.0 Type A port provides additional connectivity options for peripheral devices or storage expansion.
This section brings together practical product details such as Total Number of Ports, USB Standard, Number of Network (RJ-45) Ports, Ethernet Technology, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Key Product Advantages
The SG2505P combines enterprise-grade networking features with deployment flexibility that suits various business environments. Its multi-mount capability allows installation as a tabletop device, wall-mounted unit, or standard rack-mounted appliance using appropriate mounting hardware.
High-Speed Connectivity
2.5 Gigabit Ethernet technology delivers superior throughput compared to standard Gigabit connections, supporting bandwidth-intensive applications and future network growth.
- Backward compatible with 10/100/1000Base-T networks
- Supports 2.5GBase-T for enhanced performance
Power over Ethernet
Integrated PoE support simplifies network deployment by delivering both data and power through standard Ethernet cables to connected devices.
- Eliminates separate power supplies for PoE devices
- Reduces cable clutter and installation complexity
Versatile Deployment Options
Three mounting configurations provide installation flexibility for different office layouts and IT infrastructure setups.
- Tabletop for temporary or office deployments
- Wall mount for space-constrained environments
- Rack mount for data center or server room integration
Deployment / Use Cases
This secure gateway serves as an ideal network foundation for small business offices, retail locations, and professional workspaces requiring reliable wired connectivity. The device functions effectively as the primary internet gateway, managing WAN connectivity while providing secure LAN access to connected workstations, printers, and network devices.
The PoE capability makes this gateway particularly suitable for environments deploying VoIP phone systems, wireless access points, or IP surveillance cameras. By powering these devices directly through the Ethernet connections, organizations reduce power outlet requirements and simplify cable management. The rack-mountable form factor enables clean integration into existing network cabinets or server racks for organized IT infrastructure.
Small Office Network Core
Provides secure internet access and local network connectivity for 5-20 user environments with mixed device types.
VoIP Infrastructure Support
Delivers both data and power to IP phones while maintaining voice quality through QoS support and dedicated bandwidth.
Physical Profile
The gateway measures 9.22" (234.19 mm) in height, 12.19" (309.63 mm) in width, and 1.73" (43.94 mm) in depth, with an approximate weight of 5.29 lb (2399.50 g). This compact form factor accommodates various installation scenarios while maintaining sufficient internal space for cooling and component placement. The device's dimensions support standard rack mounting with 1U of vertical space when using appropriate rack ears or shelves.
- Width
- 12.19" (309.63 mm)
- Depth
- 1.73" (43.94 mm)
- Height
- 9.22" (234.19 mm)
- Weight
- 5.29 lb (2399.50 g)
Highlights
- 5 total ports with dedicated WAN and LAN separation
- 2.5 Gigabit Ethernet technology for high-speed connectivity
- Power over Ethernet support on RJ-45 ports
- 4GB standard memory for routing and security functions
- Tabletop, wall, and rack mounting flexibility
- USB 2.0 Type A port for peripheral connectivity
- VoIP support for integrated telephony systems
- Compliance with IEEE 802.3at and 802.3af standards
Specifications
| Specifications | |
|---|---|
| Manufacturer | Hewlett Packard Enterprise |
| Manufacturer Part Number | S0G34A#ACC |
| Brand Name | HPE |
| Product Line | Instant On |
| Product Model | SG2505P |
| Product Name | Networking Instant On Secure Gateways |
| Product Type | Router |
| Interfaces/Ports | |
| Total Number of Ports | 5 |
| USB Standard | USB 2.0 Type A |
| Number of Network (RJ-45) Ports | 4 |
| Number of WAN Ports | 1 |
| Network & Communication | |
| Ethernet Technology | 2.5 Gigabit Ethernet |
| Network Technology | 10/100/1000Base-T,2.5GBase-T |
| Networking Standards | IEEE 802.3at,IEEE 802.3af |
| VoIP Supported | Yes |
| Memory | |
| Standard Memory | 4 GB |
| Power Description | |
| PoE (RJ-45) Port | Yes |
| Physical Characteristics | |
| Form Factor | Tabletop,Wall Mountable,Rack-mountable |
| Height | 9.22" (234.19 mm) |
| Width | 12.19" (309.63 mm) |
| Depth | 1.73" (43.94 mm) |
| Weight (Approximate) | 5.29 lb (2399.50 g) |
User Manual
FAQ
How many LAN ports does this HPE secure gateway have?
The HPE SG2505P secure gateway includes four RJ-45 LAN ports for connecting local network devices such as computers, printers, and switches. These ports support 2.5 Gigabit Ethernet technology and are backward compatible with standard 10/100/1000Base-T connections, providing flexible connectivity options for various network devices.
Does this gateway support Power over Ethernet?
Yes, this secure gateway features Power over Ethernet support on its RJ-45 ports. This allows the device to deliver both data and electrical power to compatible PoE devices such as IP phones, wireless access points, and security cameras through standard Ethernet cables, eliminating the need for separate power supplies at the endpoint locations.
What are the mounting options for this network gateway?
The HPE SG2505P offers three mounting configurations: tabletop placement for office environments, wall mounting for space-constrained installations, and standard rack mounting for integration into network cabinets or server racks. The device measures 9.22" high, 12.19" wide, and 1.73" deep, with a weight of approximately 5.29 pounds.
What is the memory capacity of this secure gateway?
This gateway comes with 4GB of standard memory, which supports routing tables, firewall rules, and basic network management functions. The memory configuration ensures smooth operation for typical small business network traffic without performance degradation during peak usage periods.
What Ethernet standards does this device support?
The gateway supports 2.5 Gigabit Ethernet technology along with backward compatibility for 10/100/1000Base-T networks. It complies with IEEE 802.3at and 802.3af standards for Power over Ethernet implementation and maintains compatibility with standard networking equipment across various speed categories.
Can this gateway support VoIP phone systems?
Yes, this secure gateway includes VoIP support, making it suitable for environments deploying IP telephony systems. The PoE capability allows direct power delivery to compatible IP phones, while the 2.5GbE connectivity ensures sufficient bandwidth for voice traffic alongside regular data transmission.
Does the product support PoE or wireless networking?
Connectivity support is listed in the product specifications, including the relevant wireless or port options when available.
What performance, throughput, or capacity detail stands out?
The listed power specification is 4 GB, which helps position the unit for the right load level and installation role.
