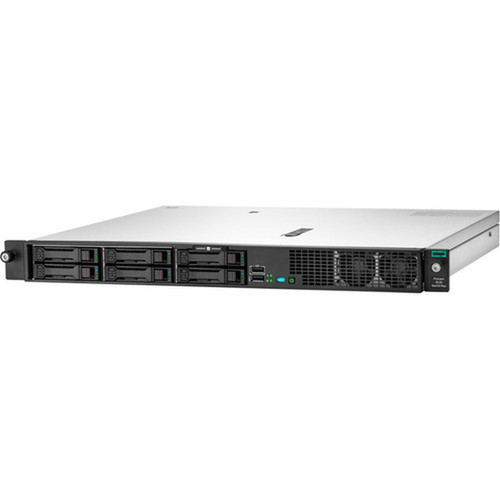

HPE P63678-B21 ProLiant DL20 G10 Plus 1U Rack Server - Intel Xeon E-2336 Hexa-core 2. 90 GHz - 32 GB DDR4 RAM - 960 GB SSD (2 x 480GB) - RAID
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
Built on Intel's C256 chipset, the ProLiant DL20 G10 Plus offers a balanced platform for general-purpose server workloads. The Intel Xeon E-2336 processor provides six cores and twelve threads, with a base clock of 2.90 GHz and 12 MB of smart cache, ensuring responsive performance for virtualization, database applications, and file serving tasks. Memory configuration includes 32 GB of DDR4-3200 ECC unbuffered RAM across two of four available DIMM slots, with support for up to 128 GB total capacity.
Storage is handled by two 480 GB Serial ATA solid-state drives configured in a 960 GB total capacity, connected via an Intel VROC controller that supports RAID for data protection and performance optimization. The server includes four internal 2.5" small form factor bays that are hot-swappable, plus one external 5.25" bay, allowing for easy storage expansion and maintenance. Two PCIe 4.0 expansion slots provide connectivity for additional network cards, storage controllers, or other peripherals.
Key Product Advantages
The ProLiant DL20 G10 Plus combines density, performance, and manageability in a single 1U package. Its compact design maximizes rack space utilization while delivering the compute power needed for critical business applications. The server's redundant 500 W power supplies and hot-swappable drive bays ensure high availability, minimizing downtime during maintenance or component failures.
Enterprise-Grade Security
Includes UEFI Secure Boot, Immutable Silicon Root of Trust, TPM 2.0, FIPS 140-2 validation, and advanced encryption standards to protect data and firmware integrity.
- Common Criteria certification
- Smart card and Kerberos authentication
- Tamper-free firmware updates
Simplified Management
HPE iLO remote management provides out-of-band control for deployment, monitoring, and troubleshooting, reducing the need for physical access to the server.
- Intelligent Provisioning for OS deployment
- Granular interface controls
- Secure recovery capabilities
Deployment / Use Cases
This server is well-suited for small business infrastructure, branch office deployments, and edge computing scenarios where space and power efficiency are priorities. It can serve as a primary server for file sharing, print services, and lightweight virtualization, or as a secondary server for backup, DNS, or DHCP roles.
In retail or remote office environments, the DL20 G10 Plus can host point-of-sale databases, inventory management systems, or local application servers. For IT service providers, it offers a cost-effective platform for hosting virtual machines or containerized applications, with the flexibility to scale memory and storage as needed. The server's support for multiple Linux distributions and Windows Server editions makes it adaptable to diverse software stacks and compliance requirements.
This section brings together practical product details such as Number of Processors Supported, Number of Processors Installed, Processor Type, Chipset Manufacturer, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Localization and Operating System
The ProLiant DL20 G10 Plus ships without a pre-installed operating system, allowing organizations to deploy their preferred OS version and configuration. It is certified for a broad range of server operating systems including Windows Server 2019 and 2022 (Essentials, Standard, and Datacenter editions), Red Hat Enterprise Linux 8.4 and 9.0, SUSE Linux Enterprise Server 12 SP5 and 15 SP3, and Ubuntu 20.04 LTS.
This flexibility ensures compatibility with existing IT environments and application requirements, whether for commercial software stacks, open-source solutions, or hybrid cloud integrations. The server's hardware and firmware are optimized for these OS platforms, providing reliable performance and security features out of the box.
Physical Profile
Designed for standard 19-inch racks, the server occupies a single rack unit (1U) with dimensions of 1.70 inches in height, 17.11 inches in width, and 15.05 inches in depth. Its shallow depth and lightweight construction simplify installation in crowded data centers or compact server closets. The included short friction rail kit supports tool-less mounting, reducing deployment time and effort.
The physical profile is practical for deployment planning because the dimensions and weight are clearly defined: 1U, 17.11" (434.60 mm), 15.05" (382.20 mm). This helps confirm rack, shelf, desk, or cabinet fit before installation.
- Width
- 17.11" (434.60 mm)
- Depth
- 15.05" (382.20 mm)
- Height
- 1U
What's in the Box
The server package includes all necessary components for immediate deployment in a rack environment.
Highlights
- Intel Xeon E-2336 hexa-core 2.90 GHz processor for enterprise performance
- 32 GB DDR4 ECC memory with support for up to 128 GB total capacity
- 960 GB SSD storage across two drives with Serial ATA interface
- RAID support via Intel VROC controller for data protection
- 1U rackmount form factor with compact dimensions for space efficiency
- Dual 500 W redundant power supplies for high availability
- Four hot-swappable 2.5" drive bays for easy storage expansion
- Dual Gigabit Ethernet ports and two PCIe 4.0 expansion slots
- HPE iLO remote management and Intelligent Provisioning tools
- 3-year warranty with onsite support and next business day response
Specifications
| Specifications | |
|---|---|
| Manufacturer | Hewlett Packard Enterprise |
| Manufacturer Part Number | P63678-B21 |
| Brand Name | HPE |
| Product Line | ProLiant |
| Product Series | DL20 G10 Plus |
| Product Name | ProLiant DL20 G10 Plus Server |
| Product Type | Server |
| Processor | |
| Number of Processors Supported | 1 |
| Number of Processors Installed | 1 |
| Processor Type | Xeon |
| Processor Model | E-2336 |
| Processor Core | Hexa-core (6 Core) |
| Processor Speed | 2.90 GHz |
| Cache | 12 MB |
| Chipset | |
| Chipset Manufacturer | Intel |
| Chipset Model | C256 |
| Memory | |
| Standard Memory | 32 GB |
| Maximum Memory Supported | 128 GB |
| Memory Technology | DDR4 SDRAM |
| Total Number of Memory Slots | 4 |
| Number of Occupied Memory Slots | 2 |
| Error Checking | ECC |
| Signal Processing | Unregistered (Unbuffered) |
| Storage | |
| Number of Hard Drives | No |
| Number of Solid State Drives | 2 |
| Total Solid State Drive Capacity | 960 GB |
| Solid State Drive Interface | Serial ATA |
| Optical Drive Type | No |
| Controllers | |
| Controller Type | Serial ATA |
| Controller Model | Intel VROC |
| RAID Supported | Yes |
| I/O Expansions | |
| Number of Total Expansion Bays | 5 |
| Number of External 5.25" Bays | 1 |
| Number of Internal 2.5" Bays | 4 |
| Number of SFF Bays | 4 |
| Hot Swappable Bays | Yes |
| Total Number of Expansion Slots | 2 |
| PCI Express Details | 2 PCIe 4.0 slots |
| Display & Graphics | |
| Graphics Memory Capacity | 16 MB |
| Network & Communication | |
| Ethernet Technology | Gigabit Ethernet |
| Interfaces/Ports | |
| Total Number of USB Ports | 5 |
| Number of USB 2.0 Ports | 1 |
| Network (RJ-45) | Yes |
| Number of Network (RJ-45) Ports | 2 |
| VGA | Yes |
| Remote Management | Yes |
| Remote Management Controller | iLO Management (standard), Intelligent Provisioning (standard), |
| Operating System | |
| Operating System Supported | Windows Server 2019,Windows Server 2019 Essentials,Windows Server 2019 Standard,Windows Server 2019 Datacenter,Hyper-V,Windows Server 2022 Essentials,Windows Server 2022 Standard,Windows Server 2022 Datacenter,Windows Server 2022,Red Hat Enterprise Linux,Red Hat Enterprise Linux 8.4,Red Hat Enterprise Linux 9.0,SuSE Linux Enterprise Server,SUSE Linux Enterprise Server 12 SP5,SUSE Linux Enterprise Server 15 SP3,SuSE Linux Enterprise Server 15,Ubuntu 20.04 LTS |
| Operating System | No |
| Power Description | |
| Input Voltage | 120 V AC,230 V AC |
| Number of Power Supplies Supported | 2 |
| Number of Power Supplies Installed | 2 |
| Plug/Connector Type | C13/C14 |
| Maximum Power Supply Wattage | 500 W |
| Redundant Power Supply | Yes |
| Miscellaneous | |
| Package Contents | ProLiant DL20 G10 Plus Server Short Friction Rail Kit 6-Foot IEC C-13/C-14 Jumper Cord |
| Security Features | UEFI Secure Boot and Secure Start support Immutable Silicon Root of Trust FIPS 140-2 validation Common Criteria certification Configurable for PCI DSS compliance Advanced Encryption Standard (AES) and Triple Data Encryption Standard (3DES) on browser Support for Commercial National Security Algorithms (CNSA) iLO Security Modes including a New iLO Advanced Premium Security License Granular control over iLO interfaces Smart card (PIV/CAC) and Kerberos based 2-factor Authentication Tamper-free updates - components digitally signed and verified Secure Recovery - recover critical firmware to known good state on detection of compromised FW Ability to rollback firmware Secure erase of NAND TPM (Trusted Platform Module) 2.0 Gen10 Bezel Locking Kit Chassis Intrusion detection option Intel® Software Guard Extensions (Intel® SGX) |
| Energy Star | Yes |
| Environmentally Friendly | Yes |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE) |
| Physical Characteristics | |
| Form Factor | Rack |
| Rack Height | 1U |
| Height | 1.70" (43.20 mm) |
| Width | 17.11" (434.60 mm) |
| Depth | 15.05" (382.20 mm) |
| Warranty | |
| Limited Warranty | 3 Year |
| Additional Warranty Information | 3-Year Parts, 3-Year Labor, 3-Year Onsite support with next business day response |
User Manual
FAQ
What processor does this HPE server use?
This HPE ProLiant DL20 G10 Plus server is equipped with an Intel Xeon E-2336 processor. It features six cores (hexa-core) running at a base clock speed of 2.90 GHz, with 12 MB of smart cache. This processor provides reliable performance for general server workloads, virtualization, and business applications.
How much memory is installed and what is the maximum supported?
The server comes with 32 GB of DDR4 SDRAM installed across two of its four memory slots. It uses ECC unbuffered memory for error correction and data integrity. The maximum supported memory capacity is 128 GB, allowing for significant expansion if your workloads require more RAM.
What storage configuration is included?
This configuration includes two 480 GB solid-state drives, providing a total of 960 GB of SSD storage. The drives use a Serial ATA interface and are managed by an Intel VROC controller that supports RAID configurations for data redundancy or performance optimization.
How many drive bays does the server have?
The server has five total expansion bays: four internal 2.5" small form factor bays that are hot-swappable, and one external 5.25" bay. The hot-swappable design allows you to replace or add drives without powering down the server, minimizing downtime.
What remote management features are included?
HPE includes iLO Management and Intelligent Provisioning as standard remote management tools. iLO provides out-of-band management for monitoring, troubleshooting, and deploying the server remotely, while Intelligent Provisioning simplifies operating system installation and configuration.
What is the power supply configuration?
The server is equipped with two 500 W power supplies in a redundant configuration. This means if one power supply fails, the other can continue to power the server without interruption. The power supplies use standard C13/C14 connectors and support input voltages of 120 V AC or 230 V AC.
What processor or CPU is listed for this server or storage platform?
This product uses the 1 processor for everyday performance and multitasking.
What processor speed is listed?
This product uses the 2.90 GHz processor for everyday performance and multitasking.
