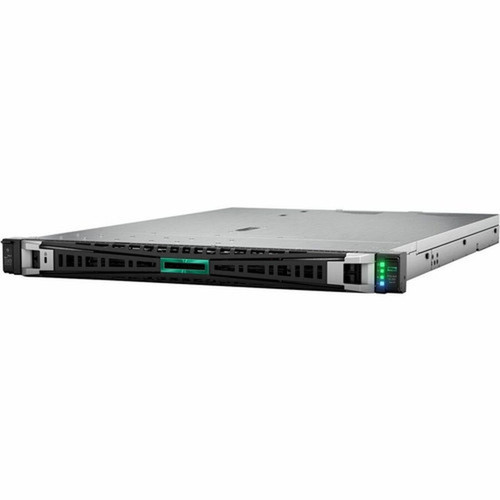

HPE P57688-B21 ProLiant DL320 G11 1U Rack Server - 1x Xeon Gold 5416S 2GHz 16-Core - 32GB DDR5 RAM - 8 SFF Bays - 2. 04TB Max Memory
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
At the heart of the DL320 G11 is a single Intel Xeon Gold 5416S processor, featuring 16 cores running at 2.0GHz with 30MB of L3 cache. This 4th Gen Xeon Scalable processor is built on Intel's advanced manufacturing process, delivering improved performance per watt for energy-efficient data center operations.
The server supports DDR5 memory technology with 16 DIMM slots, offering a maximum capacity of 2.04TB when fully populated. The installed 32GB of DDR5-4800 memory provides a solid foundation for memory-intensive applications, with ECC and registered buffering ensuring data integrity and reliability in 24/7 operations.
Storage expansion is handled through 8 SFF (2.5") drive bays, while two PCIe Gen5 x16 FHHL slots provide high-bandwidth connectivity for accelerators, network adapters, or storage controllers. The integrated MR408i-o controller manages storage operations, and dual Gigabit Ethernet ports deliver network connectivity with support for teaming and failover configurations.
Key Product Advantages
Compute Density
The 1U form factor packs 16 processor cores and support for up to 2.04TB of memory, delivering exceptional compute density for virtualization and consolidation projects.
- 16-core Xeon Gold 5416S processor
- 2.04TB maximum memory capacity
- DDR5-4800 memory technology
Storage Flexibility
Eight SFF drive bays provide ample storage capacity in a compact footprint, supporting both performance-optimized SSDs and capacity-optimized HDDs for balanced storage solutions.
- 8 hot-swap 2.5" drive bays
- Support for SAS and SATA devices
- MR408i-o storage controller
Enterprise Management
HPE iLO6 delivers comprehensive remote management capabilities with enhanced security features, including secure boot, firmware rollback protection, and hardware root of trust.
- Secure remote KVM access
- Health monitoring and alerts
- Integrated TPM 2.0 security
Deployment / Use Cases
The ProLiant DL320 G11 is well-suited for edge computing deployments where space is limited but performance requirements remain high. Its 1U form factor makes it ideal for colocation facilities, branch offices, and telecommunications edge locations where rack space is at a premium.
Virtualization hosts benefit from the server's 16-core processor and substantial memory capacity, allowing consolidation of multiple virtual machines on a single physical host. The 8 drive bays provide flexibility for both operating system storage and virtual machine datastores, while the dual Gigabit Ethernet ports ensure adequate network connectivity for virtual network traffic.
As a web or application server, the DL320 G11 delivers reliable performance for business-critical applications. The HPE iLO6 management controller simplifies administration through remote console access and health monitoring, reducing the need for onsite technical support in distributed environments.
Physical Profile
Designed for standard 19-inch racks, the DL320 G11 occupies just 1U of vertical space while providing substantial compute and storage capabilities. The server measures 1.69 inches (42.8mm) in height, 17.11 inches (434.6mm) in width, and 23.82 inches (605.1mm) in depth, with a weight of approximately 36.84 pounds (16.71kg).
The compact dimensions make efficient use of rack space while maintaining adequate airflow for cooling. The server includes a rail kit for secure mounting in standard server racks, and the optional bezel locking kit provides physical security for front-accessible components in shared or public environments.
- Width
- 17.11" (434.60 mm)
- Depth
- 23.82" (605.10 mm)
- Height
- 1U
- Weight
- 36.84 lb (16710 g)
What's in the Box
The server ships with all necessary components for immediate deployment in a standard rack environment.
Highlights
- 1U rack form factor maximizes data center density
- Intel Xeon Gold 5416S processor with 16 cores at 2.0GHz
- 32GB DDR5-4800 ECC Registered memory installed
- 8 SFF (2.5") hot-swap drive bays for storage flexibility
- Support for up to 2.04TB of system memory
- Dual Gigabit Ethernet ports for network connectivity
- HPE iLO6 remote management with enhanced security
- Two PCIe Gen5 x16 expansion slots
- 500W power supply with 120/230V auto-sensing
- 3-year warranty with next business day onsite support
Specifications
| Specifications | |
|---|---|
| Manufacturer | Hewlett Packard Enterprise |
| Manufacturer Part Number | P57688-B21 |
| Brand Name | HPE |
| Product Line | ProLiant |
| Product Series | DL320 G11 |
| Product Name | ProLiant DL320 Gen11 5416S 2.0GHz 16-core 1P 32GB-R MR408i-o 8SFF 500W PS Server |
| Product Type | Server |
| Processor | |
| Number of Processors Installed | 1 |
| Processor Type | Xeon Gold |
| Processor Generation | 4th Gen |
| Processor Model | 5416S |
| Processor Core | Hexadeca-core (16 Core) |
| Processor Speed | 2 GHz |
| Cache | 30 MB |
| Chipset | |
| Chipset Manufacturer | Intel |
| Chipset Model | C741 |
| Memory | |
| Standard Memory | 32 GB |
| Maximum Memory Supported | 2.04 TB |
| Memory Technology | DDR5 SDRAM |
| Memory Clock Speed | 4.80 GHz |
| Total Number of Memory Slots | 16 |
| Number of Occupied Memory Slots | 1 |
| Error Checking | ECC |
| Signal Processing | Registered (Buffered) |
| Controllers | |
| Controller Model | MR408i-o |
| I/O Expansions | |
| Number of Total Expansion Bays | 8 |
| Number of Internal 2.5" Bays | 8 |
| Number of SFF Bays | 8 |
| Total Number of Expansion Slots | 2 |
| PCI Express Details | 2 x16 FHHL PCIe Gen5 |
| Display & Graphics | |
| Graphics Memory Capacity | 16 MB |
| Network & Communication | |
| Ethernet Technology | Gigabit Ethernet |
| Interfaces/Ports | |
| Total Number of USB Ports | 4 |
| Network (RJ-45) | Yes |
| Number of Network (RJ-45) Ports | 2 |
| VGA | Yes |
| Remote Management | Yes |
| Remote Management Controller | HPE iLO6 |
| Operating System | |
| Operating System Supported | Windows Server,Red Hat Enterprise Linux,SuSE Linux Enterprise Server,Ubuntu,Oracle Linux,Citrix XenServer,CentOS |
| Power Description | |
| Input Voltage | 120 V AC,230 V AC |
| Number of Power Supplies Supported | 2 |
| Number of Power Supplies Installed | 1 |
| Plug/Connector Type | C13/C14 |
| Maximum Power Supply Wattage | 500 W |
| Miscellaneous | |
| Package Contents | ProLiant DL320 Gen11 5416S 2.0GHz 16-core 1P 32GB-R MR408i-o 8SFF 500W PS Server Rail Kit 6-foot IEC C-13/C-14 Jumper Cord |
| Security Features | UEFI Secure Boot and Secure Start support Tamper-free updates - components digitally signed and verified Immutable Silicon Root of Trust Ability to rollback firmware FIPS 140-2 validation Secure erase of NAND/User data Common Criteria certification Configurable for PCI DSS compliance Embedded TPM (Trusted Platform Module) 2.0. Excluded for shipments to China. Advanced Encryption Standard (AES) and Triple Data Encryption Standard (3DES) on browser Bezel Locking Kit option Support for Commercial National Security Algorithms (CNSA) Chassis Intrusion detection option Secure Recovery - recover critical firmware to a known good state on detection of compromised firmware |
| Environmentally Friendly | Yes |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE) |
| Physical Characteristics | |
| Form Factor | Rack |
| Rack Height | 1U |
| Height | 1.69" (42.80 mm) |
| Width | 17.11" (434.60 mm) |
| Depth | 23.82" (605.10 mm) |
| Weight (Approximate) | 36.84 lb (16710 g) |
| Warranty | |
| Limited Warranty | 3 Year |
| Additional Warranty Information | 3-year parts, 3-year labor, 3-year onsite support with next business day response. |
User Manual
FAQ
What processor does this HPE server use?
The ProLiant DL320 G11 is equipped with a single Intel Xeon Gold 5416S processor. This 4th Gen Xeon Scalable CPU features 16 cores running at a base frequency of 2.0GHz, with 30MB of L3 cache. The Xeon Gold series is designed for balanced performance in general-purpose server workloads, offering strong compute capabilities for virtualization, database applications, and enterprise software.
How much memory comes installed and what is the maximum capacity?
This server comes with 32GB of DDR5 SDRAM installed in one of its 16 available memory slots. The system supports a maximum memory capacity of 2.04TB when all slots are populated with compatible DIMMs. The memory operates at 4800MHz and features ECC (Error Correcting Code) with registered buffering for enhanced data integrity and reliability in 24/7 server environments.
What storage configuration does this server support?
The DL320 G11 includes 8 SFF (Small Form Factor) drive bays that support 2.5" storage devices. These hot-swappable bays can accommodate both SAS and SATA hard drives or solid-state drives, providing flexibility for performance or capacity-optimized storage configurations. The server includes an MR408i-o storage controller to manage these drives, and additional storage can be added through the PCIe expansion slots if needed.
What remote management capabilities does this server offer?
This server features HPE iLO6 (Integrated Lights-Out 6) for comprehensive remote management. iLO6 provides out-of-band management through a dedicated network interface, allowing administrators to access the server console, power cycle the system, monitor hardware health, and update firmware remotely. The management controller includes enhanced security features such as secure boot, firmware rollback protection, and hardware root of trust for secure server operations.
What is the power supply configuration and redundancy options?
The server includes a single 500W power supply unit installed, with support for a second identical power supply for redundancy. The power supply automatically senses input voltage between 120V and 230V AC, making it suitable for deployment in different geographical regions. With dual power supplies installed, the system can continue operating if one power supply fails, and hot-swap capability allows replacement without shutting down the server.
What operating systems are supported on this server?
The ProLiant DL320 G11 supports a wide range of enterprise operating systems including Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, Ubuntu, Oracle Linux, Citrix XenServer, and CentOS. HPE provides comprehensive driver and firmware support for these operating systems through their support portal, ensuring compatibility and stability for production deployments across different application environments.
What processor or CPU is listed for this server or storage platform?
This product uses the Xeon Gold processor for everyday performance and multitasking.
What processor speed is listed?
This product uses the 2 GHz processor for everyday performance and multitasking.
