HPE P57687-B21 ProLiant DL320 G11 1U Rack Server - Intel Xeon Silver 4410Y 12-Core 2. 0 GHz - 16 GB DDR5 RAM - 8 Hot-Swap Bays - iLO6
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
The DL320 G11 leverages the Intel C741 chipset to support the Xeon Silver 4410Y processor, which includes 30 MB of L3 cache. Memory runs on DDR5 technology with ECC and unbuffered signaling for data integrity and efficient throughput.
Storage connectivity is handled by the HPE MR408i-o SAS controller, supporting the eight front-accessible hot-swap bays. For expansion, two FHHL PCIe Gen5 x16 slots are available, enabling high-bandwidth add-in cards for networking, storage, or acceleration.
This section brings together practical product details such as Number of Processors Supported, Number of Processors Installed, Processor Type, Chipset Manufacturer, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
A strong technical summary explains how the product's interfaces, hardware profile, and operating characteristics work together in real deployment. Buyers often need this context to confirm compatibility with existing devices, expected performance in daily use, and whether installation will be straightforward for IT staff or end users.
Key Product Advantages
This server combines high-density storage with modern compute in a single rack unit, making it ideal for space-constrained deployments. The hot-swap drive bays and power supply enable maintenance without downtime, while HPE iLO6 provides comprehensive out-of-band management.
Enterprise Security Suite
Includes UEFI Secure Boot, Immutable Silicon Root of Trust, TPM 2.0, FIPS 140-2 validation, and secure firmware recovery to protect against tampering and unauthorized access.
- Tamper-free updates
- Secure erase capability
- Common Criteria certified
Efficient Power Design
A single 500 W hot-swap power supply is installed, with support for a second unit for redundancy. The C13/C14 connector is standard, and the platform is Energy Star qualified.
- Hot-swappable PSU
- 80 PLUS efficiency
- 500 W capacity
Deployment / Use Cases
The DL320 G11 is well-suited for roles that require a balance of local storage and compute in a dense form factor. Its eight drive bays make it a candidate for hosting virtual machines, supporting departmental applications, or acting as a dedicated storage node.
Typical deployments include edge computing locations, remote or branch offices, and as a host for hyper-converged infrastructure stacks. The dual Gigabit Ethernet ports and PCIe Gen5 slots allow for network segmentation or adding high-speed adapters for storage or low-latency networking.
Virtualization Host
With 12 cores and memory expandability, this server can run multiple VMs for consolidation, supported by a broad OS list including Windows Server, RHEL, Ubuntu, and Citrix XenServer.
Storage Server
The eight hot-swap bays and SAS controller provide reliable direct-attach storage for file serving, backups, or as a target for replication tasks.
Physical Profile
Designed for standard 19-inch racks, the DL320 G11 occupies a single rack unit (1U), with dimensions of 1.69 inches in height, 17.11 inches in width, and 23.82 inches in depth. Its weight is approximately 36.84 pounds, making it manageable for installation in most data center racks.

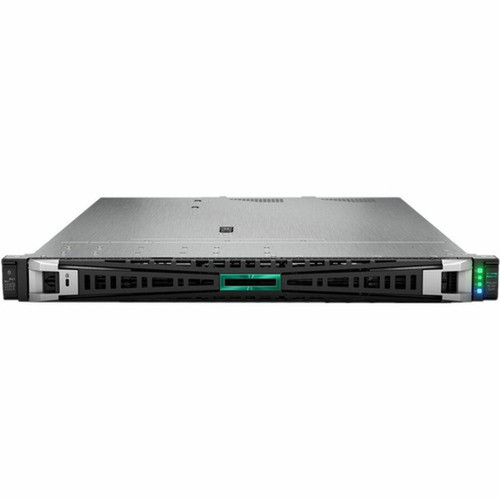

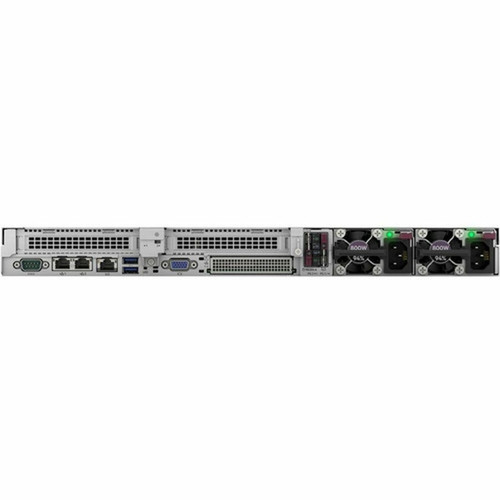

The front panel provides access to the eight hot-swap drive bays, while the rear includes I/O ports, expansion slots, and the power supply. The compact 1U height maximizes rack space efficiency while still offering substantial storage and expansion capabilities.
- Width
- 17.11" (434.60 mm)
- Depth
- 23.82" (605.10 mm)
- Height
- 1U
- Weight
- 36.84 lb (16710 g)
Highlights
- Intel Xeon Silver 4410Y 12-core processor at 2.0 GHz with 30 MB cache
- 16 GB of DDR5 SDRAM with ECC, expandable to 2.04 TB across 16 slots
- Eight 2.5" hot-swap SFF drive bays for flexible storage configurations
- Integrated SAS controller (MR408i-o) for reliable storage performance
- Dual Gigabit Ethernet ports and four USB ports for connectivity
- HPE iLO6 remote management for out-of-band server control
- Single 500 W hot-swap power supply with support for a second unit
- 1U rack form factor for high-density deployment
- Broad OS support including Windows Server, Linux distributions, and hypervisors
- Comprehensive security features with TPM 2.0 and FIPS 140-2 validation
Specifications
| Specifications | |
|---|---|
| Manufacturer | Hewlett Packard Enterprise |
| Manufacturer Part Number | P57687-B21 |
| Brand Name | HPE |
| Product Line | ProLiant |
| Product Series | DL320 G11 |
| Product Name | ProLiant DL320 G11 Server |
| Product Type | Server |
| Processor | |
| Number of Processors Supported | 1 |
| Number of Processors Installed | 1 |
| Processor Type | Xeon Silver |
| Processor Generation | 4th Gen |
| Processor Model | 4410Y |
| Processor Core | Dodeca-core (12 Core) |
| Processor Speed | 2 GHz |
| Cache | 30 MB |
| Chipset | |
| Chipset Manufacturer | Intel |
| Chipset Model | C741 |
| Memory | |
| Standard Memory | 16 GB |
| Maximum Memory Supported | 2.04 TB |
| Memory Technology | DDR5 SDRAM |
| Total Number of Memory Slots | 16 |
| Number of Occupied Memory Slots | 1 |
| Error Checking | ECC |
| Signal Processing | Unregistered (Unbuffered) |
| Controllers | |
| Controller Type | Serial Attached SCSI (SAS) |
| Controller Model | MR408i-o |
| I/O Expansions | |
| Number of Total Expansion Bays | 8 |
| Number of Internal 2.5" Bays | 8 |
| Number of SFF Bays | 8 |
| Hot Swappable Bays | Yes |
| Total Number of Expansion Slots | 2 |
| PCI Express Details | 2 x16 FHHL PCIe Gen5 |
| Display & Graphics | |
| Graphics Memory Capacity | 16 MB |
| Network & Communication | |
| Ethernet Technology | Gigabit Ethernet |
| Interfaces/Ports | |
| Total Number of USB Ports | 4 |
| Network (RJ-45) | Yes |
| Number of Network (RJ-45) Ports | 2 |
| VGA | Yes |
| Remote Management | Yes |
| Remote Management Controller | HPE iLO6 |
| Operating System | |
| Operating System Supported | Windows Server,Red Hat Enterprise Linux,SuSE Linux Enterprise Server,Ubuntu,Oracle Linux,Citrix XenServer,CentOS |
| Power Description | |
| Number of Power Supplies Supported | 2 |
| Number of Power Supplies Installed | 1 |
| Plug/Connector Type | C13/C14 |
| Maximum Power Supply Wattage | 500 W |
| Hot Swappable Power Supply | Yes |
| Miscellaneous | |
| Security Features | UEFI Secure Boot and Secure Start support Tamper-free updates - components digitally signed and verified Immutable Silicon Root of Trust Ability to rollback firmware FIPS 140-2 validation Secure erase of NAND/User data Common Criteria certification Configurable for PCI DSS compliance Embedded TPM (Trusted Platform Module) 2.0. Excluded for shipments to China. Advanced Encryption Standard (AES) and Triple Data Encryption Standard (3DES) on browser Support for Commercial National Security Algorithms (CNSA) Secure Recovery - recover critical firmware to a known good state on detection of compromised firmware |
| Energy Star | Yes |
| Physical Characteristics | |
| Form Factor | Rack |
| Rack Height | 1U |
| Height | 1.69" (42.80 mm) |
| Width | 17.11" (434.60 mm) |
| Depth | 23.82" (605.10 mm) |
| Weight (Approximate) | 36.84 lb (16710 g) |
FAQ
What processor is installed in this HPE ProLiant DL320 G11 server?
This server includes one Intel Xeon Silver 4410Y processor. It is a 4th Gen Xeon Scalable CPU with 12 cores (dodeca-core) running at a base frequency of 2.0 GHz and featuring 30 MB of L3 cache. The platform supports a single processor.
How much memory does this server come with, and how much can it support?
The server ships with 16 GB of DDR5 SDRAM installed in one of its 16 memory slots. It supports Error-Correcting Code (ECC) unbuffered memory and can be expanded up to a maximum of 2.04 TB total memory capacity, providing significant room for growth with memory-intensive applications.
How many drive bays does the DL320 G11 have, and what type are they?
This server has eight 2.5-inch small form factor (SFF) drive bays. All bays are hot-swappable, allowing drives to be replaced without powering down the server. The bays are connected via an integrated Serial Attached SCSI (SAS) controller, model MR408i-o.
What remote management capabilities are included?
The server features HPE iLO6 (Integrated Lights-Out 6) for comprehensive remote management. iLO6 provides out-of-band management regardless of the operating system state, enabling power control, hardware monitoring, virtual media, and remote console access over the network.
What power supply configuration does this server use?
It includes one 500-watt hot-swappable power supply unit (PSU) with a C13/C14 connector. The chassis supports a second identical power supply for redundancy, allowing for N+1 power configuration to maintain uptime in case of a PSU failure.
What operating systems are supported by this HPE server?
The DL320 G11 supports a wide range of operating systems, including Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, Ubuntu, Oracle Linux, Citrix XenServer, and CentOS. This broad compatibility ensures flexibility for various IT environments and workloads.
What processor or CPU is listed for this server or storage platform?
This product uses the 1 processor for everyday performance and multitasking.
What processor speed is listed?
This product uses the 2 GHz processor for everyday performance and multitasking.
