HPE P55250-B21 ProLiant DL325 G10 Plus v2 1U Rack Server - AMD EPYC 7313P 16-Core 3 GHz - 32 GB RAM - 8 x 2. 5" Hot-Swap Bays - 12Gb/s SAS RAID
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
At the heart of the DL325 G10 Plus v2 is the AMD EPYC 7313P processor, a 3rd Gen EPYC CPU with 16 cores, 32 threads, and a 128 MB L3 cache. The platform supports up to 1 TB of DDR4-3200 registered memory across 32 DIMM slots, providing substantial headroom for memory-intensive workloads.
Storage is handled by an integrated HPE Smart Array MR416i-a controller, which delivers 12Gb/s SAS connectivity with hardware RAID support for data protection and performance. The server offers eight 2.5" small form factor bays that are hot-swappable for easy maintenance and scalability.
This section brings together practical product details such as Number of Processors Supported, Number of Processors Installed, Processor Type, Chipset Manufacturer, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
A strong technical summary explains how the product's interfaces, hardware profile, and operating characteristics work together in real deployment. Buyers often need this context to confirm compatibility with existing devices, expected performance in daily use, and whether installation will be straightforward for IT staff or end users.
Key Product Advantages
The DL325 G10 Plus v2 balances compute density, storage flexibility, and manageability in a 1U rack design. Its eight hot-swap drive bays and dual PCIe slots allow for significant configuration options, while the HPE iLO remote management suite provides out-of-band control and monitoring.
High-Density Compute
The 16-core EPYC 7313P processor delivers strong multithreaded performance for virtualized environments and demanding applications, backed by a memory architecture that scales to 1 TB.
- 16 cores / 32 threads
- 128 MB L3 cache
- Up to 1 TB DDR4 memory
Flexible Storage Expansion
Eight 2.5" hot-swap bays support a mix of SAS, SATA, or NVMe drives, with hardware RAID protection via the 12Gb/s SAS controller for reliable storage performance.
- Hot-swap for easy maintenance
- Hardware RAID support
- 12Gb/s SAS bandwidth
Enterprise Management & Security
HPE iLO Standard enables remote console access, power control, and health monitoring. The platform includes security features like UEFI Secure Boot, immutable silicon root of trust, and FIPS 140-2 validation.
- Out-of-band management
- Secure firmware updates
- Compliance-ready security
Deployment / Use Cases
This server is well-suited for environments that require a balance of compute power and storage density in a compact rack form factor. Its single-socket design and flexible I/O make it a cost-effective choice for a range of enterprise and cloud workloads.
Typical deployments include virtualization hosts, software-defined storage nodes, database servers, and private cloud infrastructure. The hot-swap drive bays and redundant power supply support enable reliable operation in data center and colocation settings.
Virtualization & Cloud
The 16-core EPYC processor and large memory capacity support multiple virtual machines, making the server ideal for VMware, Hyper-V, or Kubernetes deployments.
Storage-Intensive Applications
With eight drive bays and hardware RAID, the DL325 can be configured for high-performance storage workloads, including file serving, backup targets, or mid-tier databases.
Localization and Operating System
This server ships without a preinstalled operating system, providing flexibility to deploy the preferred OS for your environment. It is certified for a wide range of server operating systems, including Windows Server 2016, 2019, and 2022, as well as SUSE Linux Enterprise Server, Red Hat Enterprise Linux, and Ubuntu 20.04 LTS.
The platform supports standard server localization and keyboard configurations through the operating system installation process. Remote management via HPE iLO is accessible through a web browser with support for advanced encryption standards.
This section brings together practical product details such as Number of Processors Supported, Number of Processors Installed, Processor Type, Chipset Manufacturer, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Physical Profile
The DL325 G10 Plus v2 is built in a standard 1U rack chassis measuring 1.69 inches in height, 17.11 inches in width, and 25.37 inches in depth. This compact design maximizes rack density while providing adequate airflow for cooling.

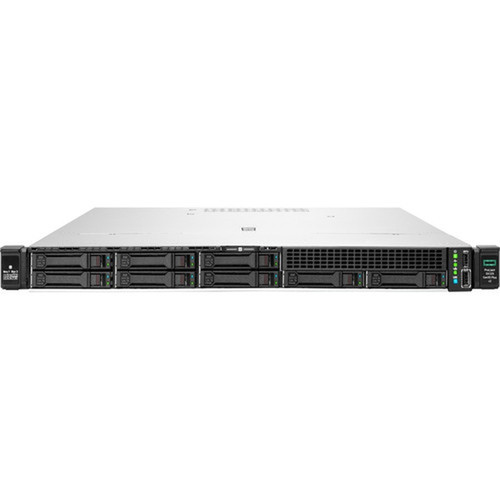

The server weighs approximately 35.69 pounds and includes tool-less rail mounting options for easy installation in standard 19-inch racks. The front-accessible hot-swap drive bays and status indicators simplify maintenance in dense deployments.
- Width
- 17.11" (434.59 mm)
- Depth
- 25.37" (644.40 mm)
- Height
- 1U
- Weight
- 35.69 lb (16190 g)
Highlights
- AMD EPYC 7313P 16-core processor at 3 GHz with 128 MB cache
- 32 GB of DDR4 registered memory installed, expandable to 1 TB
- Eight 2.5" hot-swap drive bays for flexible storage configurations
- 12Gb/s SAS RAID controller (MR416i-a) for data protection
- 1U rack form factor for high-density data center deployment
- HPE iLO Standard remote management with Intelligent Provisioning
- Dual PCIe Gen 3 x16 expansion slots for network or storage cards
- Hot-swap 500 W power supply with support for a second unit
- Certified for Windows Server, Linux, and other enterprise OSes
- Advanced security features including UEFI Secure Boot and FIPS validation
Specifications
| Specifications | |
|---|---|
| Manufacturer | Hewlett Packard Enterprise |
| Manufacturer Part Number | P55250-B21 |
| Brand Name | HPE |
| Product Line | ProLiant |
| Product Series | DL325 G10 Plus v2 |
| Product Name | ProLiant DL325 G10 Plus v2 Server |
| Product Type | Server |
| Processor | |
| Number of Processors Supported | 1 |
| Number of Processors Installed | 1 |
| Processor Type | EPYC |
| Processor Generation | 3rd Gen |
| Processor Model | 7313P |
| Processor Core | Hexadeca-core (16 Core) |
| Processor Speed | 3 GHz |
| Cache | 128 MB |
| Chipset | |
| Chipset Manufacturer | AMD |
| Memory | |
| Standard Memory | 32 GB |
| Maximum Memory Supported | 1 TB |
| Memory Technology | DDR4 SDRAM |
| Total Number of Memory Slots | 32 |
| Number of Occupied Memory Slots | 1 |
| Signal Processing | Registered (Buffered) |
| Storage | |
| Total Hard Drive Capacity | No |
| Optical Drive Type | No |
| Controllers | |
| Controller Type | 12Gb/s SAS |
| Controller Model | MR416i-a |
| RAID Supported | Yes |
| I/O Expansions | |
| Number of Total Expansion Bays | 8 |
| Number of Internal 2.5" Bays | 8 |
| Number of SFF Bays | 8 |
| Hot Swappable Bays | Yes |
| Total Number of Expansion Slots | 2 |
| PCI Express x16 (Gen 3.x) Slots | 2 |
| PCI Express Details | PCI-Express Slots 2-slots (x16, x16) as standard |
| Display & Graphics | |
| Graphics Memory Capacity | 16 MB |
| Network & Communication | |
| Ethernet Technology | Gigabit Ethernet |
| Interfaces/Ports | |
| Total Number of USB Ports | 4 |
| Network (RJ-45) | Yes |
| Number of Network (RJ-45) Ports | 1 |
| VGA | Yes |
| Remote Management | Yes |
| Remote Management Controller | HPE iLO Standard with Intelligent Provisioning, HPE OneView Standard (requires download) |
| Operating System | |
| Operating System Supported | Windows Server 2016,Windows Server 2019,SUSE Linux Enterprise Server 12 SP5,SUSE Linux Enterprise Server 15 SP2,Red Hat Enterprise Linux 8.3,Windows Server 2022,Ubuntu 20.04 LTS |
| Operating System | No |
| Power Description | |
| Number of Power Supplies Supported | 2 |
| Number of Power Supplies Installed | 1 |
| Plug/Connector Type | C13/C14 |
| Maximum Power Supply Wattage | 500 W |
| Hot Swappable Power Supply | Yes |
| Miscellaneous | |
| Security Features | UEFI Secure Boot and Secure Start support Immutable Silicon Root of Trust FIPS 140-2 validation (iLO 5 certification in progress) Common Criteria certification (iLO 5 certification in progress) Configurable for PCI DSS compliance Advanced Encryption Standard (AES) and Triple Data Encryption Standard (3DES) on browser Support for Commercial National Security Algorithms (CNSA) Tamper-free updates - components digitally signed and verified Secure Recovery - recover critical firmware to known good state on detection of compromised firmware Ability to rollback firmware Secure erase of NAND/User data |
| Energy Star | Yes |
| Physical Characteristics | |
| Form Factor | Rack |
| Rack Height | 1U |
| Height | 1.69" (42.93 mm) |
| Width | 17.11" (434.59 mm) |
| Depth | 25.37" (644.40 mm) |
| Weight (Approximate) | 35.69 lb (16190 g) |
User Manual
FAQ
What processor does this HPE server use?
This HPE ProLiant DL325 G10 Plus v2 server is equipped with an AMD EPYC 7313P processor. This is a 3rd Gen EPYC CPU with 16 cores and 32 threads, running at a base clock speed of 3 GHz and featuring a 128 MB L3 cache for strong performance in multithreaded workloads.
How much memory is installed and what is the maximum supported?
The server comes with 32 GB of DDR4 registered memory installed in one of its 32 available DIMM slots. It supports a maximum memory capacity of 1 TB, allowing for significant expansion to handle memory-intensive applications like virtualization, databases, or in-memory analytics.
What storage configuration does this server support?
This configuration includes eight 2.5" small form factor drive bays that are hot-swappable for easy maintenance. It features a 12Gb/s SAS RAID controller (model MR416i-a) that supports hardware RAID for data redundancy and performance optimization. No hard drives are included, so you can populate the bays with SAS, SATA, or NVMe drives as needed.
What remote management capabilities are included?
The server includes HPE iLO Standard with Intelligent Provisioning, providing out-of-band remote management. This allows administrators to monitor server health, access a virtual console, control power, and perform firmware updates from any network location, independent of the server's operating system.
What expansion slots are available on this server?
The DL325 G10 Plus v2 has two PCI Express expansion slots, both operating at x16 speed and supporting Gen 3.x technology. These slots can be used to add network adapters, storage controllers, or other PCIe cards to extend the server's connectivity and functionality.
What power supply configuration does this server have?
This server ships with one 500 W hot-swappable power supply installed. It supports a second power supply for redundancy, allowing you to add a duplicate unit for failover protection in critical environments. The power supplies use standard C13/C14 connectors and are designed for efficient operation in data center racks.
What processor or CPU is listed for this server or storage platform?
This product uses the 1 processor for everyday performance and multitasking.
What processor speed is listed?
This product uses the 3 GHz processor for everyday performance and multitasking.
