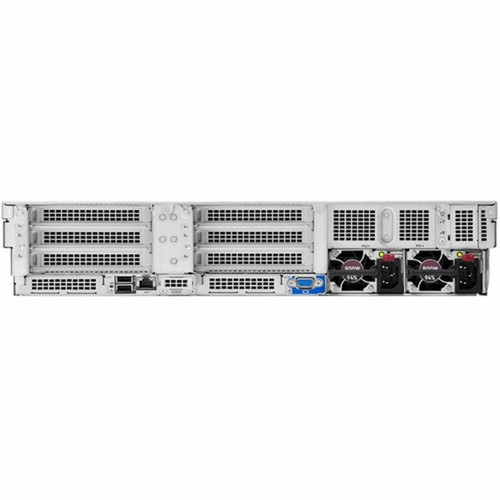

HPE P60637-B21 ProLiant DL380 G11 Server - Intel Xeon Gold 6426Y 16-Core 2. 5GHz - 32GB DDR5 - 8x SFF Hot-Swap Bays - 10GbE - 2U Rack
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
At the heart of the DL380 G11 sits an Intel Xeon Gold 6426Y processor with 16 cores operating at 2.50 GHz, backed by 37.50 MB of cache. The server ships with 32 GB of DDR5 memory using ECC registered DIMMs for data integrity, installed in a single slot to leave room for substantial future expansion.
Storage connectivity is handled by an HPE MR408i-o Serial ATA controller, managing up to 8 front-accessible 2.5" drive bays that support hot-swap replacement. For network-intensive tasks, the integrated 10 Gigabit Ethernet controller provides high-throughput connectivity suitable for modern virtualized environments and storage networks.
This section brings together practical product details such as Number of Processors Installed, Processor Manufacturer, Processor Type, Chipset Manufacturer, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Key Product Advantages
The ProLiant DL380 G11 combines proven rack server design with current-generation technologies to address core data center requirements. Its balanced configuration offers immediate performance for mainstream workloads while maintaining clear expansion paths for future growth.
Enterprise-Grade Security
The server incorporates multiple hardware-rooted security features including UEFI Secure Boot, immutable silicon root of trust, FIPS 140-2 validation, and support for commercial national security algorithms. These capabilities help protect firmware and data against sophisticated threats.
- Tamper-free firmware updates
- Secure recovery to known good state
- Configurable for PCI DSS compliance
High Availability Design
Hot-swappable drive bays and power supplies enable component replacement without system downtime. The dual power supply support allows for redundant power configurations when a second unit is added.
- Front-accessible service bays
- Redundant power capability
- Remote management for reduced onsite needs
Deployment / Use Cases
The DL380 G11's configuration makes it well-suited for virtualized infrastructure, mid-tier database servers, and business application hosting. The 16-core processor provides substantial thread capacity for virtualization hosts, while the 32 GB memory base supports multiple virtual machines or memory-intensive applications.
Organizations can deploy this server as a standalone application host or as part of a larger virtualized cluster. The 8 drive bays allow for RAID-configured local storage or caching tiers, and the 10GbE networking ensures adequate bandwidth for storage and virtual machine migration traffic.
Virtualization Host
With 16 processor cores and DDR5 memory, this server can efficiently host multiple virtual machines for server consolidation projects or development/test environments.
Business Application Server
The balanced compute and storage resources support database applications, collaboration platforms, and line-of-business software that require consistent performance.
Physical Profile
The DL380 G11 occupies 2U of standard 19-inch rack space with dimensions of 3.44" (87.38 mm) in height, 17.64" (448.06 mm) in width, and 28.62" (726.95 mm) in depth. Weighing approximately 72.75 lb (33 kg), the server includes integrated handles and mounting points for standard rack rails.
The front panel provides access to all 8 drive bays, power and status indicators, and a USB port. The compact 2U form factor maximizes compute density while maintaining serviceability through front-accessible components.
- Width
- 17.64" (448.06 mm)
- Depth
- 28.62" (726.95 mm)
- Height
- 2U
- Weight
- 72.75 lb (33000 g)
What's in the Box
The server ships with all necessary components for rack installation and initial operation.
Highlights
- Intel Xeon Gold 6426Y processor with 16 cores at 2.50 GHz
- 32 GB of DDR5 memory with ECC protection for data integrity
- 8 hot-swappable 2.5" SFF drive bays for flexible storage
- 10 Gigabit Ethernet networking for high-bandwidth connectivity
- HPE iLO 6 remote management with advanced security features
- 2U rack-optimized form factor for data center density
- Hot-swappable power supply with 800W capacity
- Broad operating system support including Windows Server and major Linux distributions
- Comprehensive 3-year warranty with onsite service
- ENERGY STAR 3.0 certified for power efficiency
Specifications
| Specifications | |
|---|---|
| Manufacturer | Hewlett Packard Enterprise |
| Manufacturer Part Number | P60637B21 |
| Brand Name | HPE |
| Product Line | ProLiant |
| Product Series | DL380 G11 |
| Product Name | ProLiant DL380 G11 Server |
| Product Type | Server |
| Processor | |
| Number of Processors Installed | 1 |
| Processor Manufacturer | Intel |
| Processor Type | Xeon Gold |
| Processor Generation | 4th Gen |
| Processor Model | 6426Y |
| Processor Core | Hexadeca-core (16 Core) |
| Processor Speed | 2.50 GHz |
| Cache | 37.50 MB |
| Chipset | |
| Chipset Manufacturer | Intel |
| Chipset Model | C741 |
| Memory | |
| Standard Memory | 32 GB |
| Memory Technology | DDR5 SDRAM |
| Number of Occupied Memory Slots | 1 |
| Error Checking | ECC |
| Signal Processing | Registered (Buffered) |
| Controllers | |
| Controller Type | Serial ATA |
| Controller Model | MR408i-o |
| I/O Expansions | |
| Number of Total Expansion Bays | 8 |
| Number of Internal 2.5" Bays | 8 |
| Number of SFF Bays | 8 |
| Hot Swappable Bays | Yes |
| Total Number of Expansion Slots | 3 |
| PCI Express x8 (Gen 3.x) Slots | 2 |
| PCI Express x16 (Gen 3.x) Slots | 1 |
| PCI Express Details | PCIe Slots 3-slots (x8, x16, x8) |
| Display & Graphics | |
| Graphics Memory Capacity | 16 MB |
| Network & Communication | |
| Ethernet Technology | 10 Gigabit Ethernet |
| Interfaces/Ports | |
| Total Number of USB Ports | 4 |
| Number of USB 3.0 Ports | 3 |
| VGA | Yes |
| Remote Management | Yes |
| Remote Management Controller | HPE iLO 6 |
| Operating System | |
| Operating System Supported | Windows Server,Red Hat Enterprise Linux,SuSE Linux Enterprise Server,Ubuntu Server,Oracle Linux,Citrix XenServer |
| Power Description | |
| Number of Power Supplies Supported | 2 |
| Number of Power Supplies Installed | 1 |
| Plug/Connector Type | C13/C14 |
| Maximum Power Supply Wattage | 800 W |
| Hot Swappable Power Supply | Yes |
| Miscellaneous | |
| Package Contents | ProLiant DL380 G11 Server SFF Easy Install Rail Kit Cable Management Arm |
| Security Features | UEFI Secure Boot and Secure Start support Tamper-free updates - components digitally signed and verified Immutable Silicon Root of Trust Ability to rollback firmware FIPS 140-2 validation Secure erase of NAND/User data Common Criteria certification Configurable for PCI DSS compliance Advanced Encryption Standard (AES) and Triple Data Encryption Standard (3DES) on browser Support for Commercial National Security Algorithms (CNSA) Secure Recovery - recover critical firmware to known good state on detection of compromised firmware |
| Energy Star | Yes |
| Environmentally Friendly | Yes |
| Energy Efficiency Certification | ENERGY STAR 3.0 |
| Physical Characteristics | |
| Form Factor | Rack |
| Rack Height | 2U |
| Height | 3.44" (87.38 mm) |
| Width | 17.64" (448.06 mm) |
| Depth | 28.62" (726.95 mm) |
| Weight (Approximate) | 72.75 lb (33000 g) |
| Warranty | |
| Limited Warranty | 3 Year |
| Additional Warranty Information | 3-year parts, 3-year labor, 3-year onsite support with next business day response. |
User Manual
FAQ
What processor does this HPE DL380 G11 server include?
This server features an Intel Xeon Gold 6426Y processor from the 4th Generation Xeon Scalable family. It has 16 cores (hexadeca-core) operating at a base frequency of 2.50 GHz with 37.50 MB of cache. This processor provides substantial multi-threaded performance for virtualized environments and demanding business applications.
How much memory is installed and what type is it?
The server comes with 32 GB of DDR5 SDRAM installed in a single memory slot. The memory uses ECC (Error-Correcting Code) technology with registered (buffered) signal processing to maintain data integrity and system stability. This configuration leaves multiple slots available for memory expansion up to the platform's maximum capacity.
How many drive bays does this server have and what size are they?
This DL380 G11 configuration includes 8 front-accessible 2.5" small form factor (SFF) drive bays. All bays support hot-swap replacement, allowing drive maintenance or upgrades without powering down the server. The bays are managed by an HPE MR408i-o Serial ATA controller.
What networking capabilities does this server provide?
The server features integrated 10 Gigabit Ethernet connectivity, providing high-bandwidth network access suitable for virtual machine traffic, storage networking, and data-intensive applications. This represents a significant performance improvement over traditional 1GbE connections for modern data center workloads.
What remote management features are included?
HPE's iLO 6 (Integrated Lights-Out) management controller provides comprehensive remote management capabilities. This includes power control, hardware monitoring, virtual media, remote console access, and security features. iLO 6 enables administrators to manage the server without physical data center access.
What is the rack height and power configuration?
This server occupies 2U (3.44 inches) of standard 19-inch rack space. It includes one 800W hot-swappable power supply with a C13/C14 connector, and the chassis supports a second identical power supply for redundant power when added. The hot-swappable design allows power supply replacement without system downtime.
What processor or CPU is listed for this server or storage platform?
This product uses the Intel processor for everyday performance and multitasking.
What processor speed is listed?
This product uses the 2.50 GHz processor for everyday performance and multitasking.
