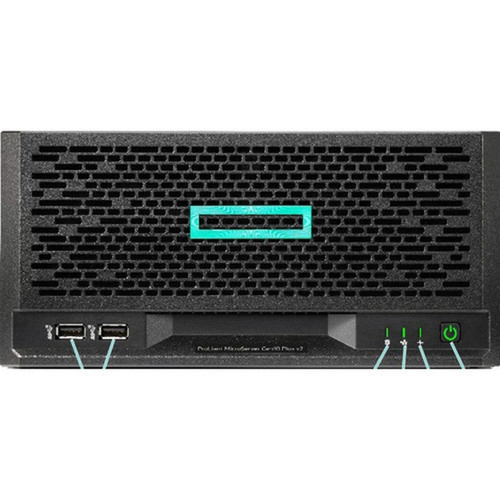

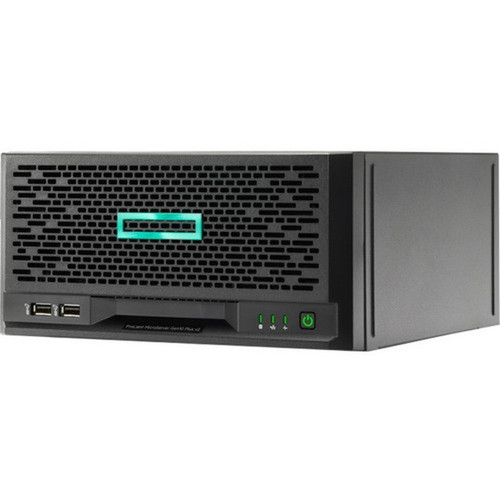

HPE P54644-001 ProLiant MicroServer Gen10 Plus v2 Ultra Micro Tower Server - Intel Pentium Gold G6405 4. 10 GHz Dual-Core - 16 GB DDR4 ECC RAM - 4 x
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This server features the Intel C252 chipset and supports a single processor configuration with the Pentium Gold G6405 installed. Memory operates at 3.20 GHz with error-correcting code (ECC) protection and unregistered buffering for enhanced data integrity in business-critical applications.
Storage flexibility comes from four 3.5-inch large form factor drive bays, all supporting the Serial ATA/600 interface through the VROC controller with RAID capability. Expansion includes one low-profile PCI Express 4.0 slot for adding network, storage, or other specialty cards.
This section brings together practical product details such as Number of Processors Supported, Number of Processors Installed, Processor Type, Chipset Manufacturer, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
A strong technical summary explains how the product's interfaces, hardware profile, and operating characteristics work together in real deployment. Buyers often need this context to confirm compatibility with existing devices, expected performance in daily use, and whether installation will be straightforward for IT staff or end users.
Key Product Advantages
These strengths make the product easier to deploy and manage in real environments, especially where reliability, usability, and day-to-day operational continuity matter. Notable benefits include Storage Density & Protection, Comprehensive Connectivity.
Storage Density & Protection
Four drive bays provide substantial raw storage capacity while RAID support enables data redundancy configurations to protect against drive failure.
- 4x 3.5" LFF bays
- Serial ATA/600 interface
- Hardware RAID support
Comprehensive Connectivity

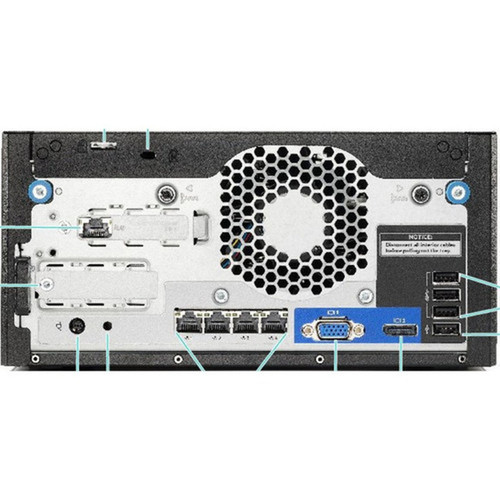

Four Gigabit Ethernet ports allow for network teaming or segmentation, while seven USB ports and both VGA and DisplayPort outputs support versatile peripheral attachment.
- 4x RJ-45 network ports
- 7x USB ports total
- Dual video outputs
Deployment / Use Cases
The ProLiant MicroServer Gen10 Plus v2 is engineered for small to medium business environments, remote offices, and departmental applications where full-size rack servers are impractical. Its balance of compute, storage, and connectivity makes it suitable for file and print services, lightweight database hosting, or as a dedicated application server.
Educational institutions, retail locations, and professional offices can deploy this server as a reliable infrastructure backbone without requiring dedicated server rooms or extensive cooling. The compact size allows placement under desks, in closets, or on shelves while still delivering essential server functionality.
Branch Office Server
Provide local file storage, backup services, and application hosting for remote locations with limited IT infrastructure.
Small Business Foundation
Serve as the primary server for growing businesses needing reliable infrastructure without the complexity of rack-mounted systems.
Localization and Operating System
This server ships without a pre-installed operating system, providing maximum flexibility for IT administrators to deploy their preferred server environment. The platform is certified for Windows Server 2019 Essentials, Standard, and Datacenter editions, Windows Server 2022 equivalents, Hyper-V virtualization, and Red Hat Enterprise Linux 8.4.
Dual-voltage power support (120V and 230V AC) with a C5 connector enables deployment across North American and international electrical standards without modification. The system's environmental compliance includes WEEE directive adherence for responsible end-of-life handling.
This section brings together practical product details such as Number of Processors Supported, Number of Processors Installed, Processor Type, Chipset Manufacturer, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Physical Profile
The Ultra Micro Tower design measures 4.68 inches in height, 9.65 inches in width, and 9.65 inches in depth, with a weight of approximately 15.87 pounds. This compact footprint allows placement in space-constrained environments while still providing substantial internal expansion through four drive bays and one PCIe slot.
Front bezel security features include a standard lock option along with Kensington lock support and a power cord clip to prevent accidental disconnection. The server's balanced proportions and manageable weight simplify installation on desktops, shelves, or in compact server enclosures.
- Width
- 9.65" (245.11 mm)
- Depth
- 9.65" (245.11 mm)
- Height
- 4.68" (118.87 mm)
- Weight
- 15.87 lb (7200 g)
What's in the Box
The server ships with all essential components for immediate deployment in your environment.
Highlights
- Intel Pentium Gold G6405 dual-core processor at 4.10 GHz
- 16 GB DDR4 ECC memory installed, expandable to 64 GB
- Four 3.5-inch drive bays with Serial ATA/600 and RAID support
- Ultra Micro Tower form factor for space-constrained deployments
- Four Gigabit Ethernet ports for network flexibility
- Comprehensive security features including TPM 2.0 option
- Supports Windows Server 2019/2022 and Red Hat Enterprise Linux
- 180W power supply with 120V/230V dual-voltage input
- One PCI Express 4.0 low-profile expansion slot
- 1-year warranty with next business day onsite support
Specifications
| Specifications | |
|---|---|
| Manufacturer | Hewlett Packard Enterprise |
| Manufacturer Part Number | P54644-001 |
| Brand Name | HPE |
| Product Line | ProLiant |
| Product Series | MicroServer Gen10 Plus v2 |
| Product Name | ProLiant MicroServer Gen10 Plus V2 Server |
| Product Type | Server |
| Processor | |
| Number of Processors Supported | 1 |
| Number of Processors Installed | 1 |
| Processor Type | Pentium Gold |
| Processor Model | G6405 |
| Processor Core | Dual-core (2 Core) |
| Processor Speed | 4.10 GHz |
| Cache | 4 MB |
| Chipset | |
| Chipset Manufacturer | Intel |
| Chipset Model | C252 |
| Memory | |
| Standard Memory | 16 GB |
| Maximum Memory Supported | 64 GB |
| Memory Technology | DDR4 SDRAM |
| Memory Clock Speed | 3.20 GHz |
| Total Number of Memory Slots | 2 |
| Number of Occupied Memory Slots | 1 |
| Error Checking | ECC |
| Signal Processing | Unregistered (Unbuffered) |
| Storage | |
| Total Hard Drive Capacity | No |
| Optical Drive Type | No |
| Controllers | |
| Controller Type | Serial ATA/600 |
| Controller Model | VROC |
| RAID Supported | Yes |
| I/O Expansions | |
| Number of Total Expansion Bays | 4 |
| Number of 3.5" Bays | 4 |
| Number of LFF Bays | 4 |
| Hot Swappable Bays | No |
| Total Number of Expansion Slots | 1 |
| PCI Express Details | 1 standard (Low Profile) PCIe 4.0 |
| Network & Communication | |
| Ethernet Technology | Gigabit Ethernet |
| Interfaces/Ports | |
| Total Number of USB Ports | 7 |
| Number of USB 2.0 Ports | 1 |
| Network (RJ-45) | Yes |
| Number of Network (RJ-45) Ports | 4 |
| VGA | Yes |
| DisplayPort | Yes |
| Operating System | |
| Operating System Supported | Windows Server 2019 Essentials,Windows Server 2019 Standard,Windows Server 2019 Datacenter,Hyper-V,Windows Server 2022 Essentials,Windows Server 2022 Standard,Windows Server 2022 Datacenter,Red Hat Enterprise Linux 8.4 |
| Operating System | No |
| Power Description | |
| Input Voltage | 120 V AC,230 V AC |
| Number of Power Supplies Supported | 1 |
| Number of Power Supplies Installed | 1 |
| Plug/Connector Type | C5 |
| Maximum Power Supply Wattage | 180 W |
| Redundant Power Supply | No |
| Miscellaneous | |
| Package Contents | ProLiant MicroServer Gen10 Plus V2 Server 6 ft/1.83m C5 Power Cord 1 x 180W External Power Adapter |
| Security Features | UEFI Secure Boot and Secure Start support Immutable Silicon Root of Trust FIPS 140-2 validation Common Criteria certification Configurable for PCI DSS compliance Ability to rollback firmware Secure erase of NAND/User data TPM (Trusted Platform Module) 2.0 option Front bezel lock feature, standard Padlock slot, standard Kensington Lock slot, standard Power cord clip, standard |
| Environmentally Friendly | Yes |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE) |
| Physical Characteristics | |
| Form Factor | Ultra Micro Tower |
| Height | 4.68" (118.87 mm) |
| Width | 9.65" (245.11 mm) |
| Depth | 9.65" (245.11 mm) |
| Weight (Approximate) | 15.87 lb (7200 g) |
| Warranty | |
| Limited Warranty | 1 Year |
| Additional Warranty Information | Server Warranty includes 1- Year Parts, 1-Year Labor, 1- Year Onsite support with next business day response |
User Manual
FAQ
What processor does this HPE MicroServer use?
This server features the Intel Pentium Gold G6405, a dual-core processor operating at 4.10 GHz with 4 MB of cache. It provides efficient performance for essential server workloads while maintaining power efficiency in the compact Ultra Micro Tower form factor.
How much memory is installed and what is the maximum supported?
The system comes with 16 GB of DDR4 ECC memory installed in one of two available memory slots. It supports a maximum of 64 GB of DDR4 memory, allowing substantial expansion for growing workload demands while maintaining error-correcting code protection for data integrity.
What storage configuration does this server support?
This MicroServer includes four 3.5-inch large form factor drive bays, all supporting the Serial ATA/600 interface through the VROC controller. The system supports hardware RAID configurations, enabling data redundancy and performance optimization across the installed drives.
What networking capabilities does this server offer?
The server provides four Gigabit Ethernet ports using RJ-45 connectors, allowing for network teaming, segmentation, or connection to multiple network segments. This multi-port configuration supports flexible deployment in various network topologies without requiring additional expansion cards.
What operating systems are compatible with this server?
This server is certified for Windows Server 2019 Essentials, Standard, and Datacenter editions, Windows Server 2022 equivalents, Hyper-V virtualization, and Red Hat Enterprise Linux 8.4. The system ships without a pre-installed operating system, providing deployment flexibility for IT administrators.
What expansion options are available in this compact server?
The server includes one low-profile PCI Express 4.0 expansion slot for adding network, storage, or other specialty cards. Combined with the four internal drive bays and two memory slots, this provides substantial configuration flexibility within the compact Ultra Micro Tower chassis.
What processor or CPU is listed for this server or storage platform?
This product uses the 1 processor for everyday performance and multitasking.
What processor speed is listed?
This product uses the 4.10 GHz processor for everyday performance and multitasking.
