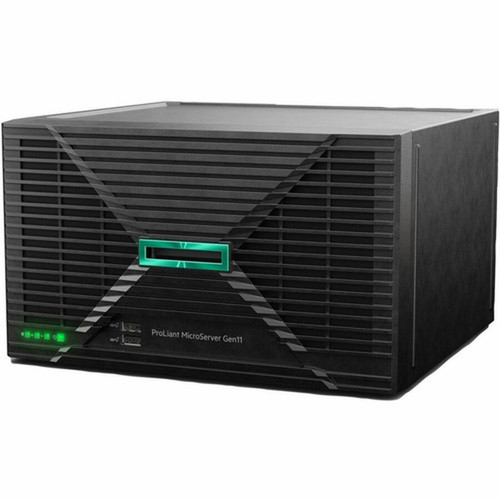

HPE P74439-005 ProLiant MicroServer Gen11 Ultra Micro Tower Server - Intel Pentium Gold G7400 3. 70 GHz - 16 GB DDR5 RAM - 1 TB HDD - 4 Drive Bays
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
The server's compute architecture centers on the Intel Pentium Gold G7400, a dual-core processor with a 3.70 GHz base frequency and 6 MB of cache. This CPU is paired with the Intel C262 chipset, which provides the platform for server-grade features including ECC memory support and enhanced I/O capabilities.
Memory is configured with 16 GB of DDR5 SDRAM operating in unregistered (unbuffered) mode with error checking and correction. The system offers four memory slots, supporting a maximum of 128 GB for future growth. Storage is handled by a 1 TB hard drive connected via a Serial ATA/600 interface, with the controller supporting RAID configurations for data redundancy.
This section brings together practical product details such as Number of Processors Supported, Number of Processors Installed, Processor Type, Chipset Manufacturer, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Key Product Advantages
The ProLiant MicroServer Gen11 combines a compact Ultra Micro Tower design with enterprise server features, making it an ideal choice for locations with limited physical space. Its four drive bays and dual PCIe expansion slots provide flexibility for storage and network upgrades, while HPE iLO 6 enables secure remote management from anywhere.
Compact Server Density
The Ultra Micro Tower form factor measures just 6.06" H x 10.28" W x 9.82" D, allowing deployment under desks, in closets, or on shelves without requiring a server rack.
- 17.57 lb weight for easy placement
- Tower design simplifies cable access
- Fits standard office environments
Enterprise Security & Management
HPE iLO 6 provides full remote management capabilities, while the platform includes UEFI Secure Boot, TPM 2.0, FIPS 140-2 validation, and configurable compliance for PCI DSS.
- Immutable Silicon Root of Trust
- Secure firmware rollback
- Front bezel lock and Kensington slot
Deployment / Use Cases
This MicroServer is well-suited for small business server consolidation, acting as a primary file server, backup target, or light-duty application host. Its compact size and quiet operation make it appropriate for office environments where a full-size rack server would be impractical.
The server also serves effectively in edge computing scenarios, remote branch offices, and retail environments where local storage and processing are needed. With support for Windows Server 2022/2025, Red Hat Enterprise Linux, and Ubuntu LTS versions, it can run a variety of business operating systems and applications.
Small Business File & Print Server
Provide centralized file storage, user home directories, and network printing services with the four drive bays allowing for RAID-protected storage pools.
Edge Computing & Remote Office
Deploy at satellite locations for local data processing, backup collection, or running lightweight business applications with remote management via iLO 6.
Physical Profile
The Ultra Micro Tower form factor measures 6.06 inches in height, 10.28 inches in width, and 9.82 inches in depth (153.92 mm x 261.11 mm x 249.43 mm), with an approximate weight of 17.57 pounds (7970 grams). This compact footprint allows placement in space-constrained environments while providing full server functionality. The tower design includes standard security features such as a front bezel lock, padlock slot, and Kensington lock slot for physical security.
- Width
- 10.28" (261.11 mm)
- Depth
- 9.82" (249.43 mm)
- Height
- 6.06" (153.92 mm)
- Weight
- 17.57 lb (7970 g)
What's in the Box
The server ships with all necessary components for immediate deployment.
Package contents include ProLiant MicroServer Gen11 Server, 1 x 180W External Power Adapter. These included items support setup, installation, and immediate deployment without needing to source the core bundled accessories separately.
Highlights
- Intel Pentium Gold G7400 dual-core processor at 3.70 GHz with 6 MB cache
- 16 GB DDR5 SDRAM with ECC error checking across four memory slots
- 1 TB hard drive with Serial ATA/600 interface and RAID support
- Four 3.5" LFF drive bays for storage expansion up to multiple terabytes
- Four Gigabit Ethernet ports for network connectivity and teaming
- HPE iLO 6 remote management controller for out-of-band administration
- Ultra Micro Tower form factor (6.06" H x 10.28" W x 9.82" D) for space-efficient deployment
- Comprehensive security with TPM 2.0, UEFI Secure Boot, and FIPS 140-2 validation
- Support for Windows Server, Red Hat Enterprise Linux, and Ubuntu operating systems
- 1-year warranty with parts, labor, and next business day onsite support
Specifications
| Specifications | |
|---|---|
| Manufacturer | Hewlett Packard Enterprise |
| Manufacturer Part Number | P74439-005 |
| Brand Name | HPE |
| Product Line | ProLiant |
| Product Series | MicroServer Gen11 |
| Product Name | ProLiant MicroServer Gen11 Server |
| Product Type | Server |
| Processor | |
| Number of Processors Supported | 1 |
| Number of Processors Installed | 1 |
| Processor Type | Pentium Gold |
| Processor Model | G7400 |
| Processor Core | Dual-core (2 Core) |
| Processor Speed | 3.70 GHz |
| Cache | 6 MB |
| Chipset | |
| Chipset Manufacturer | Intel |
| Chipset Model | C262 |
| Memory | |
| Standard Memory | 16 GB |
| Maximum Memory Supported | 128 GB |
| Memory Technology | DDR5 SDRAM |
| Total Number of Memory Slots | 4 |
| Error Checking | ECC |
| Signal Processing | Unregistered (Unbuffered) |
| Storage | |
| Total Hard Drive Capacity | 1 TB |
| Hard Drive Interface | Serial ATA/600 |
| Controllers | |
| Controller Type | Serial ATA/600 |
| RAID Supported | Yes |
| I/O Expansions | |
| Number of Total Expansion Bays | 4 |
| Number of 3.5" Bays | 4 |
| Number of LFF Bays | 4 |
| Hot Swappable Bays | No |
| Total Number of Expansion Slots | 2 |
| PCI Express Details | (1) PCIe 5.0 slots, (1) PCIe 4.0 slots |
| Network & Communication | |
| Ethernet Technology | Gigabit Ethernet |
| Interfaces/Ports | |
| Total Number of USB Ports | 6 |
| Network (RJ-45) | Yes |
| Number of Network (RJ-45) Ports | 4 |
| VGA | Yes |
| Remote Management | Yes |
| Remote Management Controller | HPE iLO 6 |
| DisplayPort | Yes |
| Operating System | |
| Operating System Supported | Windows Server 2022,Windows Server 2025,Red Hat Enterprise Linux 8.8,Red Hat Enterprise Linux 9.2,Ubuntu 20.04 LTS,Ubuntu 22.04 LTS |
| Power Description | |
| Input Voltage | 120 V AC,230 V AC |
| Number of Power Supplies Supported | 1 |
| Number of Power Supplies Installed | 1 |
| Plug/Connector Type | C5 |
| Maximum Power Supply Wattage | 180 W |
| Redundant Power Supply | No |
| Miscellaneous | |
| Package Contents | ProLiant MicroServer Gen11 Server 1 x 180W External Power Adapter |
| Security Features | UEFI Secure Boot and Secure Start support Immutable Silicon Root of Trust FIPS 140-2 validation Common Criteria certification Configurable for PCI DSS compliance Ability to rollback firmware Secure erase of NAND/User data TPM (Trusted Platform Module) 2.0 Gen 11 Front bezel lock feature, standard Padlock slot, standard Kensington Lock slot, standard Power cord clip, standard |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE) |
| Physical Characteristics | |
| Form Factor | Ultra Micro Tower |
| Height | 6.06" (153.92 mm) |
| Width | 10.28" (261.11 mm) |
| Depth | 9.82" (249.43 mm) |
| Weight (Approximate) | 17.57 lb (7970 g) |
| Warranty | |
| Limited Warranty | 1 Year |
| Additional Warranty Information | Server warranty includes 1-year parts, 1-year labor, and 1-year onsite support with next business day response. |
User Manual
FAQ
What processor does this HPE MicroServer Gen11 use?
This server features an Intel Pentium Gold G7400 dual-core processor with a base clock speed of 3.70 GHz and 6 MB of cache. This processor provides efficient compute performance for small business server workloads while maintaining power efficiency in the compact Ultra Micro Tower form factor.
How much memory is installed and what is the maximum supported?
The server comes with 16 GB of DDR5 SDRAM installed, operating with ECC (Error Checking and Correction) for data integrity. The system has four memory slots and supports a maximum of 128 GB of memory, allowing significant expansion for future workload requirements.
What storage configuration does this server include?
This configuration includes a 1 TB hard drive with a Serial ATA/600 interface. The server has four 3.5" large form factor drive bays, all supporting the same interface, and the controller provides RAID support for configuring redundant storage arrays as additional drives are added.
What remote management capabilities does this server offer?
The server includes HPE iLO 6 (Integrated Lights-Out) remote management, which provides out-of-band administration capabilities. This allows administrators to monitor server health, access the console, perform power operations, and update firmware remotely without requiring physical access to the server.
What operating systems are supported by this MicroServer?
The server supports multiple server operating systems including Windows Server 2022, Windows Server 2025, Red Hat Enterprise Linux 8.8 and 9.2, and Ubuntu 20.04 LTS and 22.04 LTS. This broad compatibility allows deployment in heterogeneous IT environments and supports various application requirements.
What are the physical dimensions and form factor of this server?
The server uses an Ultra Micro Tower form factor measuring 6.06 inches in height, 10.28 inches in width, and 9.82 inches in depth (153.92 mm x 261.11 mm x 249.43 mm). It weighs approximately 17.57 pounds (7970 grams), making it compact enough for placement in office environments without requiring a server rack.
What processor or CPU is listed for this server or storage platform?
This product uses the 1 processor for everyday performance and multitasking.
What processor speed is listed?
This product uses the 3.70 GHz processor for everyday performance and multitasking.
