HPE P71683-005 ProLiant ML110 G11 Tower Server - Intel Xeon Bronze 3508U 2. 10GHz 8-Core - 32GB DDR5 RAM - 4TB HDD (2 x 2TB) - 4. 5U Tower
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
At the core of the ML110 G11 is the Intel Xeon Bronze 3508U processor, an 8-core CPU operating at 2.10GHz with 22.50MB of cache. This 5th Gen Xeon architecture delivers improved performance per watt and supports advanced features like Intel C741 chipset integration for optimized I/O throughput. The server's memory subsystem utilizes DDR5 SDRAM technology with ECC and registered buffering, providing both higher data rates and enhanced reliability for business-critical applications.
Storage management is handled by the MR408i-o Gen11 controller, which supports both Serial ATA and Serial Attached SCSI interfaces. This controller enables comprehensive RAID functionality across levels 0, 1, 5, 6, 10, 50, and 60, allowing administrators to configure storage for performance, redundancy, or balanced combinations based on workload requirements.
Key Product Advantages
The ProLiant ML110 G11 combines enterprise server features with tower deployment flexibility, making it particularly suitable for environments where rack space is limited or where standalone server placement is preferred. Its 4.5U tower design provides substantial internal expansion capacity while maintaining a footprint that fits standard office environments.
Enterprise Reliability in Tower Form
Dual 500W hot-swappable redundant power supplies ensure continuous operation during power supply maintenance or failure, while ECC memory with registered buffering protects against data corruption in memory-intensive applications.
- Hot-swappable drive bays for maintenance without downtime
- RAID support for data protection and performance optimization
- iLO remote management for out-of-band administration
Substantial Expansion Capacity
With six total expansion bays (including four 3.5" LFF bays) and multiple PCIe Gen5 expansion slots, the ML110 G11 supports significant storage and I/O expansion as business needs evolve.
- PCIe Gen5 x16 slots for high-speed add-in cards
- Support for both SATA and SAS storage devices
- Upgradable from 2 to 4 PCIe slots for additional connectivity
Deployment / Use Cases
The ML110 G11's balanced configuration of compute, memory, and storage makes it well-suited for several common business server roles. Its tower form factor and comprehensive feature set address the needs of organizations requiring reliable infrastructure without dedicated data center space.
As a file and application server, the 4TB installed storage provides immediate capacity for departmental file shares, while RAID protection ensures data availability. The 32GB of DDR5 memory supports multiple concurrent applications or virtual machines, making the server capable of handling consolidated workloads in smaller environments.
Small Business Infrastructure
Ideal for businesses needing an all-in-one server for file sharing, backup, and application hosting. The tower design simplifies deployment in office environments without rack infrastructure.
Branch Office & Remote Site
Provides local compute and storage resources at remote locations with iLO remote management enabling central IT teams to monitor and maintain the system without onsite visits.
Development & Testing Environment
The balanced configuration supports development workloads, testing environments, or staging servers where enterprise features are required but rack mounting isn't necessary.

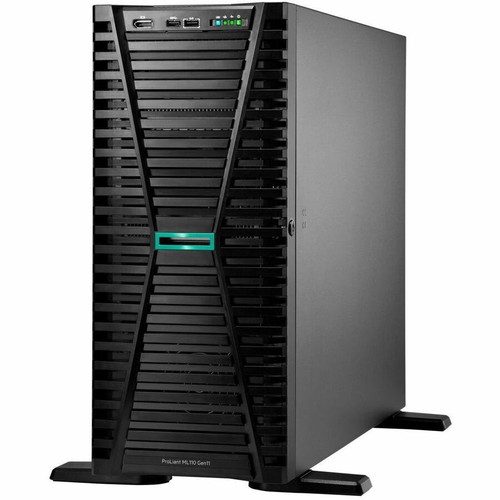

Physical Profile
The ML110 G11 utilizes a 4.5U tower form factor measuring 18.19 inches in height, 7.68 inches in width, and 23.11 inches in depth, with an approximate weight of 73.19 pounds. This substantial tower design accommodates the server's six expansion bays and dual power supplies while maintaining stability in office environments. The chassis includes standard security features such as a front bezel key-lock and Kensington lock slot for physical asset protection.
- Width
- 7.68" (195 mm)
- Depth
- 23.11" (587 mm)
- Height
- 4.5U
- Weight
- 73.19 lb (33200 g)
Highlights
- Intel Xeon Bronze 3508U 8-core processor (5th Gen, 2.10GHz) for reliable compute performance
- 32GB DDR5 SDRAM with ECC and registered buffering for data integrity and system stability
- 4TB total storage (2 x 2TB 7200 RPM SATA HDDs) with RAID 0/1/5/6/10/50/60 support

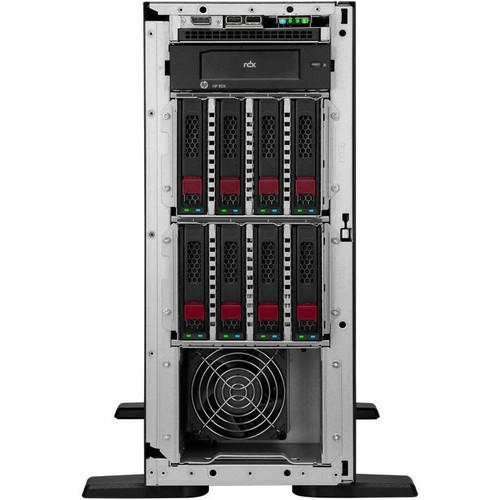

- Six total expansion bays including four 3.5" LFF bays with hot-swappable capability
- Dual 500W hot-swappable redundant power supplies for continuous operation
- Dual Gigabit Ethernet ports for network connectivity and teaming
- iLO Standard remote management with Intelligent Provisioning for simplified administration
- PCIe Gen5 expansion slots (upgradable to 4 x16 slots) for high-speed add-in cards
- 4.5U tower form factor suitable for office environments without rack infrastructure
- Supports Windows Server, Red Hat Enterprise Linux, SUSE Linux, Oracle Linux, Citrix XenServer, and Ubuntu
Specifications
| Specifications | |
|---|---|
| Manufacturer | Hewlett Packard Enterprise |
| Manufacturer Part Number | P71683-005 |
| Brand Name | HPE |
| Product Line | ProLiant |
| Product Series | ML110 G11 |
| Product Name | ProLiant ML110 G11 Server |
| Product Type | Server |
| Processor | |
| Number of Processors Supported | 1 |
| Number of Processors Installed | 1 |
| Processor Type | Xeon Bronze |
| Processor Generation | 5th Gen |
| Processor Model | 3508U |
| Processor Core | Octa-core (8 Core) |
| Processor Speed | 2.10 GHz |
| Cache | 22.50 MB |
| Chipset | |
| Chipset Manufacturer | Intel |
| Chipset Model | C741 |
| Memory | |
| Standard Memory | 32 GB |
| Maximum Memory Supported | 1.50 TB |
| Memory Technology | DDR5 SDRAM |
| Number of Occupied Memory Slots | 1 |
| Error Checking | ECC |
| Signal Processing | Registered (Buffered) |
| Storage | |
| Number of Hard Drives | 2 |
| Total Hard Drive Capacity | 4 TB |
| Hard Drive Interface | Serial ATA/600 |
| Hard Drive RPM | 7200 |
| Controllers | |
| Controller Type | Serial ATA,Serial Attached SCSI (SAS) |
| Controller Model | MR408i-o Gen11 |
| RAID Supported | Yes |
| RAID Levels | 0, 1, 5, 6, 10, 50, 60 |
| I/O Expansions | |
| Number of Total Expansion Bays | 6 |
| Number of External 5.25" Bays | 1 |
| Number of 3.5" Bays | 4 |
| Number of Media Drive Bays | 1 |
| Number of LFF Bays | 4 |
| Hot Swappable Bays | Yes |
| Total Number of Expansion Slots | 2 |
| PCI Express Details | PCIe Gen5: 2 slots (x16), upgradable to 4 slots (x16); OCP3 with PCIe Gen5: 1 slot (x16) |
| Display & Graphics | |
| Graphics Memory Capacity | 16 MB |
| Network & Communication | |
| Ethernet Technology | Gigabit Ethernet |
| Interfaces/Ports | |
| Total Number of USB Ports | 5 |
| Network (RJ-45) | Yes |
| Number of Network (RJ-45) Ports | 2 |
| VGA | Yes |
| Remote Management | Yes |
| Remote Management Controller | iLO Standard with Intelligent Provisioning (embedded), HPE OneView Standard (requires download); HPE iLO Advanced and HPE OneView Advanced (require licenses) |
| DisplayPort | Yes |
| Operating System | |
| Operating System Supported | Windows Server,Red Hat Enterprise Linux,SuSE Linux Enterprise Server,Oracle Linux,Citrix XenServer,Ubuntu |
| Power Description | |
| Input Voltage | 120 V AC,230 V AC |
| Number of Power Supplies Supported | 2 |
| Number of Power Supplies Installed | 2 |
| Plug/Connector Type | C13/C14 |
| Maximum Power Supply Wattage | 500 W |
| Redundant Power Supply | Yes |
| Hot Swappable Power Supply | Yes |
| Miscellaneous | |
| Security Features | UEFI Secure Boot and Secure Start support Immutable Silicon Root of Trust FIPS 140-3 validation (iLO 6 certification in progress) Common Criteria certification (iLO 6 certification in progress) Configurable for PCI DSS compliance Advanced Encryption Standard (AES) and Triple Data Encryption Standard (3DES) on browser Support for Commercial National Security Algorithms (CNSA) Tamper-free updates -- components digitally signed and verified Secure Recovery -- recover critical firmware to known good state on detection of compromised firmware Ability to rollback firmware Secure erase of NAND TPM (Trusted Platform Module) 2.0 Front bezel key-lock feature -- standard, available in both Tower and Rack models Padlock slot, standard Kensington Lock slot, standard |
| Energy Star | Yes |
| Environmentally Friendly | Yes |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE) |
| Physical Characteristics | |
| Form Factor | Tower |
| Rack Height | 4.5U |
| Height | 18.19" (462 mm) |
| Width | 7.68" (195 mm) |
| Depth | 23.11" (587 mm) |
| Weight (Approximate) | 73.19 lb (33200 g) |
| Warranty | |
| Limited Warranty | 3 Year |
| Additional Warranty Information | Server warranty includes 3-year parts, 3-year labor, 3-year onsite support with next business day response. |
User Manual
FAQ
What processor does the HPE ProLiant ML110 G11 server use?
This server features an Intel Xeon Bronze 3508U processor from the 5th Generation Xeon Scalable family. It's an 8-core CPU operating at a base frequency of 2.10GHz with 22.50MB of cache. This processor provides reliable performance for business applications while maintaining power efficiency suitable for continuous operation environments.
How much memory is installed and what type is it?
The ML110 G11 comes with 32GB of DDR5 SDRAM installed in one memory slot. This is ECC (Error-Correcting Code) registered (buffered) memory, which provides both higher data rates and protection against data corruption. The server supports a maximum memory capacity of 1.50TB across its memory slots, allowing for substantial expansion as workload demands increase.
What storage configuration does this server include?
This configuration includes 4TB of total storage capacity across two 2TB hard disk drives. These are 7200 RPM SATA/600 drives that connect to the MR408i-o Gen11 storage controller. The controller supports both Serial ATA and Serial Attached SCSI interfaces and provides RAID functionality across multiple levels including 0, 1, 5, 6, 10, 50, and 60 for data protection and performance optimization.
How many drive bays does the ML110 G11 have for expansion?
The server features six total expansion bays: four 3.5" large form factor (LFF) bays, one external 5.25" bay, and one media drive bay. The 3.5" bays support hot-swappable drives, allowing for drive replacement or addition without powering down the system. This provides substantial storage expansion capacity beyond the initially installed drives.
What remote management capabilities does this server offer?
The ML110 G11 includes HPE iLO Standard with Intelligent Provisioning embedded for comprehensive remote management. This allows administrators to monitor system health, configure hardware, install operating systems, and perform maintenance tasks remotely. The server also supports HPE OneView Standard for infrastructure management, with advanced versions available through license upgrades for additional functionality.
What power supply configuration does this server use?
This server is configured with dual 500W power supplies that are both hot-swappable and redundant. This means either power supply can be replaced while the system remains operational, and if one power supply fails, the other automatically takes over the full load. The power supplies use standard C13/C14 connectors and support input voltages of 120V AC or 230V AC for flexible deployment in different regions.
What processor or CPU is listed for this server or storage platform?
This product uses the 1 processor for everyday performance and multitasking.
What processor speed is listed?
This product uses the 2.10 GHz processor for everyday performance and multitasking.
