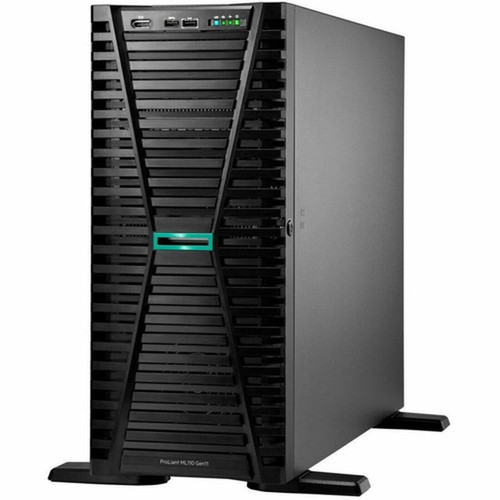

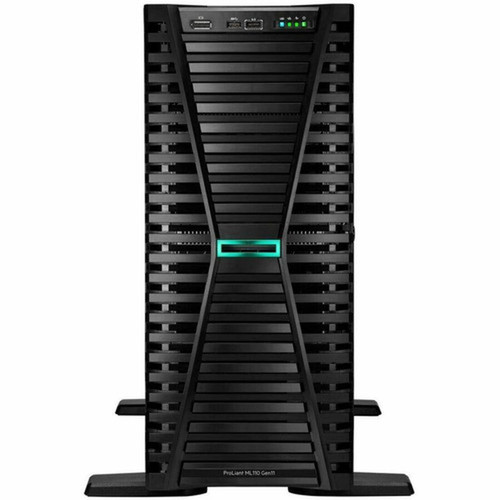

HPE P55537-001 ProLiant ML110 G11 Tower Server - 1x Xeon Gold 5416S 2 GHz 16-Core - 32 GB DDR5 RAM - 8 x 2. 5" Bays - RAID - 800W PSU
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
At the core of the ML110 G11 is the Intel Xeon Gold 5416S processor, a 4th Gen scalable CPU with 16 cores, 30 MB cache, and a 2 GHz clock speed. This processor is paired with the Intel C741 chipset, which supports PCIe 5.0 for high-speed data transfer and future-proof expansion. Memory configuration includes 32 GB of DDR5 SDRAM running at 4.80 GHz, with ECC and Registered (Buffered) technology for error correction and stability in server environments.
Storage capabilities are centered around eight 2.5" small form factor bays, all accessible internally and compatible with Serial ATA drives. The integrated controller supports RAID configurations for data redundancy and performance optimization. Expansion is facilitated through two PCIe 5.0 x16 slots (upgradable to four) and one OCP 3.0 slot with PCIe Gen 5.0 x16, allowing for additional network cards, storage controllers, or GPUs as needed.
Key Product Advantages
The ML110 G11 combines high-density storage, advanced security, and flexible deployment options to meet modern IT demands. Its tower form factor with 4.5U rack compatibility allows it to serve as a standalone server or integrate into existing rack environments, providing versatility for growing businesses. Security features include UEFI Secure Boot, Immutable Silicon Root of Trust, TPM 2.0, and configurable compliance with standards like PCI DSS, ensuring protection against firmware attacks and unauthorized access.
Enterprise Security Suite
Comprehensive security measures such as FIPS 140-3 validation (in progress), Common Criteria certification, AES/3DES encryption, and secure firmware updates safeguard data and system integrity.
- Tamper-free updates
- Secure Recovery
- Chassis intrusion detection
Energy Efficiency
Compliant with Energy Star and ErP Lot 9 directives, the server includes an 800W 80 PLUS efficient power supply and supports 120V/230V input for reduced operational costs.
- Hot-swappable PSU
- Energy Star certified
- WEEE compliant
Deployment / Use Cases
The HPE ProLiant ML110 G11 is well-suited for small to medium-sized businesses, branch offices, and specialized applications requiring reliable server performance without a full rack setup. Its balance of compute, storage, and connectivity makes it an excellent choice for file and print serving, database hosting, virtualization platforms, and backup solutions. The tower design minimizes space requirements and simplifies cooling in office settings.
Common use cases include hosting internal business applications, serving as a web server for public-facing sites, or acting as a secure data storage repository with RAID protection. The server's remote management capabilities via HPE iLO allow IT teams to monitor and maintain systems from anywhere, reducing onsite visits and downtime. With support for multiple operating systems including Windows Server, Red Hat Enterprise Linux, and Ubuntu, it integrates seamlessly into diverse IT environments.
Virtualization Host
With 16 processor cores and expandable memory, the ML110 G11 can run multiple virtual machines for consolidated server workloads, supported by Citrix XenServer and major Linux distributions.
Storage Server
Eight 2.5" bays and RAID support enable high-capacity storage arrays for backups, archives, or network-attached storage, ideal for data-intensive operations.
Physical Profile

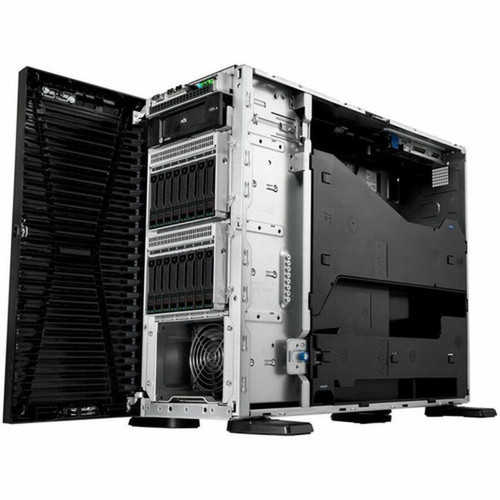

The ML110 G11 features a sturdy tower chassis measuring 18.19 inches in height, 7.68 inches in width, and 23.11 inches in depth, with a weight of approximately 44.31 pounds. Its 4.5U rack height allows for optional rack mounting using compatible rails, providing deployment flexibility. The front bezel includes a key-lock feature for physical security, along with padlock and Kensington lock slots. The design prioritizes serviceability with tool-less access to internal components and hot-swappable power supplies for minimal downtime during maintenance.
- Width
- 7.68" (195 mm)
- Depth
- 23.11" (587 mm)
- Height
- 4.5U
- Weight
- 44.31 lb (20100 g)
Highlights
- Intel Xeon Gold 5416S 16-core processor (2 GHz, 30 MB cache) for high-performance computing
- 32 GB DDR5 ECC Registered memory, expandable to 1 TB for large workloads
- 8 internal 2.5" drive bays with Serial ATA controller and RAID support
- Tower form factor (4.5U rack convertible) for flexible deployment in office or data center
- 800W hot-swappable power supply with 120V/230V input for reliability and efficiency
- 2x Gigabit Ethernet ports and 5x USB ports (including USB 2.0) for connectivity
- HPE iLO Standard remote management with Intelligent Provisioning for easy control
- Advanced security features including TPM 2.0, UEFI Secure Boot, and FIPS 140-3 validation
- Supports Windows Server, Linux distributions, and virtualization platforms
- 3-year warranty with parts, labor, and onsite support (next business day response)
Specifications
| Specifications | |
|---|---|
| Manufacturer | Hewlett Packard Enterprise |
| Manufacturer Part Number | P55537-001 |
| Brand Name | HPE |
| Product Line | ProLiant |
| Product Series | ML110 G11 |
| Product Name | ProLiant ML110 Gen11 Server |
| Product Type | Server |
| Processor | |
| Number of Processors Supported | 1 |
| Number of Processors Installed | 1 |
| Processor Type | Xeon Gold |
| Processor Generation | 4th Gen |
| Processor Model | 5416S |
| Processor Core | Hexadeca-core (16 Core) |
| Processor Speed | 2 GHz |
| Cache | 30 MB |
| Chipset | |
| Chipset Manufacturer | Intel |
| Chipset Model | C741 |
| Memory | |
| Standard Memory | 32 GB |
| Maximum Memory Supported | 1 TB |
| Memory Technology | DDR5 SDRAM |
| Memory Clock Speed | 4.80 GHz |
| Error Checking | ECC |
| Signal Processing | Registered (Buffered) |
| Controllers | |
| Controller Type | Serial ATA |
| RAID Supported | Yes |
| I/O Expansions | |
| Number of Total Expansion Bays | 8 |
| Number of Internal 2.5" Bays | 8 |
| Number of SFF Bays | 8 |
| PCI Express Details | PCIe 5.0: 2 slots (x16), upgradable to 4 slots (x16) OCP 3.0 with PCIe Gen 5.0: 1 slot (x16) |
| Display & Graphics | |
| Graphics Memory Capacity | 16 MB |
| Network & Communication | |
| Ethernet Technology | Gigabit Ethernet |
| Interfaces/Ports | |
| Total Number of USB Ports | 5 |
| Number of USB 2.0 Ports | 1 |
| Network (RJ-45) | Yes |
| Number of Network (RJ-45) Ports | 2 |
| VGA | Yes |
| Remote Management | Yes |
| Remote Management Controller | HPE iLO Standard with Intelligent Provisioning (embedded), HPE OneView Standard (requires download); HPE iLO Advanced and HPE OneView Advanced (require licenses) |
| Operating System | |
| Operating System Supported | Windows Server,Red Hat Enterprise Linux,SuSE Linux Enterprise Server,Oracle Linux,Citrix XenServer,Ubuntu |
| Power Description | |
| Input Voltage | 120 V AC,230 V AC |
| Number of Power Supplies Supported | 2 |
| Number of Power Supplies Installed | 1 |
| Plug/Connector Type | C13/C14 |
| Maximum Power Supply Wattage | 800 W |
| Hot Swappable Power Supply | Yes |
| Miscellaneous | |
| Security Features | UEFI Secure Boot and Secure Start support Immutable Silicon Root of Trust FIPS 140-3 validation (iLO 6 certification in progress) Common Criteria certification (iLO 6 certification in progress) Configurable for PCI DSS compliance Advanced Encryption Standard (AES) and Triple Data Encryption Standard (3DES) on browser Support for Commercial National Security Algorithms (CNSA) Tamper-free updates -- components digitally signed and verified Secure Recovery -- recover critical firmware to known good state on detection of compromised firmware Ability to rollback firmware Secure erase of NAND TPM (Trusted Platform Module) 2.0 Front bezel key-lock feature -- standard, available in both Tower and Rack models Padlock slot, standard Kensington Lock slot, standard Chassis Intrusion detection option |
| Energy Star | Yes |
| Environmentally Friendly | Yes |
| Energy Efficiency Compliance | Energy-related Products Directive Lot 9 (ErP Lot 9) |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE) |
| Physical Characteristics | |
| Form Factor | Tower |
| Rack Height | 4.5U |
| Height | 18.19" (462 mm) |
| Width | 7.68" (195 mm) |
| Depth | 23.11" (587 mm) |
| Weight (Approximate) | 44.31 lb (20100 g) |
| Warranty | |
| Limited Warranty | 3 Year |
| Additional Warranty Information | 3-year parts, 3-year labor, 3-year onsite support with next business day response. |
User Manual
FAQ
What processor does the HPE ProLiant ML110 G11 server use?
The server is equipped with one Intel Xeon Gold 5416S processor, part of the 4th Gen Xeon Scalable family. This CPU features 16 cores, a base clock speed of 2 GHz, and 30 MB of cache, providing strong multi-threaded performance for business applications, virtualization, and data processing tasks.
How much memory is installed and what is the maximum supported?
This configuration includes 32 GB of DDR5 SDRAM with ECC (Error-Correcting Code) and Registered (Buffered) technology, running at 4.80 GHz. The server supports up to 1 TB of memory, allowing for significant expansion to handle memory-intensive workloads like databases, virtual machines, or large-scale applications.
What storage options are available with this server?
The ML110 G11 has eight internal 2.5" small form factor drive bays, all compatible with Serial ATA drives. It includes a Serial ATA controller that supports RAID configurations for data redundancy or performance improvement. This setup is ideal for creating storage arrays for file serving, backups, or hosting applications.
Can this server be rack-mounted?
Yes, the server features a tower form factor that is convertible to a 4.5U rack-mountable design. It can be installed in a standard server rack using optional rails, providing flexibility for deployment in data centers or office environments where rack space is available, while still offering standalone use.
What remote management capabilities are included?
The server comes with HPE iLO Standard, which includes Intelligent Provisioning for simplified setup and remote management. This allows IT administrators to monitor system health, configure settings, and perform maintenance tasks remotely via a web interface, reducing the need for physical access and minimizing downtime.
What operating systems are supported by this server?
The ML110 G11 supports a variety of enterprise operating systems, including Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, Oracle Linux, Citrix XenServer, and Ubuntu. This broad compatibility ensures it can integrate into diverse IT environments, from Windows-based networks to Linux development platforms.
What processor or CPU is listed for this server or storage platform?
This product uses the 1 processor for everyday performance and multitasking.
What processor speed is listed?
This product uses the 2 GHz processor for everyday performance and multitasking.
