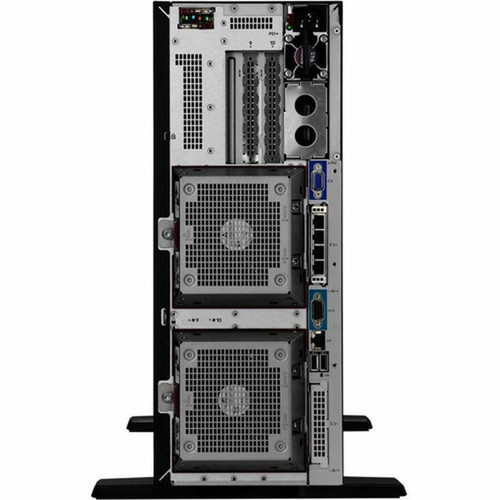

HPE P53570-001 ProLiant ML350 G11 4U Tower Server - 1x Xeon Gold 5418Y 24-Core 2 GHz - 32 GB DDR5 RAM - 8 Hot-Swap Bays - RAID
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
At the core of the ML350 G11 is a single Intel Xeon Gold 5418Y processor featuring 24 cores running at 2 GHz with 45 MB of cache. This 4th Gen CPU is paired with 32 GB of DDR5 SDRAM operating at 4.80 GHz, utilizing ECC and registered buffering for enhanced data accuracy and system stability. The server supports up to 32 memory DIMMs, allowing expansion to 8 TB for memory-intensive applications.
Storage is managed by an MR408i-o controller supporting both SAS and SATA interfaces with hardware RAID. Eight internal 2.5" small form factor bays offer hot-swap capability for easy maintenance and scalability. For expansion, four PCIe 5.0 x8 slots provide high-bandwidth connectivity for additional network cards, storage controllers, or accelerators.
This section brings together practical product details such as Number of Processors Supported, Number of Processors Installed, Processor Type, Chipset Manufacturer, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Key Product Advantages
The ML350 G11 combines enterprise reliability with practical manageability, featuring HPE's iLO remote management for out-of-band administration. Security is reinforced through multiple layers including UEFI Secure Boot, TPM 2.0, and FIPS 140-3 validation, protecting against firmware threats and unauthorized access.
Enterprise Security Suite
Comprehensive protection with hardware-rooted trust, secure firmware recovery, and compliance-ready features for regulated environments.
- UEFI Secure Boot & Secure Start
- Immutable Silicon Root of Trust
- TPM 2.0 module
- Front bezel key lock
High Availability Design
Built for continuous operation with redundant power supply support, hot-swap drives, and remote management capabilities.
- Hot-swap power supplies (supports 2)
- Hot-swap drive bays
- HPE iLO with Intelligent Provisioning
Deployment / Use Cases
This tower server is ideally suited for small to medium businesses requiring a reliable on-premises solution without dedicated rack infrastructure. Its balanced configuration supports a wide range of applications from file and print services to virtualized environments and mid-tier databases.
Common deployment scenarios include branch office servers, development and testing environments, backup repositories, and application hosting for line-of-business software. The 4U tower form factor provides ample internal expansion while maintaining a manageable footprint for office or data center placement.
Virtualization Host
With 24 CPU cores and support for up to 8 TB of memory, this server can efficiently run multiple virtual machines for consolidated infrastructure.
Business Application Server
Run ERP, CRM, or database applications with the reliability of ECC memory, RAID-protected storage, and remote management for simplified administration.
Physical Profile
Designed as a 4U tower server measuring 18.19 inches in height, 6.85 inches in width, and 28.03 inches in depth, the ML350 G11 provides substantial internal capacity while maintaining a manageable footprint. The tower configuration includes security features such as a front bezel key lock, Kensington lock slot, and padlock slot for physical protection in shared environments.
Weighing approximately 82 pounds, the server is constructed with robust materials suitable for enterprise deployment. The design incorporates tool-less access for serviceability while maintaining structural integrity for long-term reliability.
- Width
- 6.85" (174 mm)
- Depth
- 28.03" (712 mm)
- Height
- 4U
- Weight
- 81.97 lb (37180 g)
Highlights
- Intel Xeon Gold 5418Y processor with 24 cores at 2 GHz for demanding workloads
- 32 GB DDR5 ECC Registered memory with 4.80 GHz speed for enhanced performance
- 8 internal 2.5" hot-swap drive bays with SAS/SATA RAID controller
- 4x Gigabit Ethernet ports for high-capacity network connectivity
- HPE iLO Standard remote management with Intelligent Provisioning
- 4 PCIe 5.0 x8 expansion slots for future upgrades
- 800 W hot-swap power supply with support for redundancy
- Comprehensive security features including TPM 2.0 and UEFI Secure Boot
- Supports multiple operating systems including Windows Server and Linux distributions
- 3-year warranty with parts, labor, and next business day onsite support
Specifications
| Specifications | |
|---|---|
| Manufacturer | Hewlett Packard Enterprise |
| Manufacturer Part Number | P53570-001 |
| Brand Name | HPE |
| Product Line | ProLiant |
| Product Series | ML350 G11 |
| Product Name | ProLiant ML350 G11 Server |
| Product Type | Server |
| Processor | |
| Number of Processors Supported | 2 |
| Number of Processors Installed | 1 |
| Processor Type | Xeon Gold |
| Processor Generation | 4th Gen |
| Processor Model | 5418Y |
| Processor Core | Tetracosa-core (24 Core) |
| Processor Speed | 2 GHz |
| Cache | 45 MB |
| Chipset | |
| Chipset Manufacturer | Intel |
| Chipset Model | C741 |
| Memory | |
| Standard Memory | 32 GB |
| Maximum Memory Supported | 8 TB |
| Memory Technology | DDR5 SDRAM |
| Memory Clock Speed | 4.80 GHz |
| Total Number of Memory Slots | 32 |
| Error Checking | ECC |
| Signal Processing | Registered (Buffered) |
| Controllers | |
| Controller Type | Serial Attached SCSI (SAS),Serial ATA |
| Controller Model | MR408i-o |
| RAID Supported | Yes |
| I/O Expansions | |
| Number of Total Expansion Bays | 8 |
| Number of Internal 2.5" Bays | 8 |
| Number of SFF Bays | 8 |
| Hot Swappable Bays | Yes |
| Total Number of Expansion Slots | 4 |
| PCI Express Details | 4 x8 PCIe 5.0 slots |
| Riser Card | 4 x8 PCIe 5.0 slots with primary riser cage |
| Display & Graphics | |
| Graphics Memory Capacity | 16 MB |
| Network & Communication | |
| Ethernet Technology | Gigabit Ethernet |
| Interfaces/Ports | |
| Total Number of USB Ports | 5 |
| Number of USB 2.0 Ports | 1 |
| Network (RJ-45) | Yes |
| Number of Network (RJ-45) Ports | 4 |
| VGA | Yes |
| Remote Management | Yes |
| Remote Management Controller | HPE iLO Standard with Intelligent Provisioning (embedded), HPE OneView Standard (requires download); HPE iLO Advanced and HPE OneView Advanced (require licenses) |
| Operating System | |
| Operating System Supported | Red Hat Enterprise Linux,SuSE Linux Enterprise Server,Ubuntu,Citrix XenServer,Windows Server,Oracle Linux |
| Power Description | |
| Input Voltage | 120 V AC,230 V AC |
| Number of Power Supplies Supported | 2 |
| Number of Power Supplies Installed | 1 |
| Plug/Connector Type | C13/C14 |
| Maximum Power Supply Wattage | 800 W |
| Hot Swappable Power Supply | Yes |
| Miscellaneous | |
| Security Features | UEFI Secure Boot and Secure Start support Immutable Silicon Root of Trust FIPS 140-3 validation (iLO 6 certification in progress) Common Criteria certification (iLO 6 certification in progress) Configurable for PCI DSS compliance Advanced Encryption Standard (AES) and Triple Data Encryption Standard (3DES) on browser Support for Commercial National Security Algorithms (CNSA) Tamper-free updates -- components digitally signed and verified Secure Recovery -- recover critical firmware to known good state on detection of compromised firmware Ability to rollback firmware Secure erase of NAND TPM (Trusted Platform Module) 2.0 Front bezel key-lock feature -- standard, available in both Tower and Rack models Padlock slot, standard Kensington Lock slot, standard |
| Energy Star | Yes |
| Environmentally Friendly | Yes |
| Energy Efficiency Compliance | Energy-related Products Directive Lot 9 (ErP Lot 9) |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE) |
| Physical Characteristics | |
| Form Factor | Tower |
| Rack Height | 4U |
| Height | 18.19" (462 mm) |
| Width | 6.85" (174 mm) |
| Depth | 28.03" (712 mm) |
| Weight (Approximate) | 81.97 lb (37180 g) |
| Warranty | |
| Limited Warranty | 3 Year |
| Additional Warranty Information | 3-year parts, 3-year labor, 3-year onsite support with next business day response. |
User Manual
FAQ
What processor is installed in this HPE ML350 G11 server?
This server comes with one Intel Xeon Gold 5418Y processor installed. This 4th Gen Xeon Scalable CPU features 24 cores running at a base frequency of 2 GHz with 45 MB of cache, providing substantial compute power for virtualization, database, and application workloads.
How much memory does this server support and what type is installed?
The server is configured with 32 GB of DDR5 SDRAM installed, utilizing ECC (Error Correcting Code) and registered buffering for data integrity. It supports up to 8 TB of memory across 32 DIMM slots, allowing significant expansion for memory-intensive applications.
What storage configuration does this server support?
This ML350 G11 includes eight internal 2.5" small form factor drive bays that support hot-swap replacement. Storage is managed by an MR408i-o controller that handles both SAS and SATA drives with hardware RAID support for data protection and performance optimization.
What remote management capabilities does this server include?
HPE's Integrated Lights-Out (iLO) Standard management is embedded, providing out-of-band remote administration through a dedicated network interface. This includes Intelligent Provisioning for simplified deployment, health monitoring, and remote console access without requiring operating system availability.
Can this server be upgraded to redundant power supplies?
Yes, the server supports up to two power supplies for redundancy. This configuration includes one 800 W hot-swap power supply installed, with an additional bay available for a second unit to provide power failover protection for critical applications.
What operating systems are compatible with this HPE server?
The ML350 G11 is certified for a wide range of enterprise operating systems including Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, Ubuntu, Oracle Linux, and Citrix XenServer. This broad compatibility allows deployment in diverse IT environments with full vendor support.
What processor or CPU is listed for this server or storage platform?
This product uses the 1 processor for everyday performance and multitasking.
What processor speed is listed?
This product uses the 2 GHz processor for everyday performance and multitasking.
