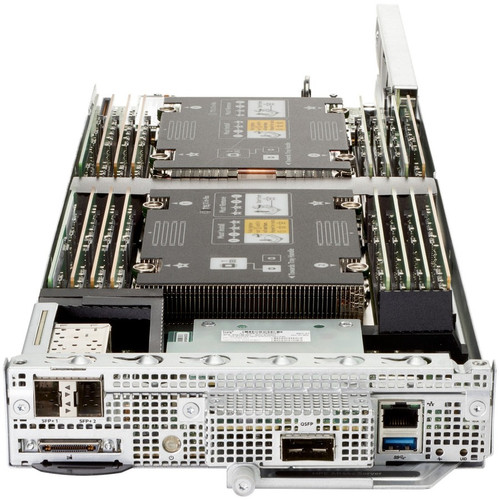

HPE R3R76B ProLiant XL170r G10 1U Blade Server - Dual Xeon Silver 4108 1. 80 GHz - 64 GB RAM - 24 TB HDD + 3. 20 TB SSD
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This server's technical foundation is built around two Intel Xeon Silver 4108 processors. Each CPU is an octa-core chip running at 1.80 GHz, providing 16 total processing cores for parallel task handling. The platform supports up to 16 DDR4 memory modules, with 64 GB installed, and is ready for Intel Optane persistent memory modules to accelerate data access for demanding applications.
Storage is delivered through a hybrid array. Three 8TB 7200 RPM SATA hard drives provide 24 TB of bulk capacity, while two 1.6TB solid-state drives offer 3.20 TB of high-performance tier. The integrated Serial ATA controller supports RAID configurations for data redundancy and performance. Network connectivity is handled by a 10 Gigabit Ethernet interface, suitable for high-throughput data transfers between nodes and storage networks.
This section brings together practical product details such as Number of Processors Supported, Number of Processors Installed, Processor Type, Chipset Manufacturer, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Key Product Advantages
The XL170r G10 combines dense storage, efficient compute, and enterprise management in a single 1U blade. Its design prioritizes seamless scalability for data platform expansions, reducing deployment complexity and time-to-value for IT teams.
High-Density Storage Node
Delivers 27.20 TB of total installed capacity in a compact 1U form factor, maximizing rack space efficiency for storage-heavy deployments.
- 24 TB HDD for bulk data
- 3.20 TB SSD for performance tier
- SATA controller with RAID support
Enterprise Resilience & Security
Incorporates HPE's silicon-rooted security with iLO Advanced Premium, secure boot, firmware validation, and tamper-free updates to protect against runtime threats.
- Immutable Silicon Root of Trust
- Runtime Firmware Validation
- Common Access Card (CAC) 2FA support
Simplified Scalability
As an add-on server for Cohesity DataPlatform, it enables straightforward capacity and compute growth without disrupting existing data services or management workflows.
- Pre-validated for Cohesity
- Rail kit included for rapid installation
- Dual hot-plug power supplies
Deployment / Use Cases
This server is purpose-built as a storage expansion node for the Cohesity DataPlatform, a hyperconverged secondary storage solution. It is ideal for organizations looking to scale their backup, archive, or test/dev environments with additional, validated hardware that integrates directly into the Cohesity software-defined storage fabric.
Typical deployment scenarios include adding capacity to an existing Cohesity cluster for extended data retention, improving performance by introducing an SSD-backed tier, or creating a dedicated node for specific workload isolation. The 10GbE networking ensures it can keep pace with high-velocity data ingestion from primary storage or cloud sources.
Secondary Storage Expansion
Adds validated, high-capacity storage nodes to a Cohesity cluster for growing backup and archival data sets without forklift upgrades.
Performance Tier Augmentation
The included SSD capacity can serve as a dedicated performance tier for frequently accessed backup metadata or active development datasets.
Physical Profile
Engineered for standard 19-inch racks, the server occupies a single rack unit (1U) of height. Its compact dimensions—1.63 inches high, 7.27 inches wide, and 25.91 inches deep—allow for high-density deployments. The blade form factor is designed for vertical stacking within a compatible enclosure or chassis, facilitating the creation of dense, scalable clusters. The included rail kit supports tool-less mounting for efficient installation and maintenance.
- Width
- 7.27" (184.66 mm)
- Depth
- 25.91" (658.11 mm)
- Height
- 1U
- Weight
- 15.23 lb (6910 g)
What's in the Box
The package includes the fully assembled ProLiant XL170r Gen10 24TB Add-on Server for Cohesity DataPlatform and the necessary rail kit for rack mounting.
Package contents include ProLiant XL170r Gen10 24TB Add-on Server for Cohesity DataPlatform Rail Kit, ProLiant XL170r Gen10 24TB Add-on Server for Cohesity DataPlatform. These included items support setup, installation, and immediate deployment without needing to source the core bundled accessories separately.
Highlights
- Dual Intel Xeon Silver 4108 octa-core processors (1.80 GHz) for 16 total compute cores
- 64 GB of DDR4 SDRAM installed across 16 available memory slots
- 24 TB of hard drive storage via three 8TB 7200 RPM SATA drives
- 3.20 TB of solid-state storage via two 1.6TB SATA SSDs
- 10 Gigabit Ethernet port for high-speed cluster and network connectivity
- Dedicated iLO5 1Gb management port for out-of-band remote administration
- 1U blade form factor for high-density rack deployment
- RAID-supported SATA controller for data protection and performance
- Validated as an add-on server for the Cohesity DataPlatform
- Backed by a 3-year limited warranty from HPE
Specifications
| Specifications | |
|---|---|
| Manufacturer | Hewlett Packard Enterprise |
| Manufacturer Part Number | R3R76B |
| Brand Name | HPE |
| Product Line | ProLiant |
| Product Series | XL170r G10 |
| Product Name | ProLiant XL170r Gen10 24TB Add-on Server for Cohesity DataPlatform |
| Product Type | Server |
| Processor | |
| Number of Processors Supported | 2 |
| Number of Processors Installed | 2 |
| Processor Type | Xeon Silver |
| Processor Model | 4108 |
| Processor Core | Octa-core (8 Core) |
| Processor Speed | 1.80 GHz |
| Chipset | |
| Chipset Manufacturer | Intel |
| Memory | |
| Standard Memory | 64 GB |
| Memory Technology | DDR4 SDRAM |
| Total Number of Memory Slots | 16 |
| Intel Optane Memory Ready | Yes |
| Storage | |
| Number of Hard Drives | 3 |
| Total Hard Drive Capacity | 24 TB |
| Hard Drive Interface | Serial ATA/600 |
| Hard Drive RPM | 7200 |
| Hard Drive Configuration | 3 x 8TB |
| Number of Solid State Drives | 2 |
| Total Solid State Drive Capacity | 3.20 TB |
| Solid State Drive Configuration | 1 x 1.6TB |
| Controllers | |
| Controller Type | Serial ATA |
| RAID Supported | Yes |
| Network & Communication | |
| Ethernet Technology | 10 Gigabit Ethernet |
| Interfaces/Ports | |
| Total Number of USB Ports | 1 |
| Number of USB 3.0 Ports | 1 |
| Remote Management | Yes |
| Remote Management Controller | Dedicated iLO5 1Gb Management Port |
| Operating System | |
| Operating System Supported | Windows Server 2012 R2 Standard,Windows Server 2016,Windows Server 2019,Red Hat Enterprise Linux 7.6,SUSE Linux Enterprise Server 12 SP4,SUSE Linux Enterprise Server 15 SP1 |
| Power Description | |
| Number of Power Supplies Installed | 2 |
| Miscellaneous | |
| Package Contents | ProLiant XL170r Gen10 24TB Add-on Server for Cohesity DataPlatform Rail Kit |
| Security Features | UEFI Secure Boot and Secure Start support Immutable Silicon Root of Trust Support for Commercial National Security Algorithms (CNSA) iLO Advanced Premium Security Edition Granular control over iLO interfaces Common Access Card (CAC) 2-factor Authentication Tamper-free updates - components digitally signed and verified Secure Recovery - recover critical firmware to known good state on detection of compromised firmware Runtime Firmware Validation - Periodically scan essential firmware for compromised code during runtime |
| Environmentally Friendly | Yes |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE) |
| Physical Characteristics | |
| Form Factor | Blade |
| Rack Height | 1U |
| Height | 1.63" (41.40 mm) |
| Width | 7.27" (184.66 mm) |
| Depth | 25.91" (658.11 mm) |
| Weight (Approximate) | 15.23 lb (6910 g) |
| Warranty | |
| Limited Warranty | 3 Year |
User Manual
FAQ
What is the primary use case for this HPE ProLiant server?
This server is specifically configured and validated as an add-on storage node for the Cohesity DataPlatform. It is designed to expand the capacity and compute resources of an existing Cohesity hyperconverged secondary storage cluster for backup, archive, and test/dev workloads.
What processors are installed, and how many cores are available?
The server comes with two Intel Xeon Silver 4108 processors installed. Each processor is an octa-core (8-core) chip running at a base frequency of 1.80 GHz, providing a total of 16 physical processing cores for handling parallelized enterprise tasks.
How much total storage capacity does this server have?
It features a hybrid storage configuration with a total installed capacity of 27.20 TB. This comprises 24 TB from three 8TB 7200 RPM SATA hard drives and an additional 3.20 TB from two 1.6TB SATA solid-state drives.
Does this server support RAID configurations?
Yes, the integrated Serial ATA controller supports RAID configurations. This allows administrators to set up redundancy (like RAID 1, 5, or 10) for the hard drives or SSDs to protect against drive failure and to potentially improve read/write performance for critical data.
What remote management capabilities are included?
The server includes a dedicated iLO5 (Integrated Lights-Out 5) 1Gb management port. iLO5 provides comprehensive out-of-band management, allowing for remote power control, hardware monitoring, virtual media attachment, and console access regardless of the server's main operating system state.
What are the physical dimensions and rack requirements?
The server is a 1U blade with dimensions of 1.63 inches in height, 7.27 inches in width, and 25.91 inches in depth. It is designed for standard 19-inch wide racks, and a rail kit is included in the package for secure mounting. Its blade form factor is intended for vertical stacking within a compatible enclosure.
What processor or CPU is listed for this server or storage platform?
This product uses the 2 processor for everyday performance and multitasking.
What processor speed is listed?
This product uses the 1.80 GHz processor for everyday performance and multitasking.
