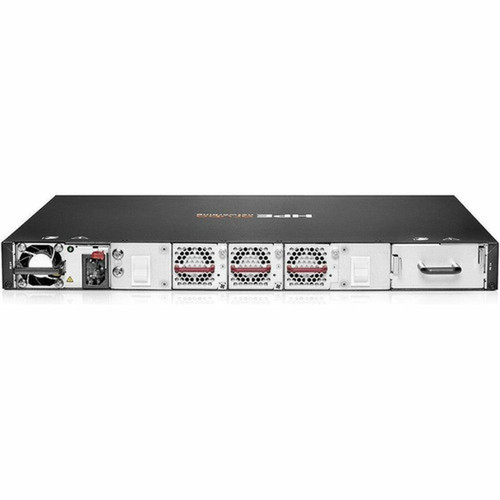

HPE R9M48A 9100 Series Hybrid Gateway - 4 RJ-45 Ports - 9 SFP+/SFP Slots - 10GbE - Rack-Mountable
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
The HPE 9100 Series Hybrid Gateway delivers enterprise-grade networking with four RJ-45 ports and nine expansion slots supporting SFP+ and SFP (mini-GBIC) modules. This configuration enables flexible connectivity options for 10GbE, Gigabit Ethernet, and fiber uplinks, supporting network technologies including 10GBase-X, 1000Base-X, and 1000Base-T.
Power consumption is rated at 185 watts, and the device includes a USB 3.0 Type A port for additional peripheral connectivity. The management port facilitates out-of-band administration, while the rack-mountable design fits standard 19-inch racks with dimensions of 1.72" height, 17.40" width, and 13.82" depth, weighing approximately 13.67 pounds.
Relevant factors for this section include Total Number of Ports, USB Standard, Management Port, Total Number of Expansion Slots. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
This gateway excels in providing scalable, secure, and manageable networking for distributed environments. Its cloud-native architecture simplifies deployment and ongoing management, reducing operational overhead while enhancing network agility.
Centralized Cloud Management
HPE Aruba Networking Central offers streamlined cloud-based management and control, enabling administrators to configure, monitor, and troubleshoot the gateway remotely with minimal on-site intervention.
- Unified dashboard for network oversight
- Automated policy enforcement
- Real-time analytics and reporting
High Availability and Redundancy
Always-on high availability is ensured through features like live upgrades, clustering, and N+1 or NxN redundancy, minimizing downtime and maintaining business continuity during maintenance or failures.
- Zero-downtime upgrades
- Failover clustering support
- Redundant power and network paths
Dynamic Segmentation and Security
Dynamic segmentation automates role-based policy enforcement across users, devices, and IoT, enhancing security by isolating traffic and applying consistent policies regardless of connection type.
- Automated policy assignment
- IoT device isolation
- User and device profiling
Deployment / Use Cases
The HPE 9100 Series Hybrid Gateway is engineered for diverse networking scenarios, from cloud-based wireless gateways to secure branch connectivity. Its flexibility supports multiple deployment models, adapting to evolving business needs without hardware changes.
Common use cases include serving as an SD-Branch device for software-defined wide area networks, a VPN concentrator for secure remote access, or a core gateway for large-scale wireless networks in campuses, enterprises, or service provider environments.
SD-Branch Deployment
Ideal for software-defined branch offices, this gateway consolidates networking functions into a single appliance, reducing complexity and cost while enabling centralized policy management and zero-touch provisioning for rapid site deployment.
VPN Concentrator
As a VPN concentrator, it secures remote access for employees and partners, supporting high-speed encrypted tunnels with the throughput needed for bandwidth-intensive applications and distributed workforces.
Physical Profile
Designed for rack deployment, the HPE 9100 Series Hybrid Gateway features a compact 1U form factor with dimensions of 1.72" (43.70 mm) height, 17.40" (442 mm) width, and 13.82" (351 mm) depth. Its weight of approximately 13.67 lb (6200 g) ensures stable mounting in standard 19-inch racks, while the robust construction supports continuous operation in data center or network closet environments.
- Width
- 17.40" (442 mm)
- Depth
- 13.82" (351 mm)
- Height
- 1.72" (43.70 mm)
- Weight
- 13.67 lb (6200 g)
Highlights
- Scalable cloud-native AOS-10 architecture supports up to 4,000 APs and 10,000 clients
- High-speed 10GbE connectivity with nine SFP+/SFP expansion slots for flexible uplinks
- Four RJ-45 ports and a dedicated management port for versatile network integration
- Streamlined cloud-based management via HPE Aruba Networking Central
- Dynamic segmentation for automated, role-based security policy enforcement
- Always-on high availability with live upgrades, clustering, and redundancy options
- Zero-touch provisioning simplifies deployment at remote branch sites
- Rack-mountable 1U form factor with TAA compliance for government and enterprise use
Specifications
| Specifications | |
|---|---|
| Manufacturer | Hewlett Packard Enterprise |
| Manufacturer Part Number | R9M48A |
| Brand Name | HPE |
| Product Series | 9100 |
| Product Model | 9114 |
| Product Name | 9100 Series Hybrid Gateway |
| Product Type | Router |
| Interfaces/Ports | |
| Total Number of Ports | 4 |
| USB Standard | USB 3.0 Type A |
| Management Port | Yes |
| Number of Network (RJ-45) Ports | 4 |
| I/O Expansions | |
| Total Number of Expansion Slots | 9 |
| Expansion Slot Type | SFP+,SFP (mini-GBIC) |
| Network & Communication | |
| Ethernet Technology | 10 Gigabit Ethernet |
| Network Technology | 10GBase-X,1000Base-X,1000Base-T |
| Power Description | |
| Power Consumption | 185 W |
| Physical Characteristics | |
| Form Factor | Rack-mountable |
| Height | 1.72" (43.70 mm) |
| Width | 17.40" (442 mm) |
| Depth | 13.82" (351 mm) |
| Weight (Approximate) | 13.67 lb (6200 g) |
| Miscellaneous | |
| TAA Compliant | Yes |
User Manual
FAQ
What are the primary use cases for the HPE 9100 Series Hybrid Gateway?
This gateway is designed for cloud-based wireless gateways, SD-Branch deployments, and VPN concentrator applications. It supports large-scale networks with up to 4,000 access points and 10,000 clients, making it suitable for enterprises, campuses, and service providers needing scalable, secure edge connectivity.
How many expansion slots does this gateway have, and what types are supported?
The HPE 9100 Series Hybrid Gateway includes nine expansion slots that support both SFP+ and SFP (mini-GBIC) modules. This allows flexible connectivity options for 10GbE and Gigabit Ethernet over fiber or copper, enabling high-speed uplinks and network segmentation based on deployment requirements.
What management options are available for this gateway?
Management is streamlined through HPE Aruba Networking Central, a cloud-based platform that provides centralized configuration, monitoring, and troubleshooting. Additionally, a dedicated management port supports out-of-band administration, and zero-touch provisioning simplifies deployment at remote sites without on-site technical staff.
Does this gateway support high availability and redundancy?
Yes, the gateway offers always-on high availability with features like live upgrades, clustering, and N+1 or NxN redundancy. These capabilities minimize downtime during maintenance or failures, ensuring continuous network operation and business continuity for critical applications.
What are the physical dimensions and mounting options?
The gateway has a rack-mountable 1U form factor with dimensions of 1.72" height, 17.40" width, and 13.82" depth, weighing approximately 13.67 pounds. It is designed for standard 19-inch racks, making it easy to integrate into data centers or network closets without requiring additional mounting hardware.
Is this gateway compliant with TAA requirements?
Yes, the HPE 9100 Series Hybrid Gateway is TAA compliant, meeting the Trade Agreements Act standards for government and enterprise procurement. This ensures it can be used in contracts requiring products manufactured or substantially transformed in designated countries, supporting regulatory and sourcing needs.
