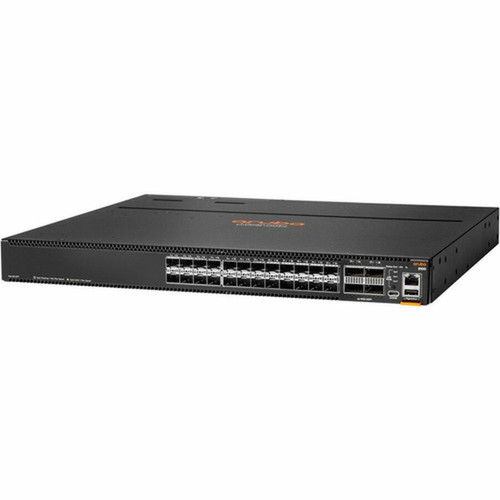

HPE R9W87A CX 8100 24XF4C Ethernet Switch - 24 x 10GbE SFP+ - 4 x 100GbE QSFP28 - Layer 3 Managed - Rack-Mountable
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This switch operates at Layer 3, providing advanced routing capabilities for scalable network design, including support for dynamic routing protocols and VLAN segmentation. The 28 total expansion slots are configured as 24 SFP+ ports for 10GbE connectivity and 4 QSFP28 ports that support 100GbE or can be broken out into 40GbE connections, offering deployment flexibility.
Power features include support for dual power supplies (120-230V AC) for redundancy, a 375W power budget, and PoE capability on RJ-45 ports to power connected devices such as wireless access points or IP cameras. The switch is manageable via a full suite of protocols including LLDP, LACP, spanning tree enhancements, and QoS standards for granular control and optimization.
Relevant factors for this section include Uplink Port, Modular, Port/Expansion Slot Details, Media Type Supported. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
The CX 8100 24XF4C delivers a future-ready port mix that balances high-density 10GbE server access with 100GbE spine or core uplinks, reducing oversubscription and bottlenecks. Its Layer 3 functionality enables inter-VLAN routing and policy-based traffic management without external routers, simplifying network architecture.
High-Speed Uplink Readiness
Four 100GbE QSFP28 ports provide ample bandwidth for aggregation or backbone connections, supporting 40GbE and 100GbE optics for flexible deployment scenarios.
- Eliminates uplink congestion
- Future-proofs core connectivity
- Simplifies spine-leaf deployments
Operational Resilience
Dual power supply support and comprehensive manageability features ensure high availability and simplified troubleshooting in critical environments.
- Redundant power inputs
- Advanced monitoring and diagnostics
- Standards-based interoperability
Deployment / Use Cases
This switch is ideal for data center top-of-rack deployments, where its 24x 10GbE ports can connect hyper-converged infrastructure or virtualized hosts, while the 100GbE uplinks maintain high-bandwidth paths to the network core. It also serves effectively as a distribution layer switch in large campus or enterprise networks, aggregating access switches and providing Layer 3 segmentation.
For storage networking, the low-latency, fiber-based connectivity supports iSCSI or NAS traffic, and the PoE capability allows consolidation by powering edge devices. The rack-mountable, 1U form factor fits standard 19-inch cabinets, making it suitable for space-constrained data centers or wiring closets.
Data Center Server Access
Connect racks of servers with 10GbE NICs, using 100GbE uplinks to spine switches for efficient east-west traffic flows.
Enterprise Network Core
Act as a core or distribution switch, routing between VLANs and aggregating multiple access switches with high-throughput uplinks.
Physical Profile
The switch features a compact, 1U rack-mountable design with a height of 1.73 inches (44 mm), width of 17.42 inches (442.5 mm), and depth of 16 inches (406.4 mm), fitting standard 19-inch rack enclosures. It weighs approximately 18 pounds (8.16 kg) and supports multiple mounting options including surface, cabinet, and rack mounting for versatile installation in data centers, server rooms, or network closets.
- Width
- 17.42" (442.50 mm)
- Depth
- 16" (406.40 mm)
- Height
- 1.73" (44 mm)
- Weight
- 17.99 lb (8160 g)
Highlights
- 24x 10 Gigabit Ethernet SFP+ ports for high-density server or storage connectivity
- 4x 100 Gigabit Ethernet QSFP28 uplink ports supporting 40GbE and 100GbE optics
- Layer 3 managed switching with advanced routing and QoS capabilities
- Dual power supply support (120-230V AC) for redundant power input
- 375W power budget with PoE (RJ-45) support for powered devices
- Rack-mountable 1U form factor (1.73"H) for standard 19-inch cabinet installation
- Optical fiber media support for long-distance, high-speed connections
- Comprehensive IEEE standards compliance for reliable interoperability
Specifications
| Specifications | |
|---|---|
| Manufacturer | Hewlett Packard Enterprise |
| Manufacturer Part Number | R9W87A |
| Brand Name | HPE |
| Product Series | CX 8100 |
| Product Model | 24XF4C |
| Product Name | CX 8100 24XF4C Ethernet Switch |
| Product Type | Ethernet Switch |
| Interfaces/Ports | |
| Uplink Port | Yes |
| Modular | Yes |
| Port/Expansion Slot Details | 24 x 10 Gigabit Expansion Slot,4 x 100 Gigabit Expansion Slot |
| Media & Performance | |
| Media Type Supported | Optical Fiber |
| Ethernet Technology | 10 Gigabit Ethernet,100 Gigabit Ethernet,40 Gigabit Ethernet |
| Network Technology | 10GBase-X,100GBase-X,40GBase-X |
| I/O Expansions | |
| Total Number of Expansion Slots | 28 |
| Expansion Slot Type | SFP+,QSFP28,SFP,QSFP+ |
| Number of SFP+ Slots | 24 |
| Network & Communication | |
| Layer Supported | 3 |
| Networking Standards | IEEE 802.3ad,IEEE 802.1ab,IEEE 802.1Q,IEEE 802.1D,IEEE 802.1w,IEEE 802.1s,IEEE 802.1ak,IEEE 802.1AX,IEEE 802.1p,IEEE 802.1t,IEEE 802.1v,IEEE 802.3ab,IEEE 802.3ae,IEEE 802.3an,IEEE 802.3by,IEEE 802.3bz,IEEE 802.3cc,IEEE 802.3ba,IEEE 802.3cd,IEEE 802.3bj,IEEE 802.3x,IEEE 802.3z |
| Management & Protocols | |
| Manageable | Yes |
| Power Description | |
| PoE (RJ-45) Port | Yes |
| Input Voltage | 120 V AC,230 V AC |
| Power Source | AC,Power Supply |
| Number of Power Supplies Supported | 2 |
| Power Consumption | 375 W |
| Physical Characteristics | |
| Form Factor | Surface Mount,Cabinet Mount,Rack-mountable |
| Height | 1.73" (44 mm) |
| Width | 17.42" (442.50 mm) |
| Depth | 16" (406.40 mm) |
| Weight (Approximate) | 17.99 lb (8160 g) |
User Manual
FAQ
What are the primary port types and counts on this HPE switch?
The HPE CX 8100 24XF4C provides 24 SFP+ ports for 10 Gigabit Ethernet connections and 4 QSFP28 ports for 100 Gigabit Ethernet uplinks. These QSFP28 ports also support 40 Gigabit Ethernet optics, giving you flexibility in uplink configuration. All ports are optical fiber-based, suitable for longer-distance, high-bandwidth links in data center or core network deployments.
Does this switch support Power over Ethernet (PoE)?
Yes, this switch includes PoE capability on its RJ-45 ports. This allows it to deliver power to compatible devices such as wireless access points, IP phones, or security cameras over the Ethernet cable, simplifying installation and reducing the need for separate power supplies at the edge of your network.
What does Layer 3 support mean for this switch?
Layer 3 support means the switch can perform IP routing between VLANs and subnets, enabling it to handle inter-VLAN traffic without an external router. This includes support for static routing and dynamic routing protocols, which simplifies network design, reduces latency, and improves scalability in larger enterprise or data center environments.
How many power supplies does this switch support, and why is that important?
The switch supports two power supplies, allowing for redundant power input. This means you can connect each power supply to separate electrical circuits or UPS units. If one power supply or circuit fails, the switch continues operating on the remaining supply, minimizing downtime and enhancing reliability in critical networking applications.
What are the physical dimensions and mounting options?
The switch measures 1.73 inches high, 17.42 inches wide, and 16 inches deep, fitting a standard 1U rack space. It is designed for rack-mountable, surface mount, or cabinet mount installation, providing flexibility for deployment in data center racks, network closets, or on flat surfaces where rack space is limited.
What type of fiber optic modules are compatible with this switch?
The switch supports SFP+ modules for 10GbE connections, QSFP+ for 40GbE, and QSFP28 for 100GbE over optical fiber. This includes a wide range of industry-standard transceivers for multimode or single-mode fiber, allowing you to choose optics based on distance requirements and existing fiber infrastructure in your network.
