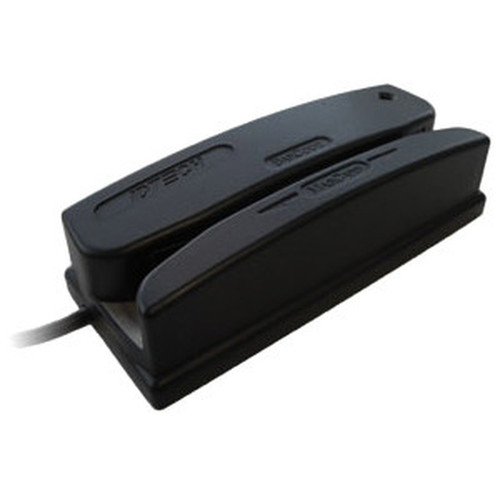

ID TECH WCR3237-512K12UC Omni Duo WCR32 Magnetic Stripe Reader - Dual Track - 1524 mm/s - USB - Keyboard Wedge - Black
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
The Omni Duo WCR32 operates with a swipe speed range from 76.20 mm/s to 1524 mm/s, accommodating both slow and fast card swipes while maintaining accurate data capture. This wide speed tolerance enhances usability in diverse operational scenarios.
With a head life rated for one million passes, this reader offers long-term reliability, reducing maintenance needs and downtime. The dual-head design adds flexibility, allowing for consistent performance even with frequent use.
This section brings together practical product details such as Magnetic Stripe Track Configuration, Magnetic Stripe Track Number, Minimum Swipe Speed, Keyboard Wedge, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
A strong technical summary explains how the product's interfaces, hardware profile, and operating characteristics work together in real deployment. Buyers often need this context to confirm compatibility with existing devices, expected performance in daily use, and whether installation will be straightforward for IT staff or end users.
Key Product Advantages
The ID TECH Omni Duo WCR32 excels in reading jittered, scratched, and worn magnetic stripe cards, ensuring data integrity even with compromised media. This capability minimizes transaction errors and improves operational efficiency in high-volume environments.
These strengths make the product easier to deploy and manage in real environments, especially where reliability, usability, and day-to-day operational continuity matter. Notable benefits include Superior Card Reading, User-Friendly Features.
Superior Card Reading
Advanced technology reliably reads damaged or worn cards, reducing read failures and enhancing customer experience.
- Handles jitter and scratches
- Maintains data accuracy
- Supports worn card media
User-Friendly Features
Integrated beeper and LED indicator provide clear feedback for successful reads, while configuration software simplifies setup and customization.
- Audible and visual feedback
- Easy configuration utility
- Flexible mounting options
Deployment / Use Cases
This magnetic stripe reader is ideal for retail point-of-sale systems, where fast and reliable card reading is essential for smooth transactions. Its dual-track support handles credit, debit, loyalty, and gift cards, making it a versatile choice for various payment processing needs.
In hospitality and access control applications, the WCR32's rugged design and weatherproof construction ensure dependable performance in lobby kiosks, hotel check-in stations, or secure entry points. The flexible mounting options allow for integration into countertops, walls, or custom enclosures.
This section brings together practical product details such as Magnetic Stripe Track Configuration, Magnetic Stripe Track Number, Minimum Swipe Speed, Keyboard Wedge, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Physical Profile
The Omni Duo WCR32 features a compact black housing with dimensions of 5 inches in length, 80.71 mil in width, and 54.33 mil in height, offering a low-profile design that integrates seamlessly into workspace setups. The sturdy construction and approximate weight of 635 grams provide stability during use, while the threaded holes enable secure mounting to surfaces.
The physical profile is practical for deployment planning because the dimensions and weight are clearly defined: 54.33 mil (1.38 mm), 80.71 mil (2.05 mm), 635 g. This helps confirm rack, shelf, desk, or cabinet fit before installation.
- Width
- 80.71 mil (2.05 mm)
- Height
- 54.33 mil (1.38 mm)
- Weight
- 635 g
- Length
- 5" (127 mm)
Highlights
- Dual-track magnetic stripe reader for Track 1 and Track 2 data
- High-speed swipe capability up to 1524 mm/s for fast transactions
- USB and keyboard wedge connectivity for flexible system integration
- Rugged, weatherproof design with extended temperature tolerance
- Die-cast metal plate with threaded holes for secure mounting
- Reliable performance with a head life of one million swipes
- Superior reading of jittered, scratched, and worn cards
- Beeper and LED indicator provide clear read confirmation
- User-friendly configuration software for easy setup
- Compact black housing with low-profile dimensions
Specifications
| Specifications | |
|---|---|
| Manufacturer | ID TECH |
| Manufacturer Part Number | WCR3237-512K12UC |
| Brand Name | ID TECH |
| Product Line | Omni Duo |
| Product Series | WCR32 |
| Product Model | WCR3237-512K12UC |
| Product Name | Omni Duo WCR32 Magnetic Stripe Reader |
| Product Type | Magnetic Stripe Reader |
| Technical Information | |
| Magnetic Stripe Track Configuration | Dual Track |
| Magnetic Stripe Track Number | Track 1,Track 2 |
| Minimum Swipe Speed | 76.20 mm/s |
| Maximum Swipe Speed | 1524 mm/s |
| Number of Swipes (Head Life) | 1000000 |
| Interfaces/Ports | |
| Keyboard Wedge | Yes |
| USB | Yes |
| Power Description | |
| Input Voltage | 5 V DC |
| Physical Characteristics | |
| Product Color | Black |
| Height | 54.33 mil (1.38 mm) |
| Width | 80.71 mil (2.05 mm) |
| Length | 5" (127 mm) |
| Weight (Approximate) | 635 g |
| Miscellaneous | |
| Additional Information | Superior reading of jitter, scratched, and worn MagStripe cards Die-cast metal plate allows flexible mounting options Threaded holes for easy and secure mounting Rugged, weatherproof design with extended temperature options Reliable for a minimum of one million passes Signifies successful reads with a beeper and LED indicator Dual-head design enhances usability and adds flexibility User-friendly configuration software utility |
FAQ
What types of magnetic stripe tracks does the ID TECH Omni Duo WCR32 support?
The ID TECH Omni Duo WCR32 supports dual-track magnetic stripe reading, specifically Track 1 and Track 2. This allows it to read standard credit, debit, loyalty, and access cards that use these common track formats, ensuring broad compatibility for various card-based applications.
What is the maximum swipe speed for this magnetic stripe reader?
The maximum swipe speed for the Omni Duo WCR32 is 1524 mm/s, with a minimum of 76.20 mm/s. This wide speed range accommodates both slow and fast card swipes, making it suitable for different user habits and operational environments while maintaining reliable data capture.
How does the reader indicate a successful card read?
The reader signifies successful reads with both an audible beeper and an LED indicator. These feedback mechanisms provide clear confirmation to users, reducing uncertainty and improving transaction efficiency in point-of-sale or access control settings.
What connectivity options are available for the WCR32 reader?
The WCR32 offers USB and keyboard wedge connectivity. USB allows direct connection to computers or POS systems, while keyboard wedge emulation enables integration with systems that accept keyboard input, providing flexibility for various hardware setups.
What is the head life or durability rating of this magnetic stripe reader?
The Omni Duo WCR32 is rated for a minimum of one million passes, indicating its long-term reliability and reduced maintenance needs. This durability makes it suitable for high-volume environments like retail stores or hospitality venues where frequent card swipes are common.
Can this reader handle damaged or worn magnetic stripe cards?
Yes, the WCR32 is designed for superior reading of jittered, scratched, and worn magnetic stripe cards. Its advanced technology minimizes read failures with compromised media, ensuring data integrity and smoother transactions even when cards are in poor condition.
What print, scan, copy, or multifunction capability is listed?
the specifications are intended to help buyers confirm fit, compatibility, and expected day-to-day operation. In practical terms, the best reading of this product comes from how its hardware, connectivity, and deployment details work together.
What duplex or duty-cycle detail is listed?
the specifications are intended to help buyers confirm fit, compatibility, and expected day-to-day operation. In practical terms, the best reading of this product comes from how its hardware, connectivity, and deployment details work together.
