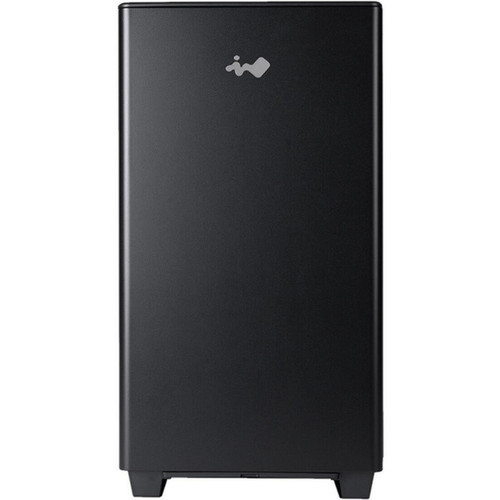

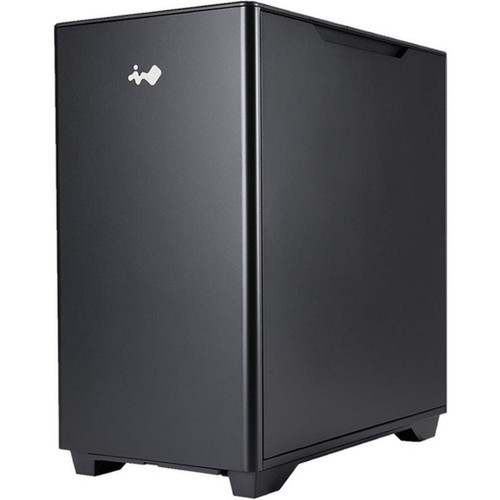

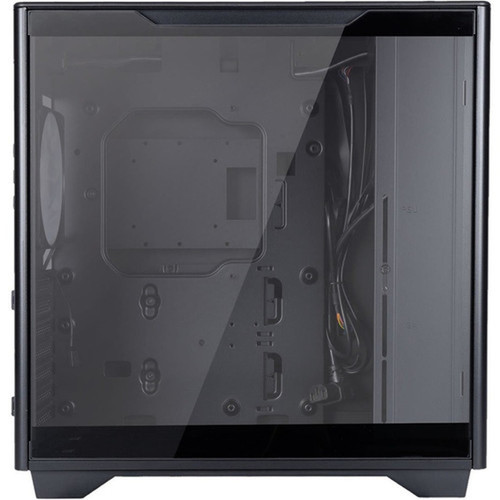

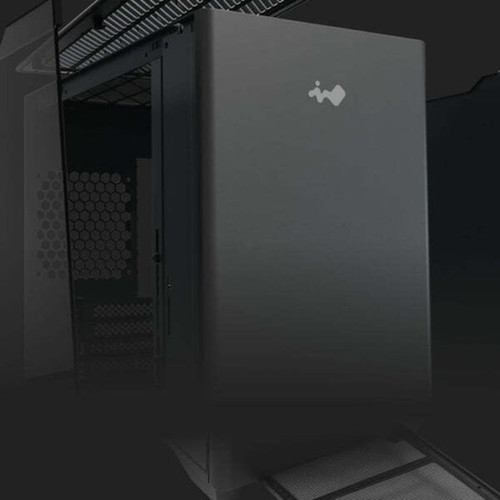

In Win Mid Tower Computer Case Black With Tempered Glass Aluminium Panels And Modern Styling For Clean Builds IW-CS-A5BLK-1AM120S
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Motherboard Supported: Micro ATX,Mini ITX,EATX,ATX
Number of Fans Supported: 5
Number of Fans Installed: 1
Installed Fan Size: 4.72" (120 mm)
Number of Internal 2.5" Bays: 2
Number of Internal 2.5"/3.5" Bays: 2
Number of Total Expansion Bays: 4
Total Number of Expansion Slots: 7
Total Number of USB Ports: 3
Front USB: Yes
Total Number of Audio In Ports: 1
Front Audio In: Yes
Total Number of Audio Out Ports: 1
Front Audio Out: Yes
Power Supply Installed: No
Number of Power Supplies Supported: 1
Number of Power Supplies Installed: 0
Color Family: Black
Product Color: Black
Product Material: Tempered Glass,Aluminium,Acrylonitrile Butadiene Styrene (ABS),SECC,Polycarbonate
Cooler Type: Fan Cooler
Form Factor: Mid-tower
Maximum CPU Cooler Height: 6.38" (162 mm)
Maximum PSU Length: 7.87" (200 mm)
Height: 16.02" (407 mm)
Width: 8.46" (215 mm)
Depth: 15.71" (399 mm)
Weight (Approximate): 12.92 lb (5860 g)
- Supports EATX motherboard to provide a significant number of PCI slots, expansion slots and peripheral ports with enhanced heat dissipation capability
- Total 4 expansion bays help in upgrading the system by increasing number of hardware components
- Mid-tower size for convenient installation and smooth operations
[custom-specifications]
| Specifications | |
| Manufacturer | In Win Development, Inc |
| Manufacturer Part Number | IW-CS-A5BLK-1AM120S |
| Manufacturer Website Address | http://www.in-win.us |
| Brand Name | In Win |
| Product Model | IW-CS-A5BLK-1AM120S |
| Product Name | IW-CS-A5BLK-1AM120S A5 Computer Case |
| Packaged Quantity | 1 |
| Product Type | Computer Case |
| Technical Information | |
| Motherboard Supported | Micro ATX,Mini ITX,EATX,ATX |
| Number of Fans Supported | 5 |
| Number of Fans Installed | 1 |
| Installed Fan Size | 4.72" (120 mm) |
| Bays | |
| Number of Internal 2.5" Bays | 2 |
| Number of Internal 2.5"/3.5" Bays | 2 |
| Number of Total Expansion Bays | 4 |
| I/O Expansions | |
| Total Number of Expansion Slots | 7 |
| Interfaces/Ports | |
| Total Number of USB Ports | 3 |
| Front USB | Yes |
| Total Number of Audio In Ports | 1 |
| Front Audio In | Yes |
| Total Number of Audio Out Ports | 1 |
| Front Audio Out | Yes |
| Power Description | |
| Power Supply Installed | No |
| Number of Power Supplies Supported | 1 |
| Number of Power Supplies Installed | 0 |
| Physical Characteristics | |
| Color Family | Black |
| Product Color | Black |
| Product Material | Tempered Glass,Aluminium,Acrylonitrile Butadiene Styrene (ABS),SECC,Polycarbonate |
| Cooler Type | Fan Cooler |
| Form Factor | Mid-tower |
| Maximum CPU Cooler Height | 6.38" (162 mm) |
| Maximum PSU Length | 7.87" (200 mm) |
| Height | 16.02" (407 mm) |
| Width | 8.46" (215 mm) |
| Depth | 15.71" (399 mm) |
| Weight (Approximate) | 12.92 lb (5860 g) |
[/custom-specifications]
