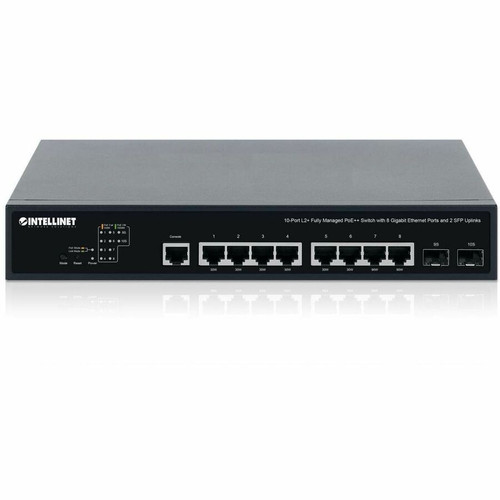

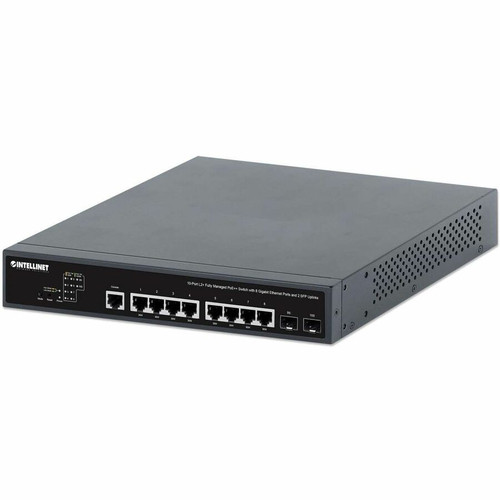

Intellinet 562003 10-Port L2+ Fully Managed PoE++ Switch - 8 Gigabit Ethernet Ports - 2 SFP Uplinks - 242W PoE Budget
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This switch operates at layer 3, supporting advanced routing protocols for efficient traffic management across subnets. It features a maximum data transfer rate of 128 MB/s and complies with key networking standards including IEEE 802.3af/at/bt for PoE, IEEE 802.3ad for link aggregation, and IEEE 802.1Q for VLANs, ensuring interoperability in mixed-vendor environments.
The integrated power supply accepts 120-230V AC input with a power consumption of 252W, providing stable operation and the 242W PoE budget necessary for high-power devices. Management is facilitated through HTTP and HTTPS protocols, with features like QoS, ACLs, and RMON enabling granular control and monitoring.
This section brings together practical product details such as Data Link Protocols, Features, Total Number of Network Ports, Network (RJ-45), so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Key Product Advantages
The Intellinet 562003 stands out with its high PoE++ budget and fully managed feature set, offering network administrators precise control over power allocation, traffic prioritization, and security policies. Its dual SFP uplinks provide fiber or copper connectivity options for extending network reach or aggregating bandwidth to core switches.
Advanced PoE Management
PoE Watchdog and remote monitoring ensure reliable power delivery to connected devices, with dynamic power allocation optimizing the 242W budget for efficiency.
- PoE++ support for high-power devices
- Remote power cycling and monitoring
Comprehensive Security
Built-in security features protect network integrity with access control lists, dynamic ARP inspection, and broadcast storm control, reducing vulnerabilities in managed environments.
- ACL for traffic filtering
- Dynamic ARP inspection to prevent spoofing
Deployment / Use Cases
Ideal for small to medium-sized networks, this switch excels in environments where power-over-Ethernet and advanced management are critical. Its desktop and rack-mountable design offers flexibility for various installation scenarios, from office floors to industrial control rooms.
Common deployments include powering and connecting IP surveillance systems, enterprise wireless networks, and VoIP telephony systems. The layer 3 capabilities allow it to serve as a core switch in branch offices or as an aggregation point in distributed networks, simplifying routing and improving performance.
IP Surveillance Networks
Power multiple high-resolution IP cameras and NVRs while using SFP uplinks for high-bandwidth video backhaul to central storage.
Enterprise Wireless Deployment
Deliver PoE++ to modern Wi-Fi 6/6E access points and manage traffic with QoS to prioritize latency-sensitive applications like video conferencing.
Physical Profile
With a compact metal chassis measuring 1.73" H x 11.02" W x 9.06" D and weighing 5.51 lb, this switch fits standard 19" racks using included brackets or sits securely on a desktop. The robust construction ensures durability in continuous operation, while the low-profile design conserves space in crowded network cabinets.
The physical profile is practical for deployment planning because the dimensions and weight are clearly defined: 1.73" (44 mm), 11.02" (280 mm), 5.51 lb (2500 g). This helps confirm rack, shelf, desk, or cabinet fit before installation.
- Width
- 11.02" (280 mm)
- Height
- 1.73" (44 mm)
- Weight
- 5.51 lb (2500 g)
- Length
- 9.06" (230 mm)
What's in the Box
The switch ships with all necessary components for immediate deployment, including rack-mounting hardware and power cable.
Highlights
- 10-port L2+ fully managed switch with 8 Gigabit Ethernet PoE++ ports and 2 SFP uplinks
- 242W PoE budget supports high-power devices like PTZ cameras and Wi-Fi 6 access points
- Layer 3 routing enables inter-VLAN routing and scalable network design
- Advanced management features include QoS, ACLs, RMON, and PoE Watchdog
- Dual SFP slots for fiber or copper uplink connectivity
- Desktop and rack-mountable metal chassis for flexible deployment
- Complies with IEEE 802.3bt PoE++ for up to 90W per port
- 3-year limited warranty and RoHS environmental compliance
Specifications
| Specifications | |
|---|---|
| Manufacturer | IC INTRACOM |
| Manufacturer Part Number | 562003 |
| Brand Name | Intellinet |
| Product Name | 10-Port L2+ Fully Managed PoE++ Switch with 8 Gigabit Ethernet Ports and 2 SFP Uplinks |
| Product Type | Ethernet Switch |
| Technical Information | |
| Data Link Protocols | HTTP,HTTPS |
| Features | PoE Watchdog,Port Mirroring,Remote Monitoring (RMON),Link Aggregation,Quality of Service (QoS),Broadcast Storm Control,Access Control List,Dynamic ARP Inspection |
| Interfaces/Ports | |
| Total Number of Network Ports | 8 |
| Network (RJ-45) | Yes |
| Uplink Port | Yes |
| Port/Expansion Slot Details | 8 x Gigabit Ethernet PoE++,2 x Gigabit Ethernet Expansion Slot |
| Media & Performance | |
| Media Type Supported | Twisted Pair,Optical Fiber |
| Ethernet Technology | Gigabit Ethernet |
| Network Technology | 10/100/1000Base-T,100Base-TX,1000Base-X |
| Maximum Data Transfer Rate | 128 MB/s |
| I/O Expansions | |
| Total Number of Expansion Slots | 2 |
| Expansion Slot Type | SFP |
| Number of SFP Slots | 2 |
| Network & Communication | |
| Layer Supported | 3 |
| Networking Standards | IEEE 802.1p,IEEE 802.1Q,IEEE 802.3ad,IEEE 802.3z,IEEE 802.3,IEEE 802.3ab,IEEE 802.3af,IEEE 802.3at,IEEE 802.3bt,IEEE 802.3u,IEEE 802.3x |
| Management & Protocols | |
| Manageable | Yes |
| Power Description | |
| PoE (RJ-45) Port | Yes |
| PoE Budget | 242 W |
| Input Voltage | 120 V AC,230 V AC |
| Power Source | Power Supply,AC |
| Power Consumption | 252 W |
| Physical Characteristics | |
| Product Material | Metal |
| Form Factor | Desktop,Rack-mountable |
| Height | 1.73" (44 mm) |
| Width | 11.02" (280 mm) |
| Length | 9.06" (230 mm) |
| Weight (Approximate) | 5.51 lb (2500 g) |
| Miscellaneous | |
| Package Contents | 10-Port L2+ Fully Managed PoE++ Switch with 8 Gigabit Ethernet Ports and 2 SFP Uplinks Power Cable Instructions 19" Rackmount Brackets |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 3 Year |
User Manual
FAQ
What is the total PoE budget of this switch?
The Intellinet 562003 provides a 242W PoE budget, allowing it to power multiple high-demand devices such as IP cameras, wireless access points, and VoIP phones simultaneously. This budget is managed through PoE++ (IEEE 802.3bt) support, enabling efficient power allocation across the eight Gigabit Ethernet ports.
How many SFP uplink ports does this switch have?
This switch includes two SFP (Small Form-factor Pluggable) uplink ports. These ports support fiber or copper SFP modules, providing flexible options for connecting to core switches or extending network reach over longer distances with high bandwidth.
Does this switch support layer 3 routing?
Yes, the Intellinet 562003 operates at layer 3, supporting advanced routing functions like inter-VLAN routing and static routing. This capability allows it to manage traffic between different network segments efficiently, making it suitable for scalable network designs in business environments.
Can this switch be rack-mounted?
Yes, the switch is designed for both desktop and rack-mountable installations. It includes 19" rackmount brackets in the package, and its compact dimensions (1.73" H x 11.02" W x 9.06" D) allow it to fit standard network racks while conserving space.
What management features are included?
This fully managed switch offers comprehensive management through HTTP and HTTPS, featuring PoE Watchdog, port mirroring, RMON, link aggregation, QoS, broadcast storm control, access control lists, and dynamic ARP inspection. These tools provide granular control over network configuration, security, and monitoring.
What is the warranty period for this switch?
The Intellinet 562003 comes with a 3-year limited warranty, covering defects in materials and workmanship. This warranty ensures reliable performance and support for business-critical networking applications over an extended period.
What uplink, SFP, fiber, or media support detail is listed?
The warranty or support detail listed is Yes, giving buyers a clearer picture of expected coverage after purchase.
Does the product support PoE or wireless networking?
Connectivity support is listed in the product specifications, including the relevant wireless or port options when available.
