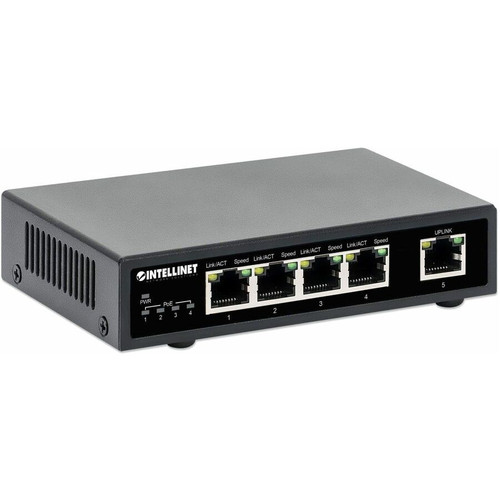

Intellinet 5 Port Gigabit PoE Plus Managed Switch TX 2 Layer Support Power Budget Compact Deployment Ready Manageable Supported Ethernet Ports 561839
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
- 5-Port Gigabit Ethernet PoE+ Switch
- Power Adapter
- Power Cord
- Instructions
Features: Fanless
Total Number of Network Ports: 5
Network (RJ-45): Yes
Uplink Port: Yes
Port/Expansion Slot Details: 4 x Gigabit Ethernet PoE+,1 x Gigabit Ethernet Uplink
Media Type Supported: Twisted Pair
Ethernet Technology: Gigabit Ethernet
Network Technology: 1000Base-T
Layer Supported: 2
Networking Standards: IEEE 802.3,IEEE 802.3ab,IEEE 802.3af,IEEE 802.3at,IEEE 802.3u,IEEE 802.3x
Manageable: Yes
PoE (RJ-45) Port: Yes
PoE Budget: 62 W
Input Voltage: 120 V AC,230 V AC
Power Source: Power Supply
Power Consumption: 65 W
Product Material: Metal
Form Factor: Desktop
Height: 1.14" (29 mm)
Width: 5.12" (130 mm)
Length: 3.39" (86 mm)
Weight (Approximate): 1.70 lb (770 g)
Package Contents:
- Cascade to other network devices through the uplink port to expand your local area network
- Quickly and easily set up a wired network with 5 networking ports
- With leading Layer 2 support, experience enhanced convenience, secure business operations, and a borderless network experience
- The desktop installation makes it ideal for deployments outside the wiring closet
- Management capability provides control over setup and configuration of your network
- Up to 10x faster than standard Ethernet server connectivity while providing high-performance uplinks
- Supports cost-efficient twisted pair cables for high-speed data transfer up to 100 meters
[custom-specifications]
| Specifications | |
| Manufacturer | IC INTRACOM |
| Manufacturer Part Number | 561839 |
| Manufacturer Website Address | http://www.icintracom.com |
| Brand Name | Intellinet |
| Product Name | 5-Port Gigabit Ethernet PoE+ Switch |
| Product Type | Ethernet Switch |
| Technical Information | |
| Features | Fanless |
| Interfaces/Ports | |
| Total Number of Network Ports | 5 |
| Network (RJ-45) | Yes |
| Uplink Port | Yes |
| Port/Expansion Slot Details | 4 x Gigabit Ethernet PoE+,1 x Gigabit Ethernet Uplink |
| Media & Performance | |
| Media Type Supported | Twisted Pair |
| Ethernet Technology | Gigabit Ethernet |
| Network Technology | 1000Base-T |
| Network & Communication | |
| Layer Supported | 2 |
| Networking Standards | IEEE 802.3,IEEE 802.3ab,IEEE 802.3af,IEEE 802.3at,IEEE 802.3u,IEEE 802.3x |
| Management & Protocols | |
| Manageable | Yes |
| Power Description | |
| PoE (RJ-45) Port | Yes |
| PoE Budget | 62 W |
| Input Voltage | 120 V AC,230 V AC |
| Power Source | Power Supply |
| Power Consumption | 65 W |
| Physical Characteristics | |
| Product Material | Metal |
| Form Factor | Desktop |
| Height | 1.14" (29 mm) |
| Width | 5.12" (130 mm) |
| Length | 3.39" (86 mm) |
| Weight (Approximate) | 1.70 lb (770 g) |
| Miscellaneous | |
| Package Contents |
|
[/custom-specifications]
[custom-user-manual]
Available Documentation:
Additional-pdf1
Additional-pdf2
[/custom-user-manual]
