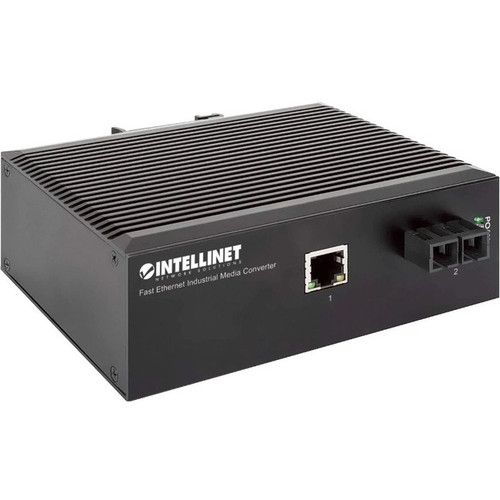

Intellinet 508322 Industrial Fast Ethernet Media Converter - RJ-45 to SC Duplex - Single-mode 1310 nm - 20 km - DIN Rail Mountable
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This media converter operates at Fast Ethernet speeds, delivering 100 Mbps data transfer rates across both copper and fiber interfaces. It supports optical fiber and twisted pair media types, with compatibility for fiber optic cable core/cladding specifications including 8.3/125 µm, 8.7/125 µm, 8/125 µm, and 10/125 µm.
The converter utilizes 100Base-TX technology for copper connections and 100Base-FX for fiber optic transmission, ensuring seamless protocol conversion. Power is supplied via DC input with a terminal block connector, designed for stable operation in industrial settings.
This section brings together practical product details such as Total Number of Ports, Network (RJ-45), Number of Network (RJ-45) Ports, Media Type Supported, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Key Product Advantages
This industrial-grade media converter delivers reliable performance in harsh environments with its rugged DIN rail mountable design and terminal block power input. The protocol transparent conversion requires no configuration, making deployment straightforward for network extension projects.
Industrial Durability
Built for demanding industrial settings with DIN rail mounting and stable DC power via terminal block connections.
Extended Reach
Supports single-mode fiber transmission up to 20 kilometers, significantly extending network coverage beyond copper limitations.
Broad Compatibility
Works with multiple fiber core/cladding specifications from 8.3/125 µm to 10/125 µm, ensuring flexibility with existing fiber infrastructure.
Deployment / Use Cases
The Intellinet 508322 is ideal for extending Fast Ethernet networks in industrial facilities, manufacturing plants, and outdoor installations where copper distance limitations must be overcome. Its industrial-grade construction and DIN rail mounting make it suitable for control panels, machinery enclosures, and harsh environment network cabinets.
Common applications include connecting remote industrial equipment to central networks, bridging between copper and fiber network segments in factory automation systems, and extending network reach in utility substations or transportation infrastructure where EMI resistance and long-distance transmission are critical.
Physical Profile
The media converter features a compact industrial design measuring 5.63" (143 mm) wide, 4.09" (104 mm) deep, and 1.89" (48 mm) high, with a weight of approximately 1.32 lb (600 g). The DIN rail mountable form factor allows secure installation in industrial control panels and network cabinets, while the terminal block power connection ensures reliable electrical connectivity in vibration-prone environments.
- Width
- 5.63" (143 mm)
- Depth
- 4.09" (104 mm)
- Height
- 1.89" (48 mm)
- Weight
- 1.32 lb (600 g)
- Length
- 1310 nm
Highlights
- Converts Fast Ethernet (100 Mbps) between copper RJ-45 and fiber SC duplex interfaces
- Supports single-mode fiber optic transmission up to 20 kilometers
- Operates at 1310 nm wavelength for optimal fiber performance
- DIN rail mountable for industrial panel installation
- Terminal block DC power input for reliable industrial power connections
- Compatible with multiple fiber core/cladding specifications (8.3/125 µm to 10/125 µm)
- Industrial-grade design for harsh environment operation
- Protocol transparent conversion requiring no configuration
Specifications
| Specifications | |
|---|---|
| Manufacturer | IC INTRACOM |
| Manufacturer Part Number | 508322 |
| Brand Name | Intellinet |
| Product Name | Industrial Fast Ethernet Media Converter |
| Product Type | Transceiver/Media Converter |
| Interfaces/Ports | |
| Total Number of Ports | 2 |
| Network (RJ-45) | Yes |
| Number of Network (RJ-45) Ports | 1 |
| Number of SC Ports | 1 |
| SC Port Type | Duplex |
| Media & Performance | |
| Media Type Supported | Optical Fiber,Twisted Pair |
| Fiber Mode Supported | Single-mode |
| Fiber Optic Cable Wavelength | 1310 nm |
| Maximum Distance Supported | 20 km (12.43 Mile) |
| Fiber Optic Cable Core/Cladding Specification | 8.3/125 µm,8.7/125 µm,8/125 µm,10/125 µm |
| Network & Communication | |
| Ethernet Technology | Fast Ethernet |
| Network Technology | 100Base-TX,100Base-FX |
| Power Description | |
| Power Source | DC |
| Plug/Connector Type | Terminal Block |
| Physical Characteristics | |
| Form Factor | DIN Rail Mountable |
| Height | 1.89" (48 mm) |
| Width | 5.63" (143 mm) |
| Depth | 4.09" (104 mm) |
| Weight (Approximate) | 1.32 lb (600 g) |
FAQ
What does this media converter actually convert?
This converter transforms 100Base-TX Fast Ethernet signals from twisted pair copper to 100Base-FX optical fiber signals. It bridges between copper RJ-45 connections and fiber optic SC duplex connections, enabling network extension beyond copper distance limitations while maintaining 100 Mbps Fast Ethernet speeds.
What type of fiber optic cable does this converter support?
The converter supports single-mode fiber optic cable with a 1310 nm wavelength. It is compatible with multiple fiber core/cladding specifications including 8.3/125 µm, 8.7/125 µm, 8/125 µm, and 10/125 µm, providing flexibility for various industrial fiber installations.
What is the maximum transmission distance supported?
This media converter supports transmission distances up to 20 kilometers (12.43 miles) over single-mode fiber optic cable. This extended reach makes it ideal for connecting remote equipment in industrial facilities, manufacturing plants, and outdoor installations where copper distance limitations would otherwise restrict network design.
How is this converter powered in industrial environments?
The converter uses DC power supplied through a terminal block connector. This industrial-grade power connection provides stable operation in harsh environments with vibration and electrical noise, making it suitable for control panels, machinery enclosures, and industrial network cabinets where reliable power delivery is essential.
What mounting options are available for industrial installation?
This media converter is designed for DIN rail mounting, allowing secure installation in standard industrial control panels and network cabinets. The compact form factor measures 5.63" wide, 4.09" deep, and 1.89" high, making it suitable for space-constrained industrial environments while providing reliable media conversion functionality.
Does this converter require configuration or management?
No configuration is required for this media converter. It operates as a protocol transparent device, automatically converting signals between copper and fiber interfaces without needing setup or management. This plug-and-play functionality simplifies deployment in industrial networks where technical staff may have limited networking expertise.
