Intellinet 560641 8-Port Gigabit Ethernet PoE+ Desktop Switch - Layer 2 Managed - 10/100/1000Base-T
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This managed Layer 2 switch implements advanced switching features including VLAN support, QoS prioritization, and port-based security controls. The eight Gigabit Ethernet ports operate at 10/100/1000 Mbps speeds with auto-MDI/MDIX crossover detection, eliminating the need for special crossover cables. PoE+ compliance (IEEE 802.3at) ensures compatibility with a wide range of powered devices while providing enhanced power management capabilities.
The switch architecture supports jumbo frames up to 9KB for improved data transfer efficiency in storage and multimedia applications. With a non-blocking switching capacity of 16 Gbps, it maintains wire-speed performance across all ports simultaneously. The internal power supply operates on standard 100-240V AC input, making it suitable for global deployment scenarios.
Relevant factors for this section include Total Number of Network Ports, Modular, Stack Port, Media Type Supported. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
The Intellinet 560641 combines PoE+ power delivery with managed Layer 2 features in a cost-effective desktop package. Its compact design and included mounting brackets provide flexible deployment options for environments where rack space is limited or unavailable.
Simplified Power Deployment
Deliver both data and up to 25.5W of power per port to eliminate separate power runs for IP cameras, access points, and VoIP phones.
- Reduces installation costs
- Simplifies cable management
- Enables remote power cycling
Enhanced Network Control
Layer 2 management features provide granular control over network traffic and device access.
- VLAN segmentation for security
- QoS for voice/video prioritization
- Port security and monitoring
Deployment Flexibility
Desktop form factor with optional 19" rack mounting accommodates diverse installation scenarios.
- Compact footprint
- Included mounting brackets
- Suitable for wiring closets or open spaces
Deployment / Use Cases
This switch excels in environments requiring both network connectivity and power delivery to edge devices. Its eight PoE+ ports make it ideal for powering surveillance systems, wireless networks, and voice communications infrastructure without requiring separate electrical circuits at each device location.
Small business offices benefit from the switch's managed capabilities for segmenting guest networks from internal resources while maintaining quality of service for critical applications. Educational institutions deploy these switches in classrooms and administrative areas to support digital learning tools and security systems. Retail environments utilize the PoE+ functionality for powering point-of-sale systems, digital signage, and inventory management devices from a centralized network closet.
IP Surveillance Systems
Power up to eight high-resolution IP cameras while transmitting video footage over the same Ethernet cables.
Wireless Network Expansion
Deploy multiple wireless access points throughout a facility with centralized power management and network control.
Physical Profile

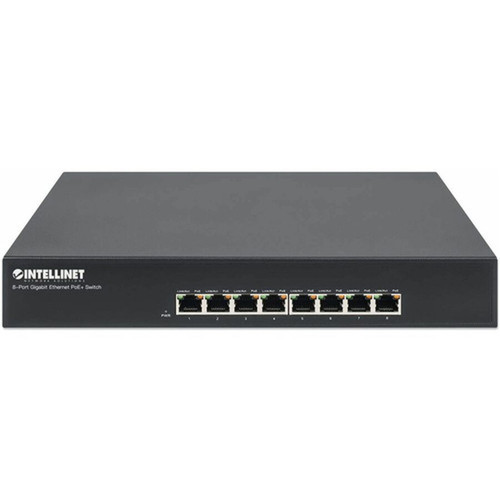

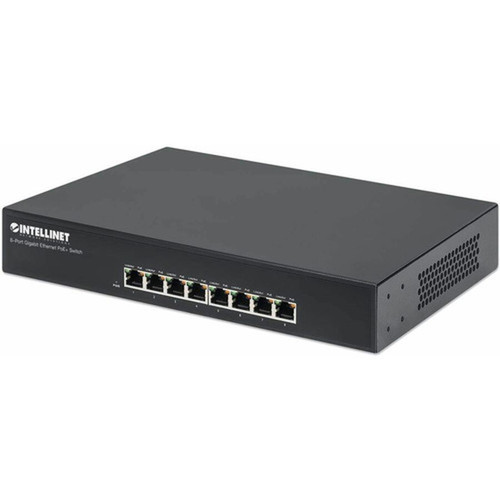

The black desktop enclosure measures 11.02 inches wide by 7.01 inches deep by 1.73 inches high, with a weight of approximately 3.30 pounds. The compact footprint fits easily on shelves, desks, or in wall-mounted configurations using the included 19" rack brackets. Front-panel LED indicators provide at-a-glance status monitoring for power, link activity, and PoE delivery on each port.
The physical profile is practical for deployment planning because the dimensions and weight are clearly defined: 1.73" (44 mm), 11.02" (280 mm), 3.30 lb (1496.85 g). This helps confirm rack, shelf, desk, or cabinet fit before installation.
- Width
- 11.02" (280 mm)
- Height
- 1.73" (44 mm)
- Weight
- 3.30 lb (1496.85 g)
- Length
- 7.01" (178 mm)
What's in the Box
The switch ships complete with all necessary components for immediate deployment.
Highlights
- Eight Gigabit Ethernet ports with PoE+ support delivering up to 25.5W per port
- Managed Layer 2 switching with VLAN, QoS, and security features
- 10/100/1000Base-T auto-negotiation for backward compatibility
- Compact desktop form factor with optional 19" rack mounting
- Built-in power supply with 100-240V AC input for global deployment
- Supports twisted-pair cabling for data transfer up to 100 meters
- RoHS compliant construction with environmentally friendly materials
- Three-year limited warranty for long-term reliability assurance
Specifications
| Specifications | |
|---|---|
| Manufacturer | IC INTRACOM |
| Manufacturer Part Number | 560641 |
| Brand Name | Intellinet |
| Product Model | 560641 |
| Product Name | 8-Port Gigabit Ethernet PoE+ Switch |
| Product Type | Ethernet Switch |
| Interfaces/Ports | |
| Total Number of Network Ports | 8 |
| Modular | No |
| Stack Port | No |
| Port/Expansion Slot Details | 8 x Gigabit Ethernet PoE+ |
| Media & Performance | |
| Media Type Supported | Twisted Pair |
| Ethernet Technology | Gigabit Ethernet |
| Network Technology | 10/100/1000Base-T |
| Network & Communication | |
| Layer Supported | 2 |
| Power Description | |
| PoE (RJ-45) Port | No |
| Power Source | Power Supply |
| Redundant Power Supply Supported | No |
| Physical Characteristics | |
| Product Color | Black |
| Form Factor | Desktop |
| Height | 1.73" (44 mm) |
| Width | 11.02" (280 mm) |
| Length | 7.01" (178 mm) |
| Weight (Approximate) | 3.30 lb (1496.85 g) |
| Miscellaneous | |
| Package Contents | 8-Port PoE+ Desktop Gigabit Switch Power Cable User Manual 19" Mounting Brackets |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 3 Year |
User Manual
FAQ
How many devices can this switch power simultaneously?
All eight Gigabit Ethernet ports support PoE+ (IEEE 802.3at) with up to 25.5 watts per port. The switch can power eight PoE+ devices simultaneously, provided the total power budget is not exceeded. This makes it suitable for deploying multiple IP cameras, wireless access points, or VoIP phones without requiring separate power adapters at each location.
What Layer 2 management features does this switch include?
The Intellinet 560641 provides comprehensive Layer 2 management capabilities including VLAN support for network segmentation, QoS prioritization for voice and video traffic, port security with MAC address filtering, and spanning tree protocol for loop prevention. These features enable network administrators to optimize performance, enhance security, and manage traffic flow across connected devices.
Can this switch be mounted in a standard equipment rack?
Yes, the switch includes 19" mounting brackets for standard equipment rack installation. While designed as a desktop form factor, the included brackets allow for secure rack mounting in wiring closets or server rooms. The compact 1.73-inch height makes efficient use of rack space while providing easy access to all front-panel ports and status indicators.
What type of cabling does this switch support?
The switch supports standard twisted-pair Ethernet cabling (CAT5e, CAT6, or higher) for both data and PoE+ power delivery. It is compatible with 10/100/1000Base-T network standards and supports cable runs up to 100 meters. Auto-MDI/MDIX functionality eliminates the need for crossover cables, allowing straight-through cables to connect to any network device.
What is the power input requirement for this switch?
The built-in power supply accepts 100-240V AC input at 50/60Hz, making it suitable for international deployment. The switch does not support redundant power supplies but includes comprehensive power management features for connected PoE+ devices, including per-port power monitoring and remote power cycling capabilities through the management interface.
What warranty coverage does Intellinet provide for this switch?
Intellinet backs this switch with a three-year limited warranty covering defects in materials and workmanship. The warranty includes technical support and replacement service for qualified claims. The switch is also RoHS compliant, meeting environmental standards for hazardous substance restriction in its construction and manufacturing processes.
