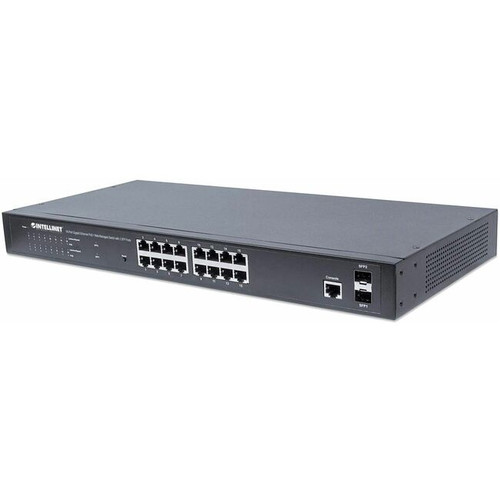

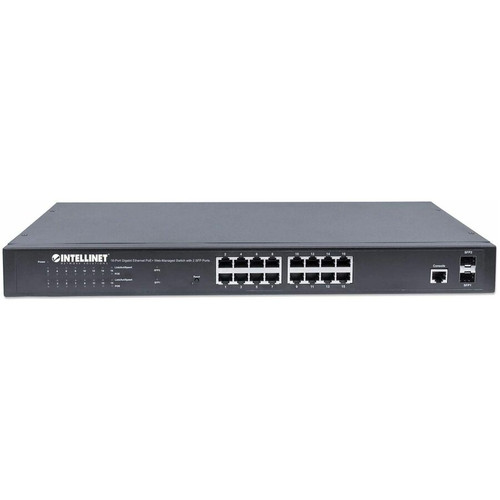

Intellinet 561341 16-Port Gigabit PoE+ Web-Managed Switch with 2 SFP Uplinks - 220W PoE Budget - Rack-Mountable
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This Layer 2 switch supports 10/100/1000Base-T Ethernet over twisted pair cabling and 1000Base-X via its SFP slots for fiber optic connections. All 16 RJ-45 ports deliver PoE+ power compliant with IEEE 802.3at and IEEE 802.3af standards, with a total PoE budget of 220 watts to support multiple powered devices simultaneously.
The switch implements a complete set of management features including IGMP snooping for multicast traffic optimization, port mirroring for network monitoring, spanning tree protocols (IEEE 802.1D, IEEE 802.1w) for loop prevention, and link aggregation (IEEE 802.3ad) for bandwidth combining. Quality of service (IEEE 802.1p), VLAN support (IEEE 802.1Q), and energy-efficient Ethernet (IEEE 802.3az) round out the protocol support for efficient, segmented, and power-conscious network operation.
Relevant factors for this section include Total Number of Network Ports, Network (RJ-45), Modular, Media Type Supported. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
The Intellinet 561341 combines high port density with substantial PoE power in a compact, manageable package. Its 220-watt PoE budget allows deployment of multiple power-hungry devices without external injectors, while dual SFP uplinks provide fiber connectivity options for longer distance runs or higher bandwidth aggregation to network cores.
Unified Power and Data
Sixteen PoE+ ports deliver both network connectivity and electrical power over standard Cat5e/6 cables, simplifying installation and reducing cable clutter for IP telephony, wireless networking, and surveillance systems.
- IEEE 802.3at/af compliant
- Up to 30W per port
- Auto-sensing powered devices
Professional Management
Web-based management provides access to advanced switching features without requiring command-line expertise. Configure VLANs, QoS policies, port security, and monitoring tools through an intuitive browser interface.
- IGMP snooping
- Port mirroring
- Spanning tree protocols
- Link aggregation
Deployment-Ready Design
The all-metal chassis includes integrated rack ears for standard 19" rack mounting. A built-in power supply ensures stable operation, while compact dimensions conserve valuable rack space in wiring closets and server rooms.
- Includes rackmount brackets
- 1.73" height (1U)
- 260W power consumption
Deployment / Use Cases
This switch is ideal for environments where multiple powered devices need centralized connectivity with management capabilities. Its combination of PoE power, Gigabit throughput, and fiber uplink options makes it suitable for modern office networks, retail point-of-sale systems, and small-scale surveillance installations.
In office settings, the 561341 can power VoIP phones and wireless access points while providing high-speed connectivity to workstations and servers. For surveillance deployments, it delivers both power and data to IP cameras, with SFP uplinks enabling long-distance connections back to network recorders or monitoring stations. The web management interface allows network segmentation for different departments or security zones while maintaining overall network oversight.
Physical Profile
Constructed from metal for durability and heat dissipation, the switch measures 1.73 inches in height (1 rack unit), 17.32 inches in width, and 8.19 inches in depth. This compact form factor fits standard 19" equipment racks while providing adequate ventilation for continuous operation. The included rackmount brackets facilitate secure installation in server rooms or network cabinets.
The physical profile is practical for deployment planning because the dimensions and weight are clearly defined: 1.73" (44 mm), 17.32" (440 mm), 5.51 lb (2500 g). This helps confirm rack, shelf, desk, or cabinet fit before installation.
- Width
- 17.32" (440 mm)
- Height
- 1.73" (44 mm)
- Weight
- 5.51 lb (2500 g)
- Length
- 8.19" (208 mm)
What's in the Box
The switch ships complete with all necessary components for immediate deployment.
Highlights
- 16 Gigabit Ethernet ports with PoE+ support
- 220-watt total PoE budget for multiple powered devices
- 2 SFP uplink slots for fiber optic connectivity
- Web-managed interface with Layer 2 switching features
- Rack-mountable 1U metal chassis for professional installation
- Supports key networking standards including VLAN, QoS, and link aggregation
- Energy-efficient Ethernet (EEE) compliant
- 3-year limited warranty for long-term reliability
Specifications
| Specifications | |
|---|---|
| Manufacturer | IC INTRACOM |
| Manufacturer Part Number | 561341 |
| Brand Name | Intellinet |
| Product Model | 561341 |
| Product Name | 16-Port Gigabit Ethernet PoE+ Web-Managed Switch with 2 SFP Ports |
| Product Type | Ethernet Switch |
| Interfaces/Ports | |
| Total Number of Network Ports | 16 |
| Network (RJ-45) | Yes |
| Modular | Yes |
| Port/Expansion Slot Details | 16 x Gigabit Ethernet PoE+,2 x Gigabit Ethernet Expansion Slot |
| Media & Performance | |
| Media Type Supported | Optical Fiber,Twisted Pair |
| Ethernet Technology | Gigabit Ethernet |
| Network Technology | 10/100/1000Base-T,1000Base-X |
| I/O Expansions | |
| Total Number of Expansion Slots | 2.0 |
| Expansion Slot Type | SFP (mini-GBIC) |
| Number of SFP Slots | 2 |
| Network & Communication | |
| Layer Supported | 2 |
| Networking Standards | IEEE 802.1D,IEEE 802.1p,IEEE 802.3at,IEEE 802.3af,IEEE 802.3az,IEEE 802.1x,IEEE 802.3x,IEEE 802.1Q,IEEE 802.1w,IEEE 802.3ad,IEEE 802.3,IEEE 802.3ab,IEEE 802.3u |
| Management & Protocols | |
| Manageable | Yes |
| Power Description | |
| PoE (RJ-45) Port | Yes |
| PoE Budget | 220 W |
| Power Source | Power Supply |
| Power Consumption | 260 W |
| Physical Characteristics | |
| Product Material | Metal |
| Form Factor | Rack-mountable |
| Height | 1.73" (44 mm) |
| Width | 17.32" (440 mm) |
| Length | 8.19" (208 mm) |
| Weight (Approximate) | 5.51 lb (2500 g) |
| Miscellaneous | |
| Package Contents | 16-Port Gigabit Ethernet PoE+ Web-Managed Switch with 2 SFP Ports Power Cable User Manual 19" Rackmount Brackets |
| Warranty | |
| Limited Warranty | 3 Year |
User Manual
FAQ
How many devices can this switch power simultaneously?
The switch has a total PoE budget of 220 watts distributed across its 16 PoE+ ports. The actual number of devices depends on their individual power requirements. Each port can deliver up to 30 watts compliant with IEEE 802.3at (PoE+), allowing the switch to power multiple IP phones, wireless access points, or surveillance cameras concurrently without external power injectors.
What types of SFP modules are compatible with this switch?
The two SFP (mini-GBIC) slots support standard Gigabit SFP transceivers for both copper and fiber optic connections. You can use 1000BASE-SX or 1000BASE-LX fiber modules for multimode or single-mode fiber runs, or 1000BASE-T copper modules for additional twisted pair connections. The switch automatically detects and configures compatible SFP modules upon insertion.
Does this switch support VLAN configuration?
Yes, the switch supports IEEE 802.1Q VLAN tagging for network segmentation. Through the web management interface, you can create port-based VLANs to separate traffic between departments, device types, or security zones. This allows you to isolate voice, data, and surveillance traffic while maintaining a single physical network infrastructure.
What management features are available through the web interface?
The web management interface provides access to port configuration, VLAN setup, Quality of Service (QoS) prioritization, link aggregation (LACP), port mirroring for monitoring, IGMP snooping for multicast optimization, and spanning tree protocols for loop prevention. You can also monitor port status, traffic statistics, and PoE power allocation without requiring command-line expertise.
Is this switch suitable for rack mounting?
Yes, the switch is designed for standard 19" rack installation with a height of 1.73 inches (1 rack unit). It includes mounting brackets that attach to the sides of the chassis for secure rack mounting. The metal construction provides durability in rack environments, and the compact depth of 8.19 inches conserves valuable rack space in network cabinets.
What warranty coverage does this switch include?
The Intellinet 561341 comes with a 3-year limited warranty from the manufacturer. This warranty covers defects in materials and workmanship under normal use. For warranty service or support, you can contact the manufacturer or authorized service centers with your proof of purchase.
