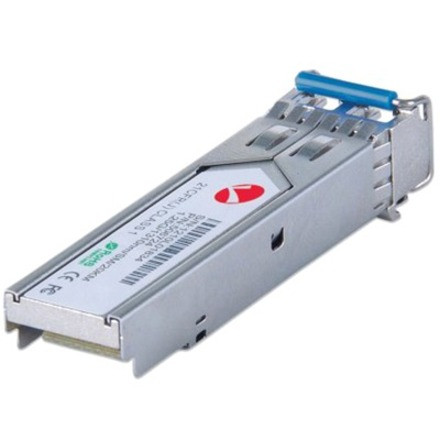

Intellinet 506724 Gigabit Ethernet SFP Transceiver - 1000Base-LX LC Single-Mode - 20km - Equivalent to Cisco GLC-LH-SM
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
Engineered for optical network applications, the Intellinet 506724 transceiver operates on single-mode fiber with a reach of up to 20 kilometers, enabling long-distance data transmission with minimal signal loss. The 1000Base-LX network technology provides gigabit Ethernet performance, ideal for backbone connections and high-bandwidth network segments.
The module features a single LC duplex port, supporting full-duplex communication for efficient data flow. Its hot-pluggable design allows for installation and removal without powering down the network device, reducing downtime during maintenance or upgrades.
Key Product Advantages
This SFP transceiver offers several advantages for network deployments, including high-speed gigabit Ethernet connectivity and extended reach over single-mode fiber. Its compatibility with Cisco GLC-LH-SM equivalents makes it a cost-effective alternative for Cisco-based networks without sacrificing performance.
Long-Distance Performance
Supports data transmission up to 20 km on single-mode fiber, ideal for connecting remote network segments or buildings.
- Minimal signal loss over distance
- Suitable for backbone links
Easy Integration
MSA compliance ensures interoperability with a wide range of networking hardware, while the hot-pluggable form factor simplifies installation and maintenance.
- Broad equipment compatibility
- Reduces network downtime
Deployment / Use Cases
The Intellinet 506724 transceiver is well-suited for various networking scenarios that require reliable, high-speed fiber optic connections. Its 1000Base-LX technology and single-mode support make it ideal for enterprise networks, data centers, and telecommunications infrastructure.
Common use cases include connecting switches and routers over long distances, extending network backbones between buildings, and upgrading existing fiber links to gigabit speeds. The module's durability and performance ensure stable operation in demanding environments.
Enterprise Network Backbone
Deploy as a backbone link in corporate networks to connect core switches across campuses or between floors, leveraging the 20 km reach for flexible layout.
Data Center Interconnects
Use in data centers to link server racks or storage arrays over fiber, providing high bandwidth and low latency for critical applications.
Physical Profile
The transceiver has a compact design with dimensions of 0.47" (12 mm) in height, 0.51" (13 mm) in width, and 2.17" (55 mm) in depth, weighing approximately 0.53 oz (15 g). This small footprint allows for high-density installations in network switches and routers without occupying excessive space.
- Width
- 0.51" (13 mm)
- Depth
- 2.17" (55 mm)
- Height
- 0.47" (12 mm)
- Weight
- 0.53 oz (15 g)
Highlights
- Gigabit Ethernet SFP transceiver with 1000Base-LX technology for up to 1000 Mbps data transfer
- LC duplex connector for single-mode fiber optic cable, supporting distances up to 20 km
- Hot-pluggable form factor enables easy installation and removal without network downtime
- MSA compliant for broad compatibility with networking equipment
- Equivalent to Cisco GLC-LH-SM, offering a cost-effective alternative for Cisco environments
- Compact and lightweight design ideal for high-density network deployments
- Supports optical fiber for durable performance with minimal signal loss
- Ideal for long-distance data transmission in enterprise and data center networks
Specifications
| Specifications | |
|---|---|
| Manufacturer | IC INTRACOM |
| Manufacturer Part Number | 506724 |
| Brand Name | Intellinet |
| Product Model | 506724 |
| Product Name | Gigabit Fiber SFP Optical Transceiver Module |
| Product Type | SFP (mini-GBIC) |
| Technical Information | |
| Application/Usage | Optical Network,Data Networking |
| Interfaces/Ports | |
| Total Number of Ports | 1 |
| Connector Type | LC |
| Interfaces/Ports Details | 1 x LC Duplex 1000Base-LX Network |
| Media & Performance | |
| Media Type Supported | Optical Fiber |
| Fiber Mode Supported | Single-mode |
| Ethernet Technology | Gigabit Ethernet |
| Network Technology | 1000Base-LX |
| Physical Characteristics | |
| Form Factor | Hot-pluggable |
| Height | 0.47" (12 mm) |
| Width | 0.51" (13 mm) |
| Depth | 2.17" (55 mm) |
| Weight (Approximate) | 0.53 oz (15 g) |
| Miscellaneous | |
| Compatibility | MSA Compliant |
FAQ
What type of fiber optic cable does this SFP transceiver support?
This transceiver supports single-mode fiber optic cable, which is designed for long-distance data transmission with minimal signal loss. It uses an LC duplex connector, making it compatible with standard single-mode fiber patches for connections up to 20 kilometers.
Is this transceiver compatible with Cisco networking equipment?
Yes, the Intellinet 506724 is equivalent to the Cisco GLC-LH-SM transceiver, offering compatibility with Cisco switches and routers that accept SFP modules. It is MSA compliant, ensuring interoperability with a wide range of networking hardware beyond Cisco as well.
What is the maximum data transfer rate and distance for this module?
This transceiver supports a data transfer rate of up to 1000 Mbps using 1000Base-LX technology. It is designed for single-mode fiber with a reach distance of up to 20 kilometers, making it suitable for extending network links over long distances without performance degradation.
Can I hot-plug this SFP transceiver into a live network device?
Yes, the transceiver features a hot-pluggable form factor, allowing you to install or remove it from a network switch or router without powering down the device. This capability reduces downtime during maintenance, upgrades, or replacements in active network environments.
