IOGEAR GCS72MDPKIT 2-Port USB VGA Cable KVM with Mini DisplayPort Adapters - 2048 x 1536 Resolution - 2 Computer Switching
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview

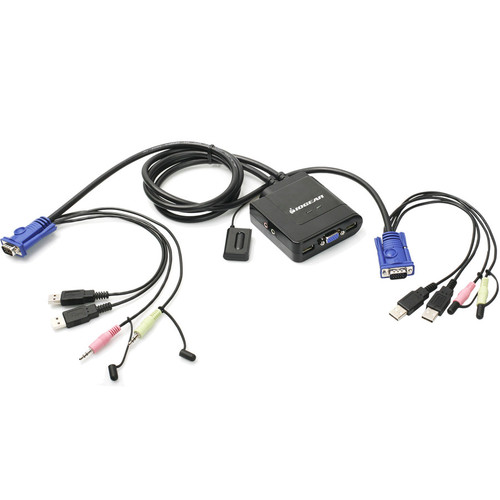

This KVM switch supports video resolutions up to 2048 x 1536 with DDC2B compatibility, ensuring clear display output across connected systems. It features two USB ports for connecting a keyboard and mouse, plus one VGA port for monitor connectivity. The integrated audio circuitry delivers 2.1 stereo audio and microphone support, maintaining full multimedia functionality during switching.
The conversion role centers on enabling VGA and Mini DisplayPort computer connections through included adapters. Operating without external power, it draws minimal power directly from the USB connections, making it an energy-efficient choice for office or home environments.
This section brings together practical product details such as Number of Computers Supported, Number of Local Users Supported, Maximum Video Resolution, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Key Product Advantages
This KVM switch delivers practical benefits through its simplicity and compatibility. The included Mini DisplayPort adapters provide immediate flexibility for modern computers, while the VGA connection maintains support for legacy monitors. The compact form factor and integrated cables reduce desktop footprint and installation time.
Cost-Effective Switching
Eliminates the expense of duplicate peripherals by allowing one keyboard, mouse, and monitor to control two computers.
- Reduces hardware costs
- Minimizes desk space usage
Universal Compatibility
Works with PC, MAC, and SUN operating platforms, making it suitable for mixed-environment deployments.
- Cross-platform support
- No driver installation required
Deployment / Use Cases
The GCS72MDPKIT is ideal for environments where users need to access multiple computers without constantly swapping cables. Its compact design and simple operation make it suitable for office workstations, help desk setups, home offices, and educational labs.
Common deployment scenarios include IT professionals managing test and production systems, graphic designers switching between creative and administrative computers, and home users connecting personal and work devices. The plug-and-play functionality ensures quick deployment in temporary or permanent installations.
Physical Profile
Measuring 6 inches in height, 2 inches in width, and 7 inches in depth, this KVM switch has a compact footprint that fits easily on desks or in tight spaces. The approximate weight of 13.12 ounces makes it lightweight and portable. The molded-in cables are 3 feet long, providing sufficient reach for typical workstation arrangements while maintaining a tidy setup.
- Width
- 2" (50.80 mm)
- Depth
- 7" (177.80 mm)
- Height
- 6" (152.40 mm)
- Weight
- 13.12 oz (371.95 g)
What's in the Box
The package includes all necessary components for immediate use.
Highlights
- Switch between two computers with a single button press
- Includes two Mini DisplayPort to VGA adapters for flexible connectivity
- No external power required – operates via USB connections
- Supports maximum video resolution of 2048 x 1536
- Provides 2.1 stereo audio and microphone support
- Plug-and-play installation with 3-foot molded-in cables
- Compatible with PC, MAC, and SUN operating platforms
- Compact dimensions: 6" H × 2" W × 7" D
- Environmentally compliant with RoHS and WEEE standards
- Backed by a 3-year limited warranty
Specifications
| Specifications | |
|---|---|
| Manufacturer | IOGEAR, Inc |
| Manufacturer Part Number | GCS72MDPKIT |
| Brand Name | IOGEAR |
| Product Name | 2-Port USB VGA Cable KVM with Mini DisplayPort Adapters |
| Packaged Quantity | 1 |
| Product Type | KVM Switchbox |
| Technical Information | |
| Number of Computers Supported | 2 |
| Number of Local Users Supported | 1 |
| Video | |
| Maximum Video Resolution | 2048 x 1536 |
| Interfaces/Ports | |
| USB | Yes |
| VGA | Yes |
| Number of USB Ports | 2 |
| Number of VGA Ports | 1 |
| Physical Characteristics | |
| Height | 6" (152.40 mm) |
| Width | 2" (50.80 mm) |
| Depth | 7" (177.80 mm) |
| Weight (Approximate) | 13.12 oz (371.95 g) |
| Miscellaneous | |
| Package Contents | 2-Port USB Cable KVM 2 x Mini DisplayPort to VGA Adapters 1 x Quick Start Guide 1 x Warranty Card |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS),Waste Electrical and Electronic Equipment Directive (WEEE) |
| Country of Origin | China |
| Warranty | |
| Limited Warranty | 3 Year |
User Manual
FAQ
How many computers can this KVM switch control?
The IOGEAR GCS72MDPKIT supports two computers. It allows one local user to switch between both systems using a single USB keyboard, USB mouse, and VGA monitor, eliminating the need for duplicate peripherals.
What video connections does this KVM support?
This switch supports VGA connections directly and includes two Mini DisplayPort to VGA adapters. This enables connectivity with computers that have either VGA or Mini DisplayPort outputs, providing flexibility for mixed hardware environments.
Does this KVM switch require external power?
No, the GCS72MDPKIT operates without external power. It draws minimal power directly from the USB connections of the connected computers, making it a convenient and energy-efficient plug-and-play solution.
What is the maximum video resolution supported?
The maximum supported video resolution is 2048 x 1536 with DDC2B compatibility. This ensures clear and detailed display output for general computing, office applications, and multimedia content.
Is audio supported through this KVM switch?
Yes, the switch includes 2.1 stereo audio and microphone support. This maintains full audio functionality when switching between computers, allowing users to hear system sounds and use voice communication without additional cables.
