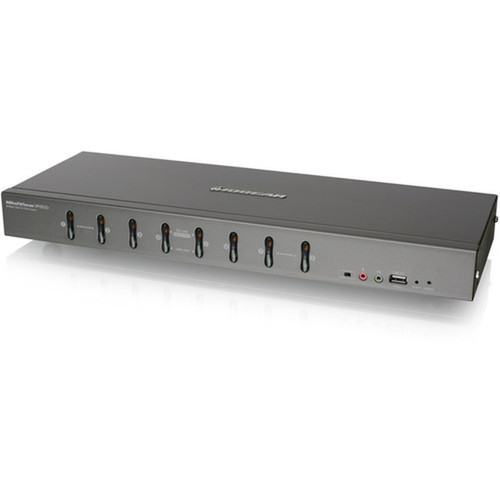

IOGEAR GCS1108 8-Port DVI KVMP Switch with VGA Support - Rack-mountable - 2046 x 1536 QXGA
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This KVM switch provides 8 computer ports with support for both DVI and VGA connections, accommodating diverse hardware configurations. The console interface uses USB connectivity for keyboard, mouse, and peripheral control, while the switch itself offers 10 USB ports total - 8 for computer connections plus 2 dedicated peripheral sharing ports. Video support includes 9 DVI ports and 1 VGA port, ensuring compatibility with both digital and analog display systems.
The GCS1108 achieves maximum video resolution of 2046x1536 in QXGA graphic mode, supporting widescreen resolutions and maintaining signal integrity through DDC2 compliance. Its rack-mountable 1U form factor measures 1.75" in height and 6.30" in depth, weighing approximately 6.40 pounds for stable installation in standard server racks. The switch operates on external power via the included adapter and supports cascading up to three levels for controlling up to 512 computers in expanded deployments.
Key Product Advantages
The GCS1108 distinguishes itself through versatile video support, robust security features, and scalable architecture. Its ability to handle both DVI and VGA connections simultaneously makes it ideal for environments with mixed display technologies, while the independent switching of KVM and USB focus provides granular control over connected systems.
Enhanced Security
Two-level password authorization (Administrator/User) protects system access, while independent KVM and USB switching prevents unauthorized peripheral access.
- Administrator and user access levels
- Password-protected operation
- Independent peripheral control
Management Flexibility
Multiple control methods including front-panel pushbuttons, keyboard hotkeys, and intuitive on-screen display menus streamline computer selection and configuration.
- Front-panel controls
- Keyboard hotkey support
- On-screen display interface
Deployment / Use Cases
The IOGEAR GCS1108 excels in data center environments where administrators need to manage multiple servers from a centralized console. Its rack-mountable design and cascading capability make it suitable for server rooms requiring control of numerous systems while minimizing physical footprint. The switch's support for both DVI and VGA displays accommodates legacy and modern equipment in the same rack.
In broadcast and media production studios, the GCS1108 enables operators to switch between editing stations, rendering farms, and playback systems without multiple keyboards and mice. The high 2046x1536 resolution support ensures crisp visual feedback when managing graphic-intensive applications. Financial trading floors and security operations centers benefit from the switch's password protection and independent peripheral control when handling sensitive data across multiple monitors.
Data Center Management
Control up to 8 servers from a single console in 1U rack space, with cascading support for larger installations.
Multi-Platform Environments
Manage Windows, Linux, Mac, and Sun systems simultaneously through the multiplatform-compatible USB interface.
Physical Profile
Designed for professional rack installation, the GCS1108 occupies minimal vertical space at 1.75" (1U) height while providing substantial connectivity in its 6.30" depth. The 6.40-pound weight ensures stability in standard server racks without requiring additional support. The included rack mounting kit and foot pad set allow for flexible deployment in both rack-mounted and desktop configurations, while the compact form factor optimizes space utilization in crowded server environments.
- Depth
- 6.30" (160.02 mm)
- Height
- 1.75" (44.45 mm)
- Weight
- 6.40 lb (2902.99 g)
What's in the Box
The package includes all necessary components for immediate deployment and ongoing maintenance.
Highlights
- Controls 8 computers via single USB console
- Supports both DVI and VGA video connections
- Maximum 2046x1536 QXGA resolution
- Rack-mountable 1U form factor
- Includes 2 USB 2.0 peripheral sharing ports
- Multiplatform support for Windows, Linux, Mac, Sun
- Two-level password authorization security
- Cascadable to control up to 512 computers
- Front panel, hotkey, and OSD control methods
- 3-year limited warranty
Specifications
| Specifications | |
|---|---|
| Manufacturer | IOGEAR, Inc |
| Manufacturer Part Number | GCS1108 |
| Brand Name | IOGEAR |
| Product Name | 8-Port DVI KVMP switch with VGA Support |
| Packaged Quantity | 1 |
| Product Type | KVM Switchbox |
| Technical Information | |
| Number of Computers Supported | 8 |
| Video | |
| Graphic Mode | QXGA |
| Maximum Video Resolution | 2046 x 1536 |
| Interfaces/Ports | |
| USB | Yes |
| DVI | Yes |
| VGA | Yes |
| Number of USB Ports | 10 |
| Number of DVI Ports | 9 |
| Number of VGA Ports | 1 |
| Physical Characteristics | |
| Form Factor | Rack-mountable |
| Height | 1.75" (44.45 mm) |
| Depth | 6.30" (160.02 mm) |
| Weight (Approximate) | 6.40 lb (2902.99 g) |
| Miscellaneous | |
| Package Contents | 8-Port DVI KVMP switch with VGA Support 2 x Custom USB DVI KVM Cable Sets 1 x Firmware Upgrade Cable 1 x Power Adapter 1 x Foot Pad Set (4 pcs) 1 x User Manual 1 x Rack Mounting Kit |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS),Waste Electrical and Electronic Equipment Directive (WEEE) |
| Country of Origin | Taiwan |
| Warranty | |
| Limited Warranty | 3 Year |
FAQ
How many computers can the GCS1108 KVM switch control?
The IOGEAR GCS1108 controls up to 8 computers directly from a single console. Through its cascading capability, you can connect multiple switches together to control up to 512 computers across three levels of expansion, making it suitable for both small server rooms and larger data center deployments.
What video connections does this KVM switch support?
This switch supports both digital DVI and analog VGA video connections simultaneously. It includes 9 DVI ports and 1 VGA port, allowing you to connect computers with either type of video output. The switch automatically detects and handles the appropriate signal type for each connected computer.
What is the maximum video resolution supported?
The GCS1108 supports maximum video resolution of 2046 x 1536 in QXGA graphic mode. It also supports widescreen resolutions and maintains video quality up to 1920x1200 for single-link DVI connections. The DDC2 compliance ensures proper communication between the switch and connected displays for optimal resolution detection.
Can this switch be installed in a server rack?
Yes, the GCS1108 is designed for rack mounting with a standard 1U form factor that measures 1.75" in height and 6.30" in depth. The package includes a complete rack mounting kit for secure installation in standard server racks. The switch also comes with foot pads for desktop use if rack mounting isn't required.
What control methods are available for switching between computers?
You can switch between connected computers using three methods: front-panel pushbuttons for direct port selection, keyboard hotkeys for quick switching without reaching the unit, and an on-screen display menu for visual navigation and configuration. The independent switching of KVM and USB focus allows separate control of video and peripheral connections.
What security features does this KVM switch include?
The GCS1108 includes two-level password authorization with separate Administrator and User access levels. This prevents unauthorized access to connected systems while allowing different permission levels for various operators. The independent switching of KVM and USB focus adds another layer of security by controlling peripheral access separately from video switching.
